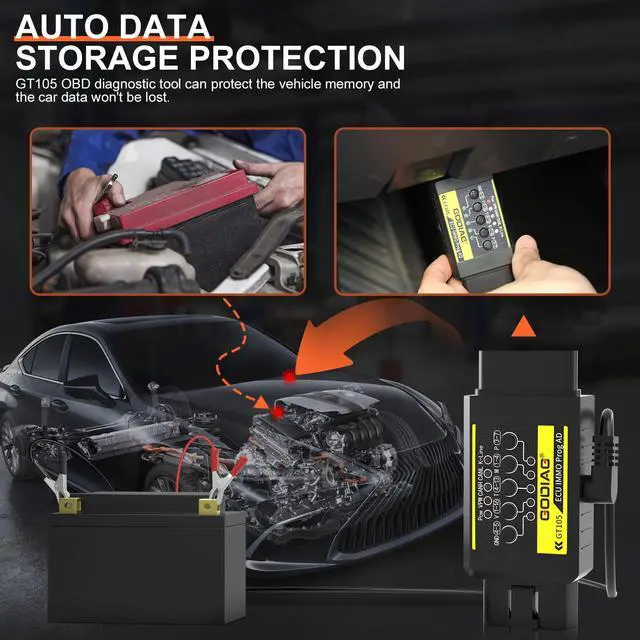

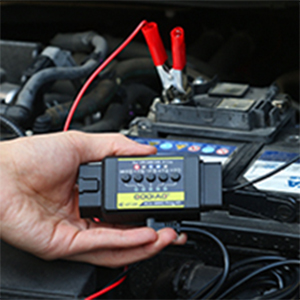

With GT105 OBD Battery Replacement Tool, you can enjoy the functions listed below during the battery replacement:
- The clock does not change. The speaker is not locked.
- IMMO is not locked. Glass door is not set.
- The throttle is not set.
- The warning light is off. No fault code.

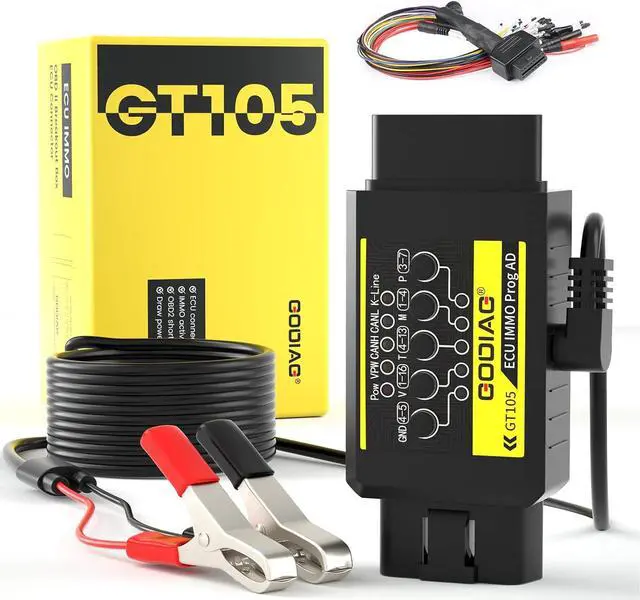

GT105 New Version Main Functions:
- A full-protocol ECU connection line for ECU programming power adjustment. (Full protocol OBD2 jumper)
- OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules. PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
- Standard OBD2 independent PIN4, PIN5.
- Pure copper female seat supports repeated insertion and removal, and has a long service life.
- Battery clip treated with salt spray, with a thickness of 0.5mm.
- The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
- The DC connector has a re-settable 7A fuse. DC power interface, dedicated laboratory power connector.

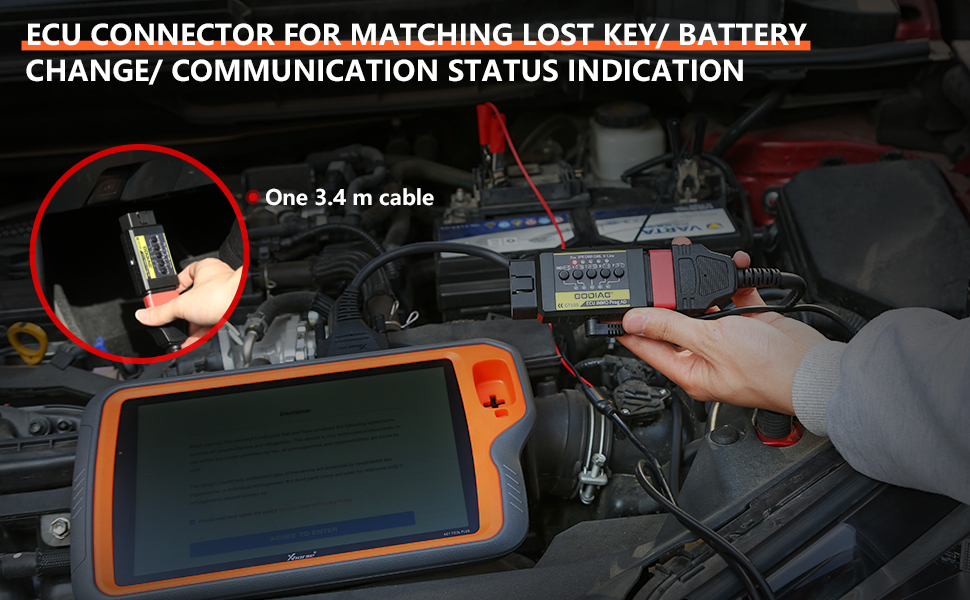

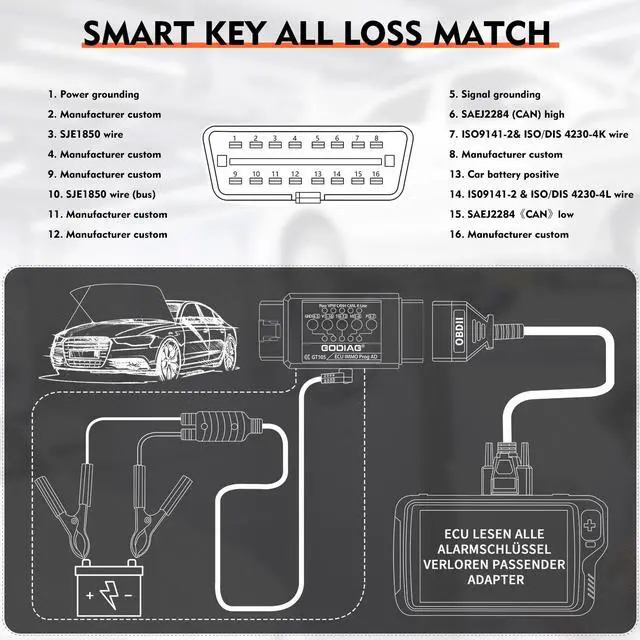

After 2016, for F-ord all smart keys lost, GT105 cooperates with other other anti-theft matching equipment to program the keys.
Wake up the meter or wake up the anti-theft ECU. Short Circuit button can directly help you avoiding disassemble your ECU Box. (Support VAG 4th and 5th generation anti-theft, T-oyota ECU synchronization, auxiliary M-itsubishi all key lost matching or all lost remote control key setting, old P-orsche Cayenne car for anti-theft key learning.)

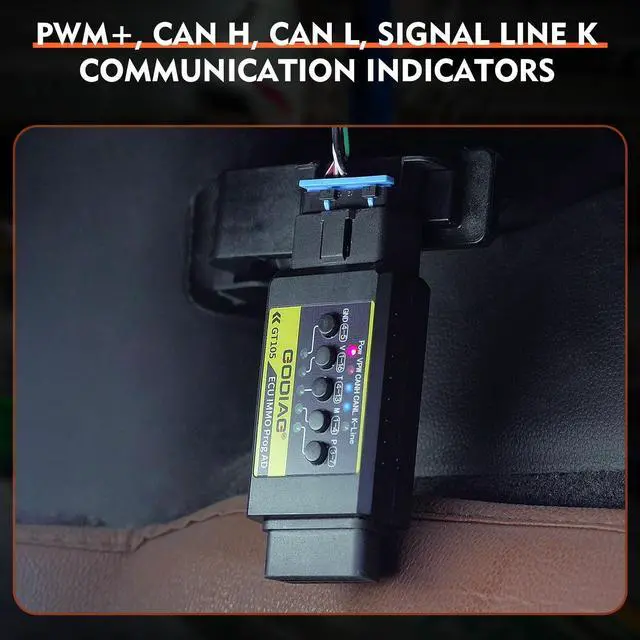

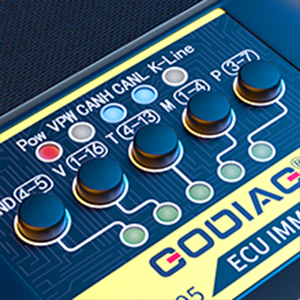

VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic programming device. (If the product is used to connect the device, the user can simply judge whether the diagnostic programming is normal or not according to whether the device can send communication.)

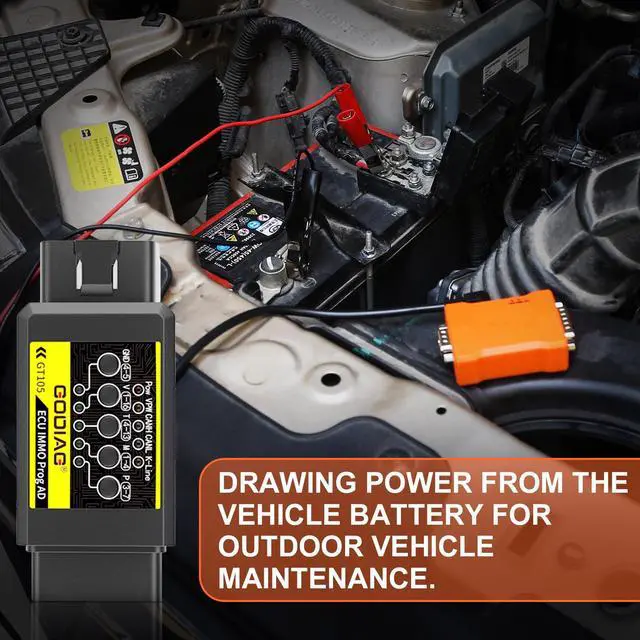

The NEWEST GT105 power adapter cable obtains 12V power from the car battery. When you need work outdoor, and provide power for your expensive scanner. (For programming equipment such as X-horse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, etc., it provides 12V power supply when they need power outdoors, so as to read the data of BMW BENZ anti-theft ECU, or other car ECUs, and finally realize the on-site maintenance of outdoor faulty vehicles. )

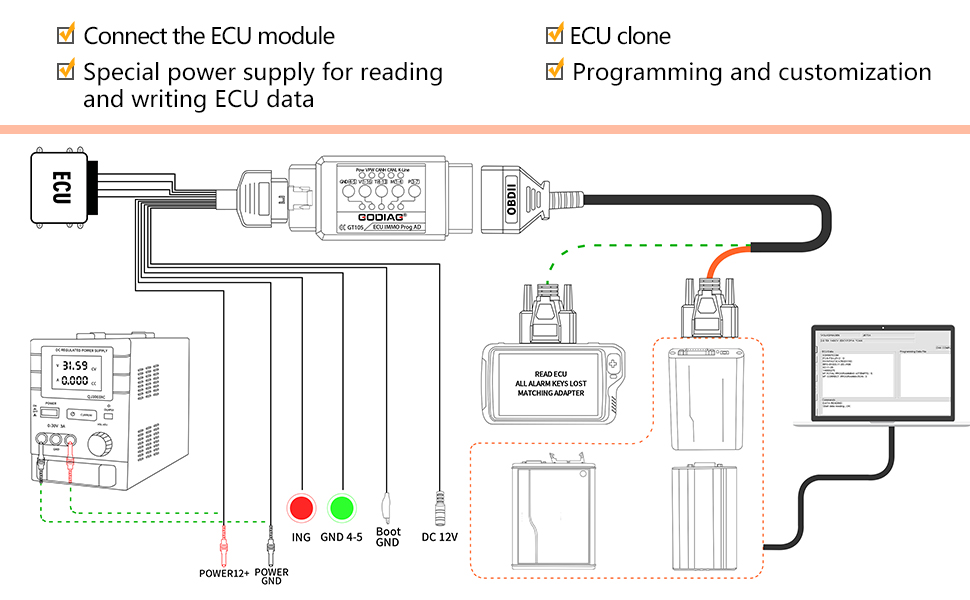

Godiag Full Protocol OBD2 Jumper Functions:
1. Supports DC power supply
2. Support safety protection banana head super programming dedicated connection port power supply.
3. Independent GND4, GND5 [meet the needs of special ECU programming].
4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.
5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].
Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.
6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].

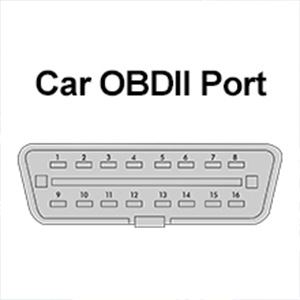

7. Support standard OBD2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.
8. Equipped with CAN protocol communication resistance.
