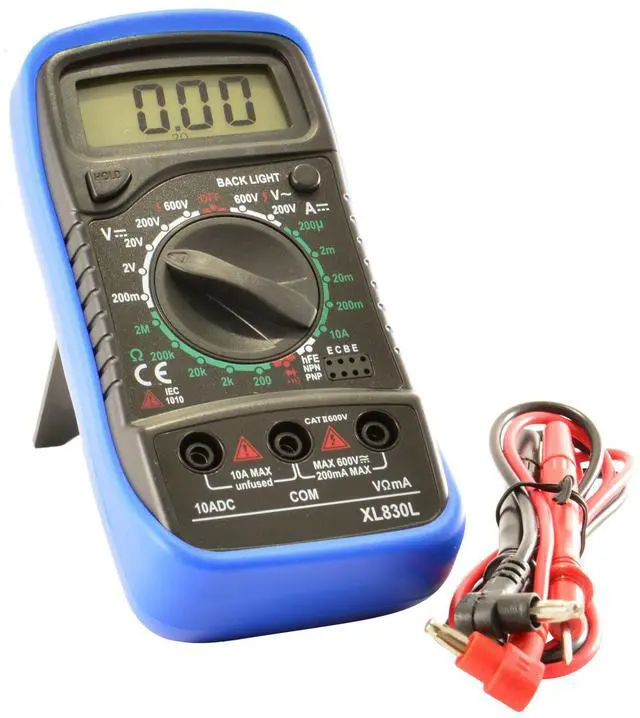

Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L
Limited time offer, ends 02/05 By PENGRAN
- This digital multi-meter has all the functions you will need for electronics testing and electrical work. A wide range of functions cover just about every use case.
- Tests: AC Voltage, DC Voltage, Current, Resistance, Continuity, Diode, Transistor
- Continuity test has an auditory buzzer, Data hold button locks displayed value, Back-light button illuminates the display
- Probes and 9V battery included
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DC Voltage Modes:
200mV (100µV resolution)
2V (1mV resolution)
20V (10mV resolution)
200V (100mV resolution)
600V (1V resolution)
DC Current Modes:
200µA ( 0.1 µA resolution)
2mA (1µA resolution)
20mA (10µA resolution)
200mA (100µA resolution)
10A (10mA resolution)
AC Voltage Modes:
200V (100mV resolution)
600V (1V resolution)
Continuity Test:
If continuity exists a built in buzzer will sound
Diode Test:
Show the approximate forward voltage drop of the diode
Resistance Test:
200 ( 0.1 resolution)
2k (1 resolution)
20k (10 resolution)
200k (100 resolution)
2m (1k resolution)
Transistor hFE Test:
NPN & PNP 0-1000 3V 10µA
Additional Features:
Data hold button locks displayed value
Back-light button illuminates the display
Kickstand
Package Includes:
Multimeter
Probe Cables
Instruction Manual
Ships in retail box
Takes 9V battery (included)
200mV (100µV resolution)
2V (1mV resolution)
20V (10mV resolution)
200V (100mV resolution)
600V (1V resolution)
DC Current Modes:
200µA ( 0.1 µA resolution)
2mA (1µA resolution)
20mA (10µA resolution)
200mA (100µA resolution)
10A (10mA resolution)
AC Voltage Modes:
200V (100mV resolution)
600V (1V resolution)
Continuity Test:
If continuity exists a built in buzzer will sound
Diode Test:
Show the approximate forward voltage drop of the diode
Resistance Test:
200 ( 0.1 resolution)
2k (1 resolution)
20k (10 resolution)
200k (100 resolution)
2m (1k resolution)
Transistor hFE Test:
NPN & PNP 0-1000 3V 10µA
Additional Features:
Data hold button locks displayed value
Back-light button illuminates the display
Kickstand
Package Includes:
Multimeter
Probe Cables
Instruction Manual
Ships in retail box
Takes 9V battery (included)
