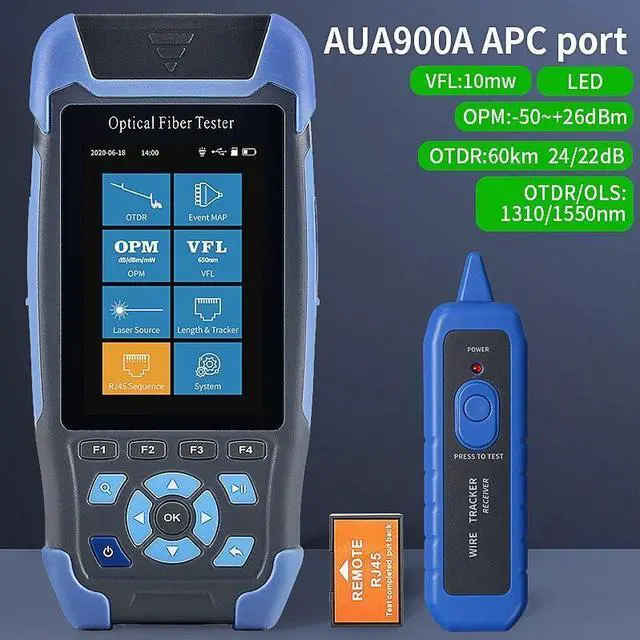

Optic Cable Tester AUA900A Fiber Meter Time Domain Reflectometer with Digital Display Fro Identify Fiber Breakpoints
- OPERATION PROCESS: Fiber optic tester optical time domain reflectometer is used to evaluate FTTx and access net construction and maintenance, and identify fiber breakpoints
- 9 FUNCTIONS: Our OTDR tester has 9 functions, OTDR, event reflection, optical power meter, visual fault locator, stable light source, Ethernet cable distance, Ethernet cable tracking, rj45 Ethernet cable sequence, LED light
- COLOR DISPLAY: The optical time domain reflectometer has a 3.5inch color display, non touch, which allows you to observe the parameters more intuitively and test at 1310 or 1550nm
- CALCULATING RELATIVE OPTICAL POWER LOSS: Fiber optic tester can also measure the length of fiber optic cable and calculate the relative optical power loss
- MICRO USB DATA INTERFACE: The optical time domain reflectometer has a micro USB data interface, external memory card (not included), and includes analysis software for further data analysis or processing
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
Specification:
Item Type: OTDR Fiber Optic Tester Optical Time Domain Reflectometer
Model: AUA900A
Material: ABS
Connector Type: APC
Dual Wavelength: 1310 Or 1550nm
Display: 3.5 Inch Display
Power Supply: Built In 3.7V 4000mah Polymers Battery (Shipping With Built In Battery)
Nine Functions: OTDR, Event Reflection, Optical Power Meter, Visual Fault Locator, Stable Light Source, Ethernet Cable Distance, Ethernet Cable Tracking, Rj45 Ethernet Cable Sequence, LED Light

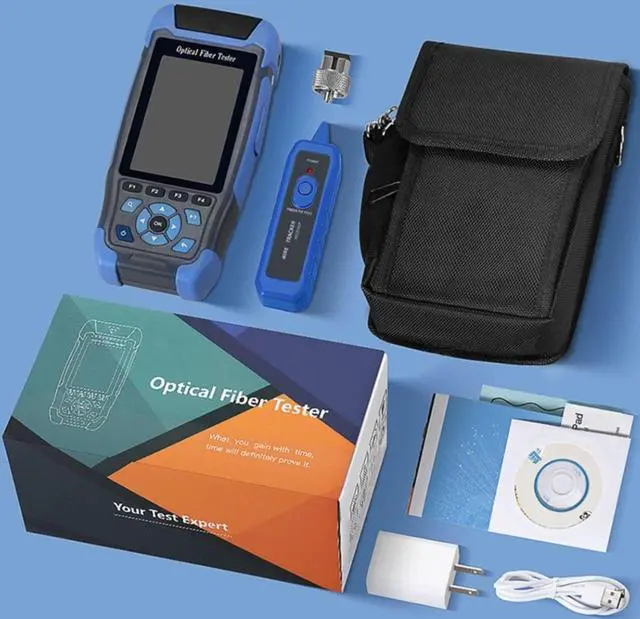

Package List:
1 x Optical Time Domain Reflectometer
1 x Adapter
1 x Charging Cable
1 x Plug
1 x Disc
1 x Manual
1 x Storage Bag
1 x Storage Bag Strap
1 x FC to LC Adapter
Specification:
Item Type: OTDR Fiber Optic Tester Optical Time Domain Reflectometer
Model: AUA900A
Material: ABS
Connector Type: APC
Dual Wavelength: 1310 Or 1550nm
Display: 3.5 Inch Display
Power Supply: Built In 3.7V 4000mah Polymers Battery (Shipping With Built In Battery)
Nine Functions: OTDR, Event Reflection, Optical Power Meter, Visual Fault Locator, Stable Light Source, Ethernet Cable Distance, Ethernet Cable Tracking, Rj45 Ethernet Cable Sequence, LED Light
Package List:
1 x Optical Time Domain Reflectometer
1 x Adapter
1 x Charging Cable
1 x Plug
1 x Disc
1 x Manual
1 x Storage Bag
1 x Storage Bag Strap
1 x FC to LC Adapter
