Note:The package doesn't include the phones.
*Attention

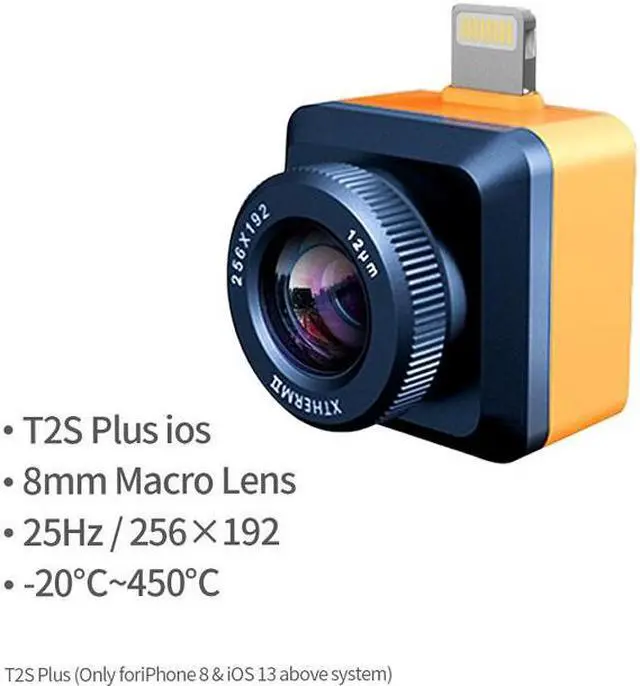

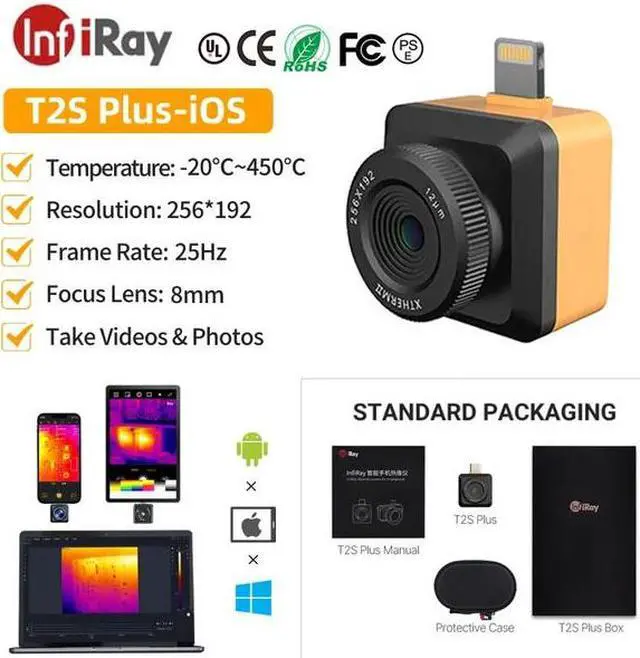

*Products include: T2S Plus Thermal Camera *Pay attention to purchasing products that match the phone model (iPhone iOS&Android) *Pay attention to whether the mobile system version matches the product link |
Specifications:

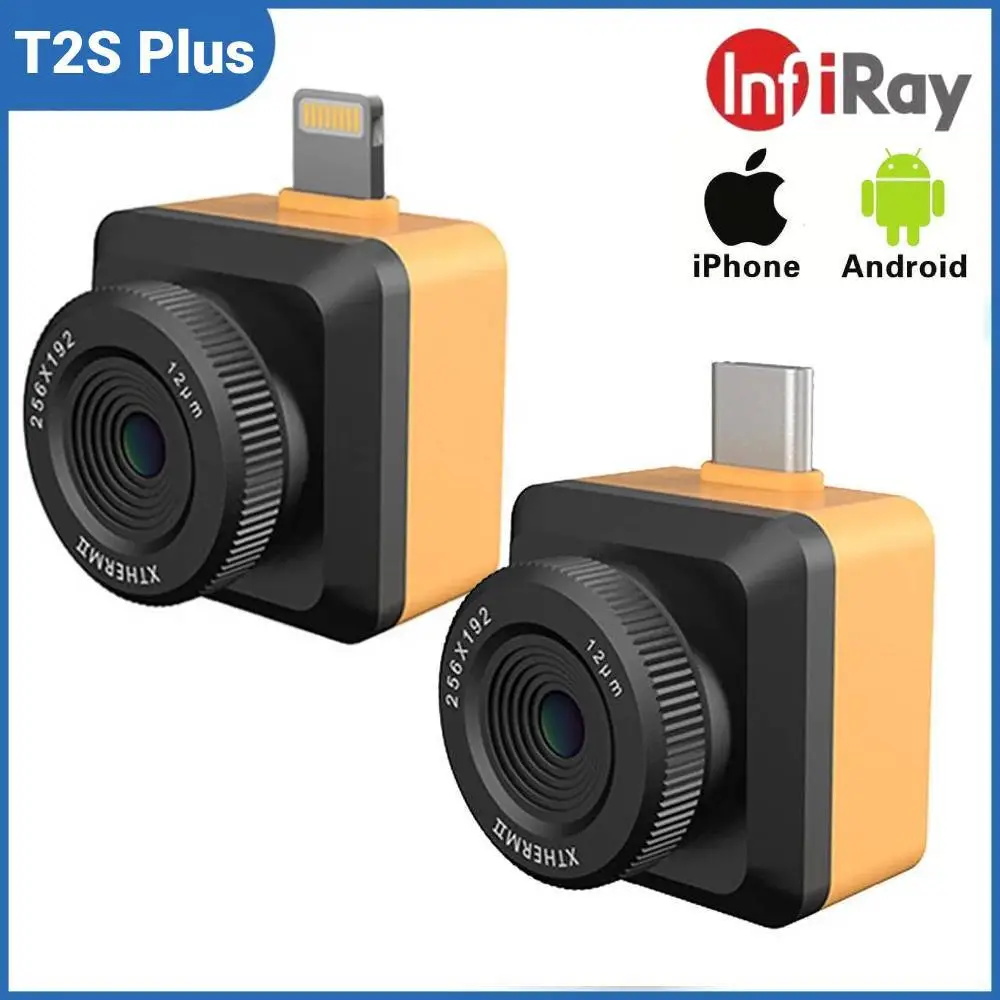

| Product Category | T2S Plus |
|---|---|

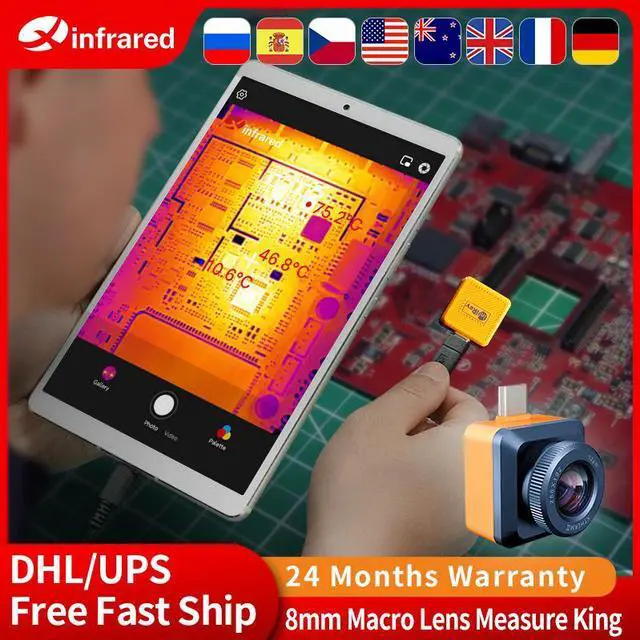

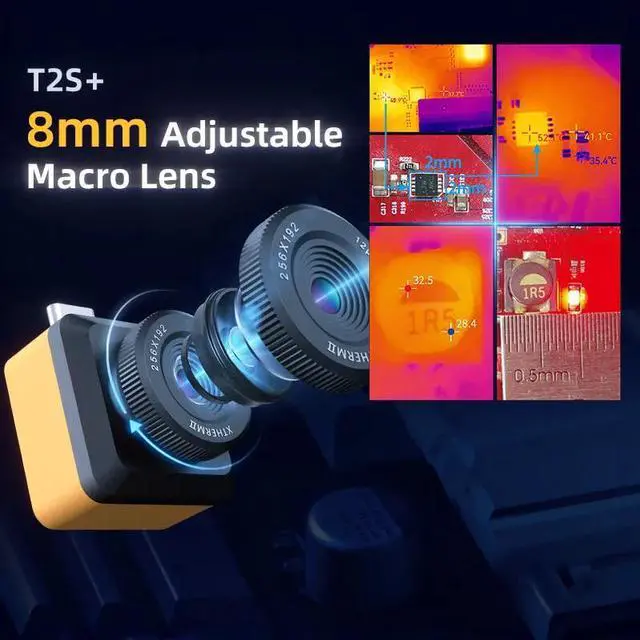

| Minimum Focus | 8mm |
| Resolution | 256X192 |
| Pixel Pitch | 12 |
| FOV | 44.9° x 33.4° |
| Image Frame Rate | 25Hz |
| NETD | 40mK@25°C, F#1.0 |
| MRTD | 500mK@25°C,F#1.0 |
| Operating Temperature | -20°C ~ +50°C(-4°F~131°F) |

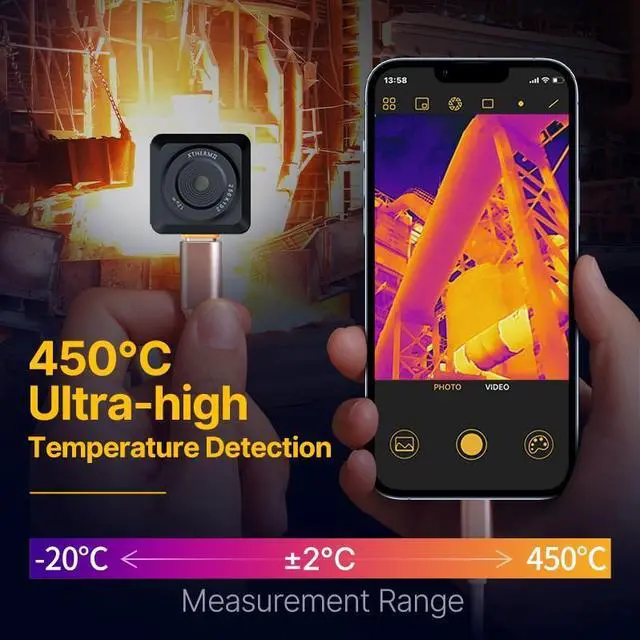

| Operating Temperature | -20°C ~ +450°C( -4°F~842°F) |
| Measurement Accuracy | ±2°C or ±2% of reading |
| Temperature Correction | Manual/automatic |
| Power Consumption | <350mW |
| Weight | <18g |
| Dimensions | 26×26×24.2mm |
| Supported OS | Android, Harmony OS, iOS |
| Image Enhancement | Digital detail enhancement |
|---|---|
| Image Correction | Manual |
| Palette | White-hot/black-hot/multiple palettes |
| Secondary Development | SDK available |

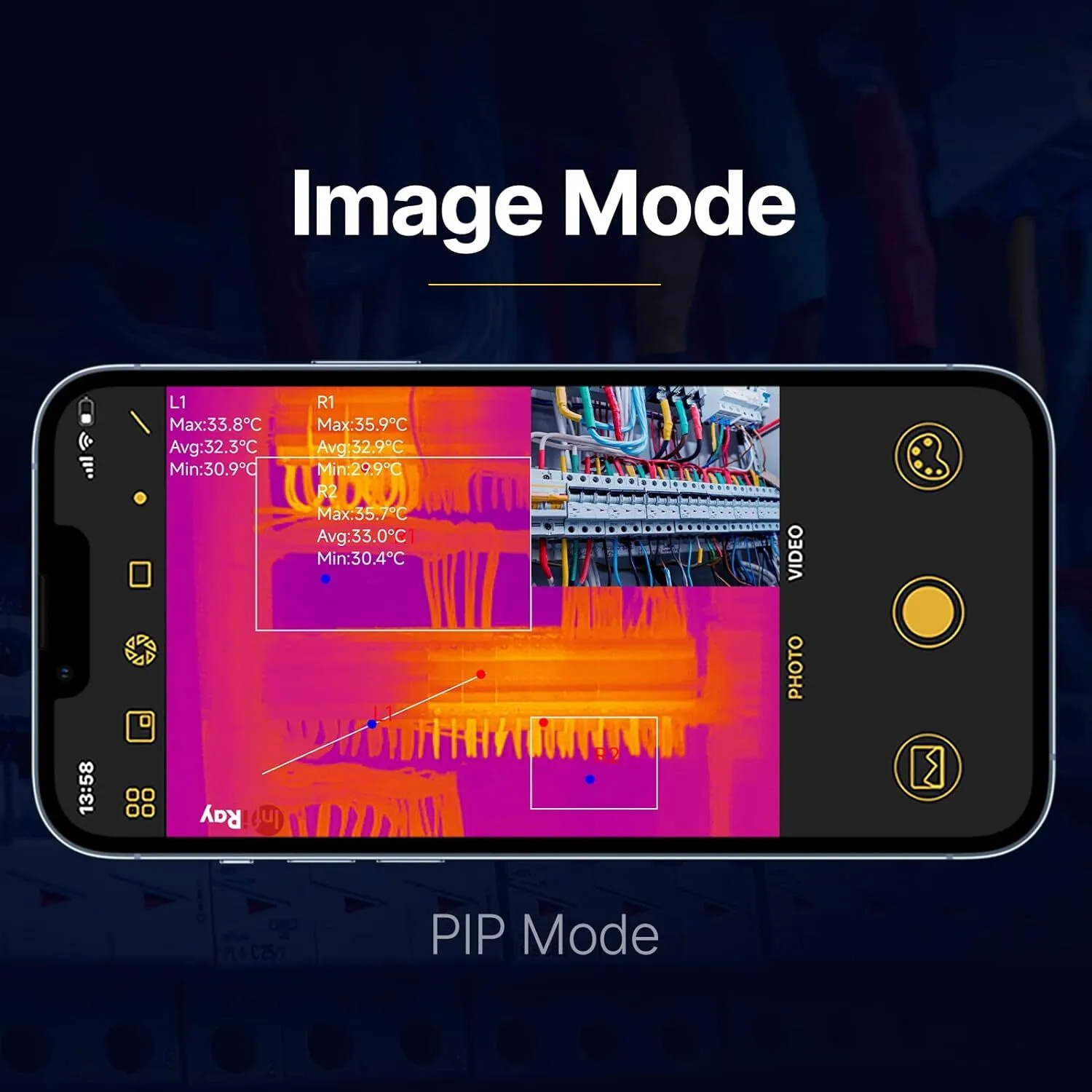

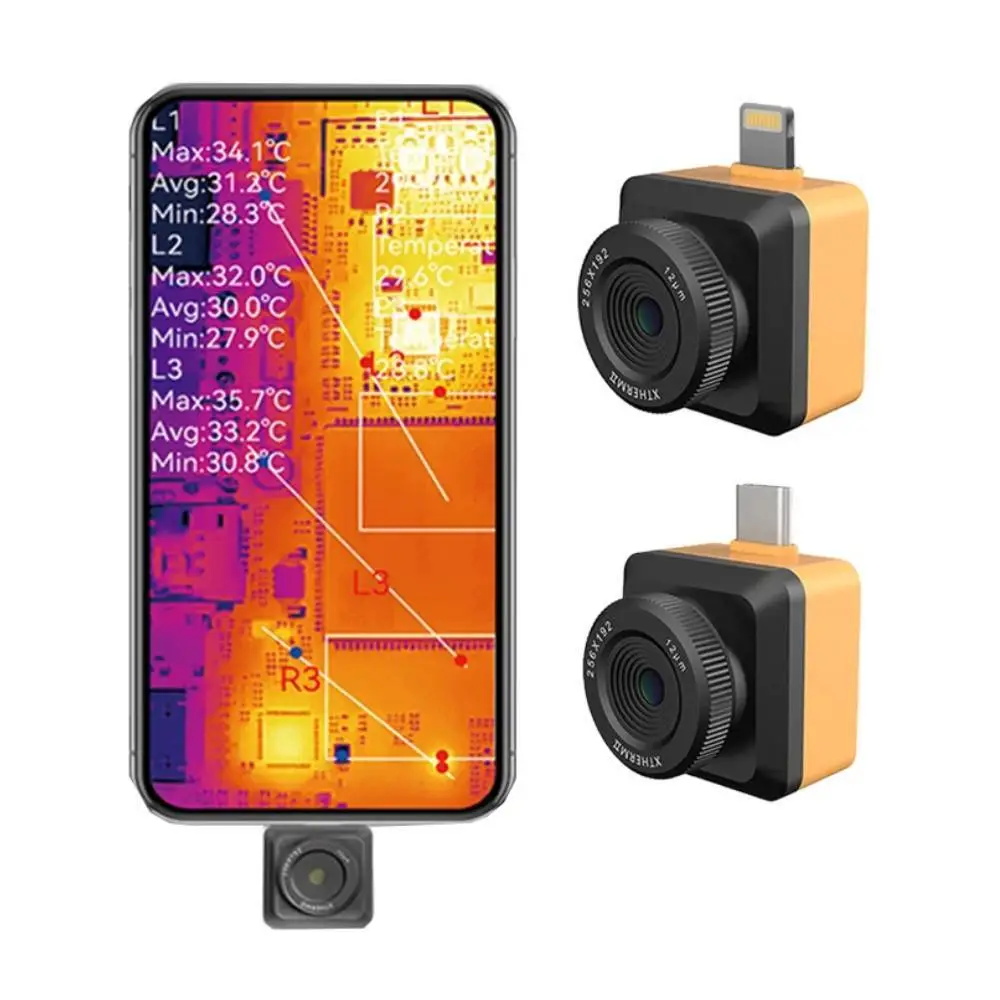

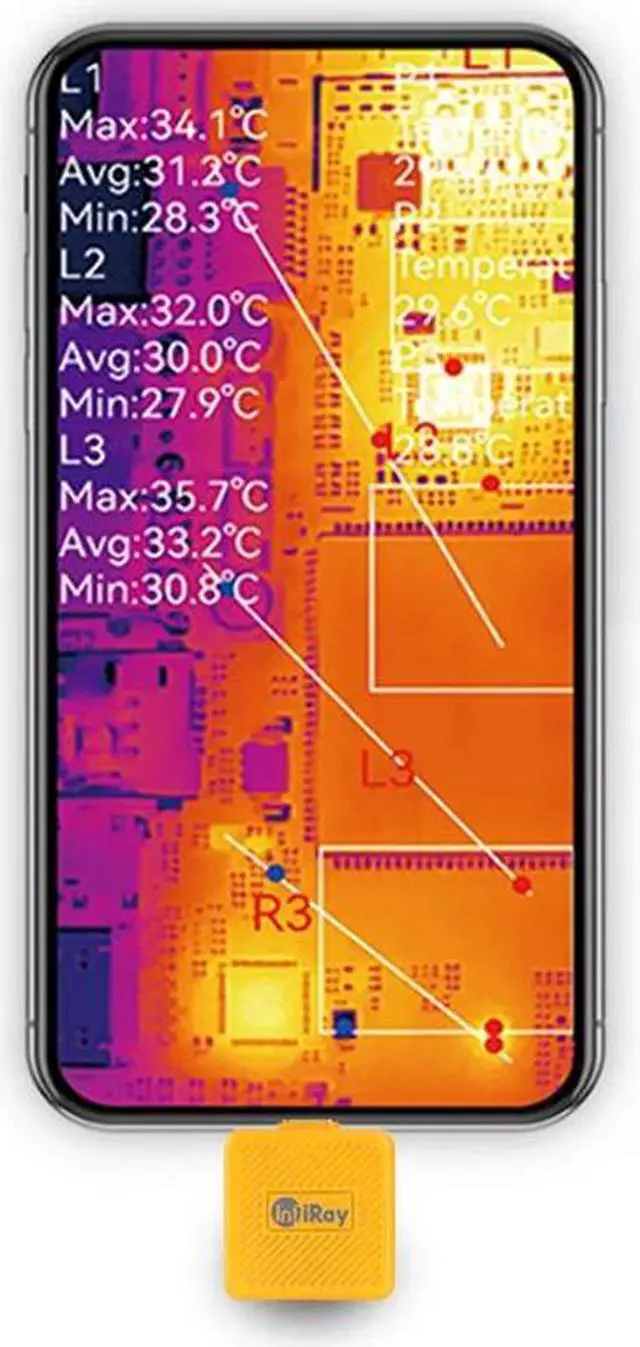

| Measurement Statistics | Maximum/minimum/central point temperature display, and point/line/area measured temperature statisti |
| Video Storage | Photo and video storage |
| App Update | Online update |
