iOS version Magnetic macro lens only

Product Description
InfiRay Mobile Phone Infrared Thermal Imager P2 Pro Thermal Camera PCB Circuit
InfiRay Mobile Phone Infrared Thermal Imager P2 Pro Thermal Camera PCB Circuit


About this item
9G Fully Metal Body: The InfiRay P2 Pro thermal camera imager, It has a 9g fully metal body, making it Compact and Strong. Dimension of 27mm×18mm× 9.8 mm and weighs 9g.
256X192 Resolution: With 256x192 IR resolution/49, 152 pixels and fast 25Hz frame rates, and a wide temperature range from -4°F to 1022°F (-20°C to 550°C).
Powerful Secondary Analysis: The InfiRay P2 ProThermal Camera Imager is a device that captures thermal images and records temperature data, secondary Analysis of the temperature data in the thermal images.
Support Android 9.0 and above: InfiRay P2 ProThermal Camera Imager is a high-tech product that supports android 9. 0 and above. It has a built-in thermal camera that can detect and display the surrounding environment in real-time.
Baterry-free Design: InfiRay P2 Pro thermal camera make easy to use with mobile and no need extra battery and device is compacted. Made with high quality and you can make good thermal camera experience with InfiRay P2 Pro.
Widely Application: the Infiray P2 Pro is perfect for home inspections, missing insulation, floor heating, water pipe, facility maintenance, HVAC troubleshootin.

Specifications

:
Model: P2 Pro
Resolution: 256x192
Pixel pitch: 12 m
Operating Band: 8-14 m
NETD: <50mk@25°C, F#1.0
Performance:
Frame rate: 25Hz
Operating temperature: -10°C~+55°C
Storage temperature: -40°C~+85°C
Power consumption: 350mW
Processor: Self-developed ASIC chip
Lens
Focal length: 3.6 mm
Aperture: F 1.1
FOV: 56.0 °x 42.2 °
Focusing mode: athermalized prime lens
Measuring range: -20°C~550°C
Measuring error: ± 2°C (± 2°C of reading, the greater shall prevail)
Temperature correction: emissivity, distance, environmental temperature
Shell
Size: 27X18X 9.8 (mm)
Color: Silver
Weight: 9g
Interface: USB Type C
App function:
Palette: White/black-hot+6 pseudo colors
Measurement Method: Point/Line/Area temperature measurement
Information Sharing: Instant picture sharing
Data Analysis: Secondary temperature analysis and processing if images
Imaging Tool: Android 9.0 and above
Software Update: Online update
APP Installation: P2 Pro
package content

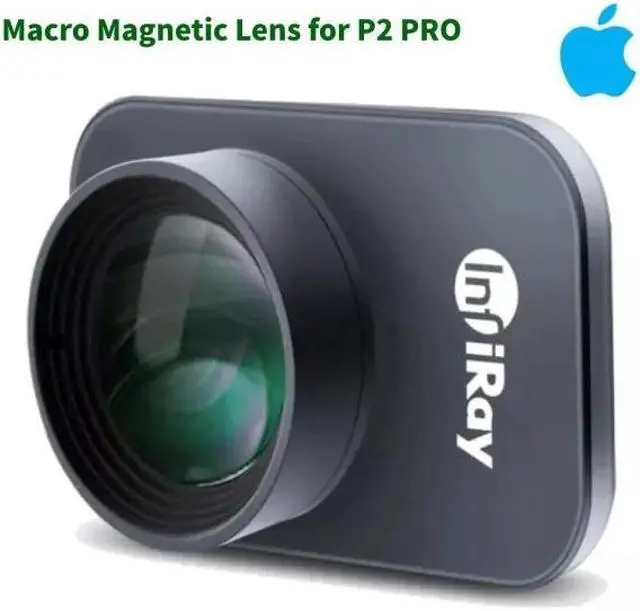

1X P2 Pro+Macro Lens or Magnetic macro lens only
1X Protective bag
1X Connecting line
1X Cleaning Cloth
1X Manual
1X Box
