PCE-CSM 20 Colorimeter, Wireless Connection
- USB cable for data transfer to included software
- Reference memory of 2000 colors, storage for 20,000 samples

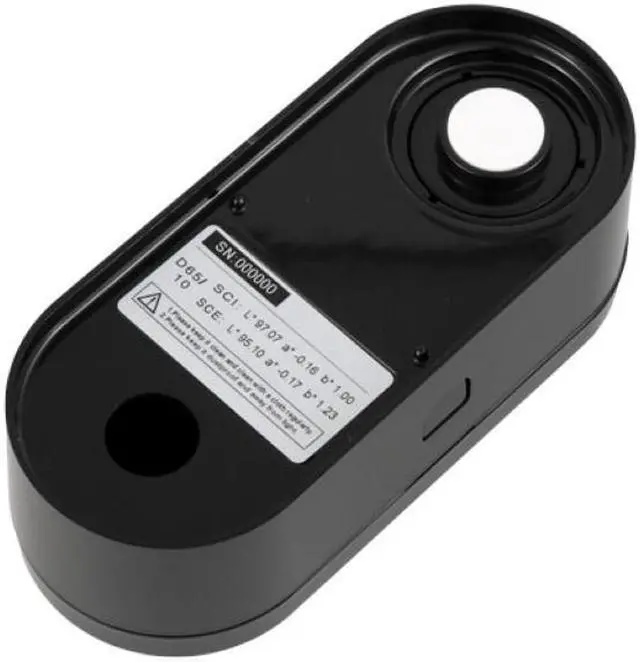

- Includes white and black calibration standards
- High measuring accuracy and stability with 4 illumination choices
- Single and average measurements with delta pass/fail display
- Spectrophotometer measures from 400 to 700 nm in 10 nm increments
- Conforms with CIE No. 15, GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
- Measuring geometry
- 8° / d
- Integrated sphere size: 48 mm
- Light source: LED lighting system, UV light
- Spectrophotometric operation: Concave grid
- Sensor: 256 Pixel CMOS image sensor
- Wavelength range: 400 ... 700 nm
- Wavelength interval: 10 nm
- Measured reflection range 0 ... 200%
- Measuring aperture Single panel: 8 mm (0.3")
- Specular component: SCI, SCE
- Colour ranges: CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
- Formulas for color inequality: E*ab, E*uv, E*94, E*cmc(2:1), E*cmc(1:1), E*00v, E(Hunter)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

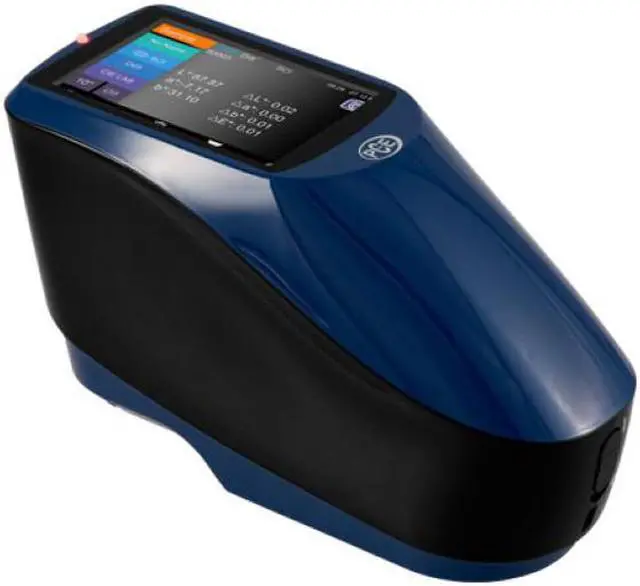

PCE-CSM 20 is a handheld spectrophotometer colorimeter used for high-quality color measurement. Featuring a single 8 mm aperture and including SCI and SCE specular modes for industrial color measuring applications, the PCE-CSM 20 offers a long battery life, a 4-color lamp life and an easy-to-use portable design. The powerful battery allows up to 5000 measurements. The lighting used on the spectrophotometer is designed to carry out three million measurements. Camera/illumination locating for small samples.
The high-quality processing of the spectrophotometer is very fast. The ability to choose aperture size and light source allows the user to discriminate between colors that may look the same. Four color space choices allow the user to choose the best space for their samples. The 256 image element double array CMOS imager allows measurement from 400 to 700 nm in 10 nm increments. The measured data can be transmitted to a computer via included USB. Sophisticated analysis software is also included in the delivery contents.
The high-quality processing of the spectrophotometer is very fast. The ability to choose aperture size and light source allows the user to discriminate between colors that may look the same. Four color space choices allow the user to choose the best space for their samples. The 256 image element double array CMOS imager allows measurement from 400 to 700 nm in 10 nm increments. The measured data can be transmitted to a computer via included USB. Sophisticated analysis software is also included in the delivery contents.
