PCE-CSM 22 Colorimeter, Bluetooth Connectivity
- Bluetooth 4.0 or USB cable for data transfer to included software
- Reference memory of 2000 colors, storage for 20,000 samples

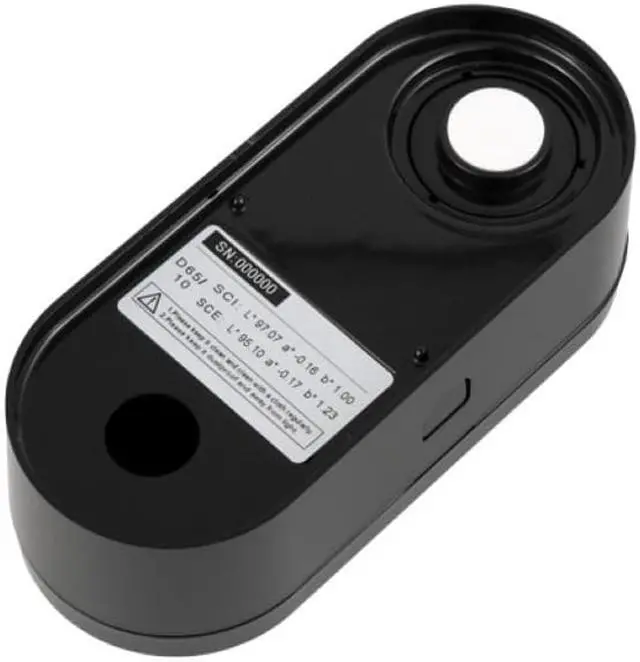

- Includes white and black calibration standards
- High measuring accuracy and stability with 18 illumination choices and UV

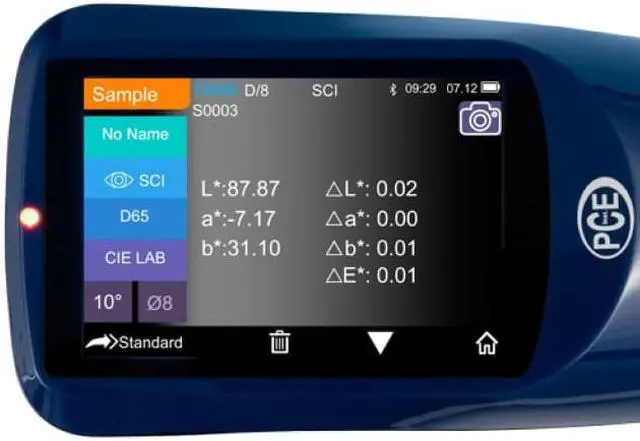

- Single and average measurements with delta pass/fail display
- Spectrophotometer measures from 400 to 700 nm in 10 nm increments
- Conforms with CIE No. 15, GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
- Measuring geometry: 8° / d
- Light source: LED lighting system
- Spectrophotometric operation: Concave grating
- Sensor: 256 pixels CMOS image sensor
- Wavelength range: 400 ... 700 nm
- Wavelength interval: 10 nm
- Measured reflection range: 0 ... 200%

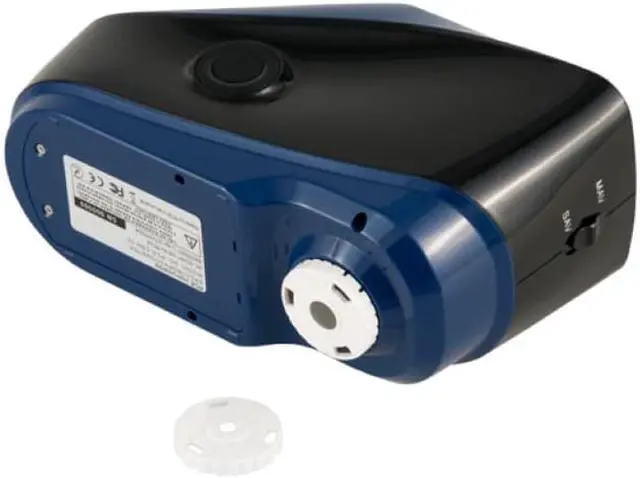

- Measuring aperture double iris: 8 mm (0.3") and 4 mm (0.15")
- Specular component: SCI, SCE
- Color ranges: CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
- Formulas for color inequality: E*ab, E*uv, E*94, E*cmc (2: 1), E*cmc (1: 1), E*00v, E (Hunter
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

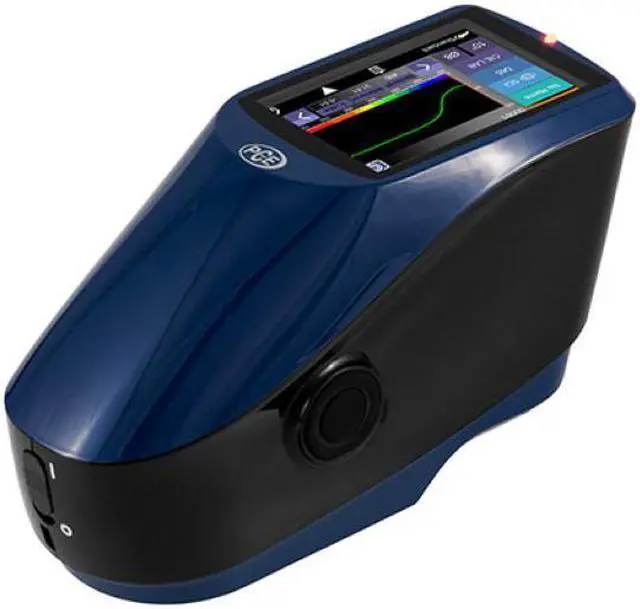

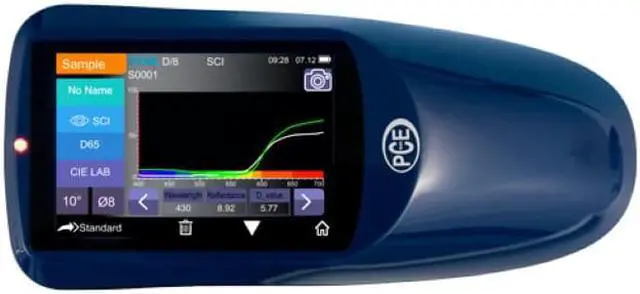

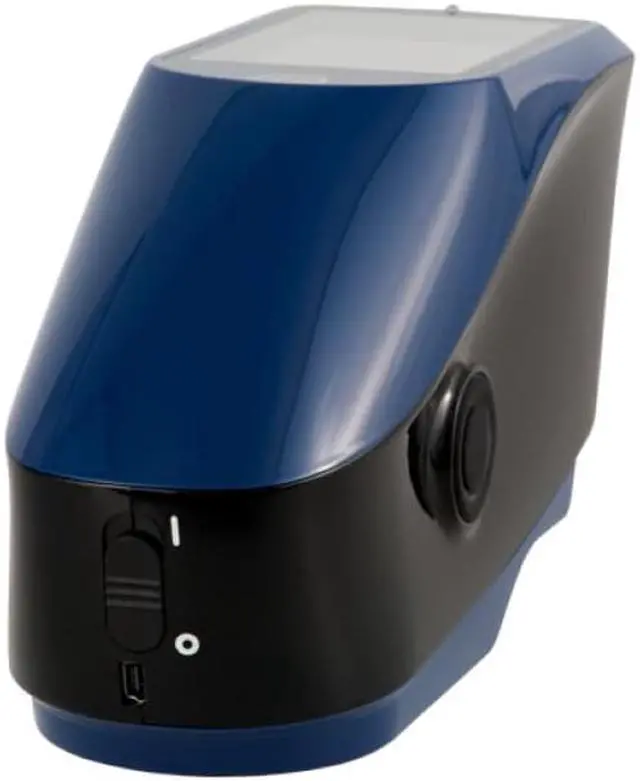

PCE-CSM 22 is a handheld spectrophotometer colorimeter used for high-quality color measurement. Featuring a dual aperture 8 mm and 4 mm, and including SCI and SCE specular modes for industrial color measuring applications, the PCE-CSM 22 offers a long battery life, a 18-color lamp with UV light, and an easy-to-use portable design. The PCE-CSM 22 covers the full spectrum from 400 to 700 nm in 10 nm increments. The powerful battery allows up to 5000 daily measurements. The software supports both SCI and SCE spectral measurements at once. The unit features a 3.5 inch TFT color touch screen and a 256 image element CMOS image array for superior usability and accuracy.
Camera/illumination locating for small samples.
The high-quality processing of the spectrometer is very fast. The ability to choose aperture size and light source allows the user to discriminate between colors that may look the same. Six color space choices allow the user to choose the best space for their samples. The 256 image element double array CMOS imager allows measurement from 400 to 700 nm in 10 nm increments. The measured data can be transmitted to a computer via Bluetooth or USB. Sophisticated analysis software is also included in the delivery contents that includes the USB cable.
Camera/illumination locating for small samples.
The high-quality processing of the spectrometer is very fast. The ability to choose aperture size and light source allows the user to discriminate between colors that may look the same. Six color space choices allow the user to choose the best space for their samples. The 256 image element double array CMOS imager allows measurement from 400 to 700 nm in 10 nm increments. The measured data can be transmitted to a computer via Bluetooth or USB. Sophisticated analysis software is also included in the delivery contents that includes the USB cable.
