PCE-CSM 8 Colorimeter, Quality Control, 3.5" Touch Screen Display
- Lighting/Observation System: 45/0 method according to CIE no. 15, GB/T3987
- Integrated sphere size: Ø 58 mm
- Light source: Combined LED
- Sensor: Silicon photodiode array
- Wavelength measurement range: 400 ... 700 nm
- Metering orifice: Diameter 8 mm
- Color spaces: CIE LAB, XYZ, Yxy, LCh, CIE VUV, HunterLAB
- Color index: E*ab, E*uv, E*94, E*cmc(2:1), E*cmc(1:1), E*00, E(h)
- Chromaticity data: WI (ASTM E31CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM E313), TI (ASTM E313, CIE/ISO), Metamerism Index Mt, Color Stain, Color Fastness
- Observation angle: 2° / 10°
- Bulbs: D65, A,C,D50, D55, D75, F2, F6, F7, F8, F10, F11, F12
- Bulb runtime: 5 years, > 1.6 million measurements

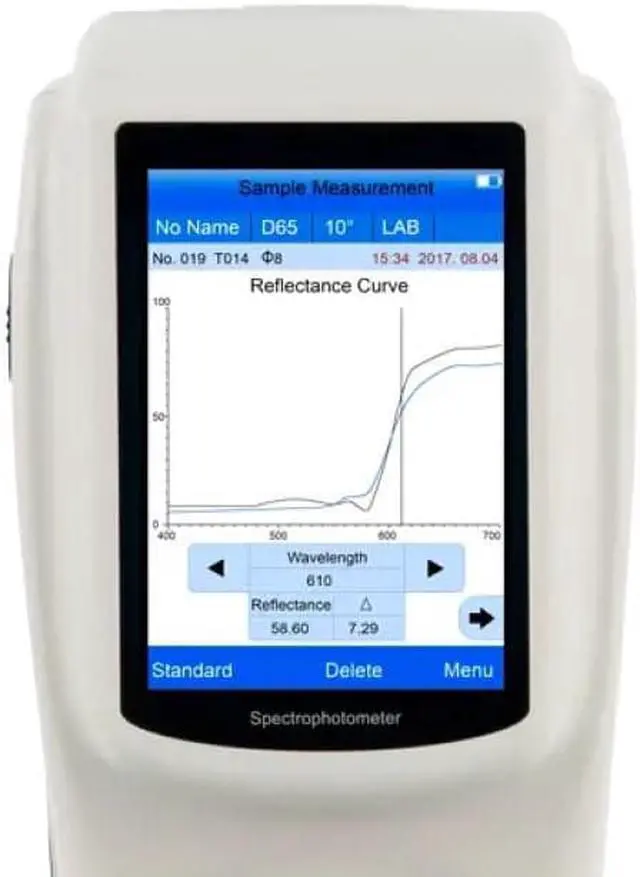

- Data on the display: Spectral value/graph, colorimetric value, color difference value/graph, PASS/FAIL result, color offset, color simulation
- Minimum time difference between 2 measurements: 1.5 seconds
- Repeatability spectral reflectance: Standard deviation ~ 0.1% (400 700 nm: ~0.2%)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

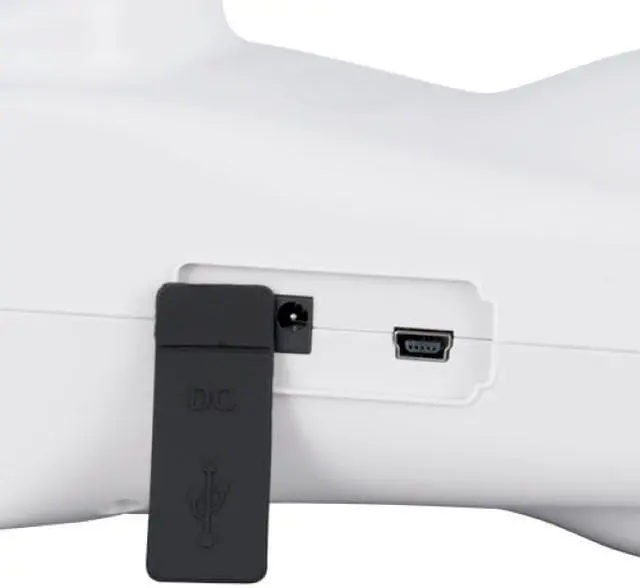

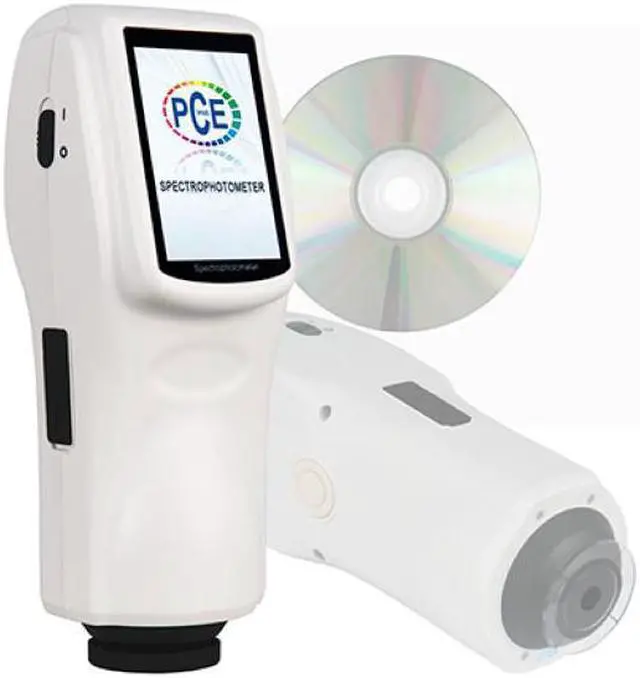

The PCE-CSM 8 colorimeter is the ideal device for recording and analyzing spectra. In contrast to other colorimeters, this device covers a large number of parameters. In addition to the normal use of the color measuring device with battery, there is also the option of connecting this color measuring device to an external power supply so that it can be easily operated with mains power. In addition, the colorimeter has the advantage of being able to be connected to a computer. The supplied software thus enables a comprehensive spectral analysis directly at the workplace.
From a practical point of view, you can even operate the colorimeter via the software. The result is that the measurement process can be carried out directly on the computer and the results are displayed directly on the screen in tabular form.

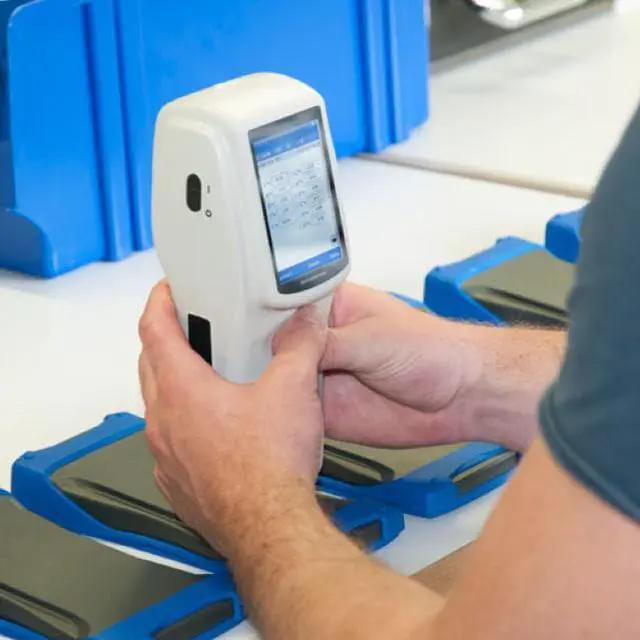

Nevertheless, there is also this possibility, for example to take measurements where no computer is available. The colorimeter is often used for quality control, which for various reasons has to take place directly at the production site. At a later point in time, there is still the option of reading out the colorimeter on the computer in order to analyze and save the measured values.
From a practical point of view, you can even operate the colorimeter via the software. The result is that the measurement process can be carried out directly on the computer and the results are displayed directly on the screen in tabular form.
Nevertheless, there is also this possibility, for example to take measurements where no computer is available. The colorimeter is often used for quality control, which for various reasons has to take place directly at the production site. At a later point in time, there is still the option of reading out the colorimeter on the computer in order to analyze and save the measured values.
