PCE-CT 24FN Coating Thickness Gauge, Up 0 to 1500 m
- Data memory for later evaluations
- Rechargeable batteries
- For ferrous and non-ferrous metals
- Alarm when limit value exceeded
- Statistics function for analyzing a test object
- Alignment sensor for turning the display

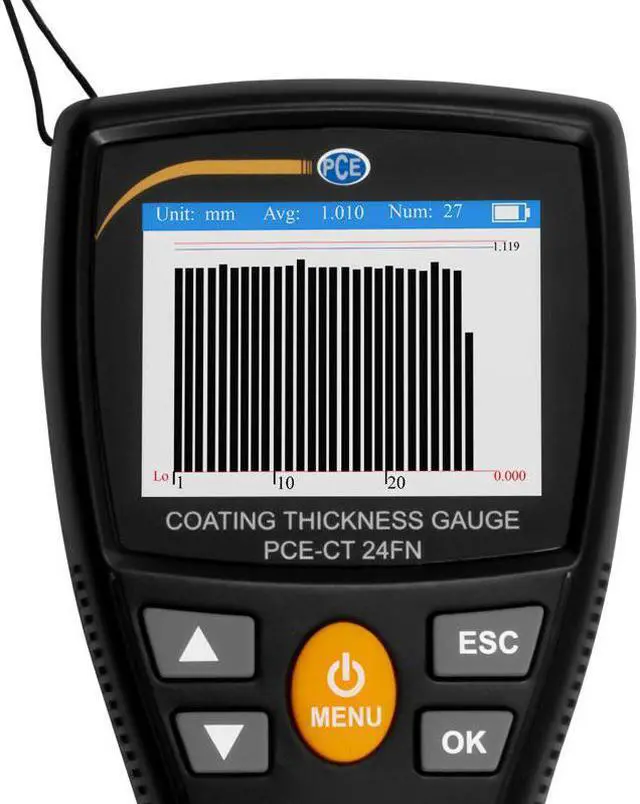

- Graphic representation of the measured values
- Measuring range: 0 ... 1500 m / 0 ... 59 mil / 0 ... 1.5 mm
- Resolution: 0.1 m (at less than 100 m), 1 m (at greater than 100 m), 0.001 mm, 0.1 mil
- Accuracy: ± 5 m (at less than 150 m), ± 3% + 1 m (at greater than 150 m)
- Smallest diameter (Fe): 12 mm
- Smallest thickness (Fe): 0.5 mm
- Curvature wheel min. (Fe): Convex: 2 mm; concave: 11 mm
- Smallest diameter (nFe): 50
- Smallest thickness (nFe): 0.5 mm
- Storage: 100 groups of 15 readings each
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

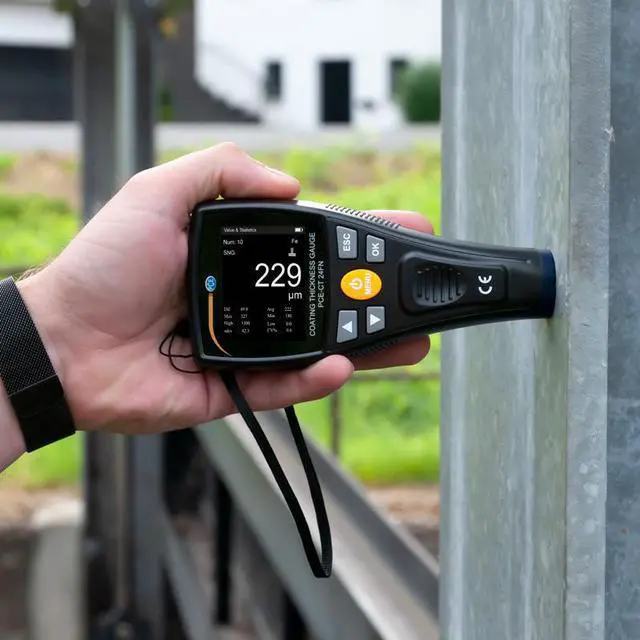

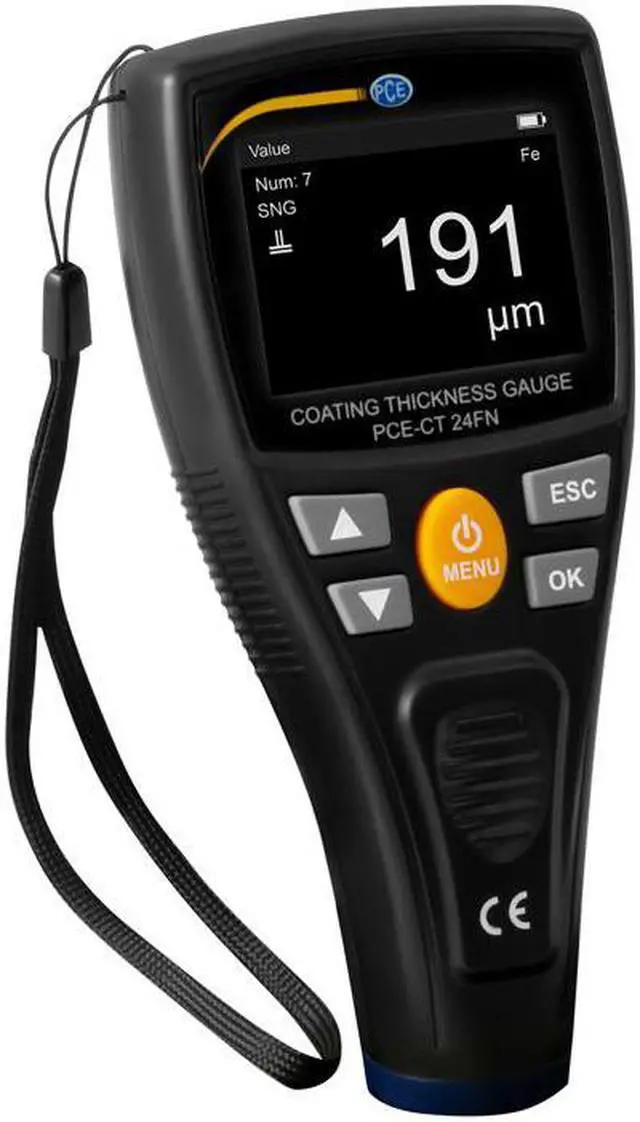

The thickness gauge PCE-CT 24FN is a mobile device for the fast and precise determination of e. g. paint layer thicknesses. With this thickness gauge layer thickness measurements on ferrous and non-ferrous metals can be performed. The measured value is displayed directly on the LCD display of the thickness gauge. Thanks to the built-in memory of the thickness gauge and the advanced functions, statistics can be recorded. These statistics can be evaluated directly on the thickness gauge. When evaluating the recorded statistics in the thickness gauge, you can choose between a tabular and a graphical view.
The replaceable batteries can be recharged directly via the thickness gauge. Charging the batteries is possible via a USB port, for example via a computer. Even during the charging process, all functions of the thickness gauge are available. If the thickness gauge is not used, the meter will switch itself off automatically within the set time. This protects the batteries and ensures that the meter is ready for use the next time. Thus, the thickness gauge is also suitable for mobile use.
The replaceable batteries can be recharged directly via the thickness gauge. Charging the batteries is possible via a USB port, for example via a computer. Even during the charging process, all functions of the thickness gauge are available. If the thickness gauge is not used, the meter will switch itself off automatically within the set time. This protects the batteries and ensures that the meter is ready for use the next time. Thus, the thickness gauge is also suitable for mobile use.
