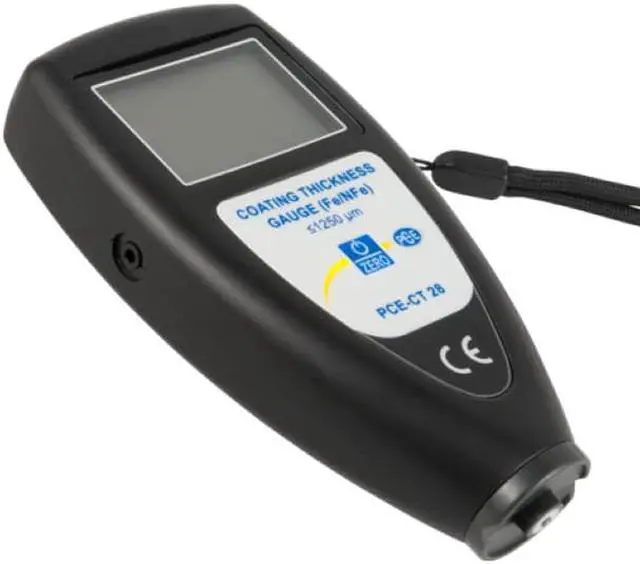

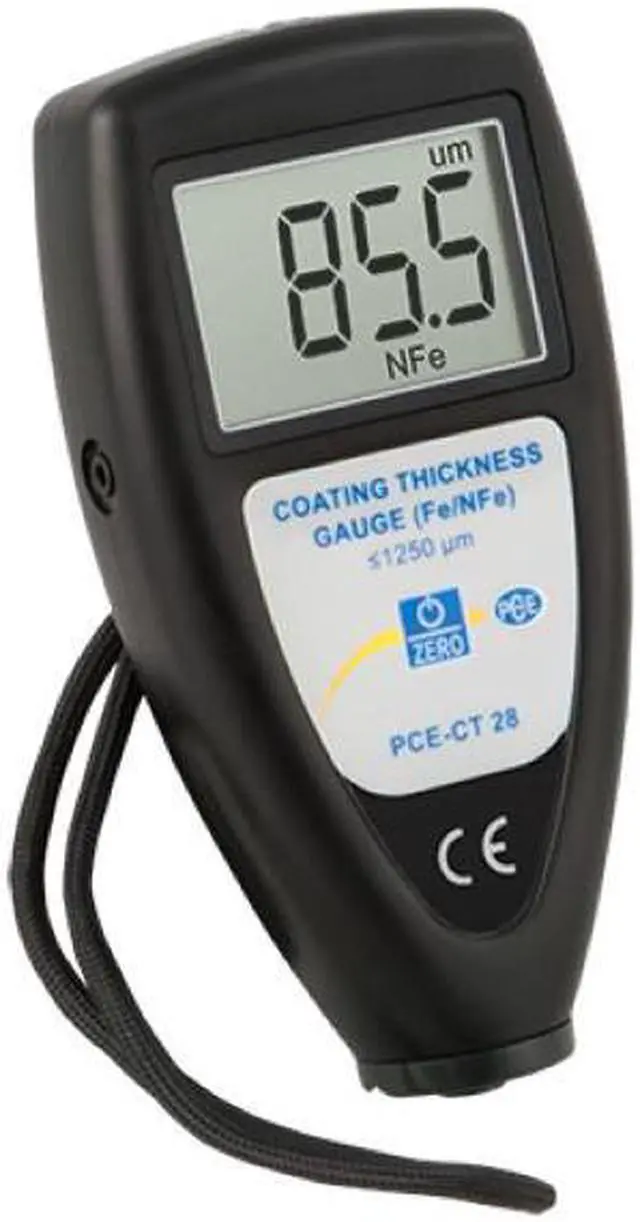

PCE-CT 28 Coating Thickness Gauge, 0 to 1250 µm
- F / N: for materials including iron, steel, aluminum, copper, brass and stainless steel
- Instant results
- Large measurement range
- Vibrations do not influence readings
- Elastic lined measuring head to ensure accurate results and prevent wear

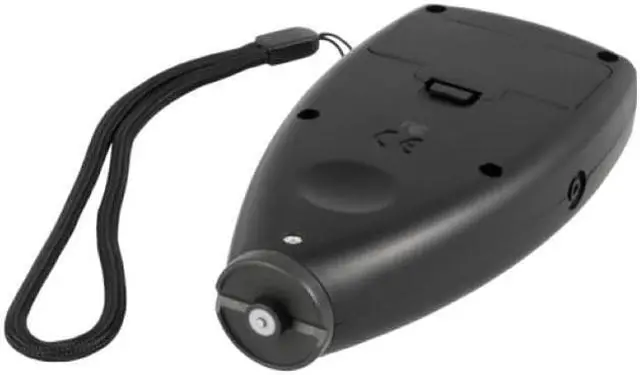

- The v-slot simplifies the measurement on round surfaces acting as a reference or axis point
- Can be operated comfortably with only one hand thanks to its design and integrated sensor

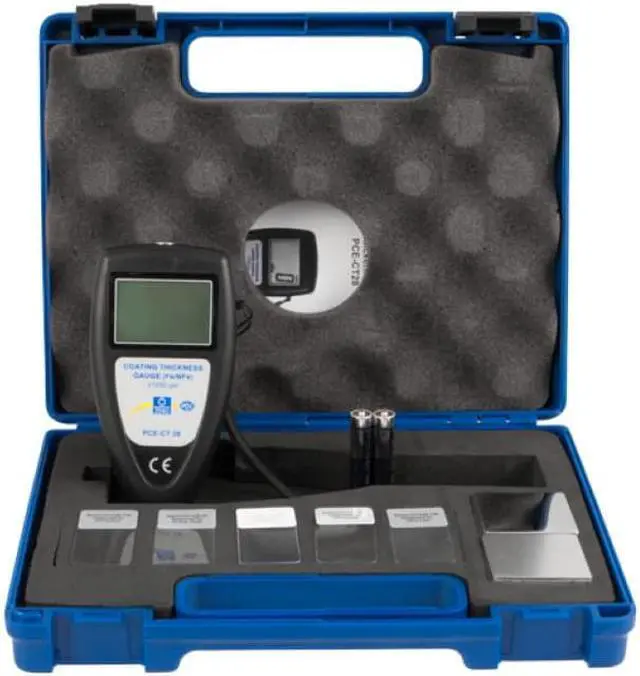

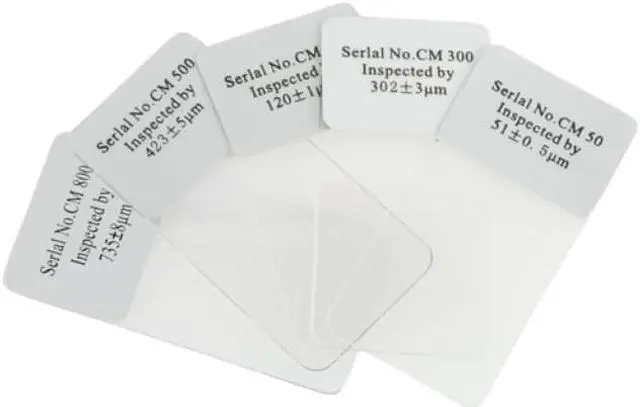

- Comes complete with battery, carrying case, calibration standards and user's manual
- Measurement range: 0 ... 1250 µm / 49.2 mils
- Resolution: 0.1 µm / 0.004 mils (in a range of 0.0 to 99.9 µm / 3.9 mils), 1 µm / 0.04 mils(above the range)
- Accuracy: ± 2% or 2.5 µm / 0.10 mils (highest reading is valid)
- Minimum surface measurable: 6 mm x 6 mm / 0.2 in x 0.2 in
- Minimum radial curve convexed: 5 mm / 0.2 in, concaved: 60 mm / 2.4 in
- Minimum thickness of material: 0.3 mm / 0.01 in (for ferrous materials), 0.1 mm / 0.004 in (for non-ferrous materials)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The PCE-CT 28 Coating Thickness Gauge for cars is for measuring the thickness of paint and plastic on ferrous or non-ferrous materials without damaging the coating's surface. The Coating Thickness Gauge stands out due to its high range of measurement. This Coating Thickness Gauge works excellently as a tool for technicians in areas of paint or lacquering such as in production, automotive body repair or quality control. The Coating Thickness Gauge is particularly useful in detecting damage to vehicles produced by an accident, for preventing possible damage or as a toll in auto body repair.
Also, in the industrial sector, this device is essential for quality control in shipping and receiving and during production. It is ergonomic with an integrated sensor and it shows results of measurements quickly and accurately. The Coating Thickness Gauge was designed for non-magnetic coatings such as plastic, chrome, zinc, copper, etc. and insulation such as rubber, plastic, glass and paper over steel, iron, aluminium, brass and stainless steel. Thanks to its wide measurement range, the Coating Thickness Gauge is ideal for the naval and metal industries.
Also, in the industrial sector, this device is essential for quality control in shipping and receiving and during production. It is ergonomic with an integrated sensor and it shows results of measurements quickly and accurately. The Coating Thickness Gauge was designed for non-magnetic coatings such as plastic, chrome, zinc, copper, etc. and insulation such as rubber, plastic, glass and paper over steel, iron, aluminium, brass and stainless steel. Thanks to its wide measurement range, the Coating Thickness Gauge is ideal for the naval and metal industries.
