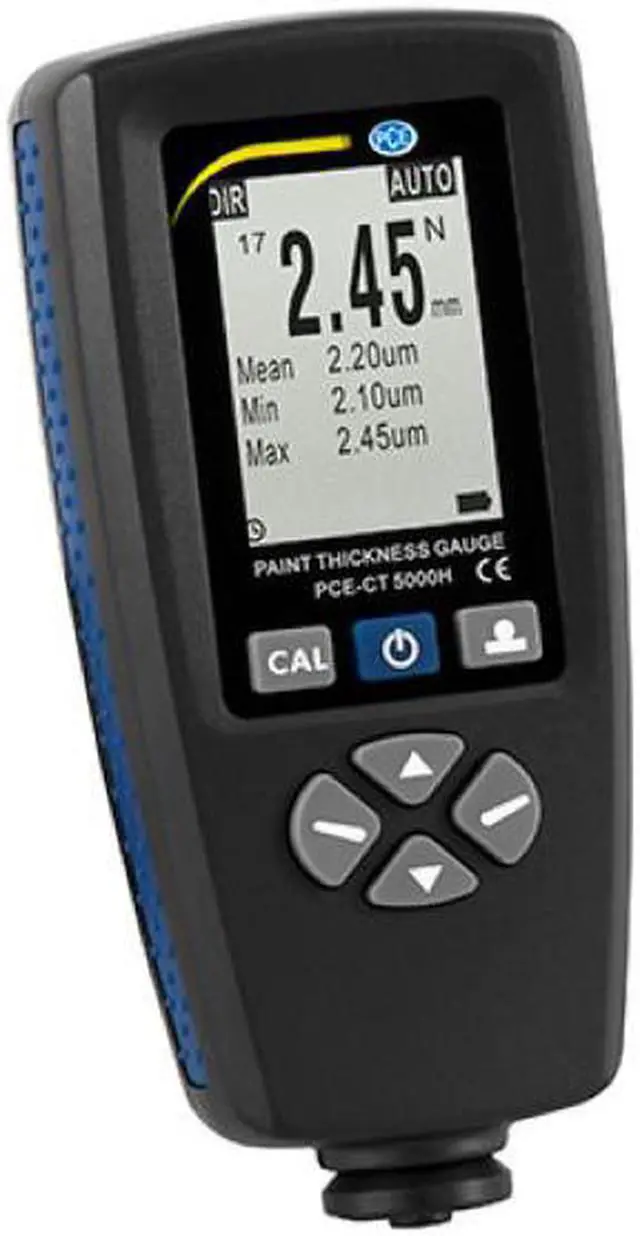

PCE-CT 5000H Coating Thickness Gauge, Includes Type F and Type N probe
- Designed for non-destructive testing and inspection
- Measures coating thickness on Fe and nFe metals
- Displays measuring units in m, mm or mils
- Saves up to 2000 measurements to internal memory
- Practical V-groove on the measuring head
- One- to four-point and zero calibration
- Programmable alarm limits
- Probe: Type F and Type N
- Measuring range Type F: 0 ... 5000 m / 0 ... 5 mm / 0 ... 196 mils
- Measuring accuracy Type F: ± (2% + 1 m)
- Resolution Type F: 0 ... 99.9 m: 0.1 m, 100 ... 999 m: 1 m, > 1000 m: 0.01 mm
- Measuring principle Type F: Magnetic induction
- Smallest thickness of the base material: 0.02 mm
- Measuring range Type N: 0 ... 3000 m / 0 ... 3 mm / 0 ... 118 mils
- Measuring accuracy Type N: ± (2% + 1 m)
- Resolution Type N: 0 ... 99.9 m: 0.1 m, 100 ... 999 m: 1 m, > 1000 m: 0.01 mm
- Measuring principle Type N: Eddy current
- Smallest thickness of the base material: 0.05 mm
+
+
Overview
Specs
Reviews
PCE-CT 5000H is a thickness measuring instrument used for the rapid determination of coating thicknesses on ferrous (Type F) and non-ferrous (Type N) metals. The coating thickness gauge automatically detects the type of metal to be measured. The PCE-CT 5000H coating thickness gauge uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum.
This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications. Alarm limits can be set in the coating thickness gauge to notify the user when a coating is too thick or too thin. If a coating thickness measurement falls outside the established limits, a message appears on the display to alert the user.
This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications. Alarm limits can be set in the coating thickness gauge to notify the user when a coating is too thick or too thin. If a coating thickness measurement falls outside the established limits, a message appears on the display to alert the user.
