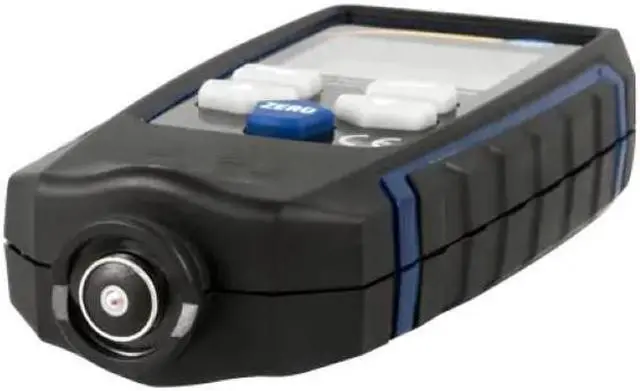

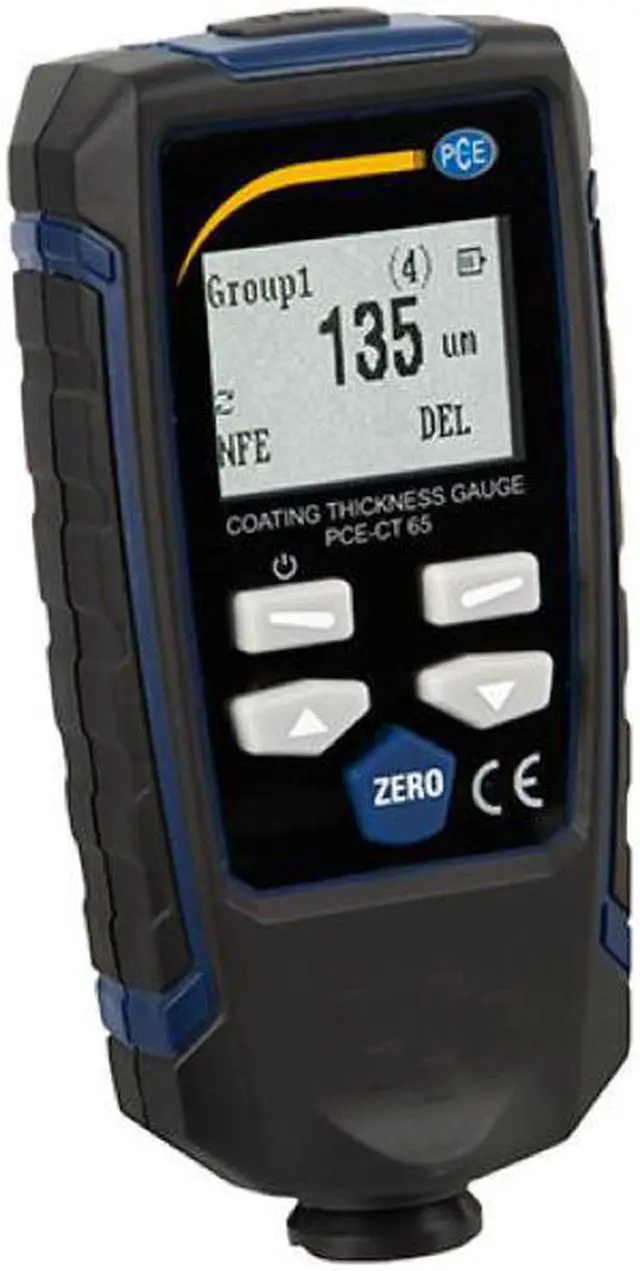

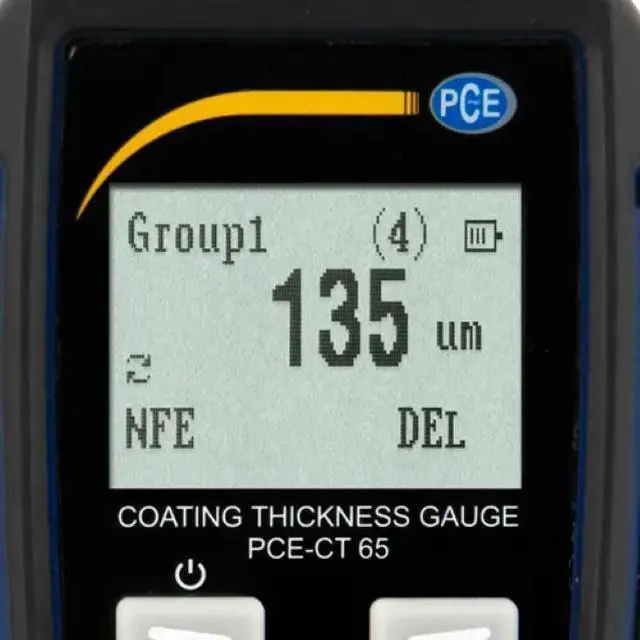

PCE-CT 65 Coating Thickness Gauge, 0 to 1350 µm
- v Ferrous metals - Principle: Magnetic induction v
- Measuring range: 0 ... 1350 µm / 0 ... 53.1 mils
- Accuracy: 0 ... 1000 µm: (±2.5% ±2 µm), 1000 µm ... 1350 µm: ±3.5%, 0 ... 39.3 mils: (±2 % ±0.08 mils), 39.3 mils ... 53.1 mils: ±3.5%
- Resolution: 0 ... 100 µm: 0.1 µm, 100 µm ... 1000 µm: 1 µm, in 1000 mm ... 1350 µm: 0.01 mm, 0 ... 10 mils: 0.01 mils, 10 mils ... 53.1 mils: 0 ... 1 mils
- Smallest surface: Ø 7 mm / Ø 0.3 in
- Min. curvature radius: 1.5 mm / 0.05 in
- Min. substrate thickness: 0.5 mm / 0.02 in
- v Non-ferrous metals - Principle: Eddy current v
- Measuring range: 0 ... 1350 µm / 0 ... 53.1 mils
- Accuracy: 0 ... 1000 µm: ±(2.5% ±2 µm), 1000 µm ... 1350 µm: ±3.5%, 0 ... 39.3 mils: ±(2% ±0.08 mils), 39.3 mils ... 53.1 mils: ±3.5%
- Resolution: 0 ... 100 µm: 0.1 .mu.m, 100 µm ... 1000 µm: 1 µm, in 1000 mm ... 1350 µm: 0.01 mm, 0 ... 10 mils: 0.01 mils, 10 mils ... 53.1 mils: 0 ... 1 mils
- Smallest surface: Ø 5 mm / Ø 0.2 in
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

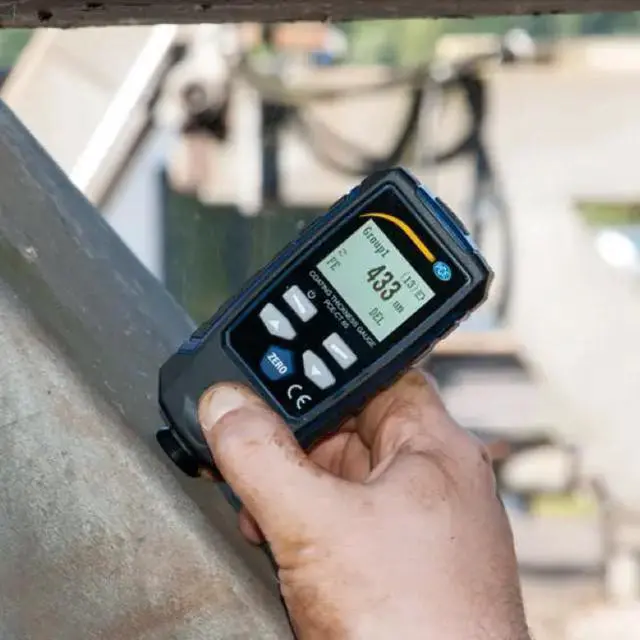

PCE-CT 65 is a coating thickness gauge that uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum. This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications.
The easy-to-use downloadable PC-compatible software included with this thickness gauge allows for detailed analysis of measurement results via computer. Measurement values are shown in a table and different working modes can be selected for data filtering. Statistics include the maximum, minimum and average value per working group. Statistics can be divided by ferrous and non-ferrous material. The software also counts how many readings have been stored in each material group. For more details, please refer to the user manual.

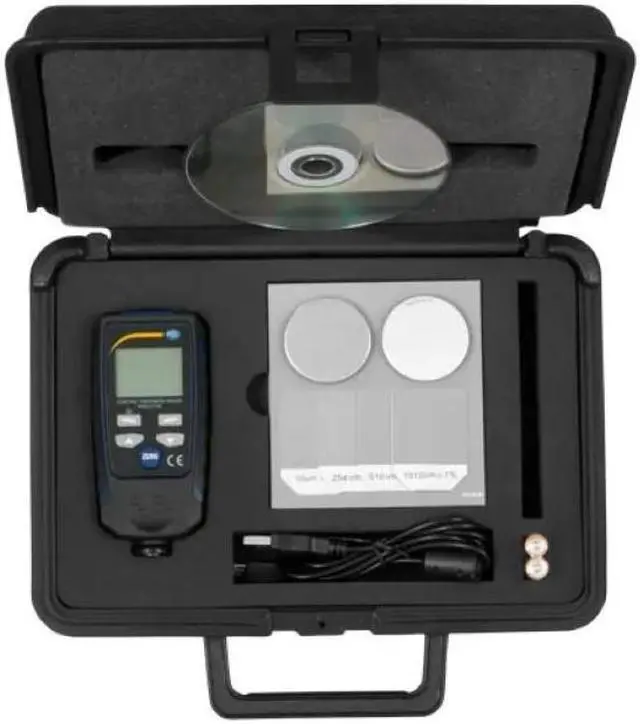

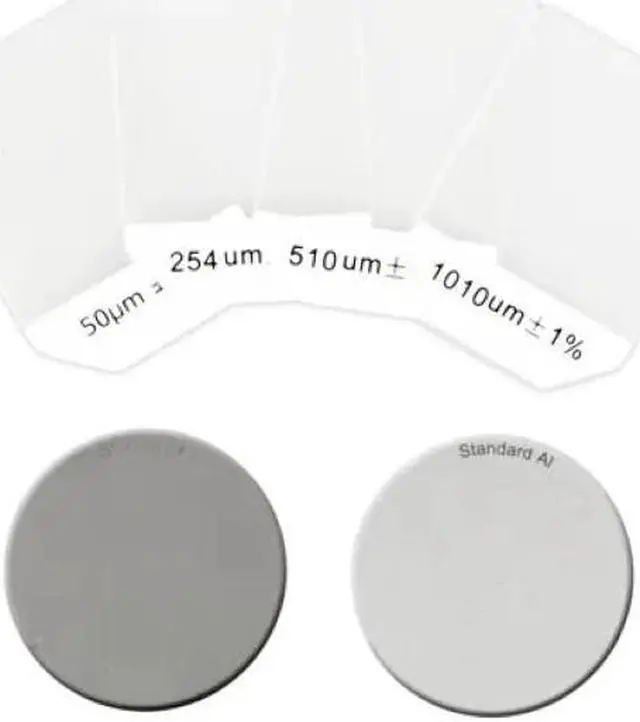

- Includes calibration shims and blocks for DIY accuracy testing, a carrying case for easy transport, and a 2-year warranty against manufacturer defects
- Optional ISO calibration certificate available for purchase separately - see accessories tab for details
- Features two measuring modes (ferrous and non-ferrous) with integrated sensors for comfortable, one-handed operation
- Saves up to 1500 measurements to memory

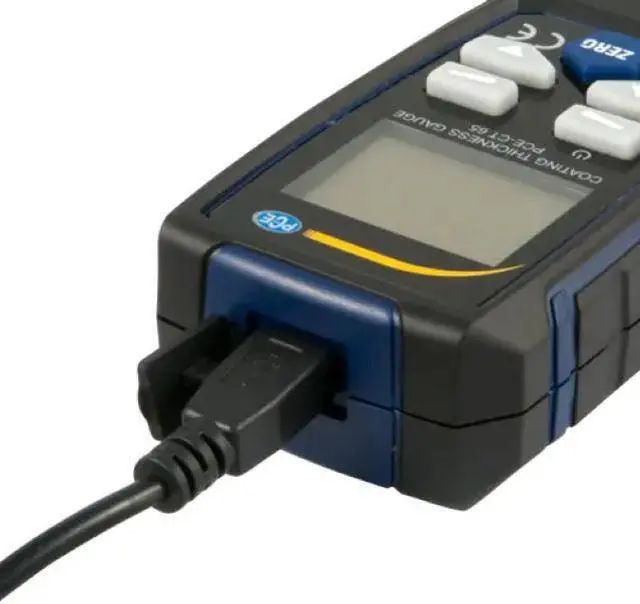

- Comes with a USB cable and downloadable PC software (see downloads tab) for detailed analysis of measurement results via computer
The easy-to-use downloadable PC-compatible software included with this thickness gauge allows for detailed analysis of measurement results via computer. Measurement values are shown in a table and different working modes can be selected for data filtering. Statistics include the maximum, minimum and average value per working group. Statistics can be divided by ferrous and non-ferrous material. The software also counts how many readings have been stored in each material group. For more details, please refer to the user manual.
- Includes calibration shims and blocks for DIY accuracy testing, a carrying case for easy transport, and a 2-year warranty against manufacturer defects
- Optional ISO calibration certificate available for purchase separately - see accessories tab for details
- Features two measuring modes (ferrous and non-ferrous) with integrated sensors for comfortable, one-handed operation
- Saves up to 1500 measurements to memory
- Comes with a USB cable and downloadable PC software (see downloads tab) for detailed analysis of measurement results via computer
