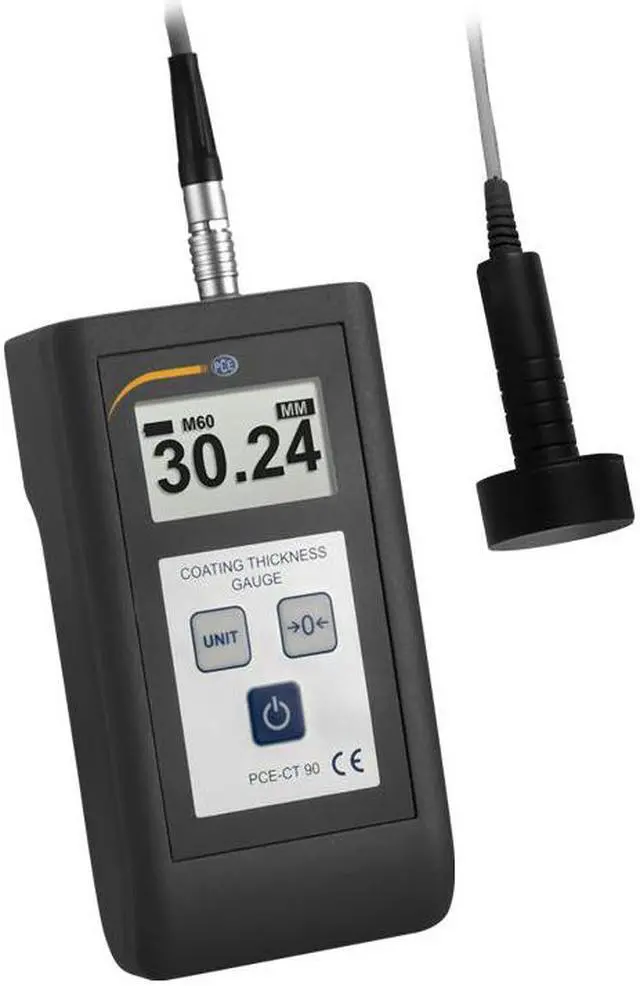

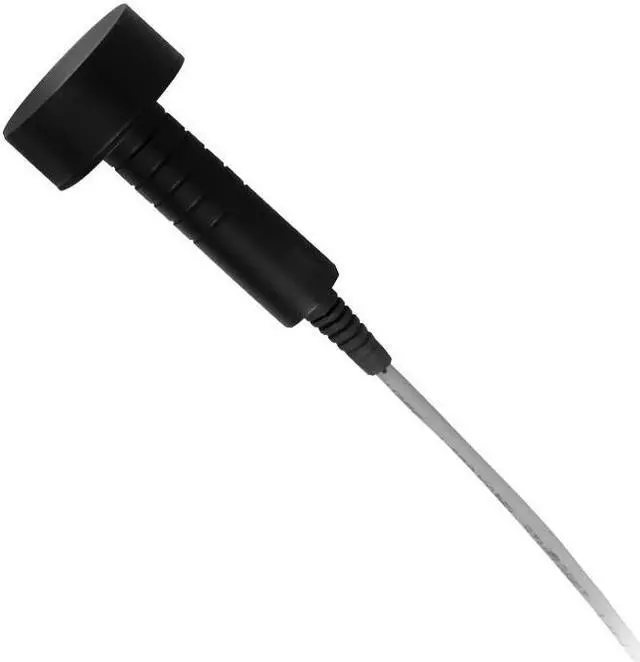

PCE-CT 90 Coating Thickness Gauge, Includes Sensor Probe
- Different sensors
- Measuring range up to 6 cm
- Automatic sensor detection
- Zero point and one-point calibration
- Power supply 2 x 1.5V AAA batteries
- Temperature measurement up to 125°C / 257°F
- Measurable materials: Magnetic materials (iron, steel ...), non-magnetic materials (paints, plastics, ceramics, )
- Min. radius of curvature: 0.3 50 mm / 0.012 ... 1.97" (depending on the sensor used)
- Calibration: Zero calibration, one-point calibration
- Units: µm, mm, °C
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

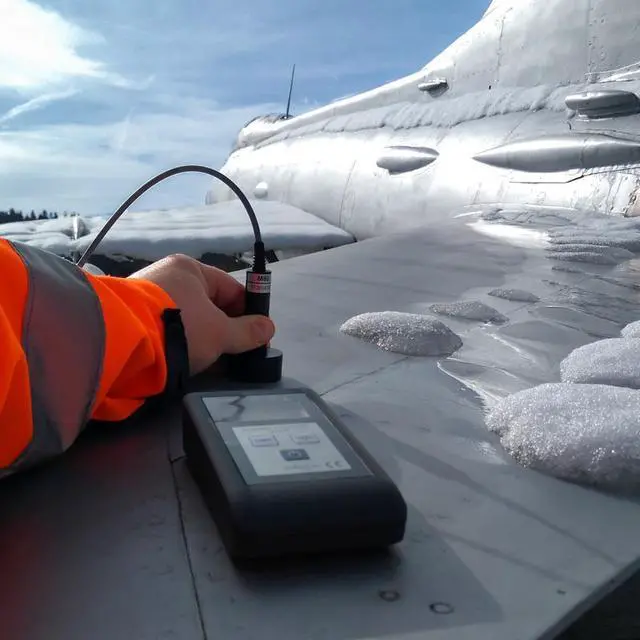

The coating thickness gauge is a versatile measuring instrument. This is made possible by the various optional sensors on the layer thickness gauge. For example, the coating thickness gauge can easily measure the layer thicknesses of paints, galvanic coatings, galvanizing or even anodic oxide layers on metal. With the sensors, for example, layer thickness measurements with a thickness of up to 6 cm are possible.
In addition to the layer thickness sensors for the layer thickness gauge, there is also the climate sensor. With this climate sensor at the coating thickness gauge, the ambient temperature, the ambient humidity and the dew point can be measured. Also, in the film thickness gauge, there is the surface temperature sensor. Thanks to the surface temperature sensor, the surface temperature of an object in a measuring range of -50... 125°C / -58... 257°F can be determined with the Coating Thickness Gauge.
In addition, the roughness of surfaces can be determined with the layer thickness gauge. This is made possible by the optional roughness meter. With the roughness sensor from the layer thickness gauge, the Rz value of the surface can be determined within a very short time. The measuring range here is between 0... 300 m.
Fe- 0.3 *,
measuring range: 0... 300 µm, accuracy: ±(3 % + 1 µm), Paint, lacquer, galvanic coating
Fe- 0.5 *,
measuring range: 0 500 µm, accuracy: ±(3 % + 1 µm), Paint, lacquer, galvanic coating
Fe-2*,
measuring range: 0 2000 µm, accuracy: ±(3 % + 2 µm), Paint, lacquer
Fe-5*,
measuring range: 0 5000 µm, accuracy: ±(3 % + 2 µm), Lacquer and thick coating
NFe-2**,
measuring range: 0 2000 µm, accuracy: ±(3 % + 2 µm), Anodic oxidelayer, lacquer
M12***,
measuring range: 0 12 mm / 0 0.47", accuracy: ±(3 % + 0.01 mm), Thick coating
M30***,
measuring range: 0 30 mm / 0 1.18", accuracy: ±(3 % + 0.02 mm), Thick coating
M60***,
measuring range: 0 60 mm / 0 2.36", accuracy: ±(3 % + 0.03 mm), Thick coating
DT,
measuring range: -50 125°C / -58 257°F, accuracy: ±1°C, Surface temperature
DSH,
measuring range: 1 300 µm, accuracy: ±(3 % + 2 µm), Roughness
In addition to the layer thickness sensors for the layer thickness gauge, there is also the climate sensor. With this climate sensor at the coating thickness gauge, the ambient temperature, the ambient humidity and the dew point can be measured. Also, in the film thickness gauge, there is the surface temperature sensor. Thanks to the surface temperature sensor, the surface temperature of an object in a measuring range of -50... 125°C / -58... 257°F can be determined with the Coating Thickness Gauge.
In addition, the roughness of surfaces can be determined with the layer thickness gauge. This is made possible by the optional roughness meter. With the roughness sensor from the layer thickness gauge, the Rz value of the surface can be determined within a very short time. The measuring range here is between 0... 300 m.
Fe- 0.3 *,
measuring range: 0... 300 µm, accuracy: ±(3 % + 1 µm), Paint, lacquer, galvanic coating
Fe- 0.5 *,
measuring range: 0 500 µm, accuracy: ±(3 % + 1 µm), Paint, lacquer, galvanic coating
Fe-2*,
measuring range: 0 2000 µm, accuracy: ±(3 % + 2 µm), Paint, lacquer
Fe-5*,
measuring range: 0 5000 µm, accuracy: ±(3 % + 2 µm), Lacquer and thick coating
NFe-2**,
measuring range: 0 2000 µm, accuracy: ±(3 % + 2 µm), Anodic oxidelayer, lacquer
M12***,
measuring range: 0 12 mm / 0 0.47", accuracy: ±(3 % + 0.01 mm), Thick coating
M30***,
measuring range: 0 30 mm / 0 1.18", accuracy: ±(3 % + 0.02 mm), Thick coating
M60***,
measuring range: 0 60 mm / 0 2.36", accuracy: ±(3 % + 0.03 mm), Thick coating
DT,
measuring range: -50 125°C / -58 257°F, accuracy: ±1°C, Surface temperature
DSH,
measuring range: 1 300 µm, accuracy: ±(3 % + 2 µm), Roughness
