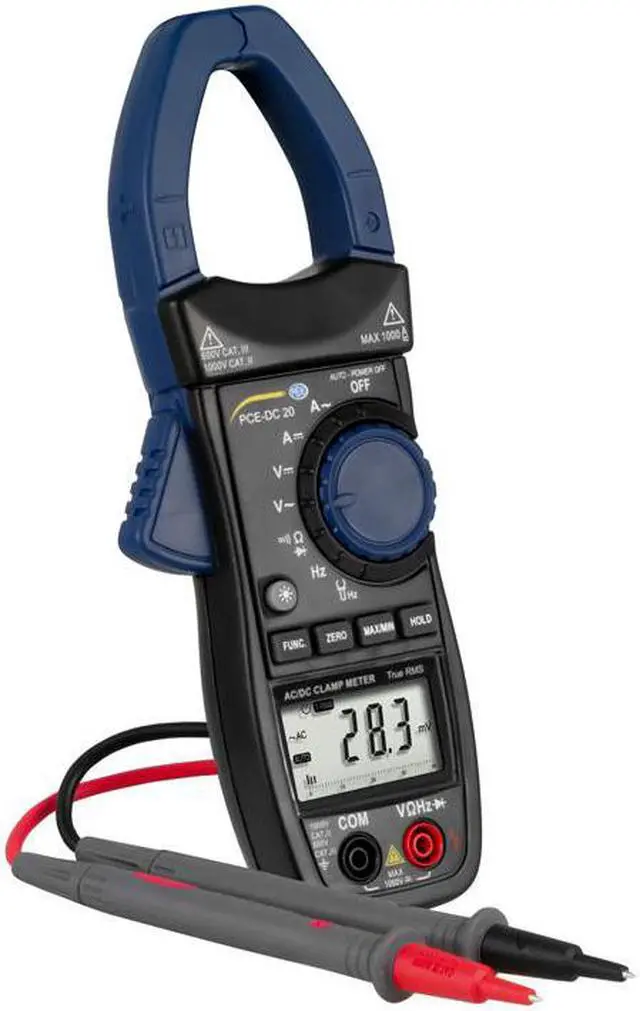

PCE-DC 20 Digital Multimeter Current Clamp, Current Clamp opening 40 mm

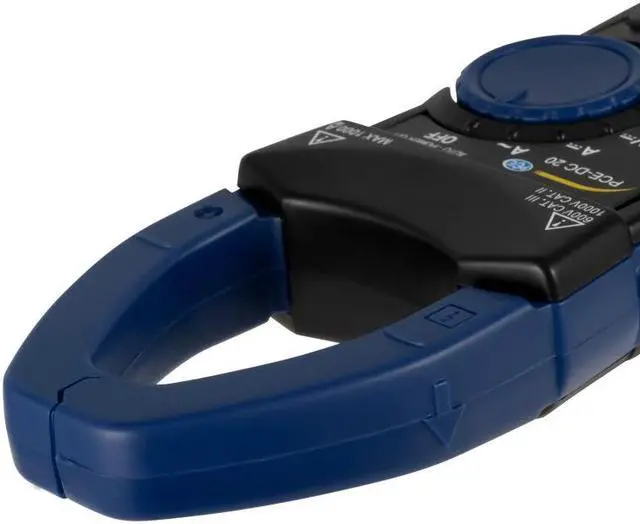

- Current clamp opening 40 mm / 1.6 in

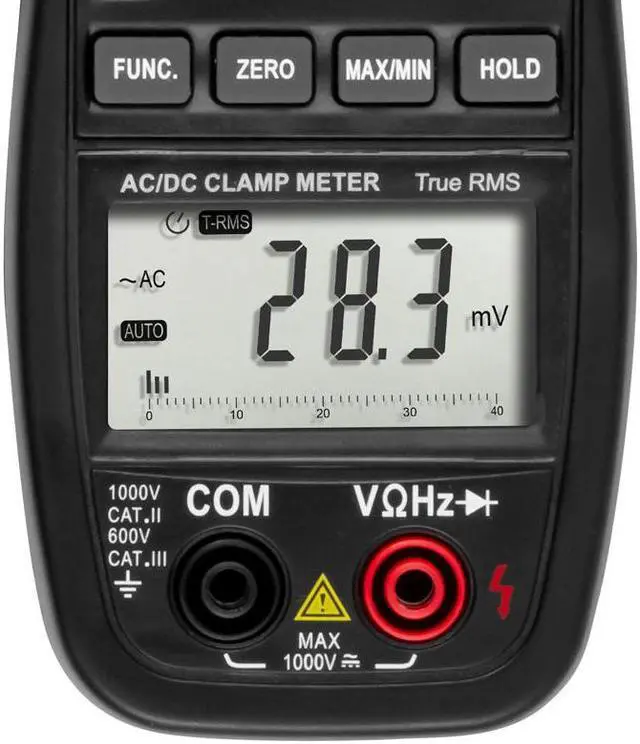

- Backlit LCD display
- Automatic shutdown
- Ready for operation after switching on
- Extensive measuring functions
- Measuring range is selected automatically
+
+
Overview
Specs
Reviews
The digital multimeter is a versatile measuring instrument for the determination of currents, voltages and many other electrical quantities. With a current clamp opening of 40 mm / 1.6 in, even cables with a larger diameter can be tested with the digital multimeter. Thus, with the digital multimeter, current measurements of up to 1000 A AC / DC are possible.

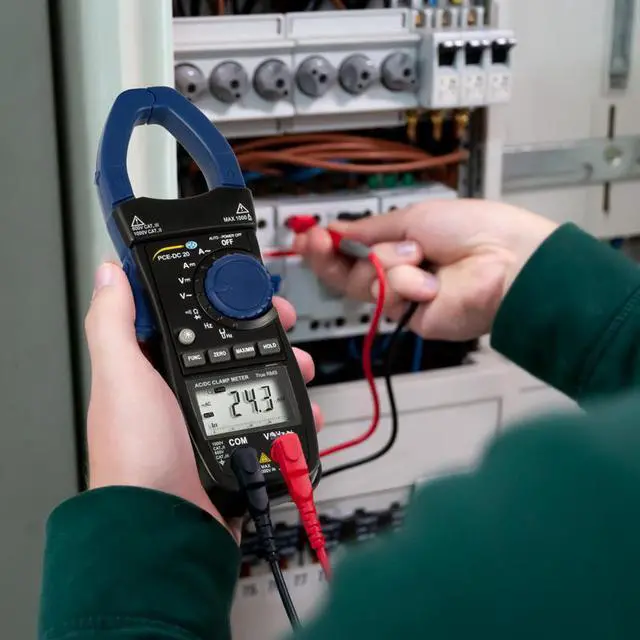

The user can perform frequency measurements with this digital multimeter. This ensures contactless frequency measurement with the digital multimeter. Thus, the digital multimeter is a useful addition to the equipment of an electrician.
DC power
measuring range Resolution Accuracy
400 A 0.1 A ± 3% + 5 digits
600 A 1 A ± 3% + 5 digits
1000 A 1 A ± 3% + 6 digits
Overvoltage protection: 120% of the measuring range for a maximum of 60 seconds
AC power
measuring range Resolution Accuracy
400 A 0.1 A ± 3% + 5 digits
600 A 1 A ± 3% + 5 digits
1000 A 1 A ± 3% + 6 digits
Frequency range: 50... 60 Hz
Overvoltage protection: 120% of the measuring range for a maximum of 60 seconds
DC voltage
measuring range Resolution Accuracy
4V 1 mV ± 0.5 % + 5 digits
40V 10 mV ± 0.5 % + 5 digits
400V 0.1V ± 0.5 % + 5 digits
600V 1V ± 1% + 5 digits
1000V 1V ± 1% + 5 digits
The user can perform frequency measurements with this digital multimeter. This ensures contactless frequency measurement with the digital multimeter. Thus, the digital multimeter is a useful addition to the equipment of an electrician.
DC power
measuring range Resolution Accuracy
400 A 0.1 A ± 3% + 5 digits
600 A 1 A ± 3% + 5 digits
1000 A 1 A ± 3% + 6 digits
Overvoltage protection: 120% of the measuring range for a maximum of 60 seconds
AC power
measuring range Resolution Accuracy
400 A 0.1 A ± 3% + 5 digits
600 A 1 A ± 3% + 5 digits
1000 A 1 A ± 3% + 6 digits
Frequency range: 50... 60 Hz
Overvoltage protection: 120% of the measuring range for a maximum of 60 seconds
DC voltage
measuring range Resolution Accuracy
4V 1 mV ± 0.5 % + 5 digits
40V 10 mV ± 0.5 % + 5 digits
400V 0.1V ± 0.5 % + 5 digits
600V 1V ± 1% + 5 digits
1000V 1V ± 1% + 5 digits
