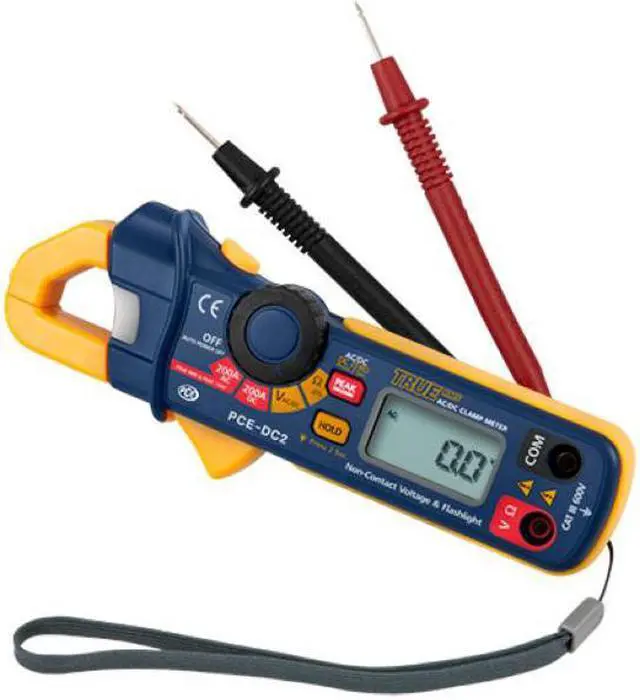

PCE-DC2 Digital Current Clamp
- LCD with 3 2/3 positions, backlit, clamp for continuous current
- Measures AC/DC current, AC voltage and ohms
- Memory function, zero reset for the DCA, test voltage without contact
- Illumination of the point of measurement
- Automatic range selection
- Auto shut-off
- Aperture of the clamp: 18 mm / .7 in
- Alternating current (50/60 Hz, TRMS), Measuring range: 0 ... 200.0 A, Resolution: 0.1 A, Accuracy: ±(2.5 % + 8 digits)
- Direct current, Measuring range: 0 ... 200.0 A, Resolution: 0.1 A, Accuracy: ±(2.0 % + 5 digits)
- DC voltage, Measuring range: 0 ... 600.0V, Resolution: 0.1V, Accuracy: ±(1.0 % + 2 digits)
- AC voltage (50/60 Hz, TRMS), Measuring range: 0 ... 600.0V, Resolution: 0.1V, Accuracy: ±(1.5 % + 8 digits)
- Resistance, Measuring range: 0 ... 999.9 , Resolution: 0.1 , Accuracy: ±(1.5 % + 8 digits)
- Current clamp opening: 18 mm / 0.7"
- Continuity test: <30, test current <0.5 mA
- Measuring range exceeded: "OL" display when measuring range is exceeded
+
+
Overview
Specs
Reviews
The PCE-DC1 Current Clamp has been designed to detect, indirectly, AC/DC current and ohms. The Current Clamp has white LEDs integrated to allow for the point of measurement to be illuminated, and a function to test the voltage without contact. The reduced dimensions of this device allow for measurements to be taken in places with limited access. The backlit display ensures that it is easy to read, even in places with limited light available, such as electrical cabinets or in cabling ducts. Testing voltage without contact helps when detecting dangerous power lines, and it allows makes it easier to detect the location of cuts in power lines.
