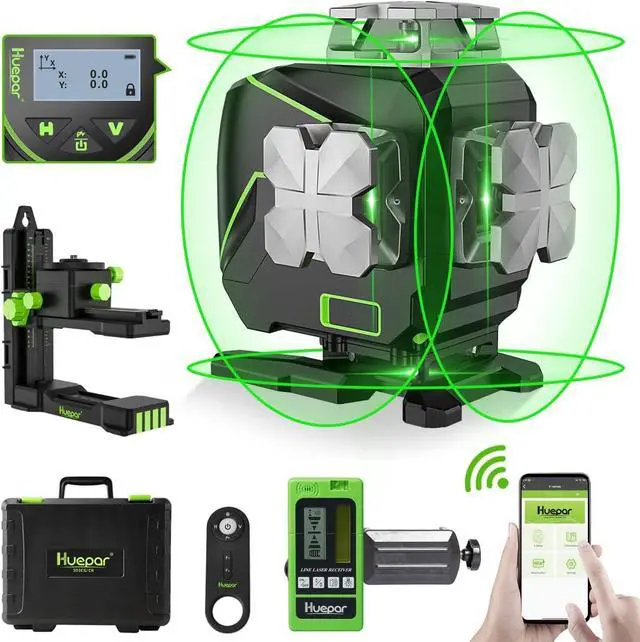

Laser Level 360 Self-Leveling, 4 x 360 Green Cross Line Laser with LCD Screen, 4D Bluetooth Tiling Laser Tool for Construction-360 Horizontal/Vertical Laser-Remote Control&Hard Carry Case S04CG
- 4 X 360° with Top & Floor Line LaserThis laser tool provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° floor horizontal line is for tiling installation. With the lifting base, the 360° floor laser can raise from the surface to project over and travel past uneven surfaces or obstructions between 1" and 3.54" height. Two 360° vertical lines cross at 90°angles makes user quickly visualize and finish square layout.

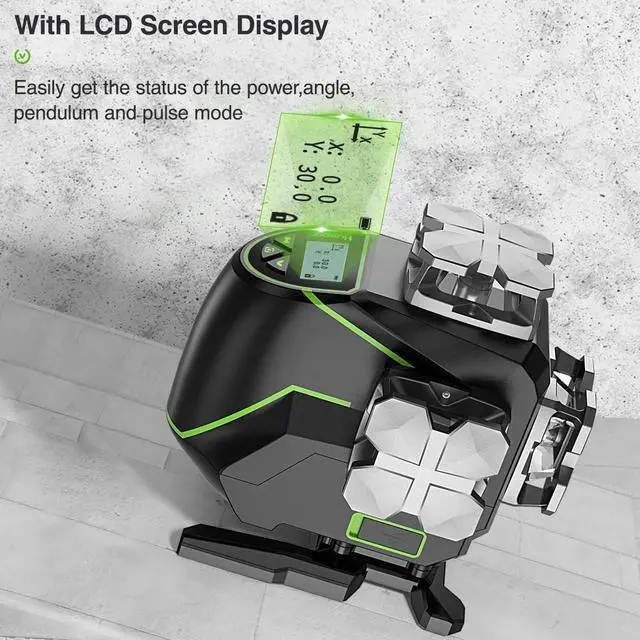

- LCD Display & Bluetooth TechThe laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display. Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone and remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

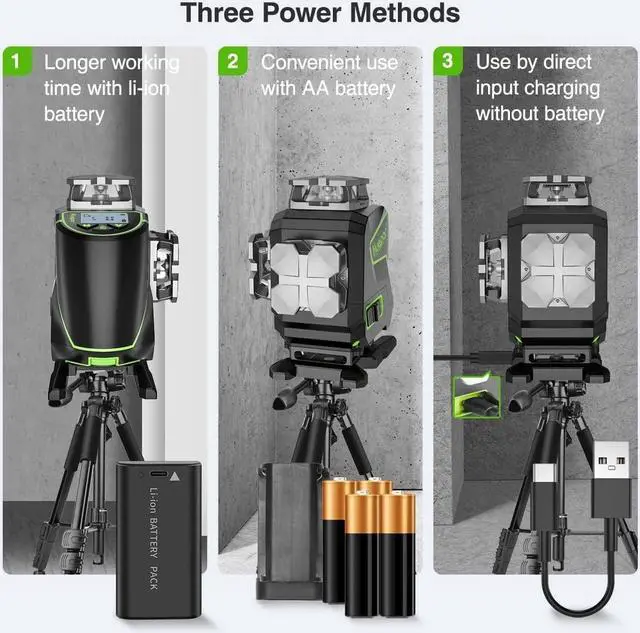

Triple Power Methods & Type-C Charging PortThis 360 laser tool adopted 7.4V / 2600mAh Li-ion battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries (with a battery holder). Besides, this 4D laser level can be used at job site by plugged in when take out the battery. With Type-C charging port, the 16 lines laser level can also be charged by laptop, power bank, car charger, etc.

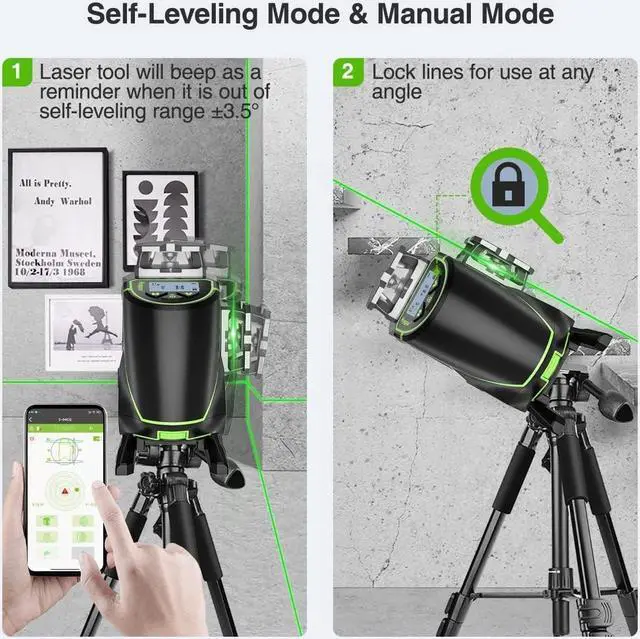

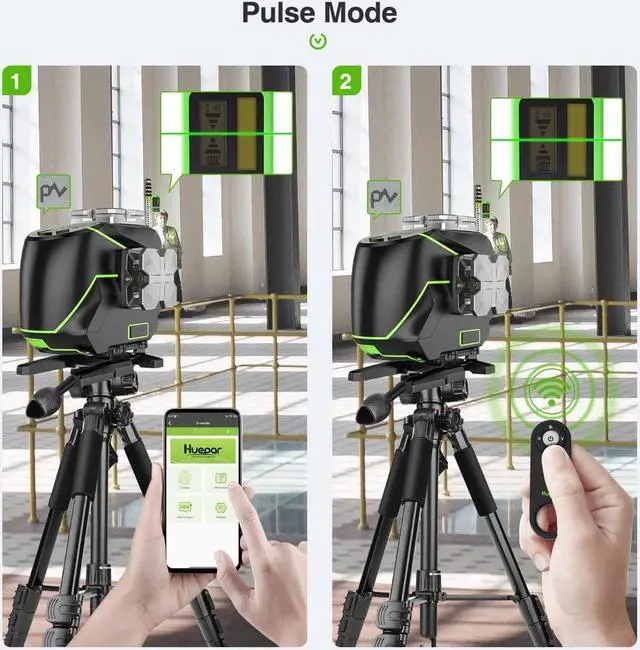

Multifunctional Laser ToolThe four 360° laser planes can be selected individually by separate H and V button on the keypad. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser will beep when out of self-leveling range ± 3.5 °. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver LR-6RG/LR-5RG.

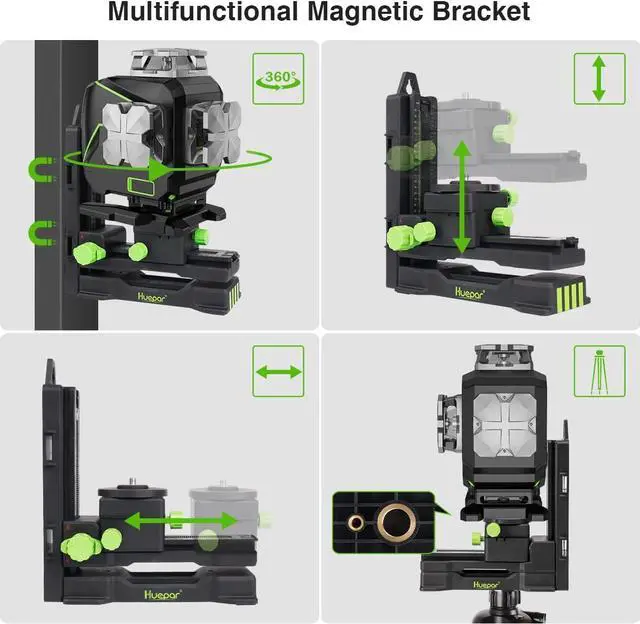

Magnetic Bracket & Durable DesignStrong magnetic bracket allows for quick positioning to metal surfaces to hang the laser tool for wall applications. The laser offers 1/4"-20 mount thread to suit a standard tripod or pole mount. Over-molded metal laser window with IP54 water/dust proof withstands tough job site conditions and can be removed and replaced with a screwdriver. The kit has a hard carry case bringing much more convenience to carry and store the laser tool.
Product Description
With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.
S04CG 4 x 360° Green Beam Floor Laser Level with LCD Screen
Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
Number of Lines: Two 360° horizontal floor laser lines & Two 360° Vertical laser lines
Screen Type: LCD screen with backlight
Laser Wavelength: 505-520nm
Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.
Leveling/Compensation Range: ± 3.5 °
Working Distance (Line): 130Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG/LR-6RG
Power Source: 7.4V / 2600mAh Li-ion battery & 4×AA (LR6) batteries
Operating Time: with
Li-ion Battery: 5 hours with all laser beams on; with
AA Batteries: 0.5 hours with all laser beams on
Package: Hard Carry Case & IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
Mount Size: 1/4"-20
WARNING: Avoid direct exposure of the laser beam to the eyes.

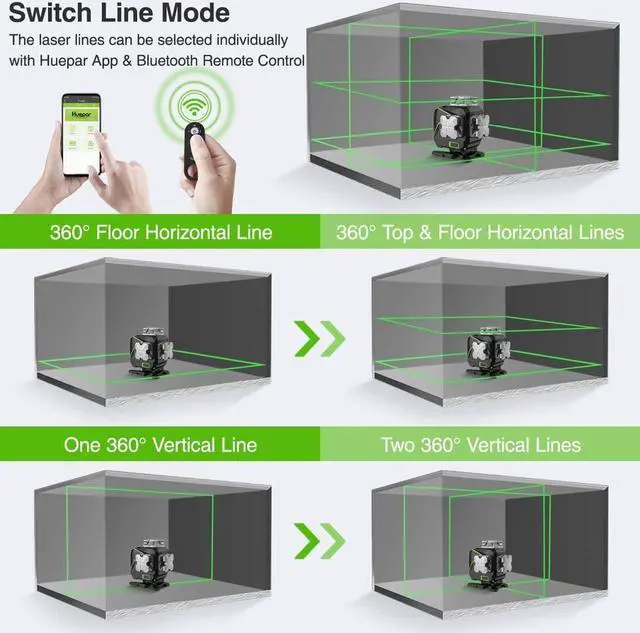

Lines Switching & Bluetooth Technology
Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.
The Bluetooth remote control / Huepar APP enables to select four 360° laser lines individually at a distance up to 98Ft.
The laser line (s) can be temporarily turned OFF by the remote control/Huepar APP when need to leave for a while.
In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.
The laser tool can connect two Bluetooth devices simultaneously. It can connect two Bluetooth remote controls, or two smart phones (whether on Android or iOS), or one Bluetooth remote control and one smart phone at the same time.
Durable Design&Hard Cary Case
Metal laser window design withstands tough worksite conditions. This laser tool is dustproof, shockproof and waterproof, making it more reliable to use.
The Metal laser window cover is replaceable that can be removed and replaced with a screwdriver.
The kit has a hard carry case bringing much more convenience to carry and store the laser tool.
Multifunctional Laser ToolThe four 360° laser planes can be selected individually by separate H and V button on the keypad. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser will beep when out of self-leveling range ± 3.5 °. Once pendulum locked, it switches to manual mode to lock lines for use at any angle. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver LR-6RG/LR-5RG.
Magnetic Bracket & Durable DesignStrong magnetic bracket allows for quick positioning to metal surfaces to hang the laser tool for wall applications. The laser offers 1/4"-20 mount thread to suit a standard tripod or pole mount. Over-molded metal laser window with IP54 water/dust proof withstands tough job site conditions and can be removed and replaced with a screwdriver. The kit has a hard carry case bringing much more convenience to carry and store the laser tool.
Product Description
With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.
S04CG 4 x 360° Green Beam Floor Laser Level with LCD Screen
Specifications
:Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
Number of Lines: Two 360° horizontal floor laser lines & Two 360° Vertical laser lines
Screen Type: LCD screen with backlight
Laser Wavelength: 505-520nm
Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.
Leveling/Compensation Range: ± 3.5 °
Working Distance (Line): 130Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG/LR-6RG
Power Source: 7.4V / 2600mAh Li-ion battery & 4×AA (LR6) batteries
Operating Time: with
Li-ion Battery: 5 hours with all laser beams on; with
AA Batteries: 0.5 hours with all laser beams on
Package: Hard Carry Case & IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
Mount Size: 1/4"-20
WARNING: Avoid direct exposure of the laser beam to the eyes.
Lines Switching & Bluetooth Technology
Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.
The Bluetooth remote control / Huepar APP enables to select four 360° laser lines individually at a distance up to 98Ft.
The laser line (s) can be temporarily turned OFF by the remote control/Huepar APP when need to leave for a while.
In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.
The laser tool can connect two Bluetooth devices simultaneously. It can connect two Bluetooth remote controls, or two smart phones (whether on Android or iOS), or one Bluetooth remote control and one smart phone at the same time.
Durable Design&Hard Cary Case
Metal laser window design withstands tough worksite conditions. This laser tool is dustproof, shockproof and waterproof, making it more reliable to use.
The Metal laser window cover is replaceable that can be removed and replaced with a screwdriver.
The kit has a hard carry case bringing much more convenience to carry and store the laser tool.
