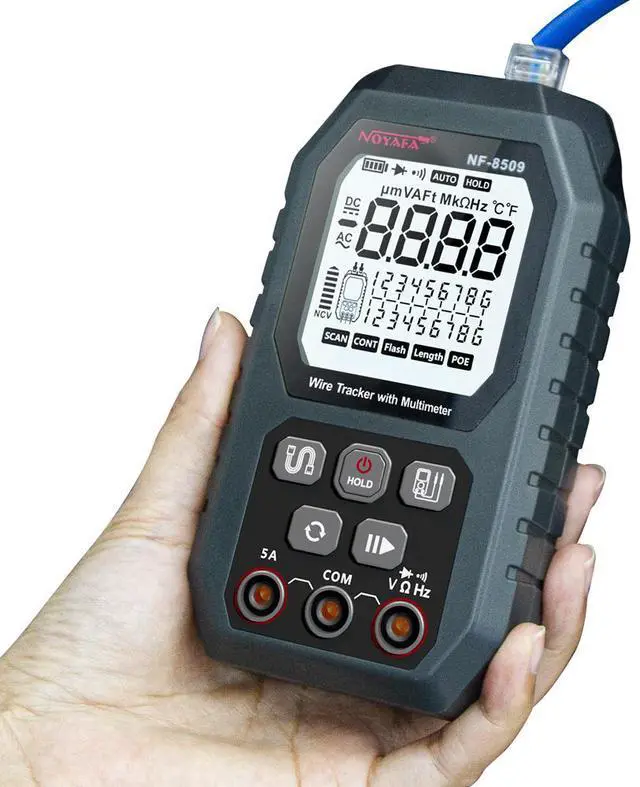

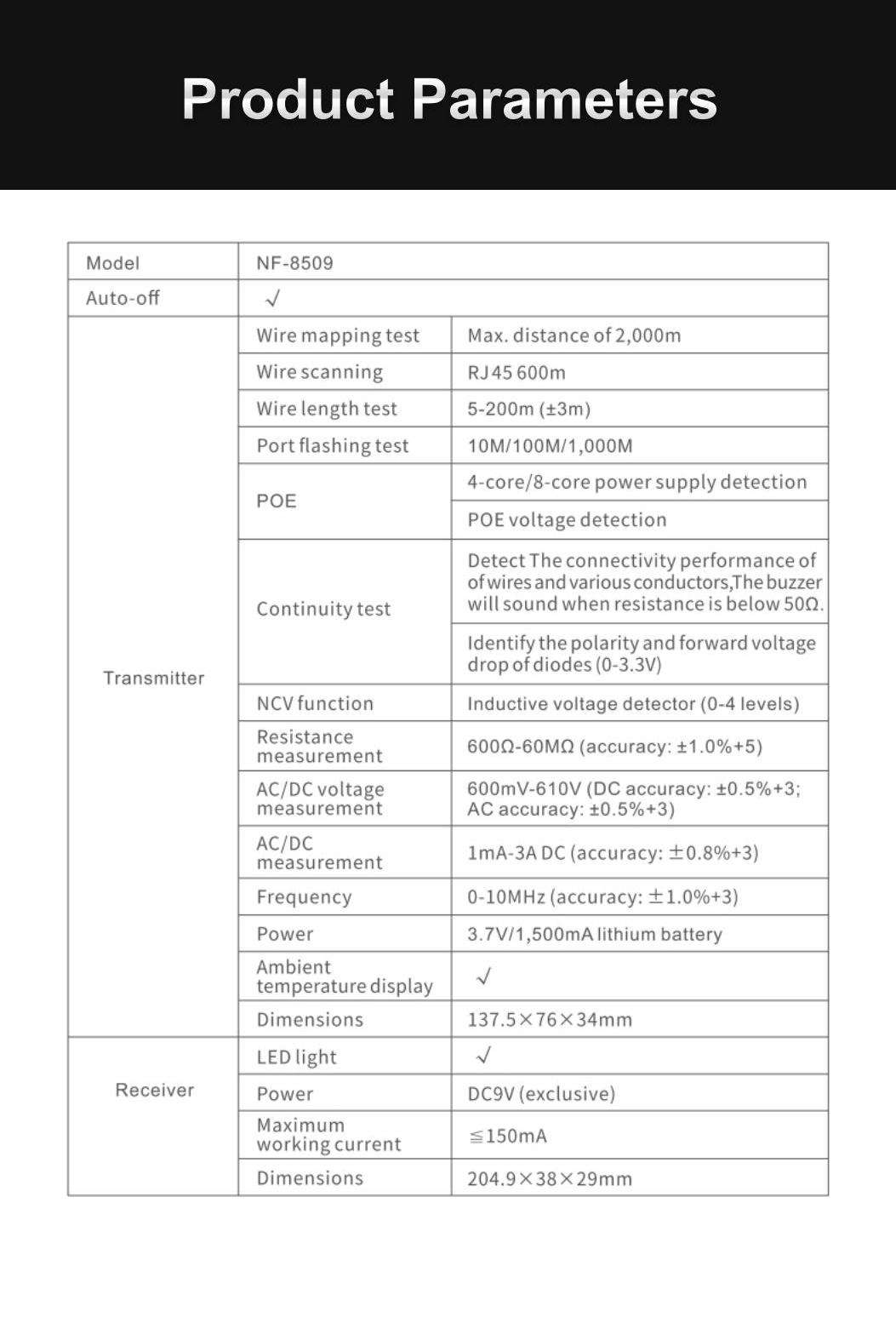

Product Parameters:

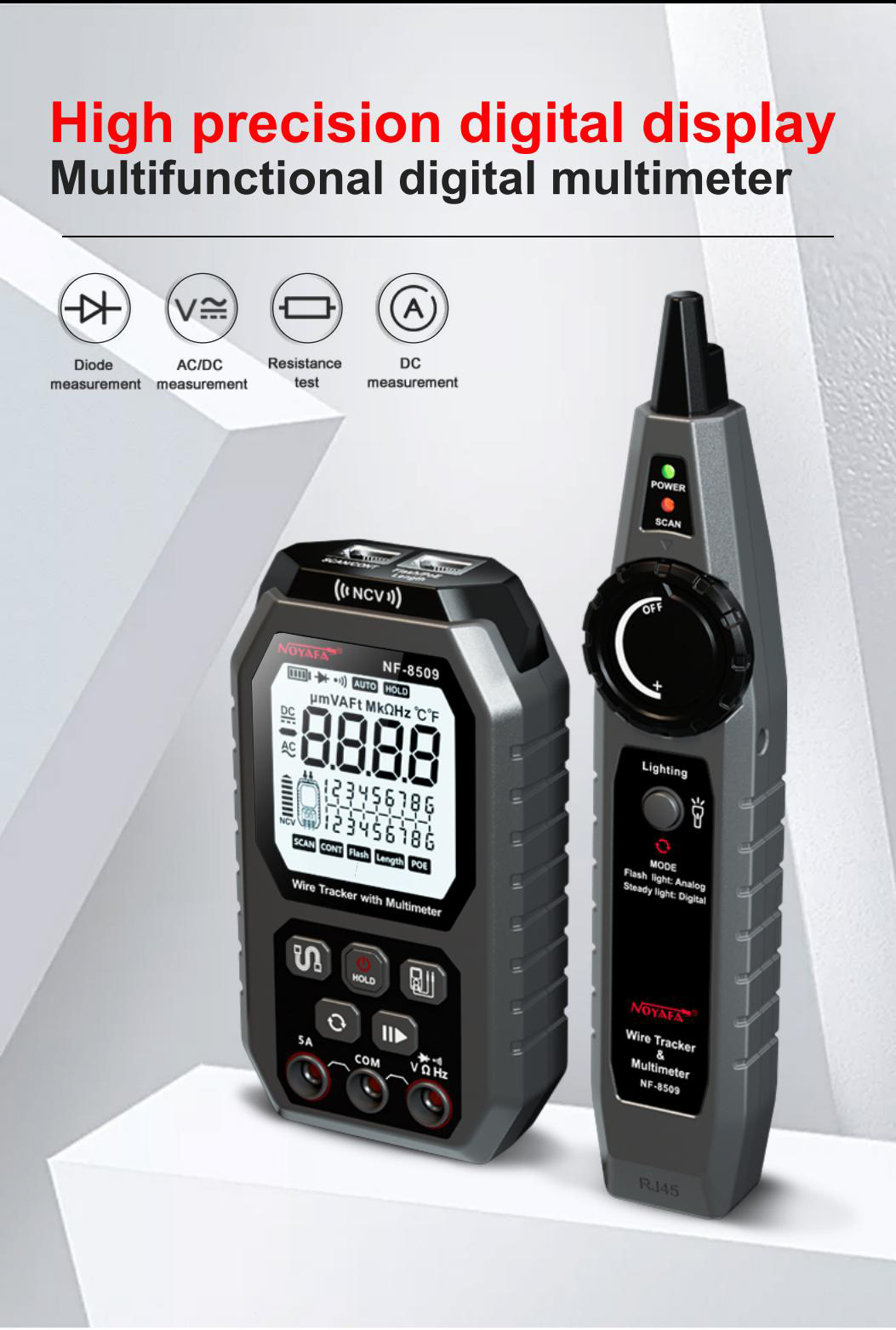

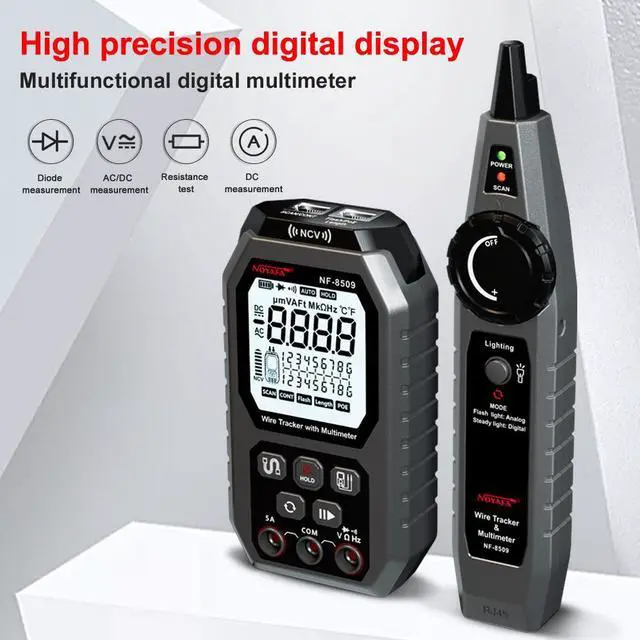

Model: NF-8509
Transmitter Wire mapping test Max. distance of 2.000 m
Wire scanning RJ45 600m
Wire length test 5-200m(±3m)
Port flashing test 10M/100M/1, 000M

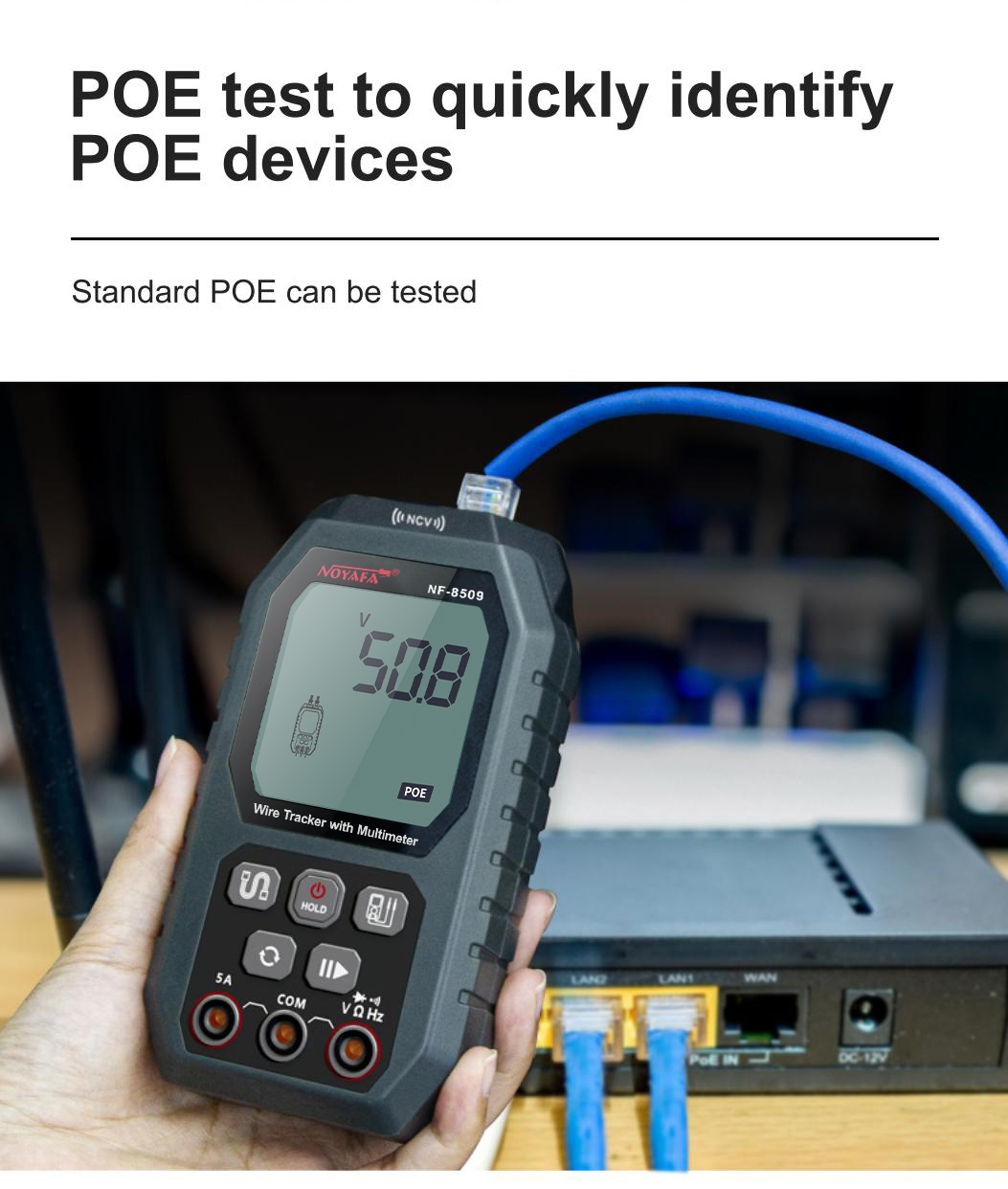

POE4-core/8-core power supply detection
POE voltage detection
Continuity test Detect The connectivity performance of ofwires andvariousconductorsThebuzzer will sound when resistance is below 50

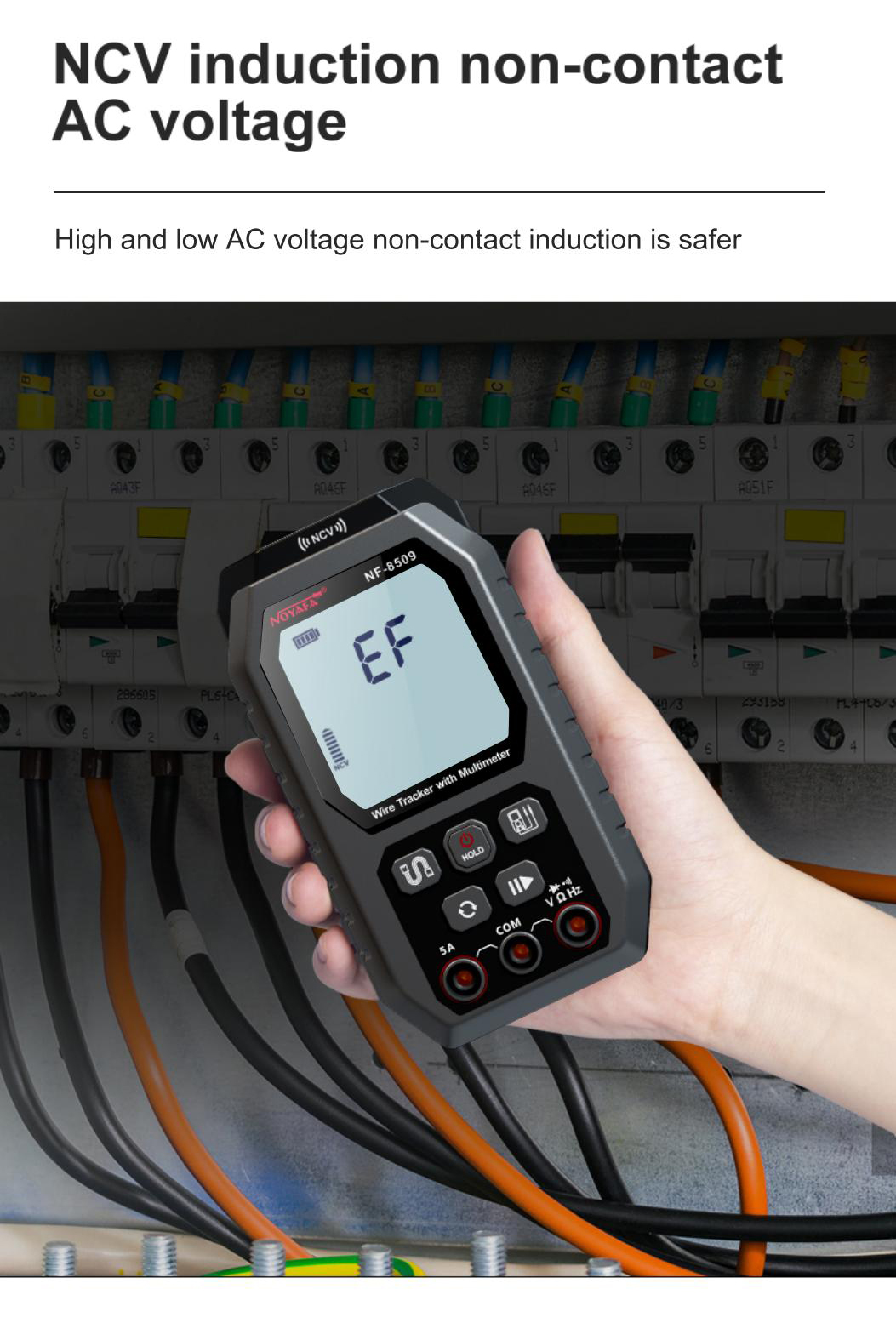

Identify the polarity and forward voltage dropofdiodes(0- 3.3V ); NCV function Inductive voltage detector(0-4 levels)

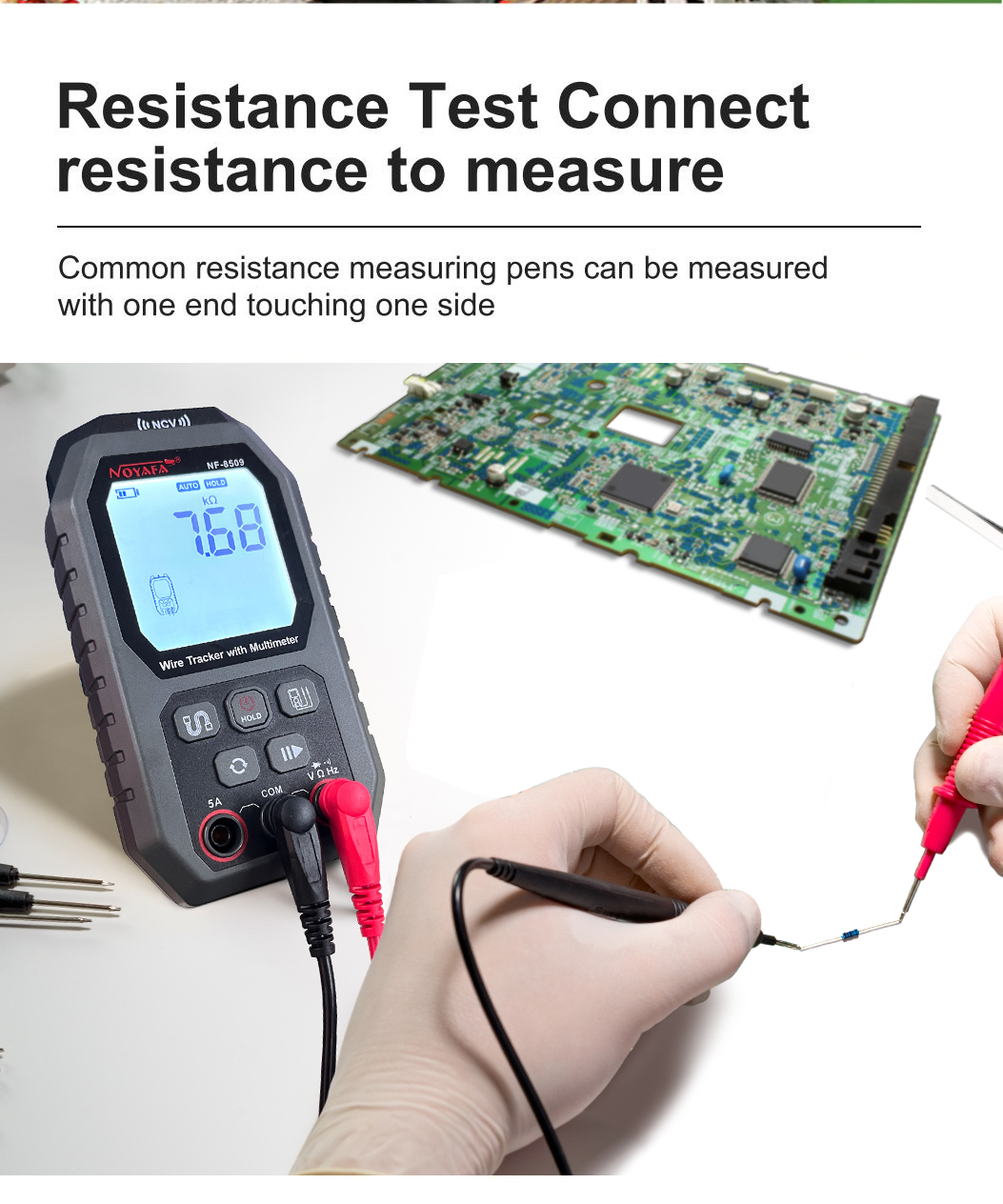

Resistance measurement: 600-60M(accuracy: ± 1.0 %+5)

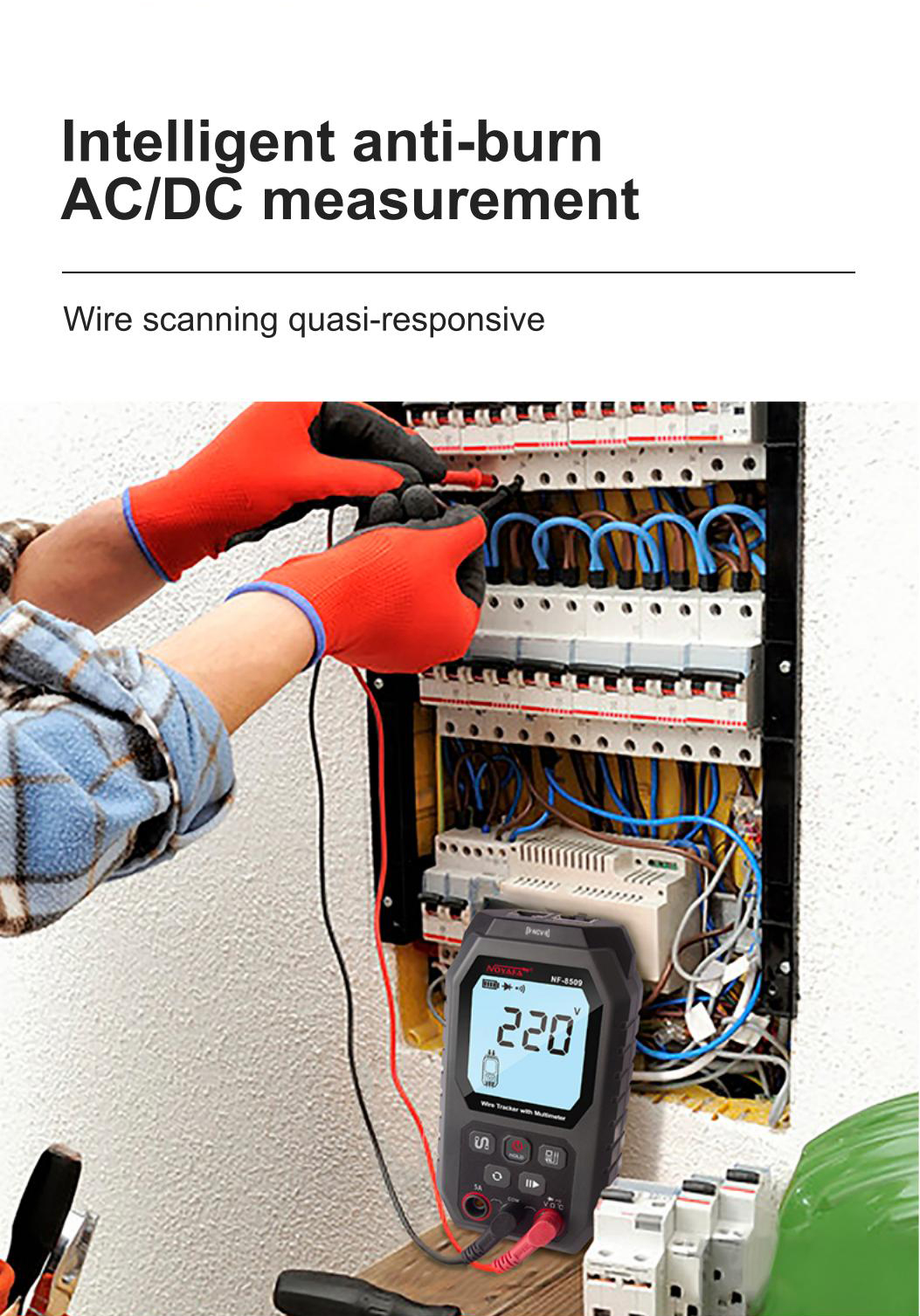

AC/DCvoltage measurement:
600mV-610V(DCaccuracy: ± 0.5 %+3 ACaccuracy: + 0.5 %+3)
measurement: 1mA-3ADC(accuracy: ± 0.8 %+3)
Frequency: 0-10MHz(accuracy: ± 1.0 %+3);
Power: 3.7V /1, 500mAlithium battery
Ambient; temperature display

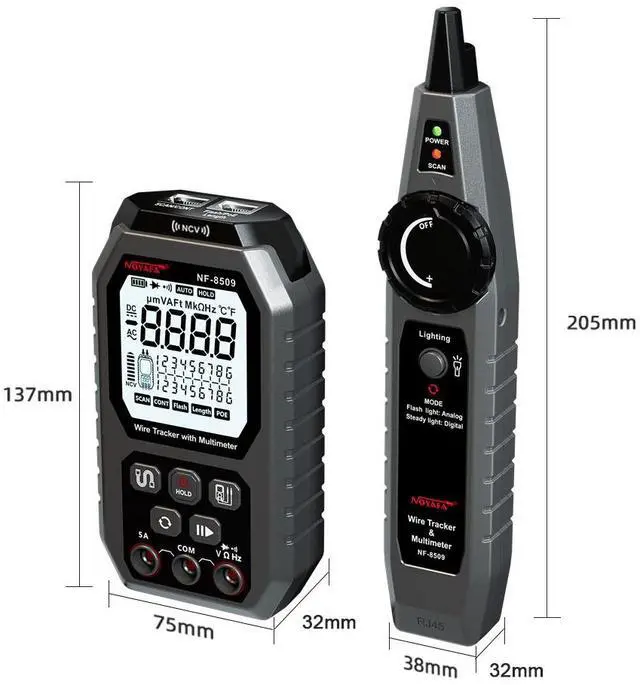

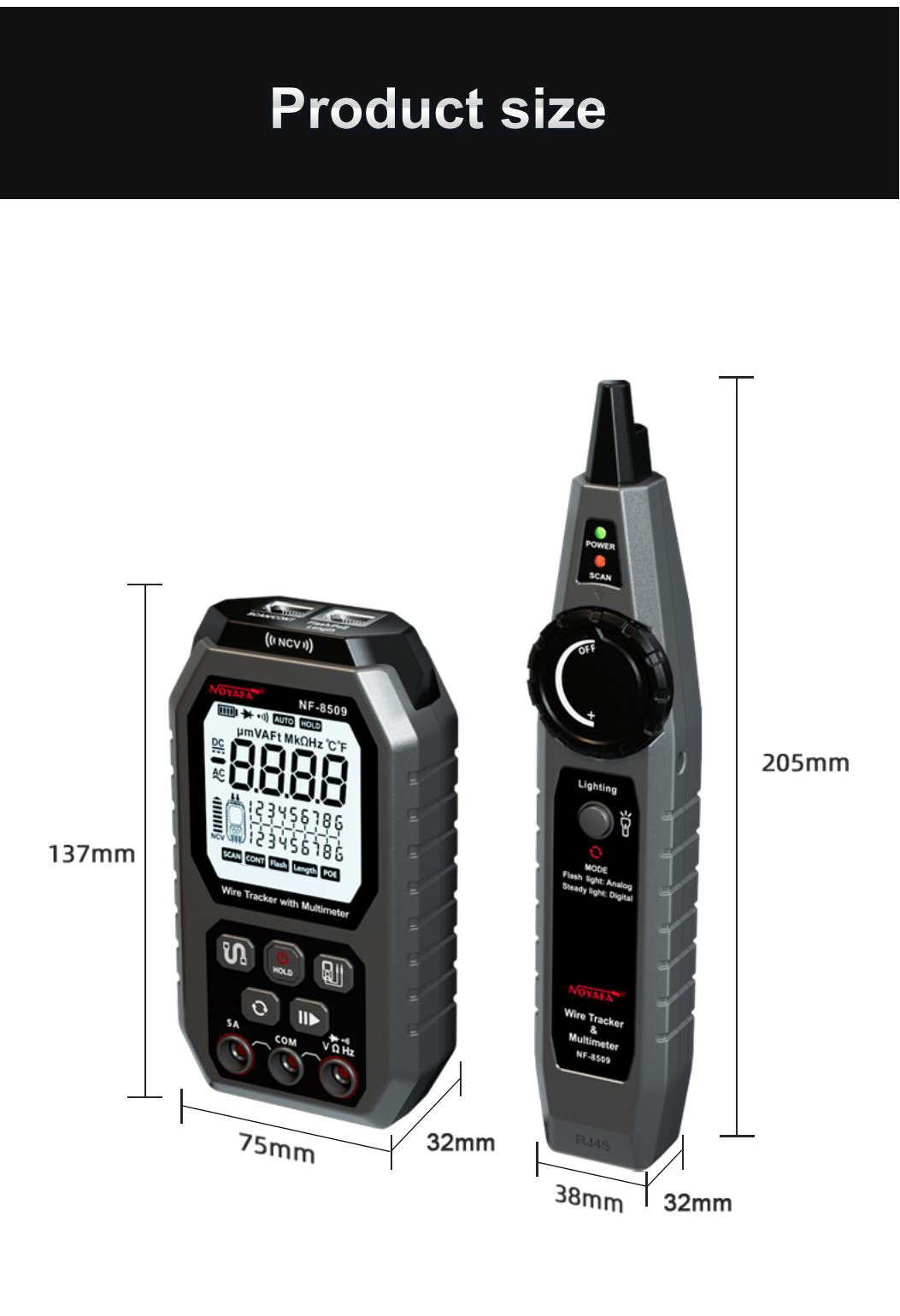

Dimensions 137.5 x76x34mm

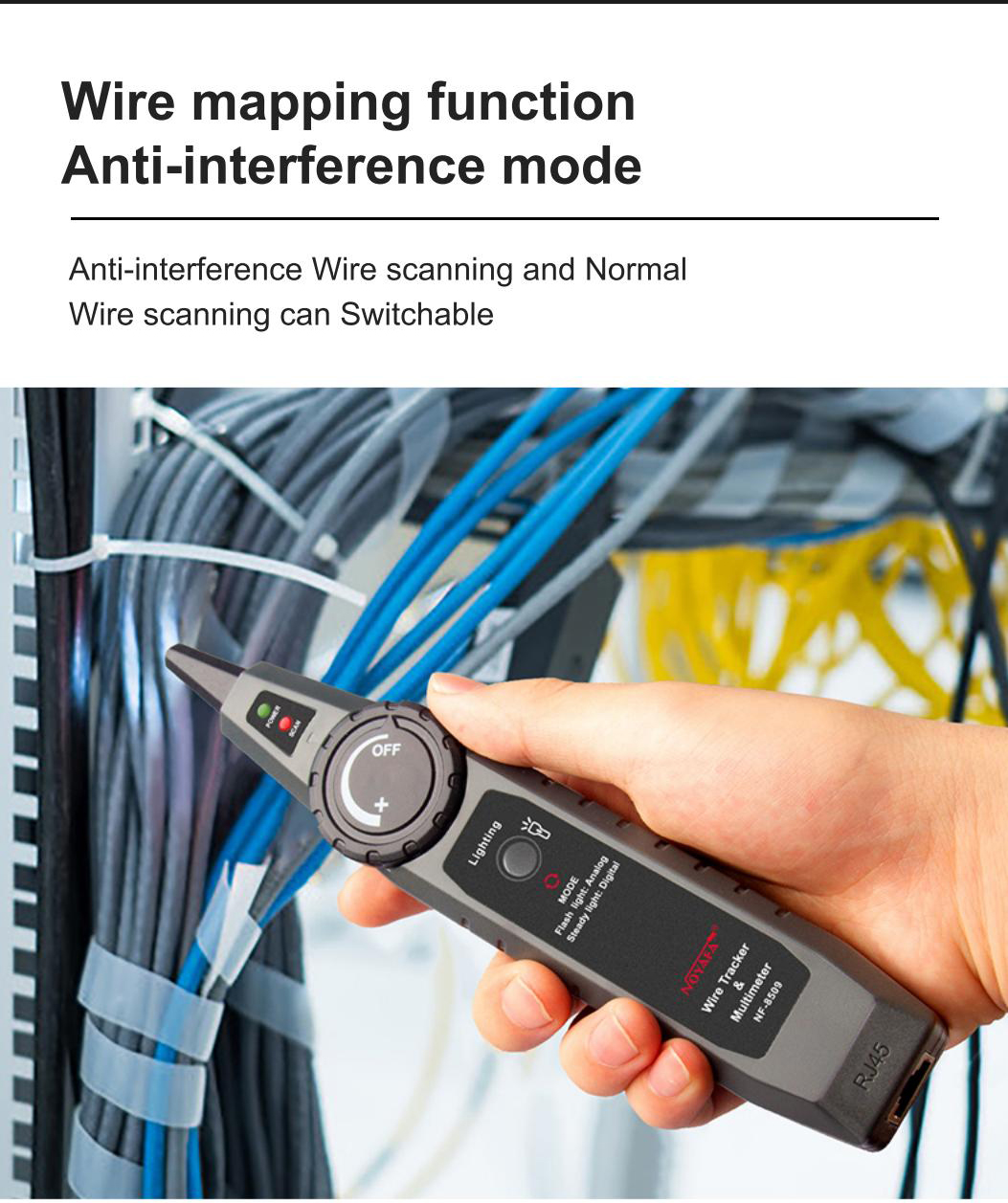

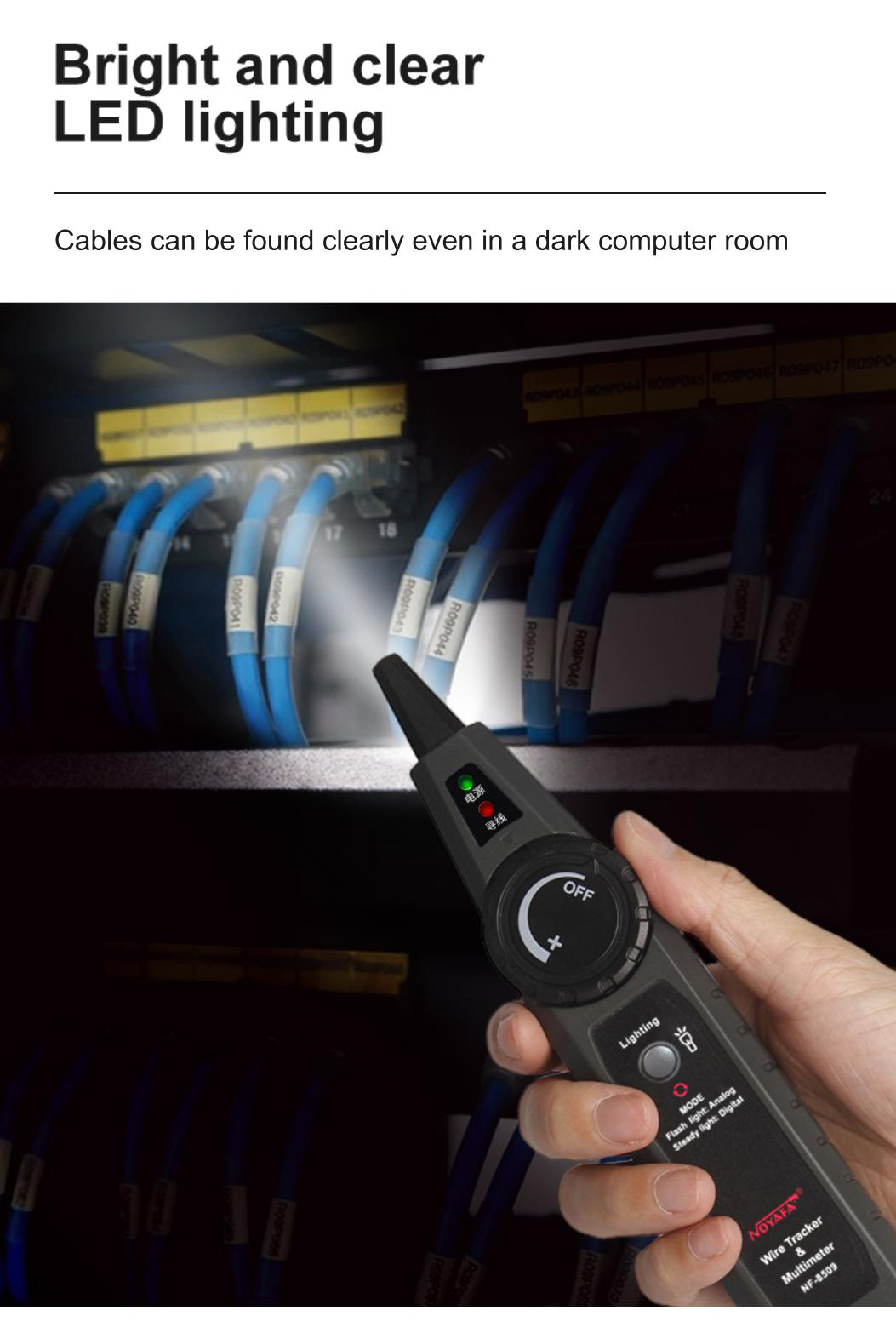

ReceiverL ED light
Telephone function;
Power DC 9V (exclusive)
Maximum
working current150mA
Dimensions 204.9 x38x29mm

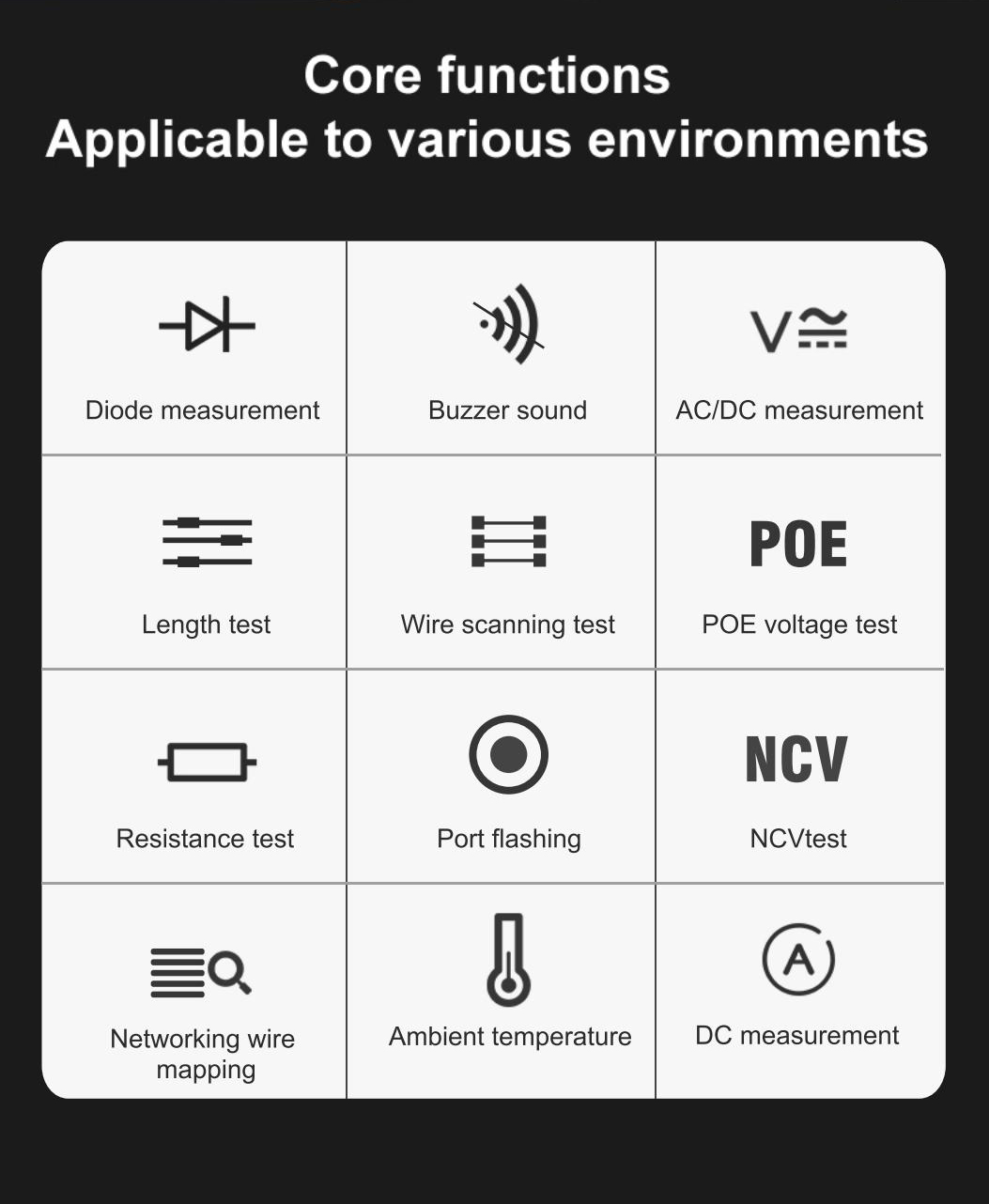

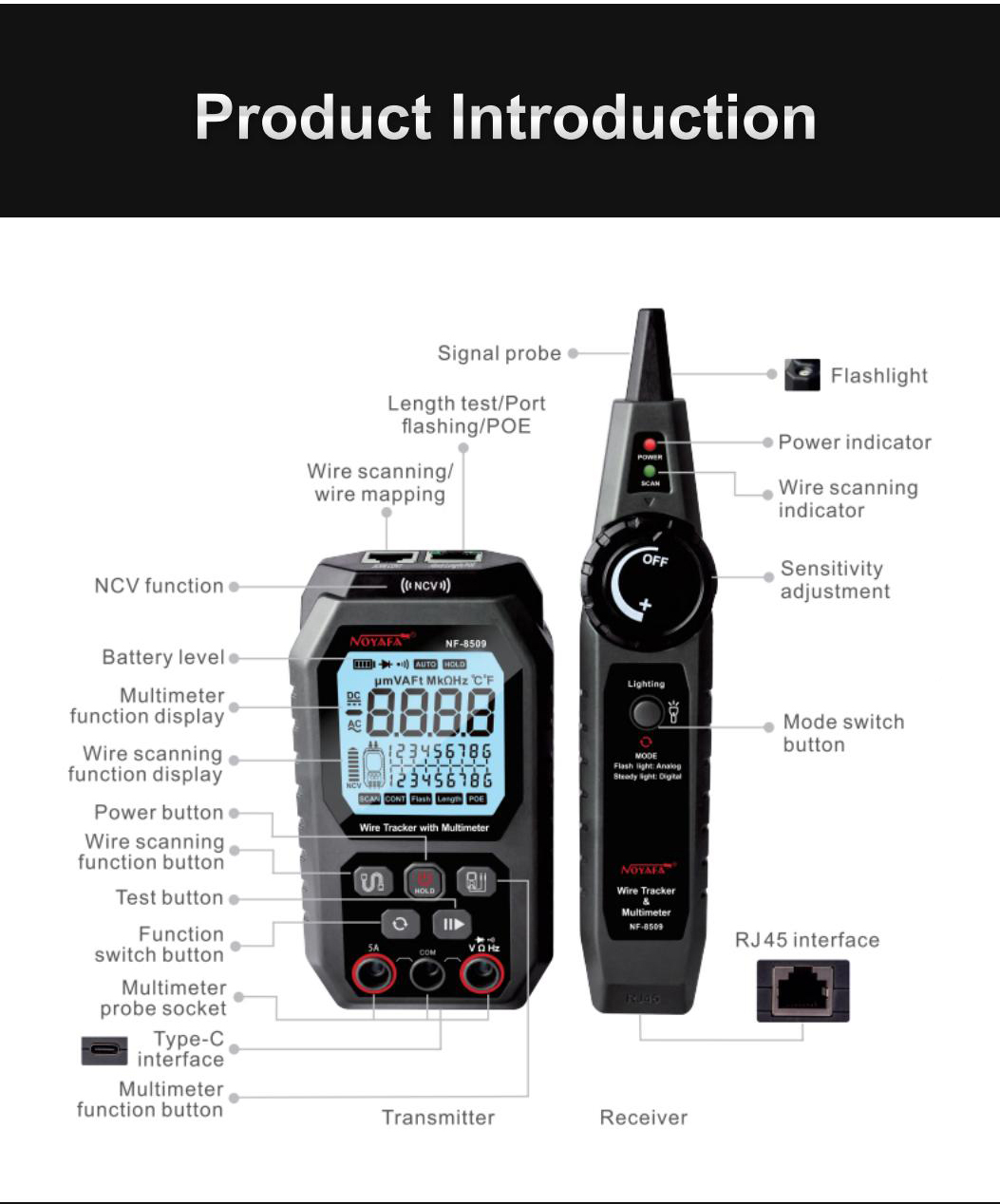

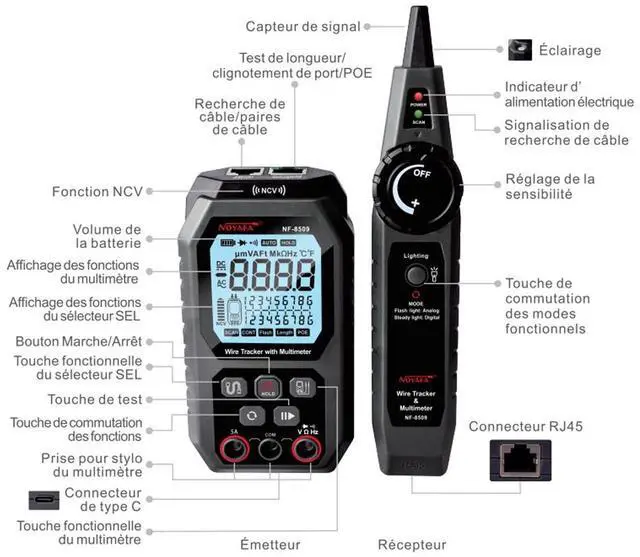

Function:
1.

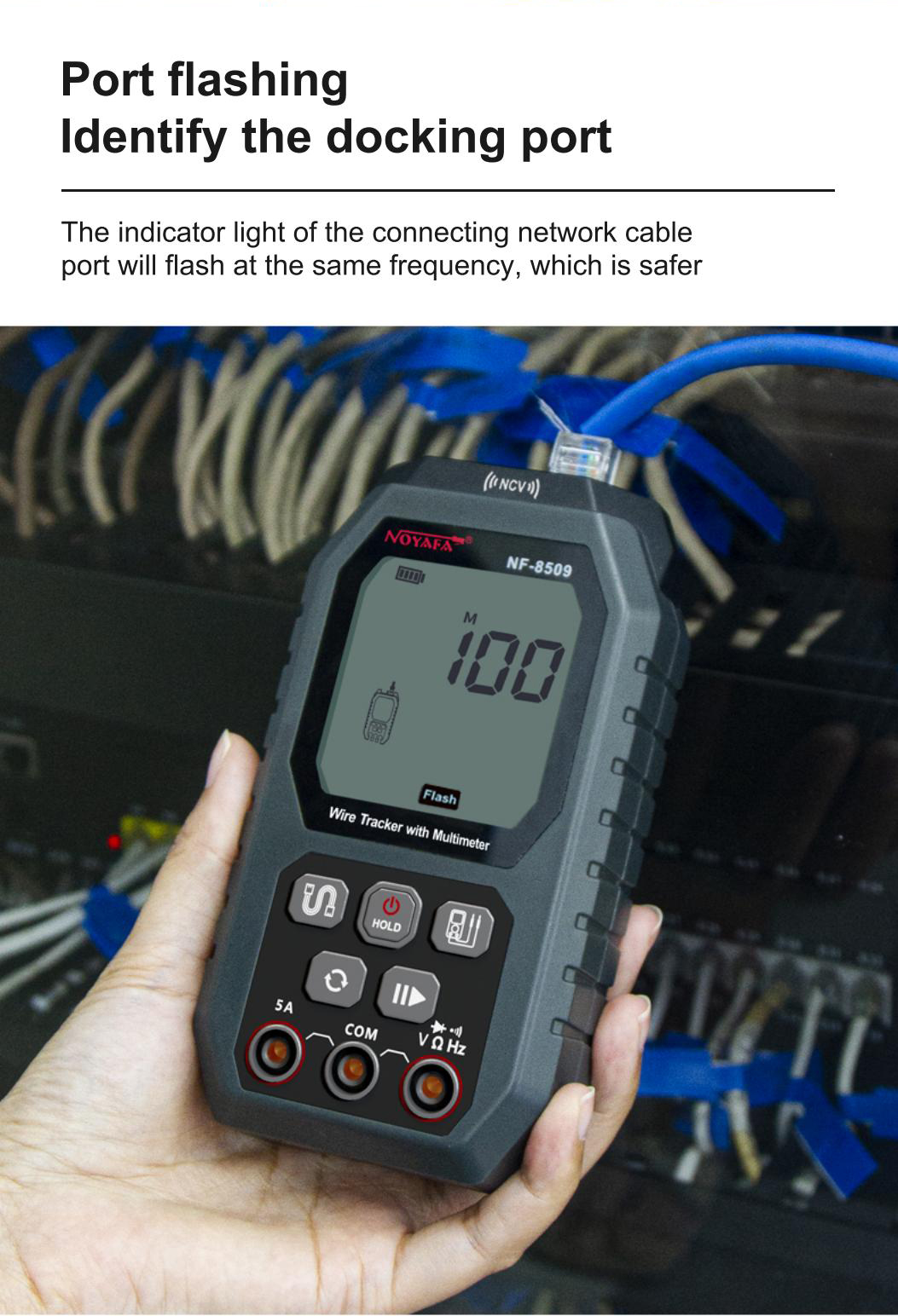

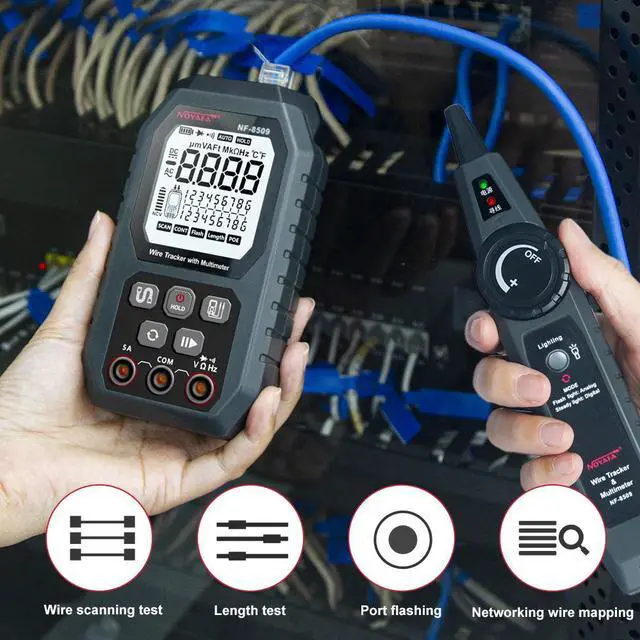

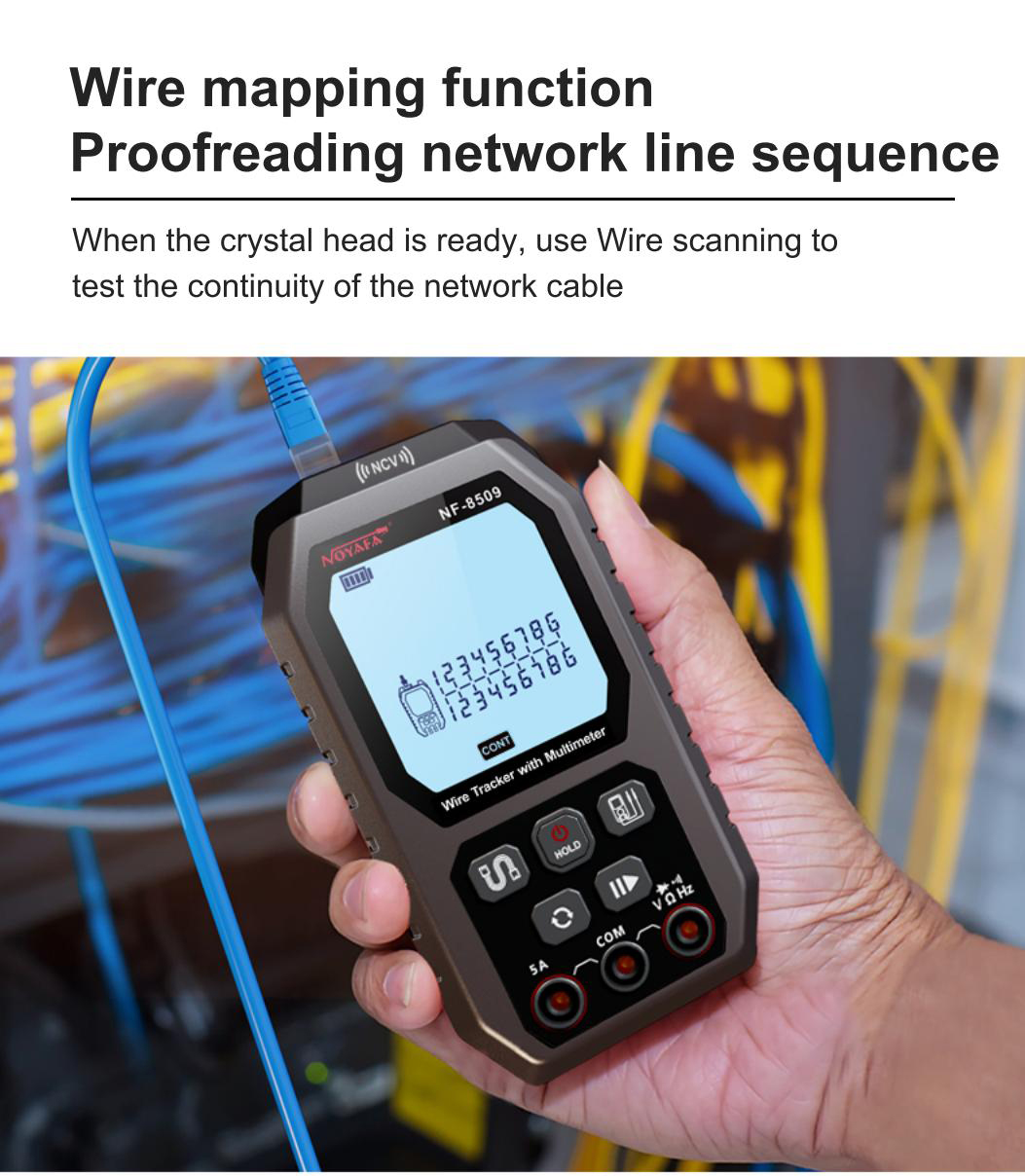

Network cable testing functions: Cable length test, wire continuity test, wire scan test, POE Test and prot flash
2.
Digital Multimeter Functions: Ac/Dc Voltage Test, Continuity Test, Diode Test, Temperature Test, Ncv Test, Resistance Test, Ac/Dc Current Test
Note: Wire Scan is enabled by default after turn on the device
