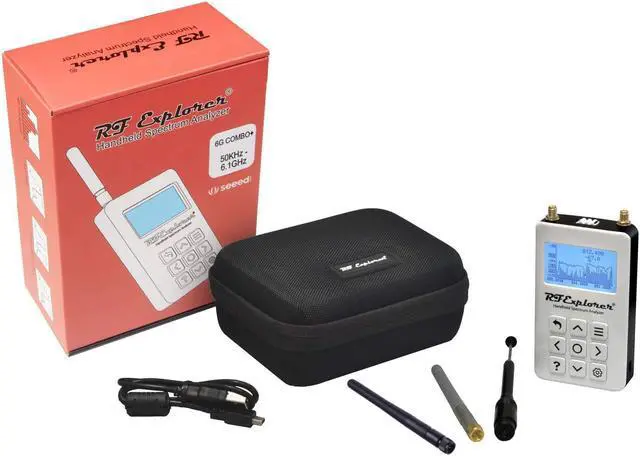

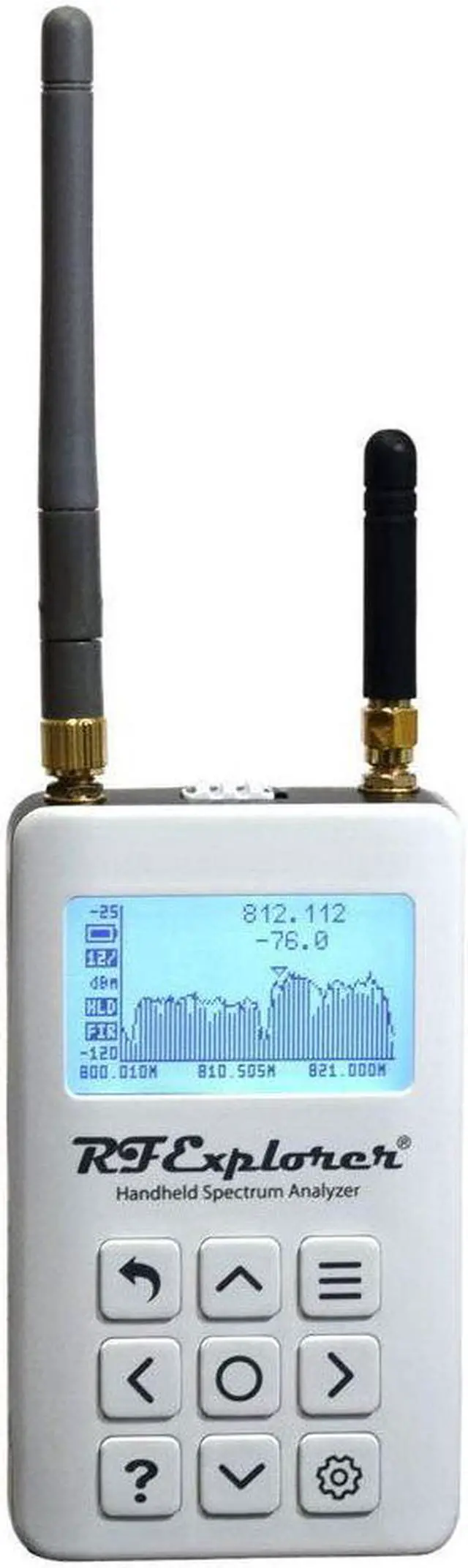

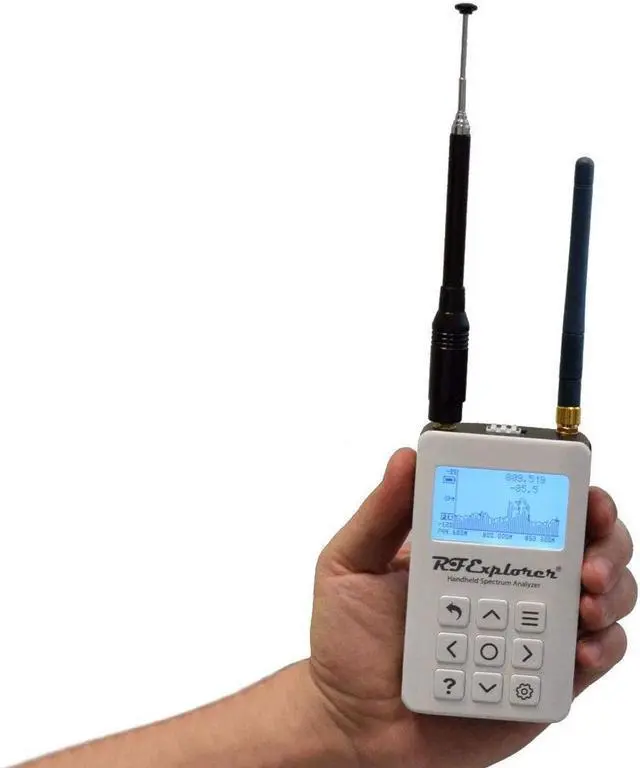

RF Explorer Digital Handheld Spectrum Analyzer 6G Combo Plus - Slim
- Internal LNA amplifier and selectable attenuator for additional power range handling.
- Low-frequency support from 50KHz covering LF, MF, HF, VHF, and UHF
- High-frequency support covering all ranges up to 6.1GHz with no gaps.
- New HELP and SET buttons to improve user interface and PRESET configuration selection with 2-clicks
- Ideal choice for all usable HAM bands.
- Pocket size and lightweight
- Solid metal case with high-quality varnished paint
- Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
- High capacity internal Lithium battery for 10hs+ of continuous run, rechargeable by USB
- Multi-platform Windows/Linux/MacOS Open Source software and API libraries
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Frequency band:
Left connector: 0.05 960MHz
Right connector: 240 6100MHz
Frequency span in a single sweep: 2 960MHz
Internal selectable LNA 25dB gain
Internal selectable Attenuators 30dB and 60dB
Wifi Analyzer for the 2.4GH z and 5GHz bands
Graphics LCD 128x64 pixels, great visibility outdoors
Backlight for great visibility indoor
Internal Lithium-Ion 1800mA/h rechargeable battery
Standard SMA 50 ohms connectors
Wideband 144/433MHz dual band telescopic antenna included
UHF 400-900MHz rubber duck articulated antenna included
2.4 /5GHz dual-band antenna included
Amplitude resolution: 0.5 dBm
Dynamic range: -125dBm to 10dBm
Absolute Max input power: +30dBm
Average noise level (typical LNA): -125dBm
Frequency stability and accuracy (typical): +- 1.0 ppm
Amplitude stability and accuracy (typical): +-3dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6K hz to 600Khz
Support included for Windows, Linux and MacOS X
[Impressive frequency range] Scan and diagnose any frequency starting in low frequency 50KHz up to high frequency 6.1GH z, with no gaps or limitations. Offering this wide operating range, it can detect all WiFi, cell stations and phones, IoT, HAM bands, Digital radio and TV, ISM bands, Drone links and pretty much all wireless technologies used in todays demanding communications world.
[Robust design and instant power up] A fully armored metallic enclosure provides robust mechanical strength and the high quality baked varnished paint provides a unique glossy finish. The device is designed and manufactured to last many years of demanding usage in the field, with internal rechargeable Lithium battery for hours of continuous usage.
[Advanced features] Included advanced high-resolution Spectrum Analyzer mode, WiFi Analyzer mode, Tracking SNA. Internal firmware is continuously updated with additional features and functions to improve the device capabilities.
[Free Computer software] - When connected to a Windows, Linux or Mac computer the analyzer can display advanced high resolution graphics, including Power Meter and Spectrum Analyzer real time charts, historical charts, save data to CSV files and export to other tools such as WW6 or MatLab, define markers and limit lines and much more. Free open source API and libraries are available to customize your own applications and services.
[Tracking mode enabled] When combined with RF Explorer Signal Generator the analyzer can perform full tracking SNA to define Gain, Attenuation and SWR for 1 and 2 port RF devices such as filters, amplifiers and antennas.
Left connector: 0.05 960MHz
Right connector: 240 6100MHz
Frequency span in a single sweep: 2 960MHz
Internal selectable LNA 25dB gain
Internal selectable Attenuators 30dB and 60dB
Wifi Analyzer for the 2.4GH z and 5GHz bands
Graphics LCD 128x64 pixels, great visibility outdoors
Backlight for great visibility indoor
Internal Lithium-Ion 1800mA/h rechargeable battery
Standard SMA 50 ohms connectors
Wideband 144/433MHz dual band telescopic antenna included
UHF 400-900MHz rubber duck articulated antenna included
2.4 /5GHz dual-band antenna included
Amplitude resolution: 0.5 dBm
Dynamic range: -125dBm to 10dBm
Absolute Max input power: +30dBm
Average noise level (typical LNA): -125dBm
Frequency stability and accuracy (typical): +- 1.0 ppm
Amplitude stability and accuracy (typical): +-3dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6K hz to 600Khz
Support included for Windows, Linux and MacOS X
[Impressive frequency range] Scan and diagnose any frequency starting in low frequency 50KHz up to high frequency 6.1GH z, with no gaps or limitations. Offering this wide operating range, it can detect all WiFi, cell stations and phones, IoT, HAM bands, Digital radio and TV, ISM bands, Drone links and pretty much all wireless technologies used in todays demanding communications world.
[Robust design and instant power up] A fully armored metallic enclosure provides robust mechanical strength and the high quality baked varnished paint provides a unique glossy finish. The device is designed and manufactured to last many years of demanding usage in the field, with internal rechargeable Lithium battery for hours of continuous usage.
[Advanced features] Included advanced high-resolution Spectrum Analyzer mode, WiFi Analyzer mode, Tracking SNA. Internal firmware is continuously updated with additional features and functions to improve the device capabilities.
[Free Computer software] - When connected to a Windows, Linux or Mac computer the analyzer can display advanced high resolution graphics, including Power Meter and Spectrum Analyzer real time charts, historical charts, save data to CSV files and export to other tools such as WW6 or MatLab, define markers and limit lines and much more. Free open source API and libraries are available to customize your own applications and services.
[Tracking mode enabled] When combined with RF Explorer Signal Generator the analyzer can perform full tracking SNA to define Gain, Attenuation and SWR for 1 and 2 port RF devices such as filters, amplifiers and antennas.
