TinySA Ultra 4inch Spectrum Analyzer - Portable V0.4.5.1 100kHz-5.3GHz Frequency Analyzer | Built-in 3000mAh Battery & 32GB SD Card | RBW LNA DANL Phase Noise RF Signal Generator
- Above 5.35GHz the tinySA Ultra uses harmonic mixing. As the mixer in the tinySA is not designed for this, the conversion loss varies and you may have to calibrate out some variation. To check if this is needed set the tinySA to a center frequency 5.35GHz, span 100kHz, RBW 300kHz and apply an input signal at 5.35GHz. When your device needs calibration you will see a step in the measured level at 5.35GHz
- The compensation for this change in conversion loss is done by the CONFIG/LEVEL CAL/CALIBRATE above 5.34GHz command. To eliminate this step, provide a 5.34GHz input signal between -50 dBm and -10 dBm and execute the CALIBRATE above 5.34GHz command. When successful the step should be gone.

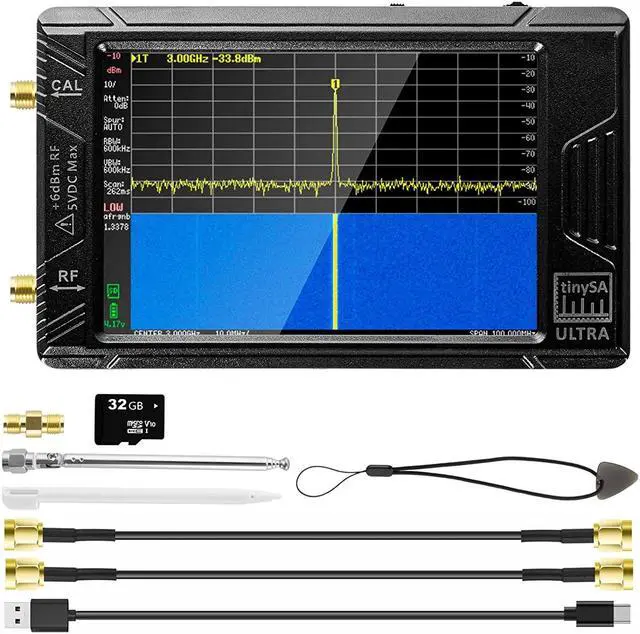

- the build-in SD card slot and the 32gb micro sd card have now solved the issue on saving the onsite data, you could take the tinysa with you at anywhere and anytime;
- Audio Out, standard 3.5mm headphone jack, put on the headphone or connect to the amplifier if needed
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2023

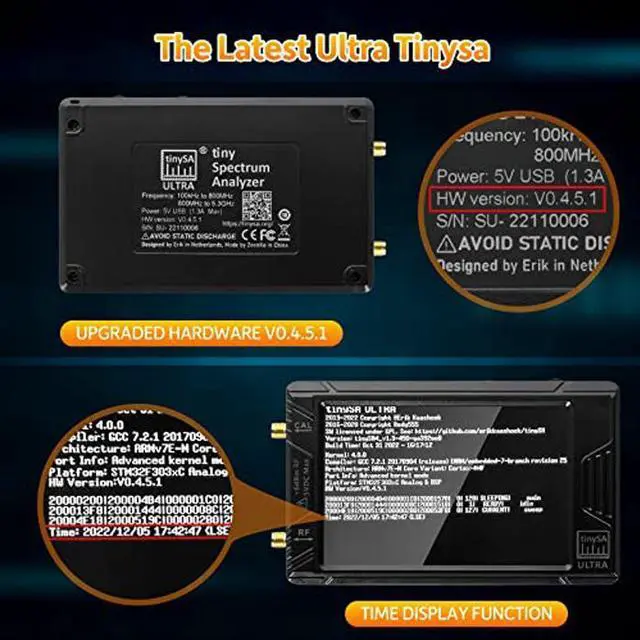

NEWEST TINYSA: Produced by Hugen, Authorized seller by tinysa. org, Tinysa ULTRA owns high performance frequency in 100khz to 800MHz, and when in ultra mode, the analyzer can reach 5.3GH z. With new 4'' touchscreen display and installed with the latest hardware system V 0.4. 5.1. tinysa is more professional, stable, sensitive and easy to be operated
The ultra-wide range frequency can reach around 6GHz, together with the excellence of phase noise -92dBc@10kHz, DANL -166dBm/Hz; In Ultra mode the input low pass filter is automatically enabled for all frequencies within the pass-band of the low pass filter (up to 750MHz). For higher frequencies the low pass filter will be bypassed and the measurement will be slower due to the multiple measurements frequency required for the mirror and spur elimination algorithm

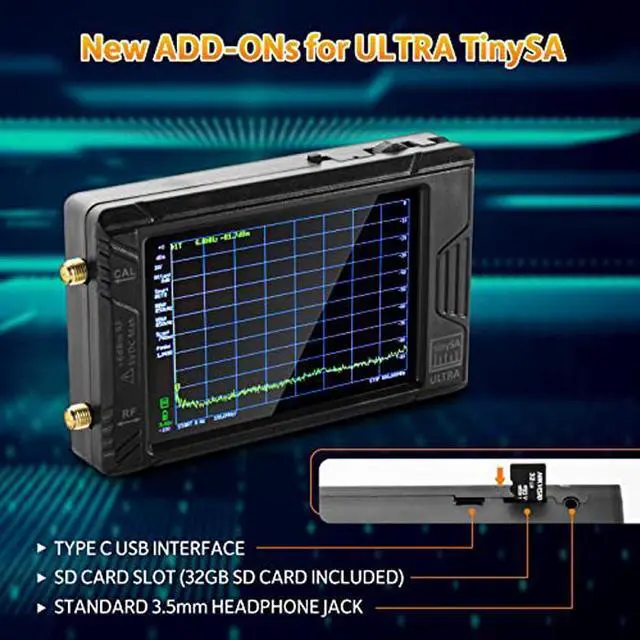

New Add-ons: TinySA ULRRA with 4'' touchscreen display, you can operate on it more easily and read clearly; the build-in SD card slot and the 32gb micro sd card have now solved the issue on saving the onsite data, you could take the tinysa with you at anywhere and anytime; Audio Out, standard 3.5 mm headphone jack, put on the headphone or connect to the amplifier if needed; 3000mAh built-in rechargeable battery, the tinysa can work around 8hrs

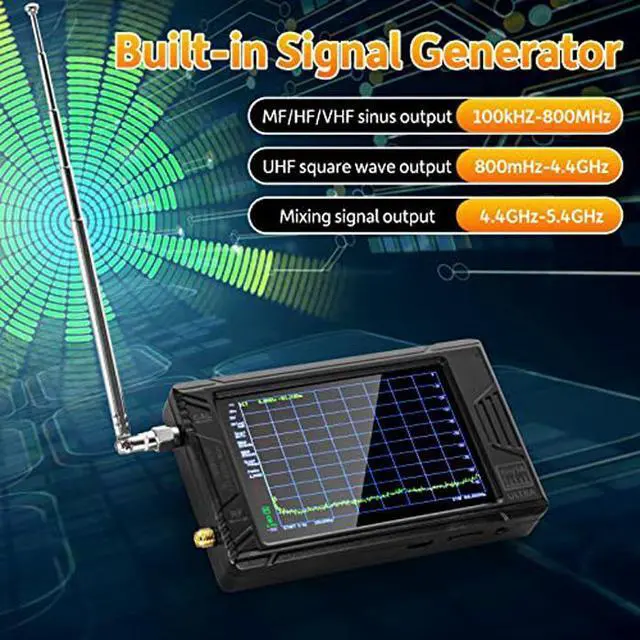

2 in 1 Device: When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 100kHZ-800MHz, UHF square wave output between 800mHz- 4.4GH z, Mixing signal output is between 4.4GH z- 5.4GH z; Built-in calibration signal generator that is used for automatic self test and low input calibration. The ultra tinysa contains all the components of a conventional heterodyne swept spectrum analyzer.

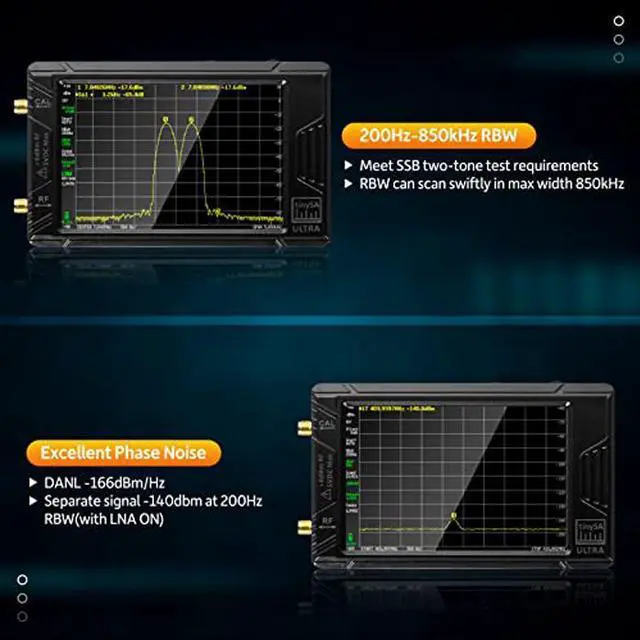

Differences to the Former TinySa: The first big one is that now the default maximum frequency is 800mhz, so you no longer have to switch between low and high range, and can monitor the complete range in one sweep; Second, In the level menu, there is the LNA, which will provide 20db of extra gain if you have very low level signal; Lastly, RBW frequency from 200hz to 850khz which can be set to match the measurement requirements, meet SBB two-tone test requirements and fast scanning
NEWEST TINYSA: Produced by Hugen, Authorized seller by tinysa. org, Tinysa ULTRA owns high performance frequency in 100khz to 800MHz, and when in ultra mode, the analyzer can reach 5.3GH z. With new 4'' touchscreen display and installed with the latest hardware system V 0.4. 5.1. tinysa is more professional, stable, sensitive and easy to be operated
The ultra-wide range frequency can reach around 6GHz, together with the excellence of phase noise -92dBc@10kHz, DANL -166dBm/Hz; In Ultra mode the input low pass filter is automatically enabled for all frequencies within the pass-band of the low pass filter (up to 750MHz). For higher frequencies the low pass filter will be bypassed and the measurement will be slower due to the multiple measurements frequency required for the mirror and spur elimination algorithm
New Add-ons: TinySA ULRRA with 4'' touchscreen display, you can operate on it more easily and read clearly; the build-in SD card slot and the 32gb micro sd card have now solved the issue on saving the onsite data, you could take the tinysa with you at anywhere and anytime; Audio Out, standard 3.5 mm headphone jack, put on the headphone or connect to the amplifier if needed; 3000mAh built-in rechargeable battery, the tinysa can work around 8hrs
2 in 1 Device: When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 100kHZ-800MHz, UHF square wave output between 800mHz- 4.4GH z, Mixing signal output is between 4.4GH z- 5.4GH z; Built-in calibration signal generator that is used for automatic self test and low input calibration. The ultra tinysa contains all the components of a conventional heterodyne swept spectrum analyzer.
Differences to the Former TinySa: The first big one is that now the default maximum frequency is 800mhz, so you no longer have to switch between low and high range, and can monitor the complete range in one sweep; Second, In the level menu, there is the LNA, which will provide 20db of extra gain if you have very low level signal; Lastly, RBW frequency from 200hz to 850khz which can be set to match the measurement requirements, meet SBB two-tone test requirements and fast scanning
