Mini-Pro SM OTDR 1310/1550nm 26/24dB 4.3 inches Touch Screen Test Rang 5m-100Km Optical Network Tester Built in OPM/OLS / RJ45 / VFL APC Connector with FC/UPC-FC/APC-SX
- Functions: For evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
- Parameters:Mini-Pro OTDR Test Wavelength 1310/1550nm,Test Range 5m~100km,Dynamic Range 26dB/24dB (Note: it can't test spliter,if test the spliter,the Dynamic need more than 42dB. Before test or test result is not accurate,pls using the Alcohol cotton to clean the fiber connector.).Test Unit km, kft, mi ; Connector FC/UPC. With FC/APC-FC/UPC-SX And FC/SC Adapter.

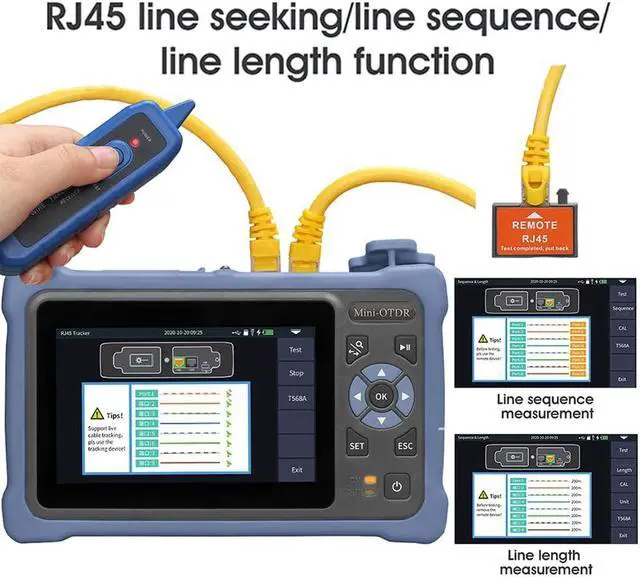

- Built-In: 4.3 inches 800x480 IPS TFT-LCD;OTDR, Event Map, Power Meter, Light Source, VFL, Cable Length Measurement Tool, Cable Tracker, and RJ45 Sequencer
- Internal Storage: Built-in 8G memory TF card can save up to 200,000 curves. Analysis Software included for further data analysis or processing,(Note:The Analysis Software need install on PC,Using the Analysis Software open print the test result and print)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Please make sure you are a professional before purchasing. If you can't test, please contact us. Our products have been strictly tested before leaving the factory and will not be unusable. Because of the accuracy of the product, some scenarios cannot be used. You need to buy products with higher accuracy, not because our products have problems.

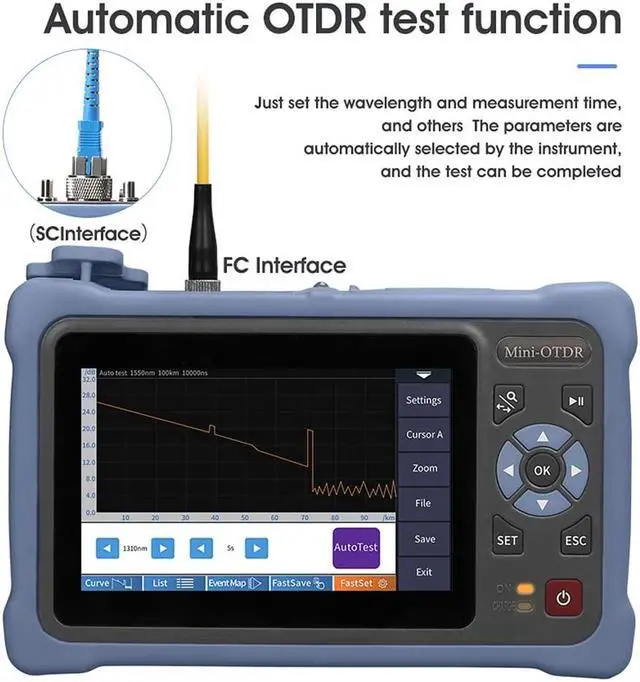

Mini multi-fuction OTDR has compact structure and stable performance. This OTDR test wavelength are 1310/1550nm, dynamic Range are 26dB/24dB. Measurement distance is 5m~100km. Suit for the G. 652 optical fiber. It built-in OPM ( 8 standdard wavelengths 850/980/1300/1310/1490/ 1550/1625/ 1650nm); Built OLS 8500/1300nm; Built-in VFL 10Mw; Built-in RJ45 test. This Mini OTDR have most functions and most cost-effective on current market.
The application are mainly: maintenance and test of telecommunication line, cable manufacturer, test of FTTX.
Note: This Mini-OTDR Dynamic Range is 26dB/24dB (can't test spliter, if test the spliter, the Dynamic need more than 42dB). Before test or test result is not accurate, pls using the Alcohol cotton to clean the fiber connector.
Technical
Wavelength: 1310nm/1550nm
Fiber Type: SM
Test Unit: Km, Kft, Mi
Dynamic Range: 26dB/24dB
Event Blind Zone: 2.5 m
ATT Blind Zone: 5m
Test Range: 5m~100km
Pulse Width: 3ns~20us
Ranging accuracy: ±(1m+ Sampling interval + 0.005 %×Test distance)
Loss accuracy: ± 0.05 dB/dB
Sampling Points: 16k~128k
Sampling resolution: 0.05 m~8m
Reflection accuracy: ±3dB
Loss resolution: 0.01 dB
Loss threshold: 0.01 dB
Rang resolution: 0.001 m
Laser Safety Level: Class
File format: SOR Standard file format

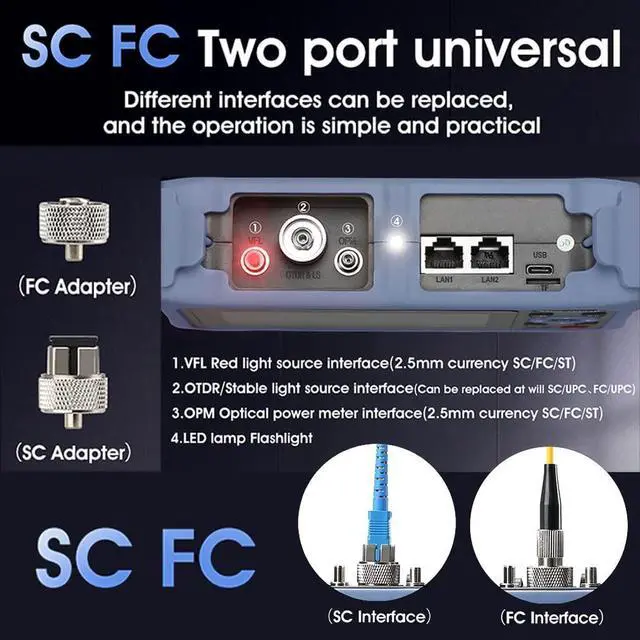

Connector: FC/APC (Interchangeable SCSTLC)
OPM
Wave Range: 800nm~1700nm
Interface Type: Universal Joint FC/SC/ST
Test Range: -50dBm~+20dBm
Uncertainty: ±5%
Frequency Identification: CW/270/330/1k/2kHz
Calibration wavelength: 850/980/1300/1310/1490/1550/1625/1650nm
Mini multi-fuction OTDR has compact structure and stable performance. This OTDR test wavelength are 1310/1550nm, dynamic Range are 26dB/24dB. Measurement distance is 5m~100km. Suit for the G. 652 optical fiber. It built-in OPM ( 8 standdard wavelengths 850/980/1300/1310/1490/ 1550/1625/ 1650nm); Built OLS 8500/1300nm; Built-in VFL 10Mw; Built-in RJ45 test. This Mini OTDR have most functions and most cost-effective on current market.
The application are mainly: maintenance and test of telecommunication line, cable manufacturer, test of FTTX.
Note: This Mini-OTDR Dynamic Range is 26dB/24dB (can't test spliter, if test the spliter, the Dynamic need more than 42dB). Before test or test result is not accurate, pls using the Alcohol cotton to clean the fiber connector.
Technical
Specifications
:Wavelength: 1310nm/1550nm
Fiber Type: SM
Test Unit: Km, Kft, Mi
Dynamic Range: 26dB/24dB
Event Blind Zone: 2.5 m
ATT Blind Zone: 5m
Test Range: 5m~100km
Pulse Width: 3ns~20us
Ranging accuracy: ±(1m+ Sampling interval + 0.005 %×Test distance)
Loss accuracy: ± 0.05 dB/dB
Sampling Points: 16k~128k
Sampling resolution: 0.05 m~8m
Reflection accuracy: ±3dB
Loss resolution: 0.01 dB
Loss threshold: 0.01 dB
Rang resolution: 0.001 m
Laser Safety Level: Class
File format: SOR Standard file format
Connector: FC/APC (Interchangeable SCSTLC)
OPM
Wave Range: 800nm~1700nm
Interface Type: Universal Joint FC/SC/ST
Test Range: -50dBm~+20dBm
Uncertainty: ±5%
Frequency Identification: CW/270/330/1k/2kHz
Calibration wavelength: 850/980/1300/1310/1490/1550/1625/1650nm
