    Mini-Pro 1310/1550nm SM OTDR Mulit-Function Tester Built in OPM/OLS / RJ45 Test/VFL Test Rang 5m-60Km Dynamic Range 24dB/22dB Connector APC with FC/APC-FC/UPC-SX

    Be the first to review this product...
    • Functions: For evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
    • Parameters:Mini-Pro OTDR Test Wavelength 1310/1550nm,Test Range 5m~60km,Test Unit is km. Dynamic Range 24dB/22dB (can't test spliter,if test the spliter,the Dynamic need more than 42dB) .Connector FC/APC (Interchangeable SCST)

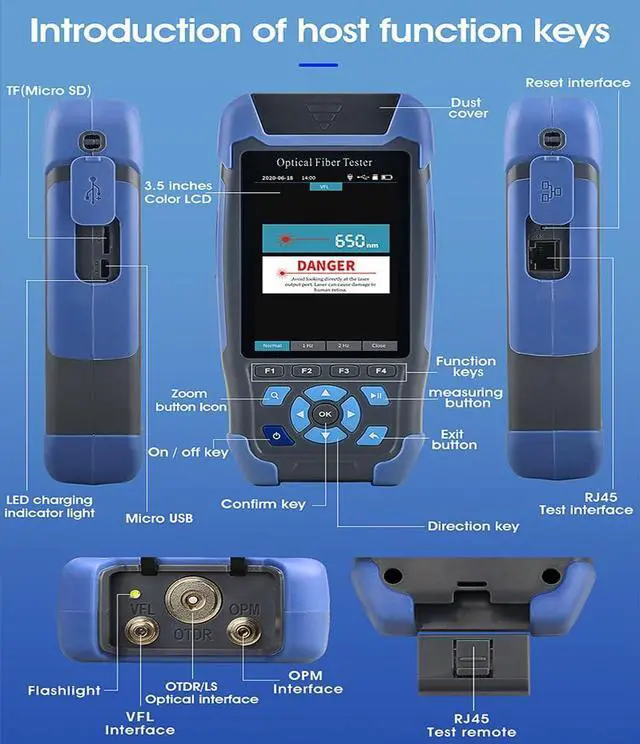

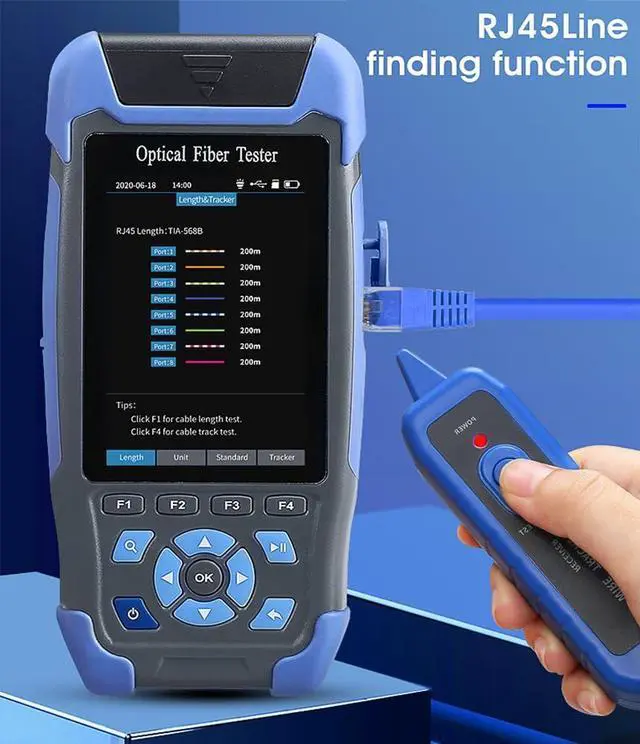

    • Built-In: 3.5 inch Color Display (not touch);OTDR, Event Map, Power Meter, Light Source, VFL, Cable Length Measurement Tool, Cable Tracker, and RJ45 Sequencer
    • Internal Storage: Micro USB Data Interface; External storage TF Card. Analysis Software included for further data analysis or processing,(Note:The Analysis Software need install on PC,Using the Analysis Software open print the test result and print)
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Technical

    Specifications

    :

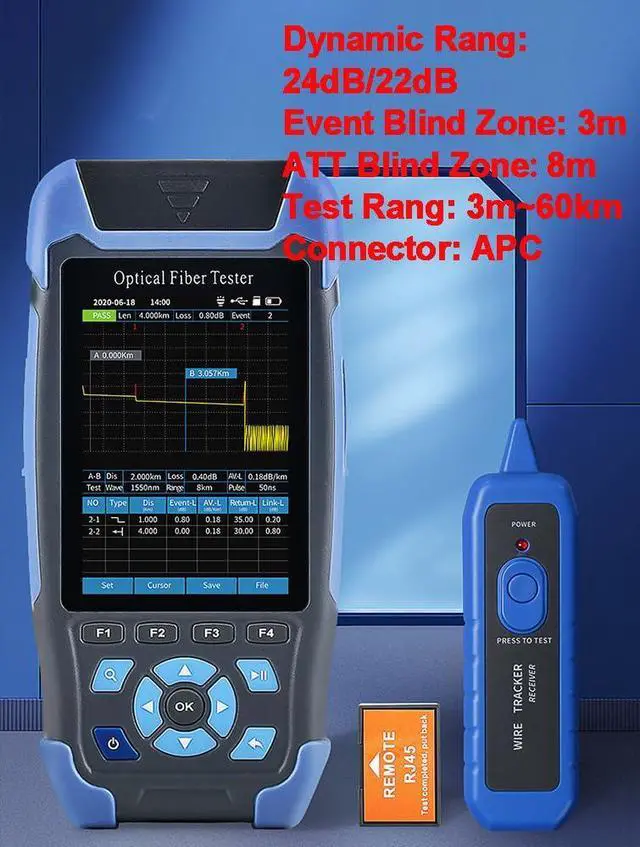

    Mini-Pro OTDR
    Wavelength: 1310nm/1550nm±20nm
    Fiber Type: G. 652
    Dynamic Range: 24dB/22dB
    Event Blind Zone: 3m
    ATT Blind Zone: 8m
    Test Range: 5m~60km
    Pulse Width: 3ns~10us
    Ranging accuracy: ±(1m+ Sampling interval + 0.005 %×Test distance)
    Loss accuracy: ± 0.05 dB/dB
    Sampling Points: 16k~128k
    Sampling resolution: 0.05 m~8m
    Reflection accuracy: ±3dB
    Data Storage: Internal: 600; External: TF Card
    Laser Safety Level: Class
    File format: SOR Standard file format
    Connector: FC/UPC (Interchangeable SCST)

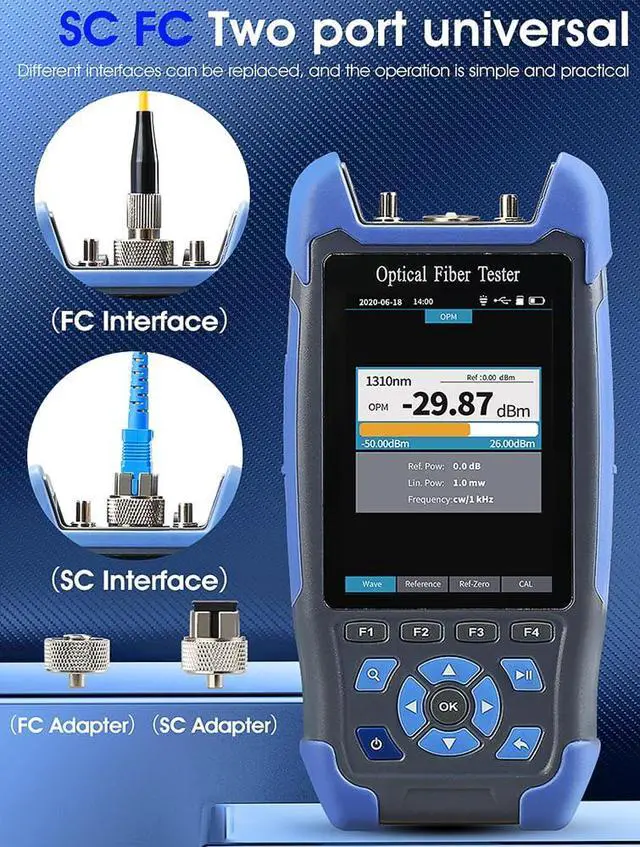

    OPM
    Wave Range: 800nm~1700nm
    Interface Type: Universal Joint FC/SC/ST
    Test Range: -50dBm~+26dBm
    Uncertainty: ±5%
    Frequency Identification: CW/270/330/1k/2kHz
    Calibration wavelength: 850/980/1300/1310/1490/1550/1625/1650nm
    OLS
    LD Type: FP-LD
    Wavelength: 1310nm/1550nm±20nm
    Output Power: -5dBm
    Modulation Frequency: 270/330/1k/2kHz
    Stability: CW, ± 0.5 dB/15min (Test after 15 minutes of preheating)
    Connector: FC/UPC (Interchangeable SCST)
    VFL
    Wavelength: 650nm±20nm
    Output Power: 10mW
    Mode: CW/1Hz/2Hz
    Connector: FC/SC/ST

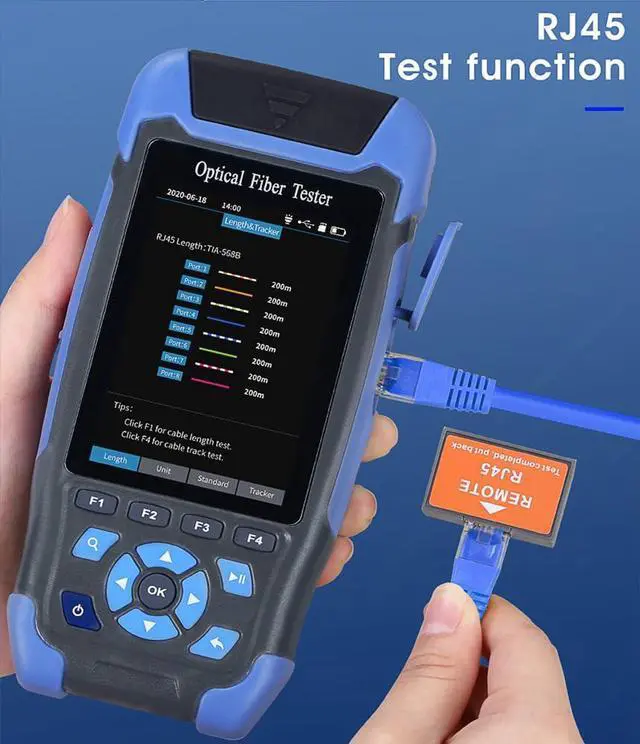

    RJ45 Cable Length Measurement
    Test Range: 300m
    Other Parameters:
    Display: 3.5 inch Color LCD
    Data Interface: Micro USB
    External storage: TF Card
    Power SupplyPolymer Li-Battery: 3.7V, 4000mAh Adapter: 5VDC, 2A
    Battery Life: Standby>20h; Measuring time>12h
    Operating Temperature: -10~+50
    Storage Temperature: -40~+70
    Relative Humidity: 0~95%Non Condensing
    Size: 173mm×82mm×37mm
