Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L USA

This digital multimeter has all the functions you will need for electronics testing and electrical work. A wide range of functions cover just about every use case.

Tests: AC Voltage, DC Voltage, Current, Resistance, Continuity, Diode, Transistor

Continuity test has an auditory buzzer, Data hold button locks displayed value, Back-light button illuminates the display

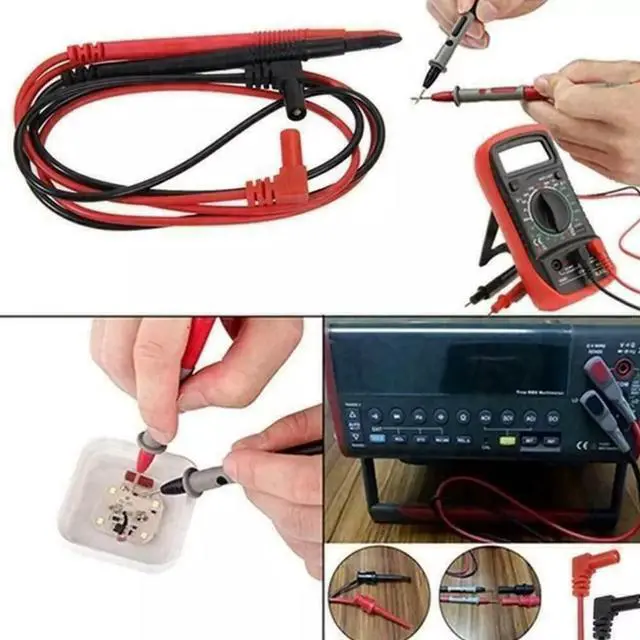

Probes





DC Voltage Modes:

200mV (100µV resolution)

2V (1mV resolution)

20V (10mV resolution)

200V (100mV resolution)

600V (1V resolution)



DC Current Modes:

200µA ( 0.1 µA resolution)

2mA (1µA resolution)

20mA (10µA resolution)

200mA (100µA resolution)

10A (10mA resolution)



AC Voltage Modes:

200V (100mV resolution)

600V (1V resolution)



Continuity Test:

If continuity exists a built in buzzer will sound



Diode Test:

Show the approximate forward voltage drop of the diode



Resistance Test:

200 ( 0.1 resolution)

2k (1 resolution)

20k (10 resolution)

200k (100 resolution)

2m (1k resolution)



Transistor hFE Test:

NPN & PNP 0-1000 3V 10µA



Additional Features:

Data hold button locks displayed value

Back-light button illuminates the display

Kickstand



9V Battery - Not Included

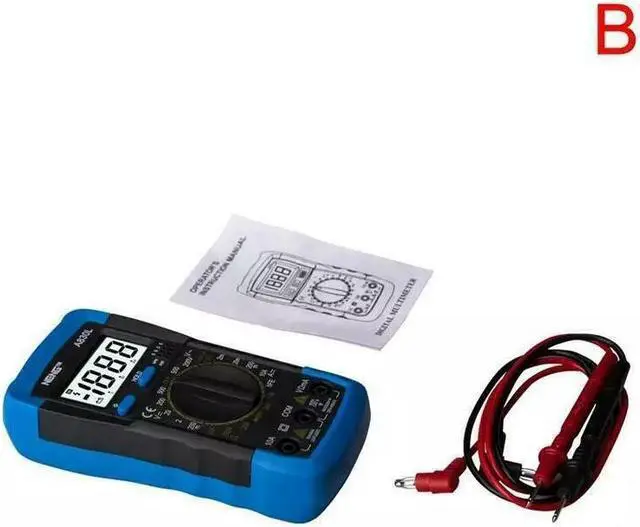

Package Includes:

Multimeter

Probe Cables

Instruction Manual
