Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L USA
- This item is BRAND NEW!
- Save MONEY and your Device using the best replacement part available.
- This Assembly ships with a protective foam wrap, along with a protective plastic to prevent any scratches.
- This item is very carefully packaged.
Overview
Specs
Reviews
Welcome To The Perfect Part Innovative State-Of-Art

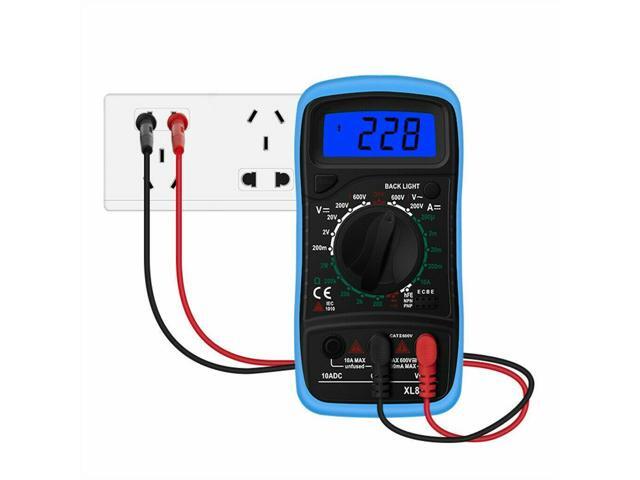

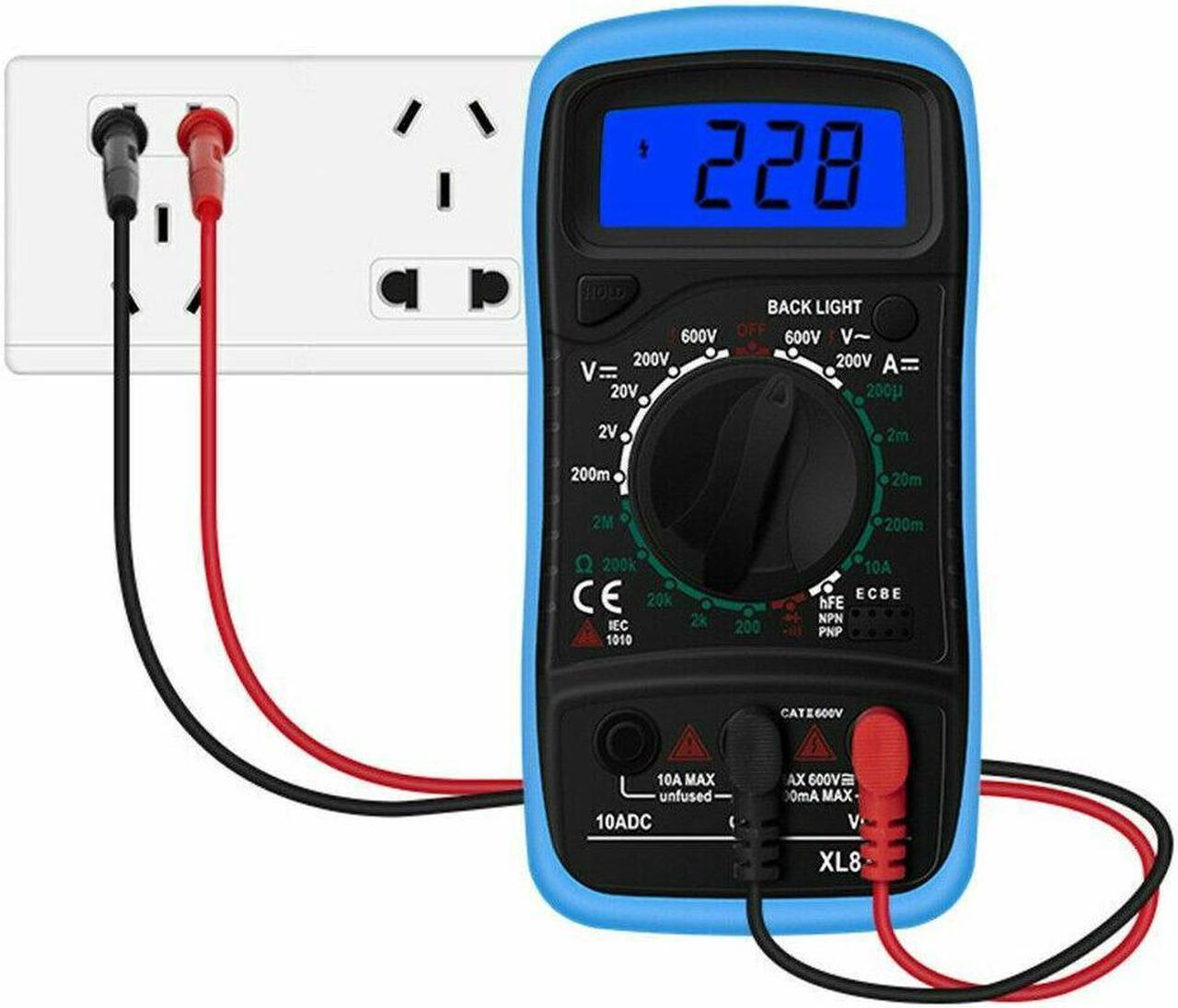

Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L USA
This digital multimeter has all the functions you will need for electronics testing and electrical work. A wide range of functions cover just about every use case.
Tests: AC Voltage, DC Voltage, Current, Resistance, Continuity, Diode, Transistor
Continuity test has an auditory buzzer, Data hold button locks displayed value, Back-light button illuminates the display

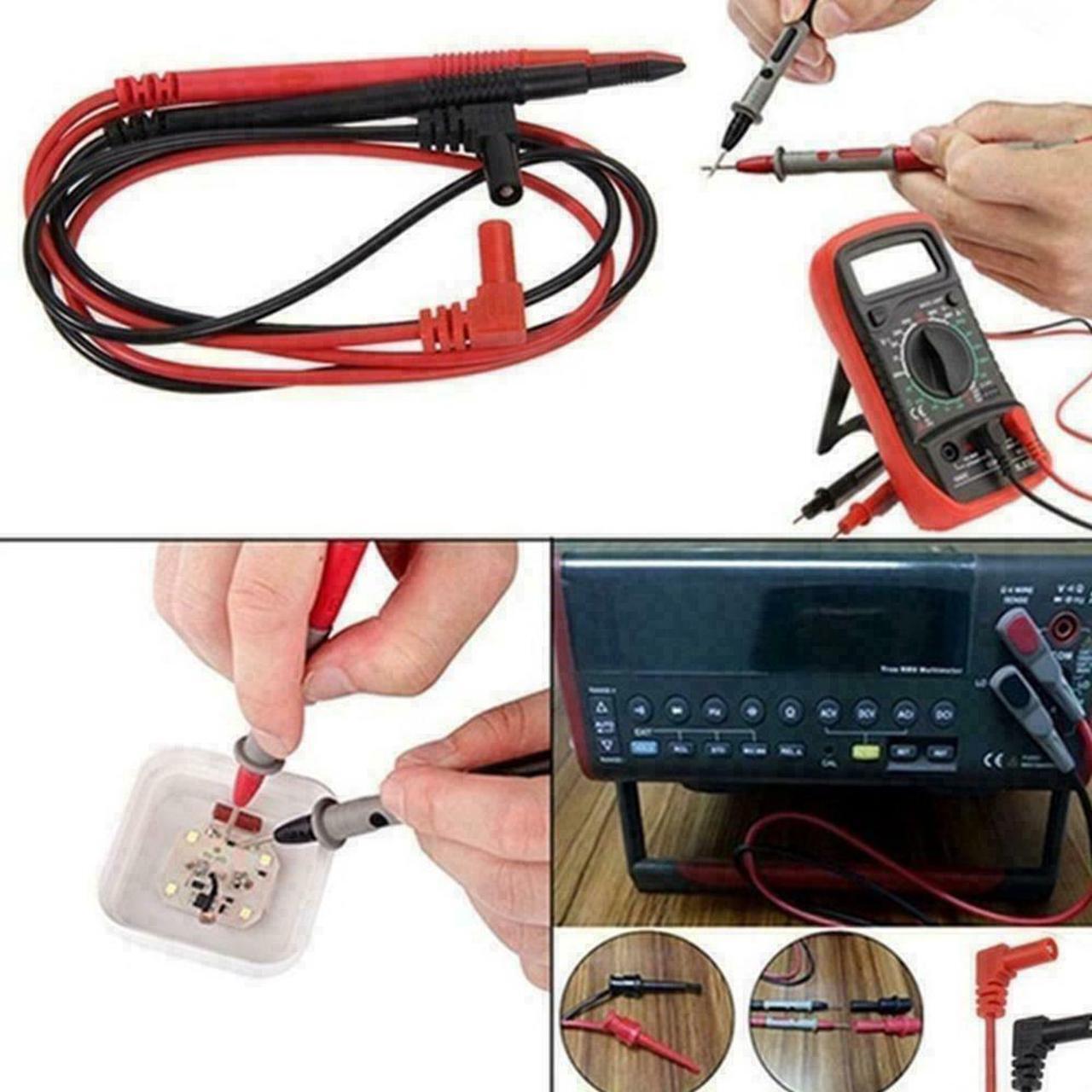

Probes
DC Voltage Modes:
200mV (100µV resolution)
2V (1mV resolution)
20V (10mV resolution)
200V (100mV resolution)
600V (1V resolution)
DC Current Modes:
200µA ( 0.1 µA resolution)
2mA (1µA resolution)
20mA (10µA resolution)
200mA (100µA resolution)
10A (10mA resolution)
AC Voltage Modes:
200V (100mV resolution)
600V (1V resolution)
Continuity Test:
If continuity exists a built in buzzer will sound
Diode Test:
Show the approximate forward voltage drop of the diode
Resistance Test:
200 ( 0.1 resolution)
2k (1 resolution)
20k (10 resolution)
200k (100 resolution)
2m (1k resolution)
Transistor hFE Test:
NPN & PNP 0-1000 3V 10µA
Additional Features:
Data hold button locks displayed value
Back-light button illuminates the display
Kickstand
9V Battery - Not Included

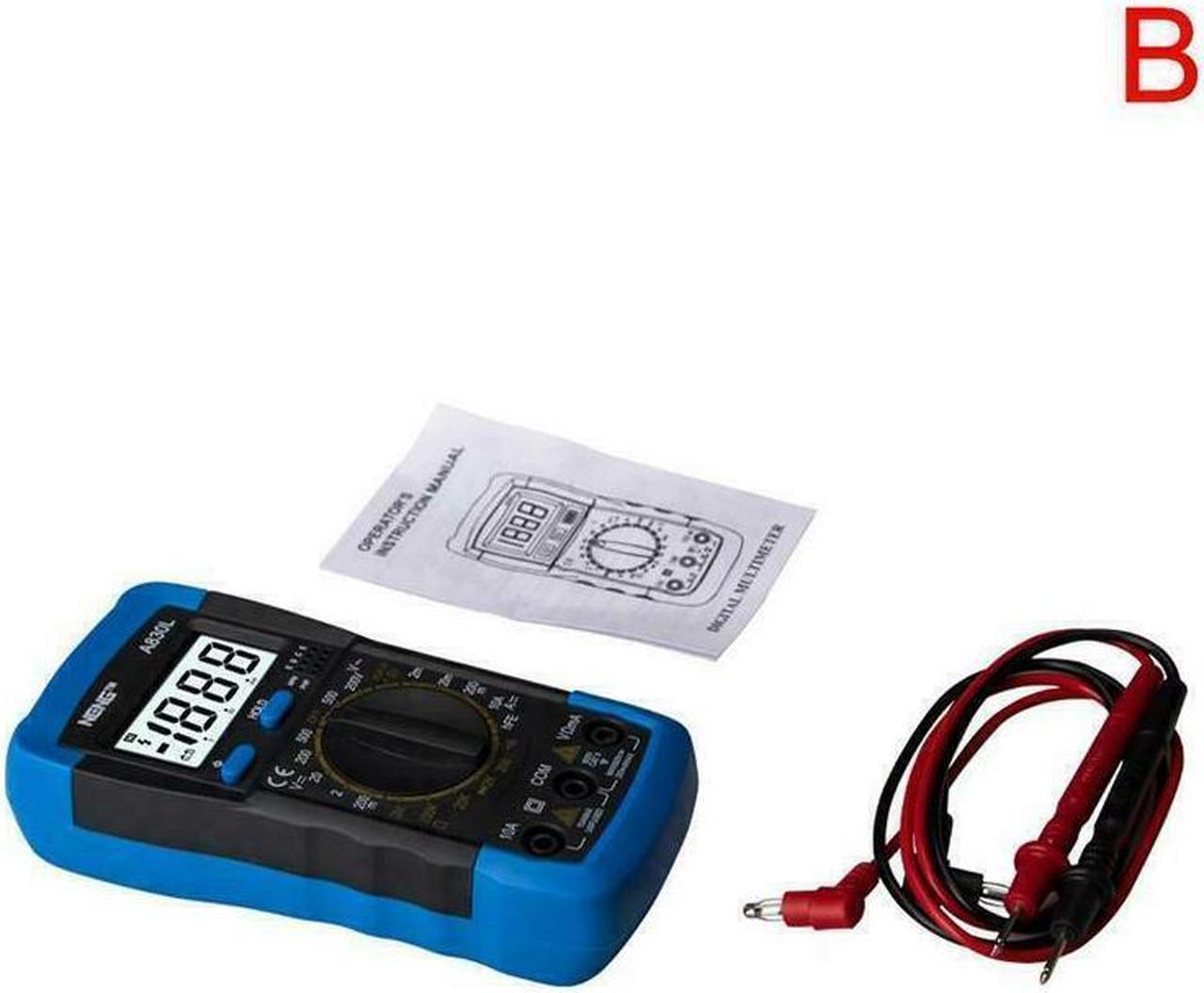

Package Includes:
Multimeter
Probe Cables
Instruction Manual
Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L USA
Product Details
:This digital multimeter has all the functions you will need for electronics testing and electrical work. A wide range of functions cover just about every use case.
Tests: AC Voltage, DC Voltage, Current, Resistance, Continuity, Diode, Transistor
Continuity test has an auditory buzzer, Data hold button locks displayed value, Back-light button illuminates the display
Probes
DC Voltage Modes:
200mV (100µV resolution)
2V (1mV resolution)
20V (10mV resolution)
200V (100mV resolution)
600V (1V resolution)
DC Current Modes:
200µA ( 0.1 µA resolution)
2mA (1µA resolution)
20mA (10µA resolution)
200mA (100µA resolution)
10A (10mA resolution)
AC Voltage Modes:
200V (100mV resolution)
600V (1V resolution)
Continuity Test:
If continuity exists a built in buzzer will sound
Diode Test:
Show the approximate forward voltage drop of the diode
Resistance Test:
200 ( 0.1 resolution)
2k (1 resolution)
20k (10 resolution)
200k (100 resolution)
2m (1k resolution)
Transistor hFE Test:
NPN & PNP 0-1000 3V 10µA
Additional Features:
Data hold button locks displayed value
Back-light button illuminates the display
Kickstand
9V Battery - Not Included
Package Includes:
Multimeter
Probe Cables
Instruction Manual
