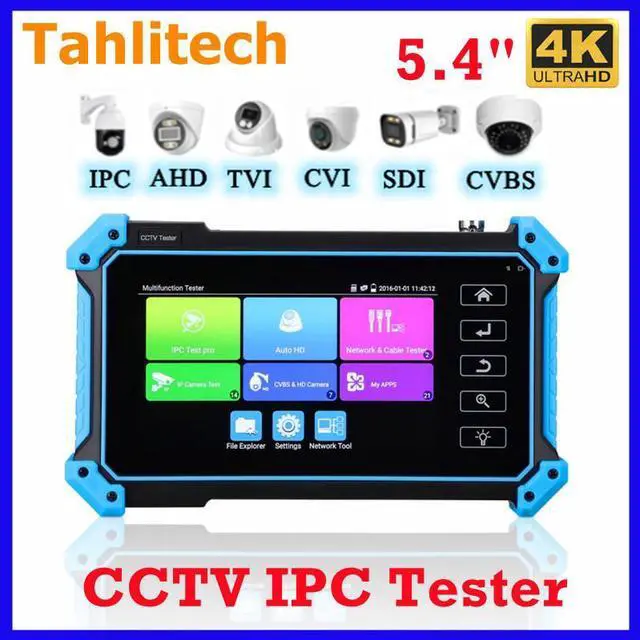

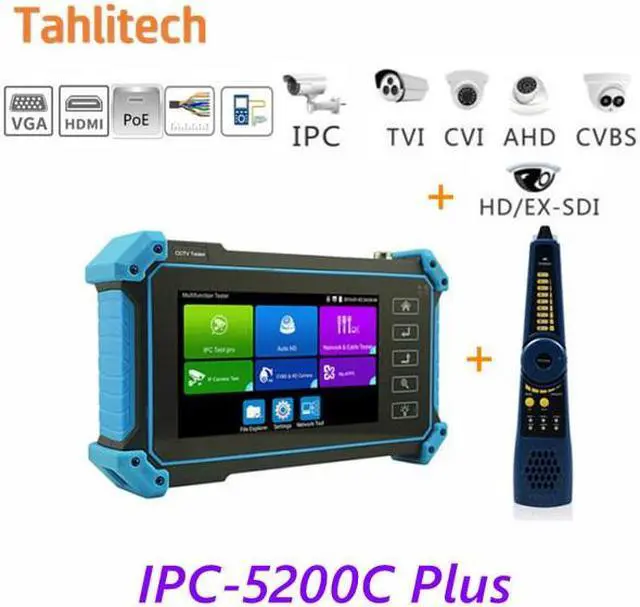

5.4" IPC-5200C Plus CCTV Tester IP Tester 4K Monitor Testers HDMI VGA CCTV for IPC POE AHD CVI TVI SDI Cable Testing

The 5.4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920*1080 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control, and cable test functions. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

CCTV system installation and maintenance
Network cabling project installation and maintenance
Dome camera, IP TVI CVI AHD SDI 4K H. 265 camera testing
Video transmission channel testing
PTZ controller

Features:

5.4 inch IPS touch screen, 1920x1080 resolution
8MP CVI/ TVI/ AHD camera test
8MP EX-SDI, HD-SDI, 3G-SDI camera test
H. 265/H. 264, 4K video display via mainstream

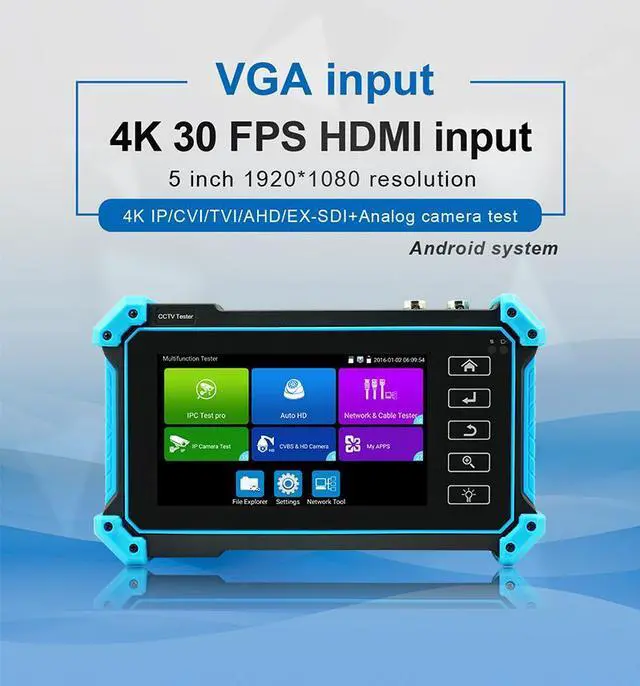

VGA input, support 2048 x 1152 60FPS
HDMI Input, support 4K 30FPS
DC12V 3A, 48V PoE power output
Rapid ONVIF, Create the test report and modify IP address, etc
Auto HD, auto recognize HD coax camera type and resolution
RJ45 TDR cable test, cable quality test
UTP cable test, detect the near-end, mid-end and far-end fault point
of the network cable crystal head

IP Tester Sytem Languages Optional:

English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech
