5 Inch 4 in 1 CCTV Monitor Tester, AHD/TVI/CVI/CVBS Coaxial Analog Video Monitor Tester, UTP/PTZ Cable Test for 1080P/3MP/4MP/5MP Analog Security Camera, VGA DC12V Output Camera CCTV Tester

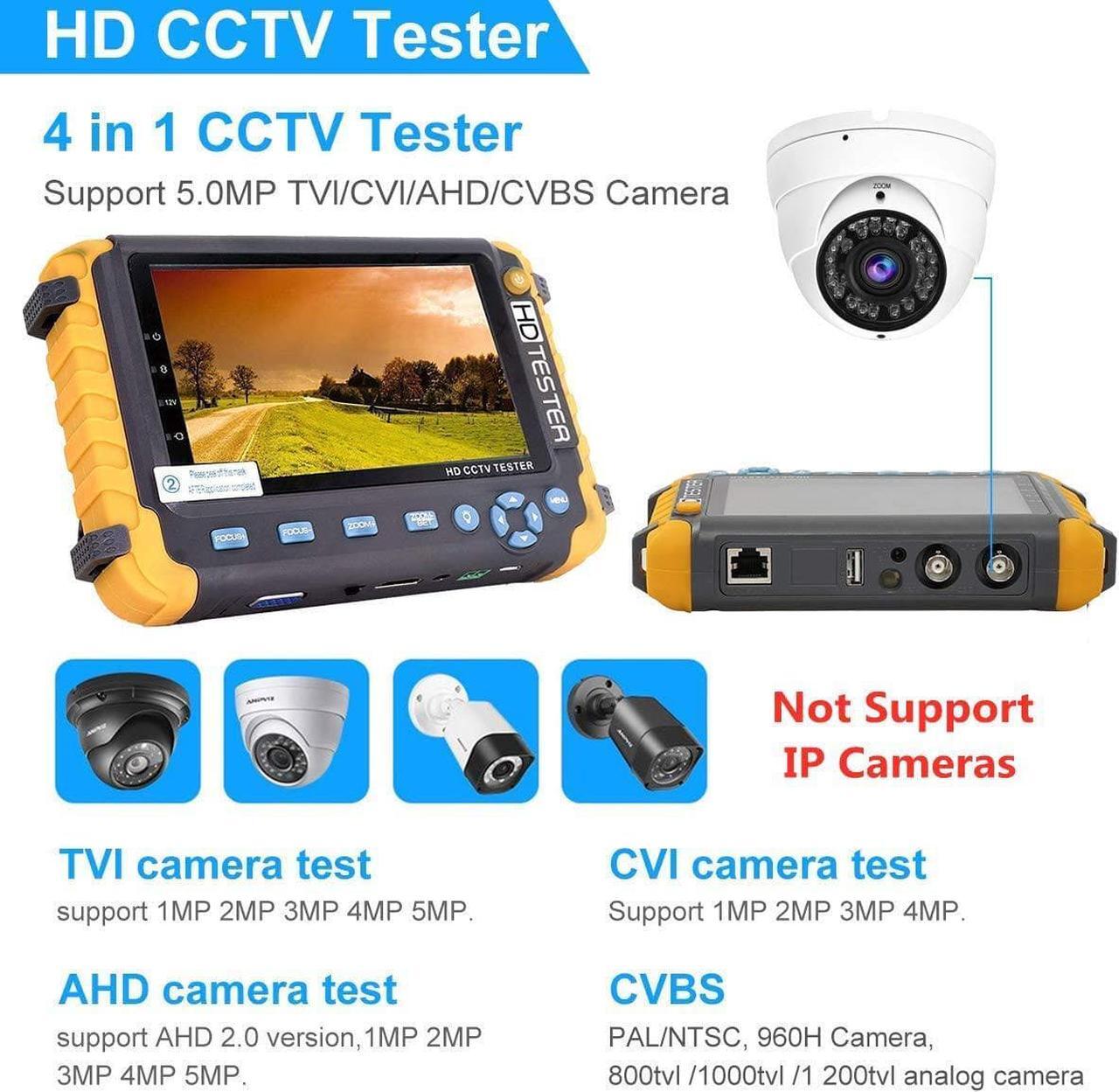

- Support up to HD TVI video surveillance testing, support 1MP, 2MP, 3MP, 4MP, 5MP. When TVI signal input, the tester will display HD TVI camera image.

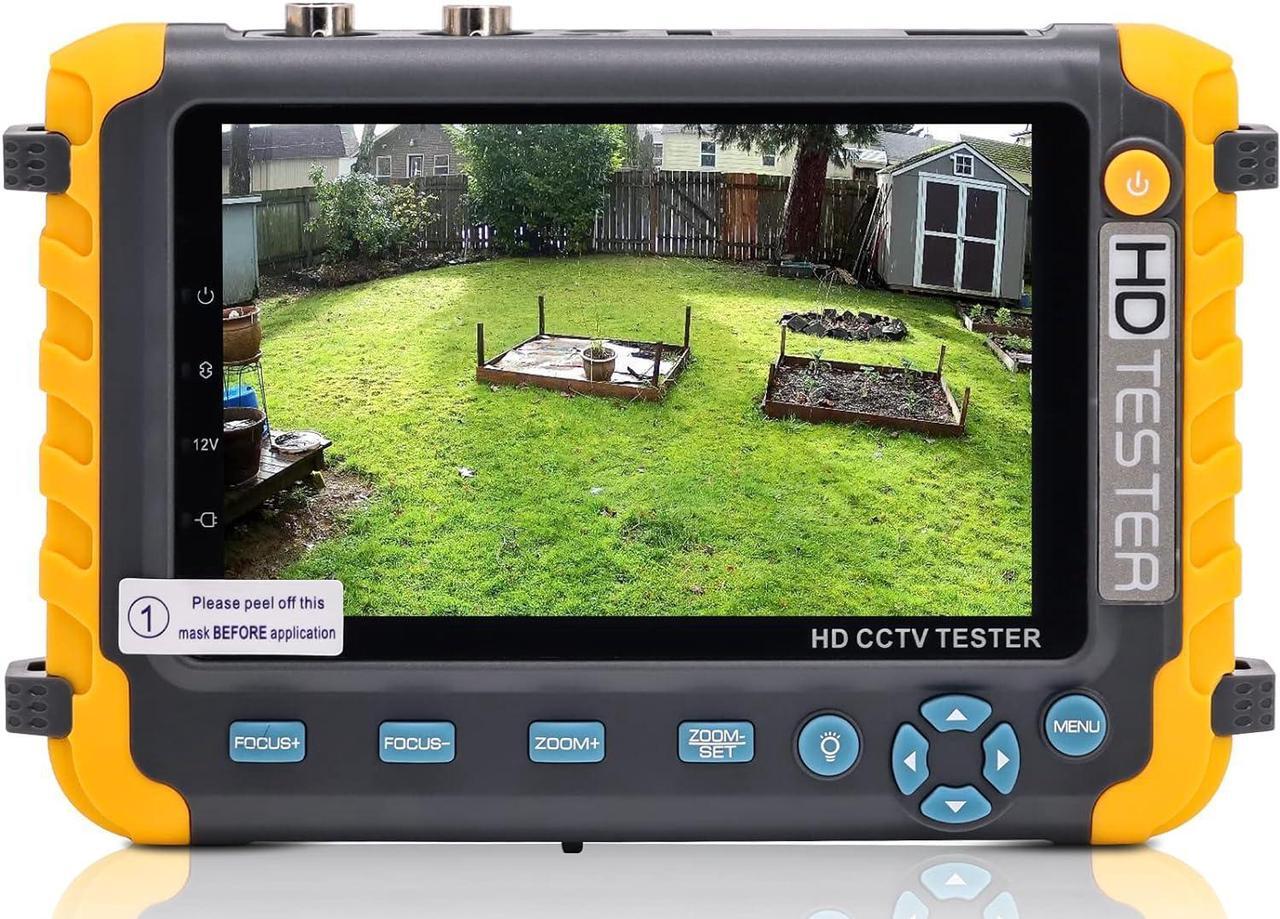

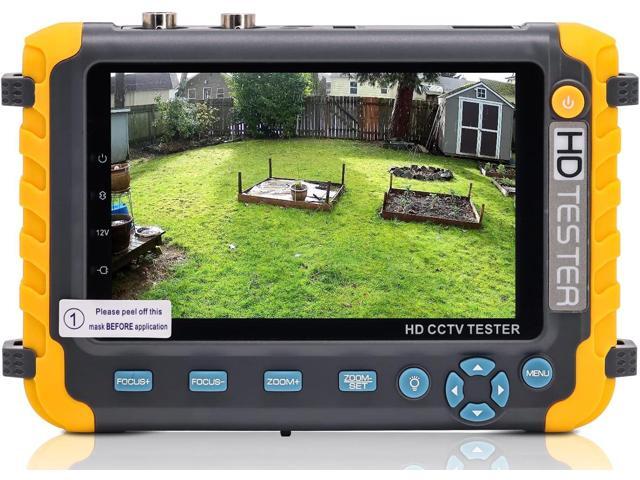

- Portable multi-functions CCTV tester with 5 inch TFT-LCD Screen(Not touch screen), 800*480 resolution, make your job more easily with this professional CCTV tester.
- The CCTV tester builts in 18650 2600mA battery, after charging 3-4 hours, working time lasts 11 hours, long standby time. Small body, portable and easier to carry.
+
+
Overview
Specs
Reviews

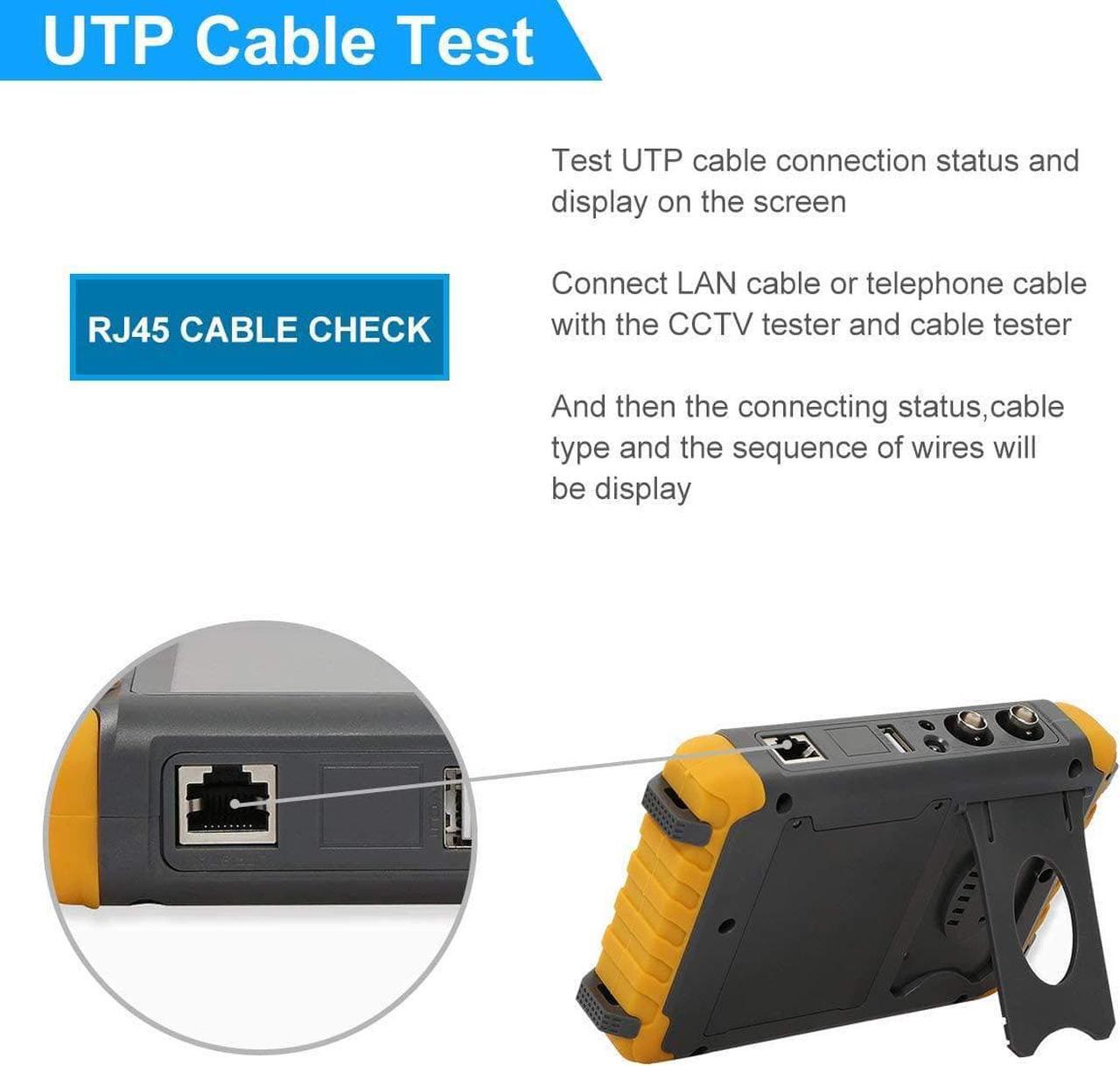

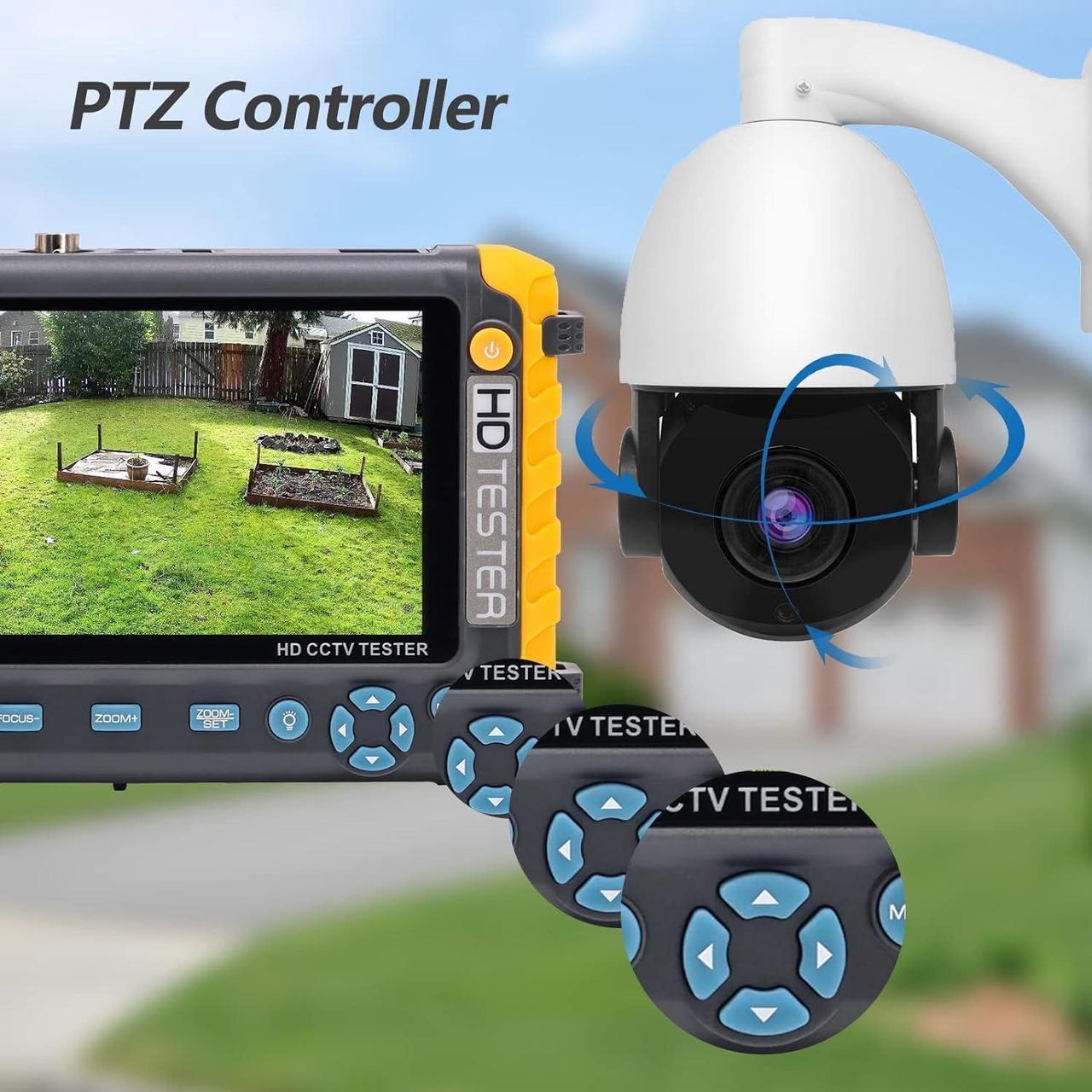

This camera tester also features a multi-purpose testing unit that includes built-in PTZ tester/controller, UTP cable test, audio surveillance test, and power output.

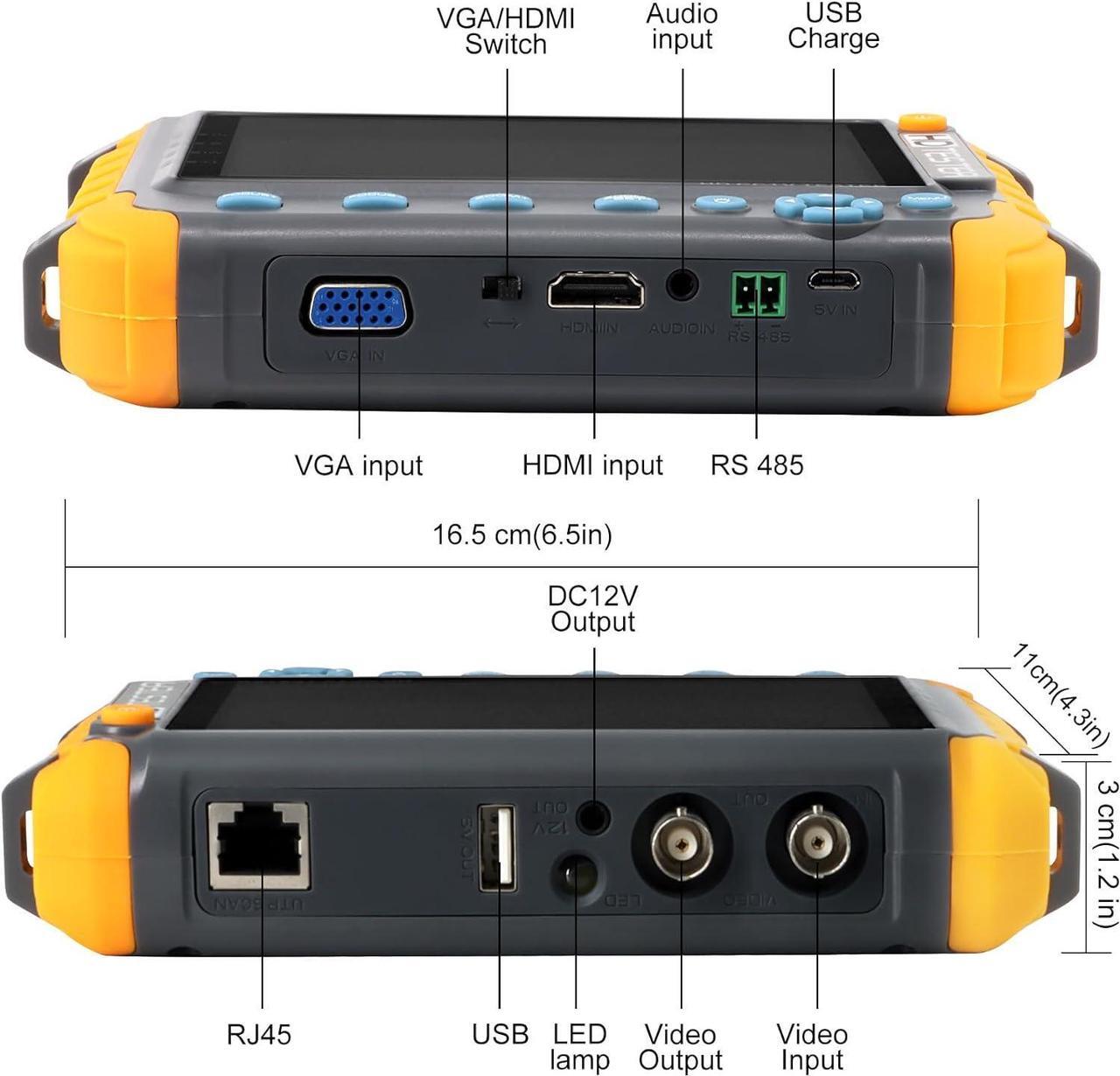

Support VGA/HDMI 1.1 Compliant Digital input, can be used for debugging DVR/NVR recorder, also can be a display.
Product Description
Troubleshoots
IP camera can not be tested.
This tester not supports any IP cameras testing, it can only be used to test analog cameras.
The tester can not produce pictures.
When the device is switched to CVI mode, only connected to CVI camera can it produce pictures. If the camera is other TVI / AHD signal camera, the mode should be switched to TVI / AHD signal correspondingly, so that the connected camera can produce pictures but not flicker.
Must this be plugged in, in order to turn on or does the batteries need to be charged
This tester is built-in battery, as long as the battery power is sufficient, you can turn it on normally, if not, that means that the battery power has been consumed, you need charge it, fully charge it and then you can unplug the power supply to use.
HDMI isnt recognized.
If HDMI is used as the display input, it can only be connected to the NVR or DVR which with an input signal of HDMI. If HDMI is a signal output, it needs to be connected to the display or TV.
4 in 1 CCTV Tester (Not Support IP Cameras)
Support VGA/HDMI 1.1 Compliant Digital input, can be used for debugging DVR/NVR recorder, also can be a display.
Product Description
Troubleshoots
IP camera can not be tested.
This tester not supports any IP cameras testing, it can only be used to test analog cameras.
The tester can not produce pictures.
When the device is switched to CVI mode, only connected to CVI camera can it produce pictures. If the camera is other TVI / AHD signal camera, the mode should be switched to TVI / AHD signal correspondingly, so that the connected camera can produce pictures but not flicker.
Must this be plugged in, in order to turn on or does the batteries need to be charged
This tester is built-in battery, as long as the battery power is sufficient, you can turn it on normally, if not, that means that the battery power has been consumed, you need charge it, fully charge it and then you can unplug the power supply to use.
HDMI isnt recognized.
If HDMI is used as the display input, it can only be connected to the NVR or DVR which with an input signal of HDMI. If HDMI is a signal output, it needs to be connected to the display or TV.
4 in 1 CCTV Tester (Not Support IP Cameras)
