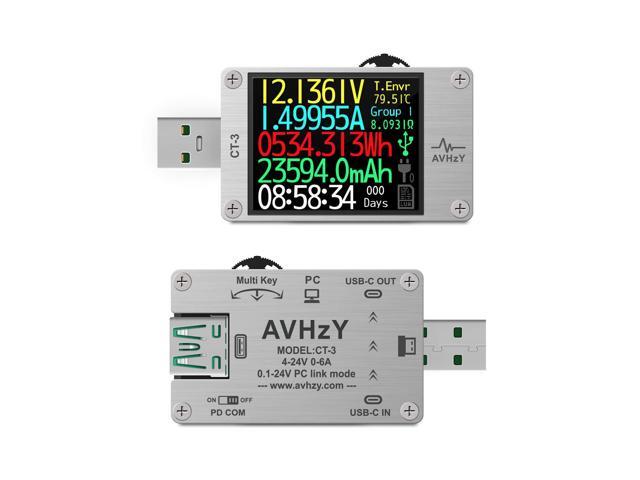

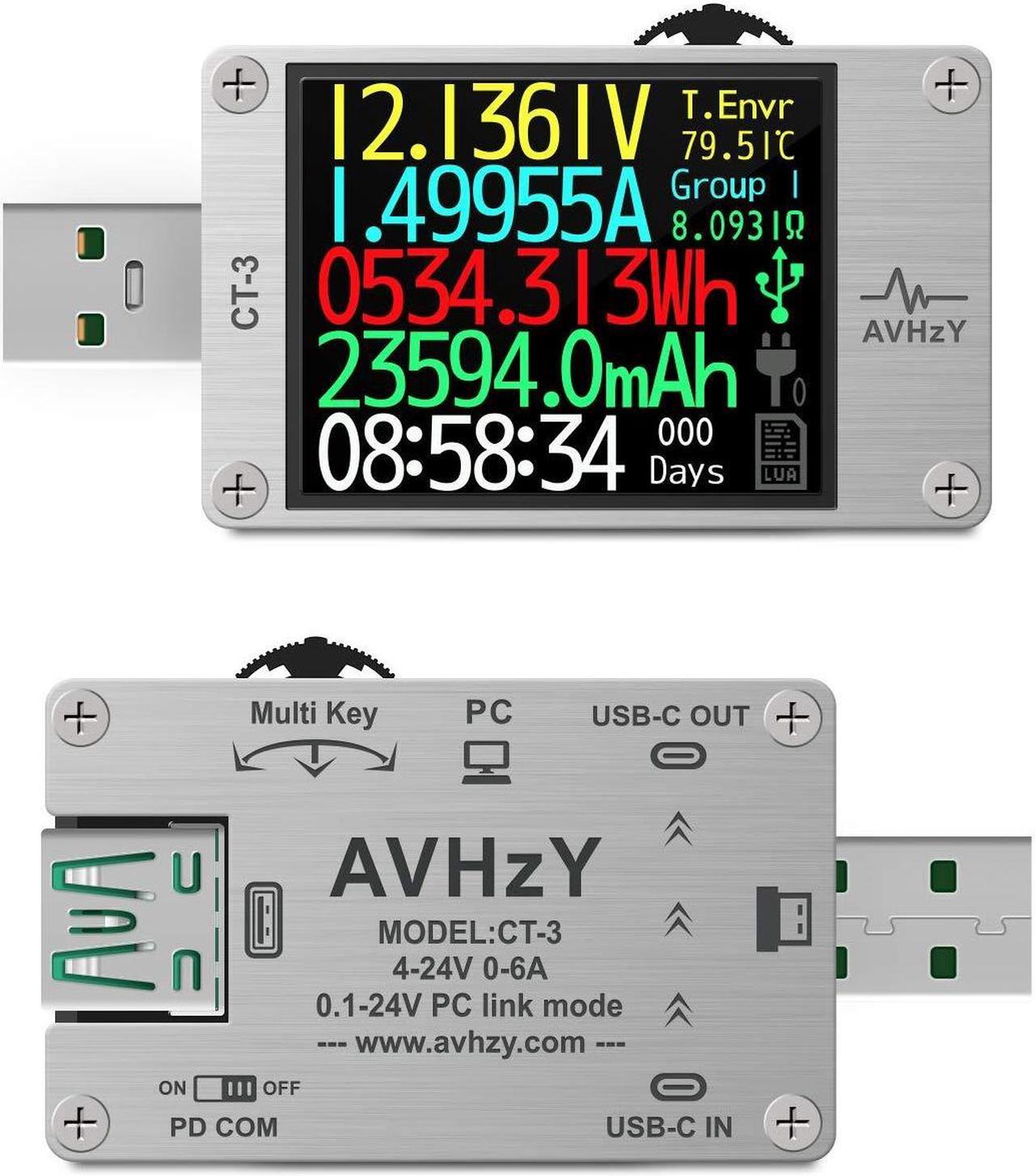

USB Power Meter USB 3.1 Tester Digital Multimeter Current Tester Voltage Detector Lua Interpreter Integrated DC 26V 6A PD 2.0/3.0 QC 2.0/3.0/4.0 pps Trigge (CT3+SM-LD-00)

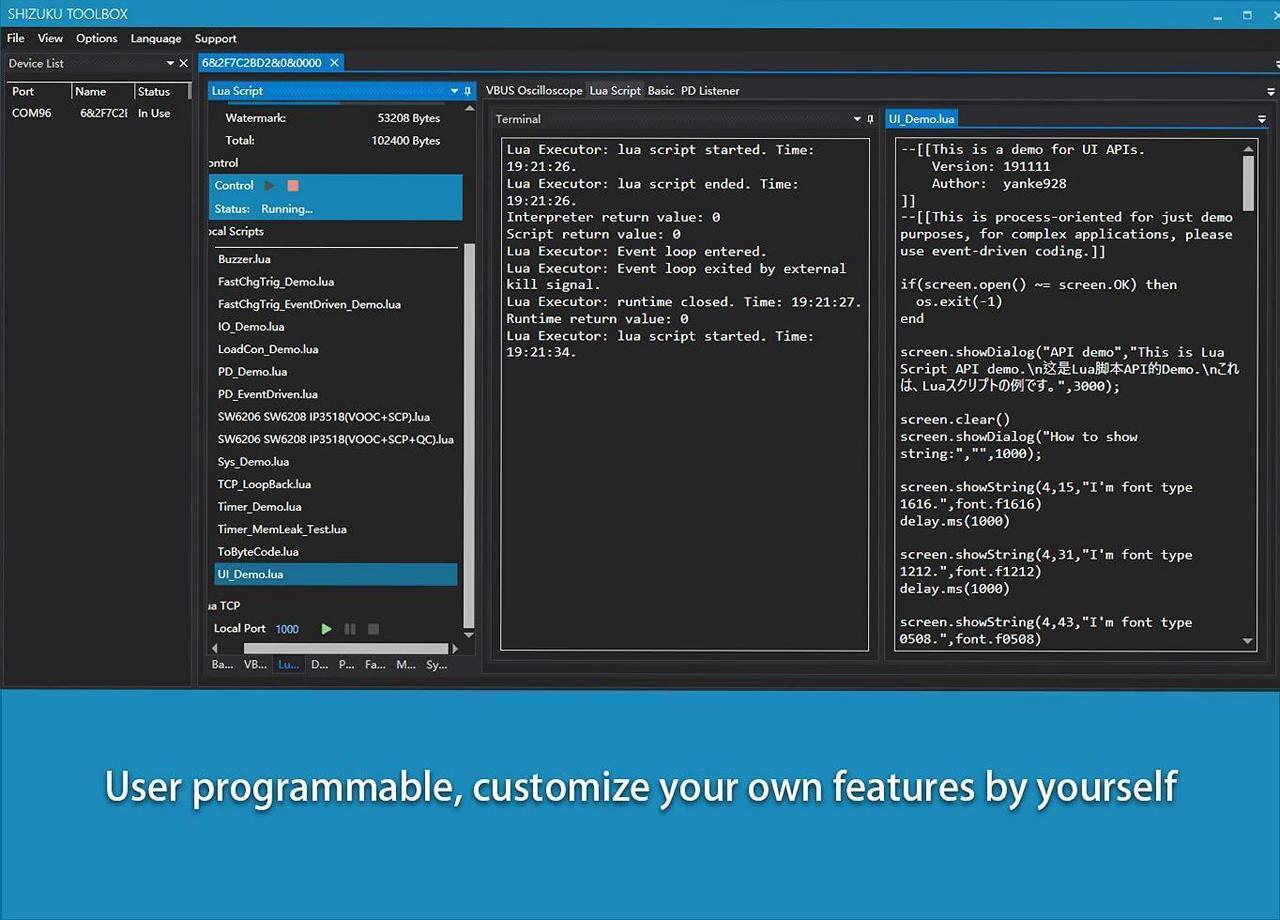

- Lua Programmable: Lua interpreter integrated, provided with various APIs, detailed documentations (Look up at point 1). Make access to almost all hardware with your own program. Scripts can be set to run on boot. Internal 12Mbytes memory can be used to store scripts, and can be used as output storage of scripts (Standard file operation supported)

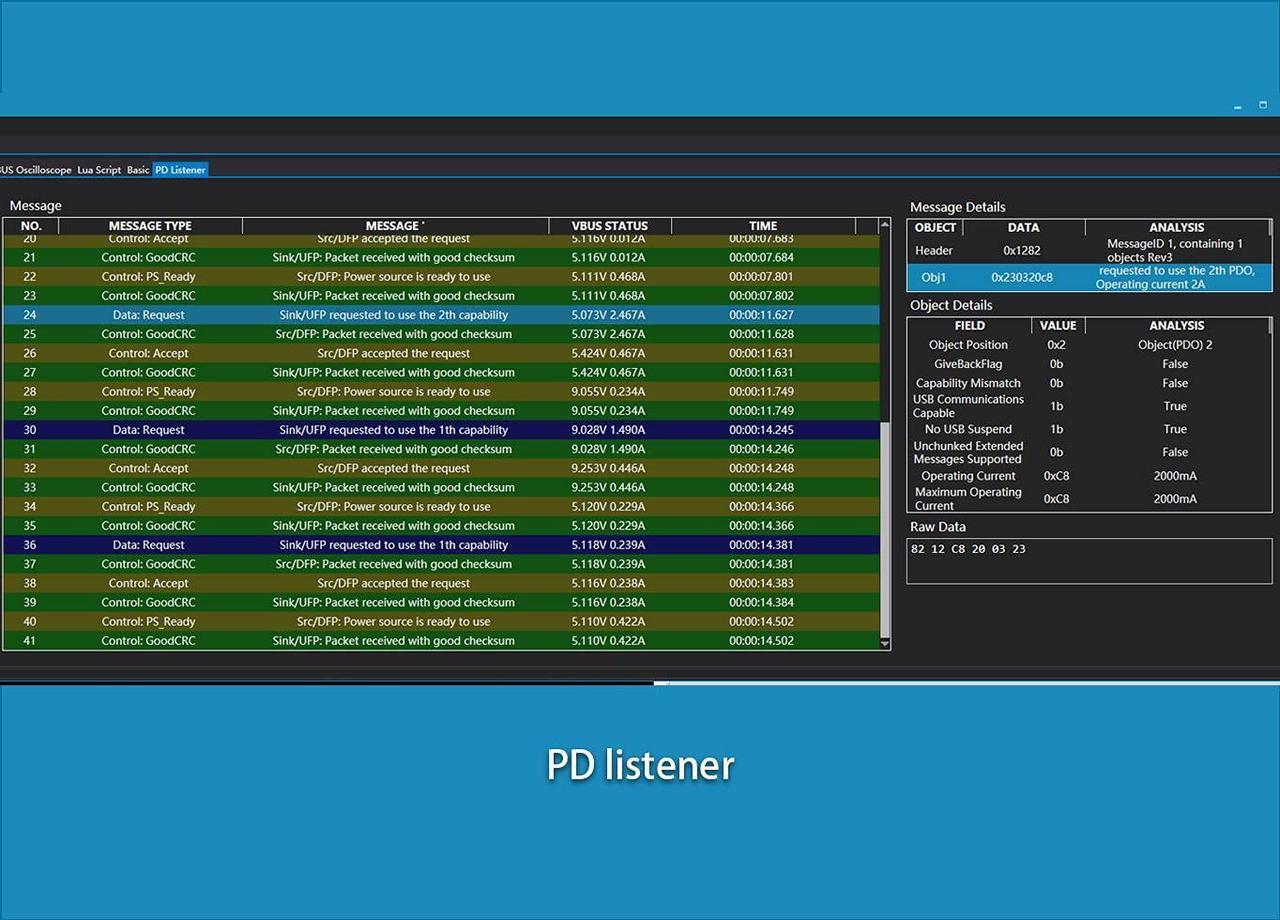

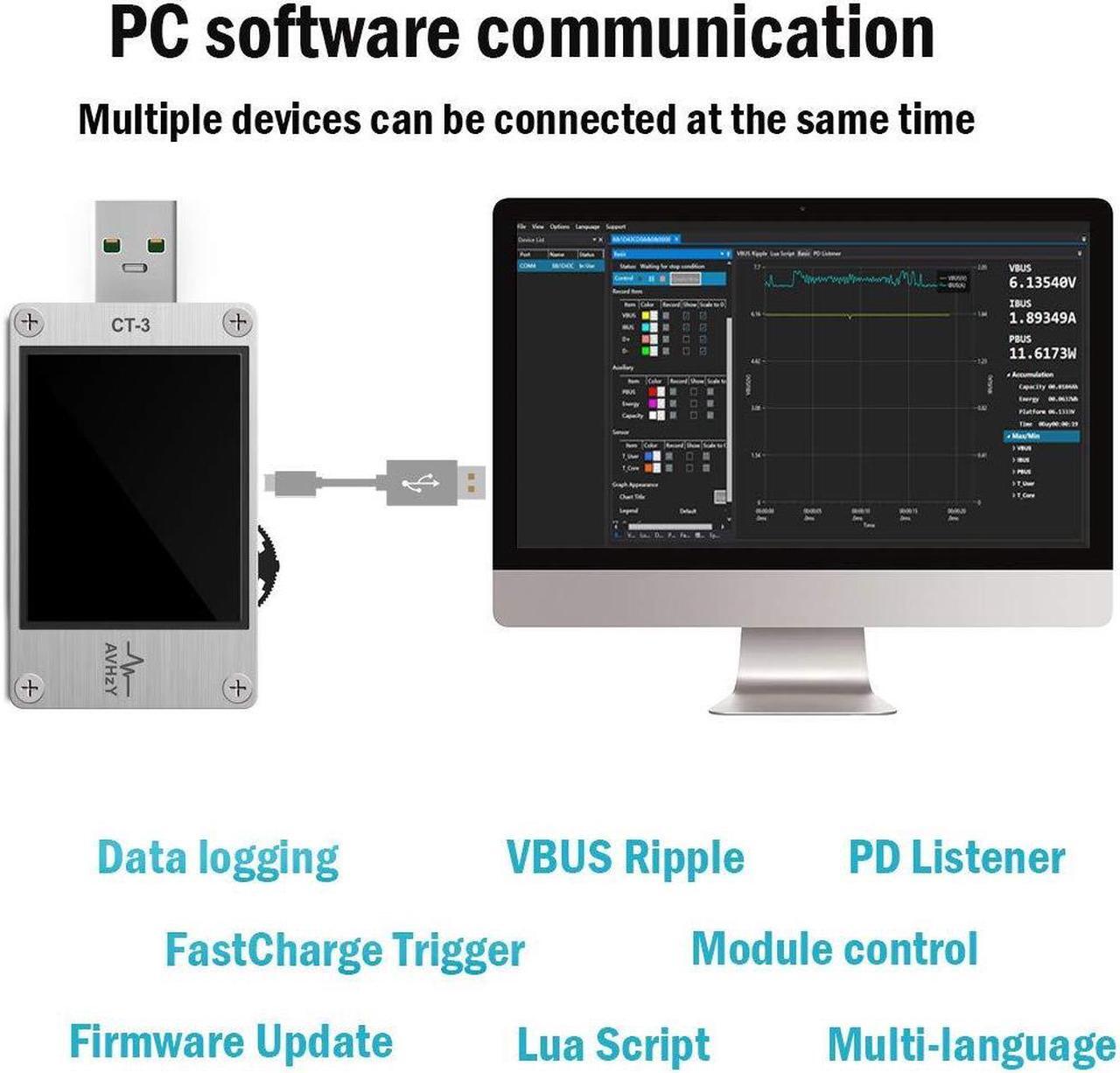

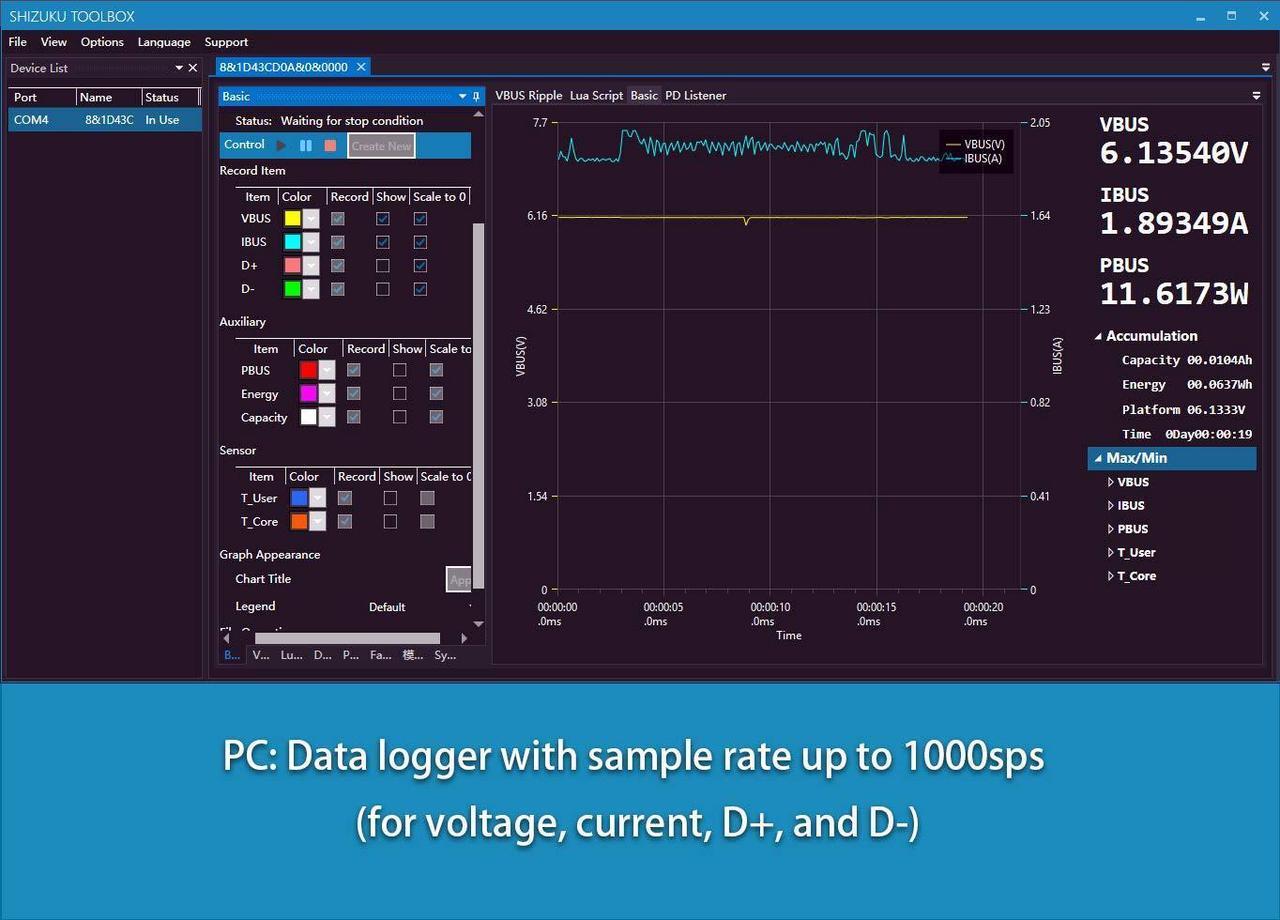

- Powerful PC software: Data logging up to 1000sps. Lua program downloader. VBUS ripple viewer(3.2Msps). PD listener for device diagnosis. Fast-charge trigger and external load module can also be accessed. All functionalities can be activated simultaneously for advanced test requirements
- Wide functionality: 0-26V 0-6A voltage & current measurement. 128*160 1.77'TFT. 4.5 digits reading for voltage and current. 0.1% maximum gain error for both voltage and current. Capacity/Energy accumulator. PD(with PPS), QC2.0, QC3.0, QC4.0, Huawei SCP, SSCP, FCP, Samsung AFC, VOOC, Super VOOC 65W trigger for charger testing
+
+
Overview
Specs
Reviews
Optional Modules: SM-LD-00 programmable electronic load module, can be accessed with the meter itself and the PC software. Constant-current and constant-power mode, load value is digitally adjusted with the meter. 0~26V, 0~ 6.7A, maximum power of 65W Max 100W * in continuous operation
Product Description
Wide functionality:
0-26V 0-6A voltage & current measurement. 128*160 1.77 TFT. Integrated gravity sensor and buzzer for better user experience.
4.5 digits reading for voltage and current.
0.1 % maximum gain error for both voltage and current.
Capacity/Energy accumulator.
PD (with PPS), QC 2.0, QC 3.0, QC 4.0, Huawei SCP, SSCP, FCP, Samsung AFC, VOOC, Super VOOC 65W trigger for charger testing.
Type-C to Type-C, Type-A to Type-C cable resistance tester.
E-mark reader. VOOC/Dash cable dumper. charger S/N reader.
Fast-charge protocol auto-detect mode.
Offline data (Voltage, current, D+, and D-) logging up to 100sps.
Internal 12Mbytes storage for data logging and user programs.

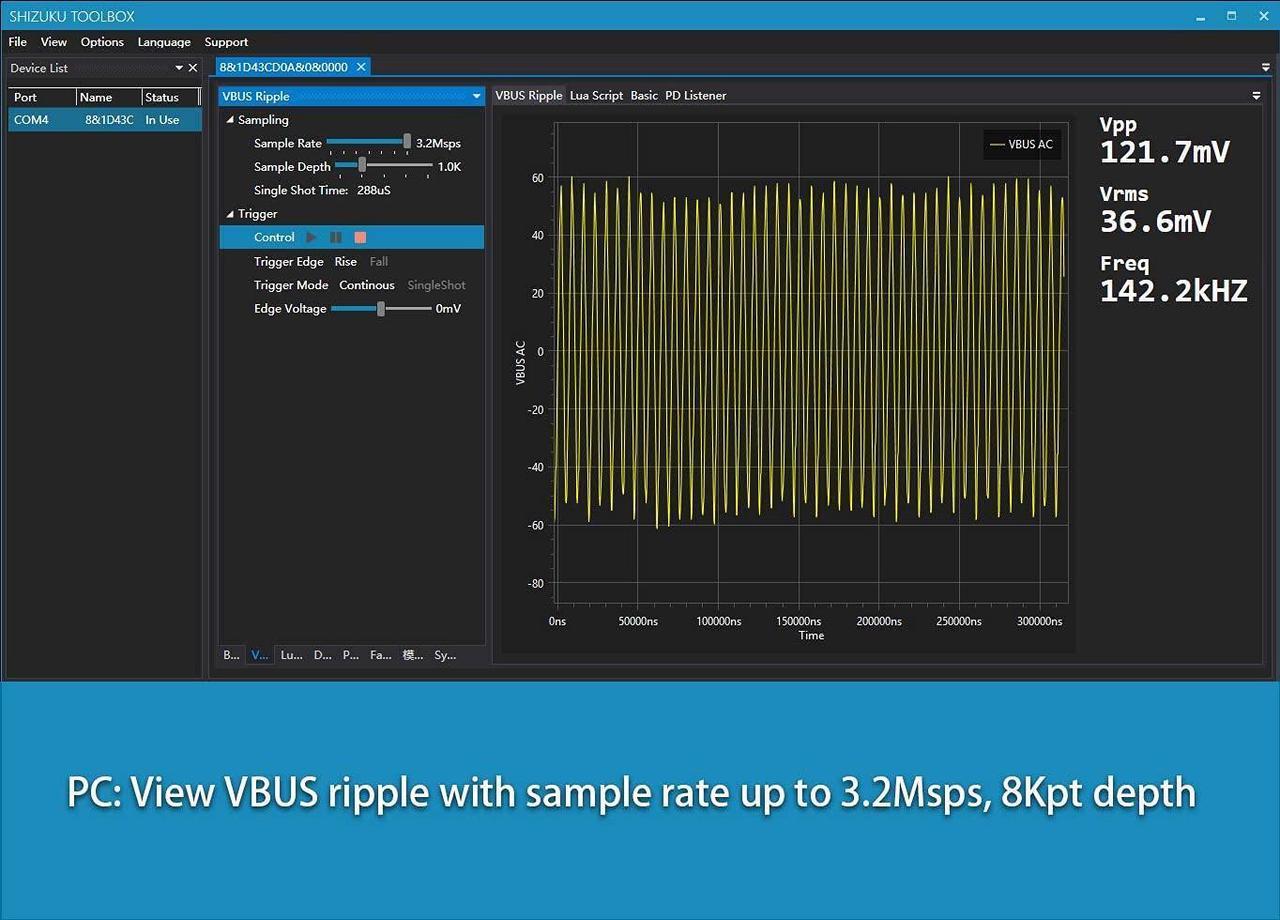

Power source ripple meter with 3.2M sps sample rate.
USB 3.1 SuperSpeed pass-through for Type-C ports.
USB 2.0 + speicial fast charge communication line (For SuperVOOC, VOOC, Dash, Warp) pass-through for Type-A ports.
meter, for accessing voltage & current readings.
AC-Coupled VBUS ripple graphing.
Cable Tests
A-C and C-C cable resistance test without external load.
Normal method A-C cable resistance measurement.
E-mark cable data reader.
Dash cable data reader.
Product Description
Wide functionality:
0-26V 0-6A voltage & current measurement. 128*160 1.77 TFT. Integrated gravity sensor and buzzer for better user experience.
4.5 digits reading for voltage and current.
0.1 % maximum gain error for both voltage and current.
Capacity/Energy accumulator.
PD (with PPS), QC 2.0, QC 3.0, QC 4.0, Huawei SCP, SSCP, FCP, Samsung AFC, VOOC, Super VOOC 65W trigger for charger testing.
Type-C to Type-C, Type-A to Type-C cable resistance tester.
E-mark reader. VOOC/Dash cable dumper. charger S/N reader.
Fast-charge protocol auto-detect mode.
Offline data (Voltage, current, D+, and D-) logging up to 100sps.
Internal 12Mbytes storage for data logging and user programs.
Power source ripple meter with 3.2M sps sample rate.
USB 3.1 SuperSpeed pass-through for Type-C ports.
USB 2.0 + speicial fast charge communication line (For SuperVOOC, VOOC, Dash, Warp) pass-through for Type-A ports.
meter, for accessing voltage & current readings.
AC-Coupled VBUS ripple graphing.
Cable Tests
A-C and C-C cable resistance test without external load.
Normal method A-C cable resistance measurement.
E-mark cable data reader.
Dash cable data reader.
