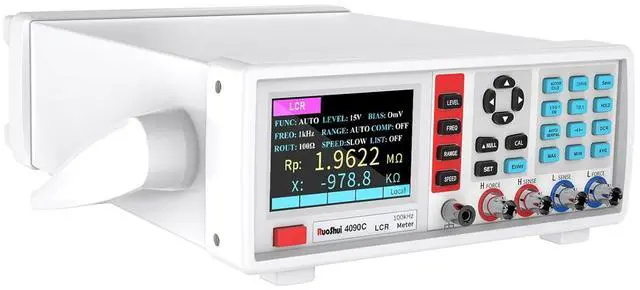

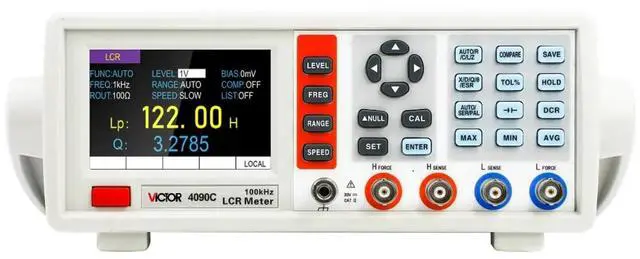

4090 Digital LCR Meter 10-100KHz Desktop Capacitance Resistance Impedance Inductance Measure Instrument Electric Bridge Component (4090C)

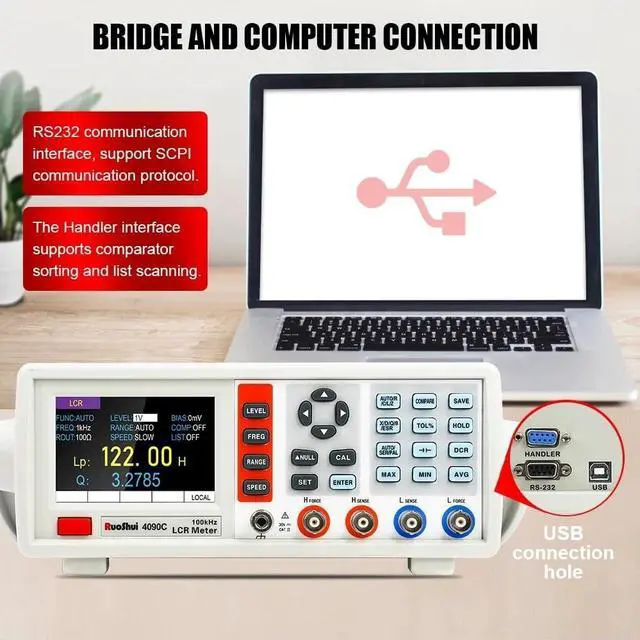

- It is convenient for users to carry out remote control with USB and RS232 and also perform the sorting of components using handle.In function, it can not only adjust the output frequency and test level, but also record the value of components in the process of measurement.In the performance parameters, its basic accuracy reaches 0.2%.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

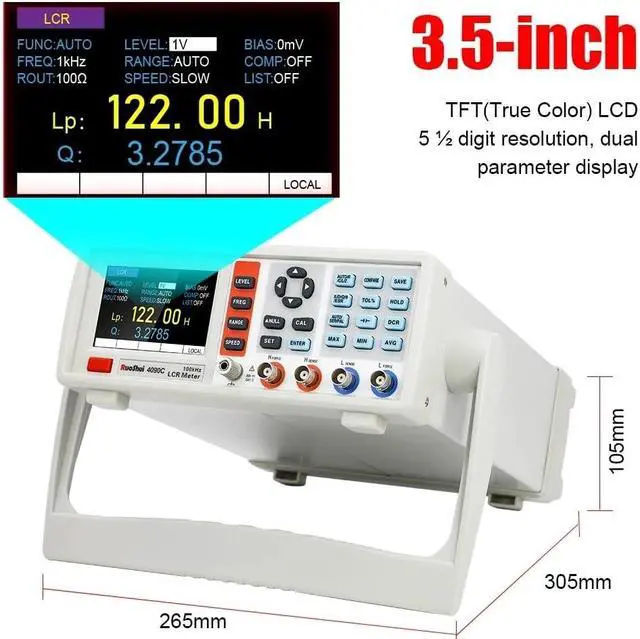

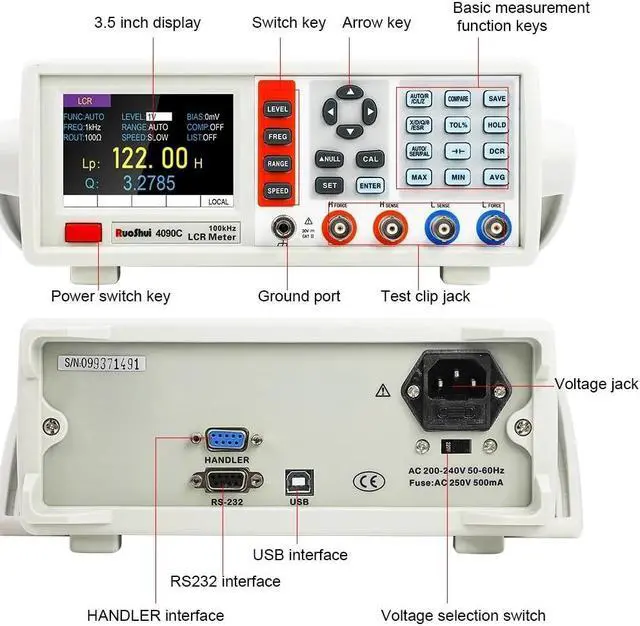

Measurement frequency up to 100kHz. Test level 100 ~ 2000mV. Support the measurement of DC resistance and electrolytic capacitor. Internal bias voltage output (1mV-1500mV). Automatic identification of component measurement. 3.5 -inch TFT display, 5 and a half bits display. USB, RS232 communication interface, Handle sorting. Data recording function (maximum and minimum values, average value). Support SCPI communication protocol. Provide system settings, which can configure language, buzzer, screen brightness, etc accordingto the needs of users. Basic accuracy 0.2 %. Manual and automatic range.
Be equipped with open circuit and short circuit correction. Comparator has sorting and alarm function. Provide a variety of test ports.
Be equipped with open circuit and short circuit correction. Comparator has sorting and alarm function. Provide a variety of test ports.
