DURFICST A5 Smart Digital Multimeter Auto Current Tester Large Screen Multifunction Voltmeter with NCV VFD Voltage Tester Resistance Capacitance Frequency Continuity Diode Temperature
- Automatic and Simple - This A5 professional multimeter defaults to Smart Mode, which automatically adjusts to what is being read and gives you fast and accurate readings regardless of range. Easy to operate for beginners.
- Powerful and Versatile - Manual mode is also available via a button. The Smart Multimeter tests AC DC Voltage, AC DC Current, Resistance, Capacitance, Diode, Continuity, Frequency, Temperature, and NCV detection with adjustable sensitivity.
- Large Detailed Display - Lots of intuitive interface for easy reading. Displays 3 test results: Test Value, Analog Bar, and Hertz/Ambient Temperature.
- Inverter Voltage Measurement - This electrician tester allows you to measure the output voltage of an inverter. It can help you better plan the operating speed of pumps, elevators, air conditioners, compressors, etc.
- Pocket Multimeter with Case - Comes in a sturdy zipper bag. Compact and easy to carry, it comes with a flashlight for quick testing.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Our new generation A5 professional electrical multimeter is designed for electricians and beginners, with
the following features:
Red/green backlit LCD display, showing 3 test results.
Automatically test AC/DC voltage/current, resistance, continuity and frequency.

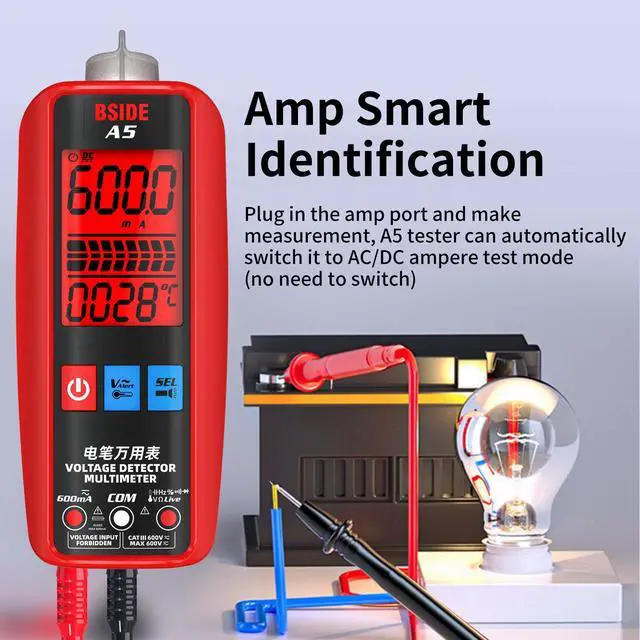

Measure current value when red test lead is connected to the left (black in the middle).
Capacitance, diode and temperature measurement and VFC function.
Live line check and NCV detection with adjustable sensitivity.
Auto-range, auto-off, low battery indication.
Bright LED flashlight, suitable for rewiring in the dark.
EVA case with removable silicone leather cover.
Display: 6000 accounts
Screen: 2.2 inches
DC voltage: 0-620V (DC mode) / 0.8 -620V (automatic mode) 0.01V ± ( 0.8 % + 3)
AC voltage:
0-620V (DC mode) / 0.8 -620V (automatic mode) 0.01V ± ( 1.2 % + 5); 10-620V (VFC mode) 1V ( 4.0 % + 3)
Continuous current: 1.0 -610mA 0.1 mA ± ( 1.5 % + 3)
AC: 1.0 -610mA (40-1000Hz) 0.1 mA ± ( 1.5 % + 3)
Resistance: 0-6M 0.1 ± ( 1.2 % + 3); 6M-60M 0.1 ±( 2.0 %+10)
Capacitance: 0.5 µF-6mF 0.001 µF±( 3.5 %+8); 6mF- 60.00 mF 0.001 µF ±( 4.5 %+10)
Frequency: 0-9999Hz (900mVrms-20Vrms) 0.001H z±( 2.0 %+10)
Temperature: 0-50 (32-122) 1/1±( 1.5 %+2); 50-1000(122-1832) 1/1 ±( 2.0 %+3)
V-Alert (non-contact voltage detection): Yes
Diode: Measures diodes below 3V
Continuity: If the resistance is less than 50, a beep will sound.
Live circuit inspection: Yes
Ambient temperature: 0-50±2
Power supply: 1.5V (AAA) x 2 (not included)
Dimensions: 139.7 x 53.7 x 32.8 mm
Weight: 92g
Scope of supply:
Multimeter tester
Test leads
Thermocouple
Screwdriver
English manual
the following features:
Red/green backlit LCD display, showing 3 test results.
Automatically test AC/DC voltage/current, resistance, continuity and frequency.
Measure current value when red test lead is connected to the left (black in the middle).
Capacitance, diode and temperature measurement and VFC function.
Live line check and NCV detection with adjustable sensitivity.
Auto-range, auto-off, low battery indication.
Bright LED flashlight, suitable for rewiring in the dark.
EVA case with removable silicone leather cover.
Specifications
:Display: 6000 accounts
Screen: 2.2 inches
DC voltage: 0-620V (DC mode) / 0.8 -620V (automatic mode) 0.01V ± ( 0.8 % + 3)
AC voltage:
0-620V (DC mode) / 0.8 -620V (automatic mode) 0.01V ± ( 1.2 % + 5); 10-620V (VFC mode) 1V ( 4.0 % + 3)
Continuous current: 1.0 -610mA 0.1 mA ± ( 1.5 % + 3)
AC: 1.0 -610mA (40-1000Hz) 0.1 mA ± ( 1.5 % + 3)
Resistance: 0-6M 0.1 ± ( 1.2 % + 3); 6M-60M 0.1 ±( 2.0 %+10)
Capacitance: 0.5 µF-6mF 0.001 µF±( 3.5 %+8); 6mF- 60.00 mF 0.001 µF ±( 4.5 %+10)
Frequency: 0-9999Hz (900mVrms-20Vrms) 0.001H z±( 2.0 %+10)
Temperature: 0-50 (32-122) 1/1±( 1.5 %+2); 50-1000(122-1832) 1/1 ±( 2.0 %+3)
V-Alert (non-contact voltage detection): Yes
Diode: Measures diodes below 3V
Continuity: If the resistance is less than 50, a beep will sound.
Live circuit inspection: Yes
Ambient temperature: 0-50±2
Power supply: 1.5V (AAA) x 2 (not included)
Dimensions: 139.7 x 53.7 x 32.8 mm
Weight: 92g
Scope of supply:
Multimeter tester
Test leads
Thermocouple
Screwdriver
English manual
