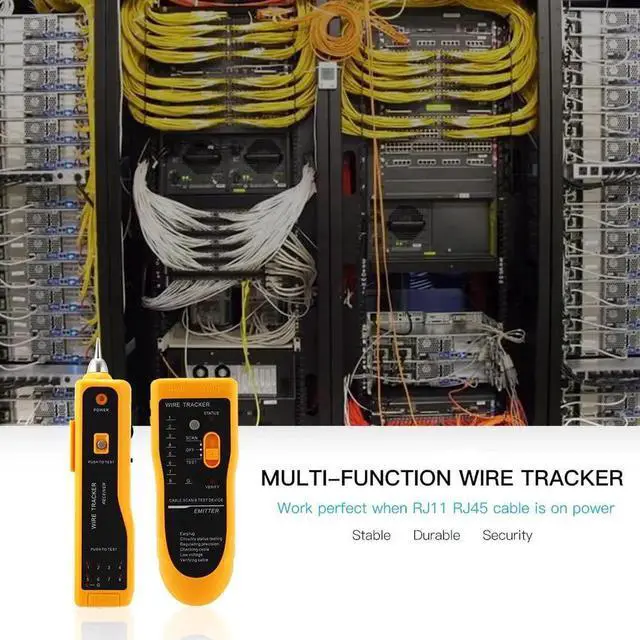

Ethernet Tester, Wire Tester, Wire Tracker, Ethernet Network Cable Tester Kit RJ11 RJ45 CAT5/5e CAT6 LAN Wire Tracker Portable Line Finder for Miss Wiring Disorder Cable Open and Short Circuit Testing

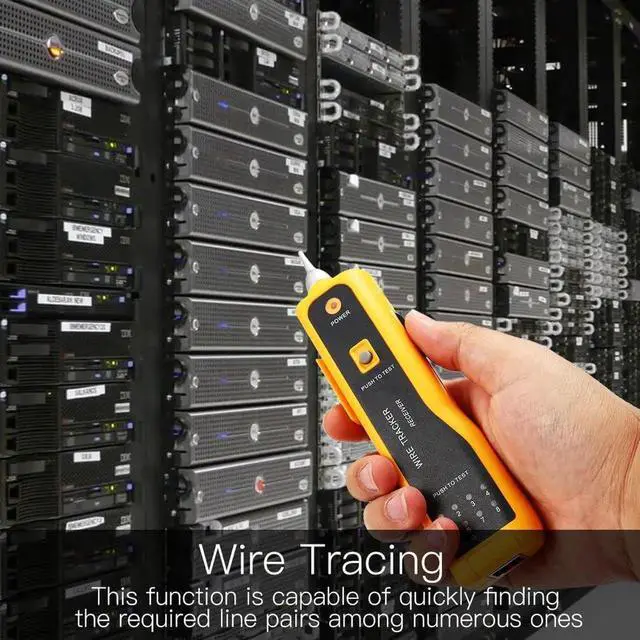

- PROFESSIONAL WIRE TRACKER - The line finder can quickly find the required line pairs among numerous ones. It's adaptable to RJ45 terminal & RJ11 terminal and other metal wire in low electricity.
- VERIFY LAN CABLE CONDITON - Plug one side of the cable into the emitter and the other side into the receiver, it can trace cable assignment and cable state (2-wire), also can be used test physical connection status of network cable. It can take place of cable tester.
- TELEPHONE LINE TEST - We only need the emitter to test the status of working of telephone lines, such as judging TIP or PING line and judging whether the telephone line is idle, ringing or off-hook. Rapidly find the target wire from among plenty of telephone wires, network wires, and all types of connected operating Ethernet switch /Router/PC.

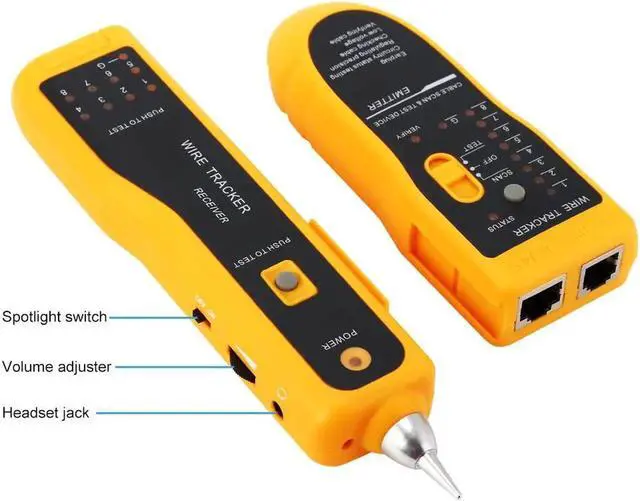

- ADDIDITIONAL EARPHONE - In a noisy environment, you can put on the earphones to accurately find the target cable through comparing the strength of "beep beep" sound.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
How to use:
1. Find wire on all types of connected operating Ethernet switch /Router/PC terminal.
2. Rapidly find the target wire from among plenty of telephone wires.
3. Rapidly find the target wire from among plenty of network wires.
4. It can take place of cable tester.

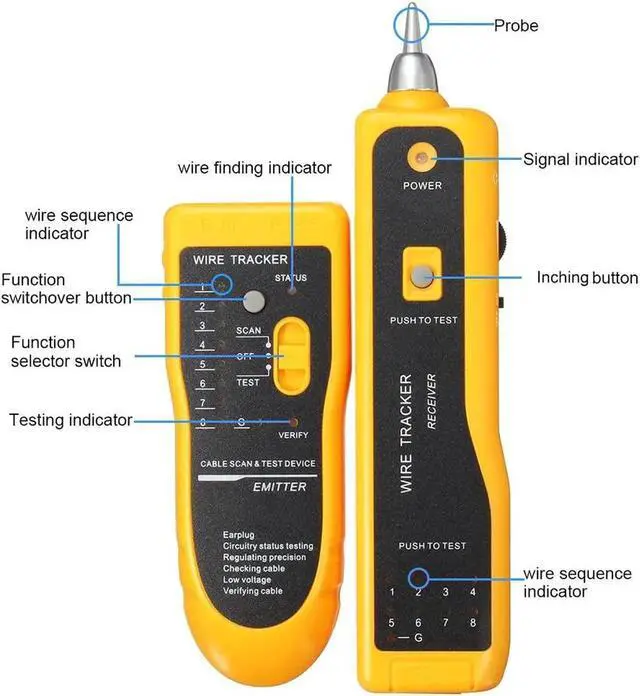

5. Compare the volume of the"tout"sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator. )
Features:
1. Trace telephone wire/LAN cable
2. Trace wire in electrical system
3. Verify LAN cable condition
4. Continuity test
5. Low Battery Indication
6. Bright white LED flash light
7.
Cable Assignment Test: Open, short and cross of LAN cable, 2-wire (RJ11) /4-wire (RJ45) telephone cable
8. Cable State Testing (2-wire)
a. Line DC detecting and anode, cathode determination
b. Ringing signal detecting
c. Open, short and cross testing
1.
Power specs: DC 9V laminated battery ( included)
2.
Max. operating current: Emitter =10mA; Receiver=30mA
3.
Signal transmission format: Multi-frequency pulse
4Signal output level: 8Vp-p
5.
Signal transmission distance:. =3km

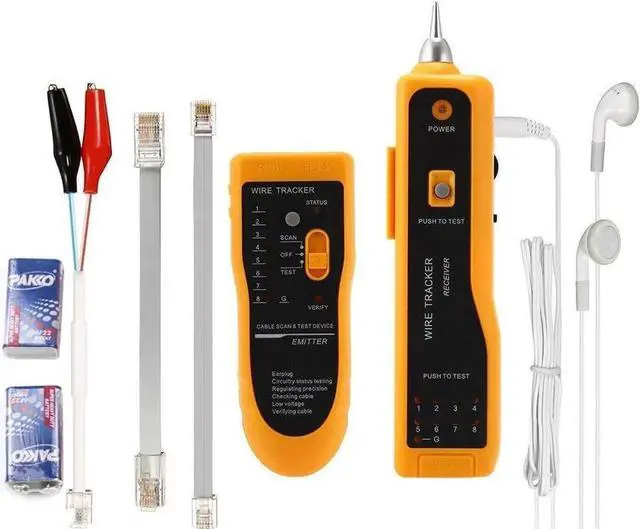

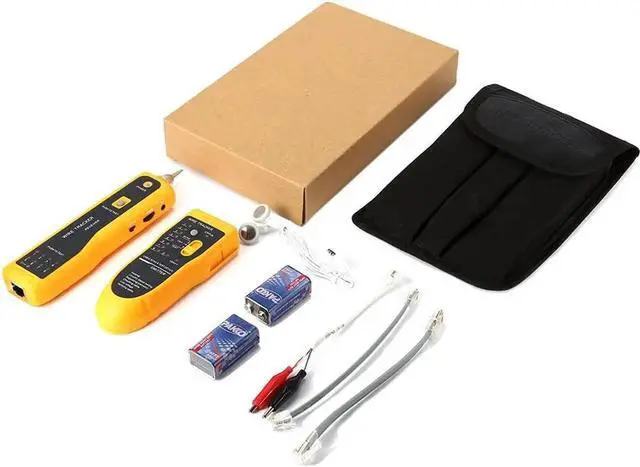

Package include:
1 * Emitter
1 * Receiver
1 * Earphone
1 * RJ11 adapter
1 * RJ45 adapter
1 * Alligator clip adapter
1 * Toolkit
1 * User manual
2 * 9V Battery
1. Find wire on all types of connected operating Ethernet switch /Router/PC terminal.
2. Rapidly find the target wire from among plenty of telephone wires.
3. Rapidly find the target wire from among plenty of network wires.
4. It can take place of cable tester.
5. Compare the volume of the"tout"sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator. )
Features:
1. Trace telephone wire/LAN cable
2. Trace wire in electrical system
3. Verify LAN cable condition
4. Continuity test
5. Low Battery Indication
6. Bright white LED flash light
7.
Cable Assignment Test: Open, short and cross of LAN cable, 2-wire (RJ11) /4-wire (RJ45) telephone cable
8. Cable State Testing (2-wire)
a. Line DC detecting and anode, cathode determination
b. Ringing signal detecting
c. Open, short and cross testing
Specifications
:1.
Power specs: DC 9V laminated battery ( included)
2.
Max. operating current: Emitter =10mA; Receiver=30mA
3.
Signal transmission format: Multi-frequency pulse
4Signal output level: 8Vp-p
5.
Signal transmission distance:. =3km
Package include:
1 * Emitter
1 * Receiver
1 * Earphone
1 * RJ11 adapter
1 * RJ45 adapter
1 * Alligator clip adapter
1 * Toolkit
1 * User manual
2 * 9V Battery
