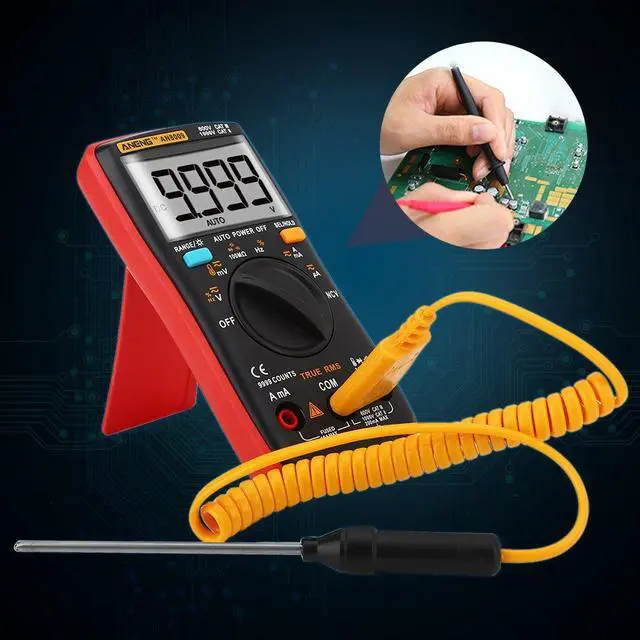

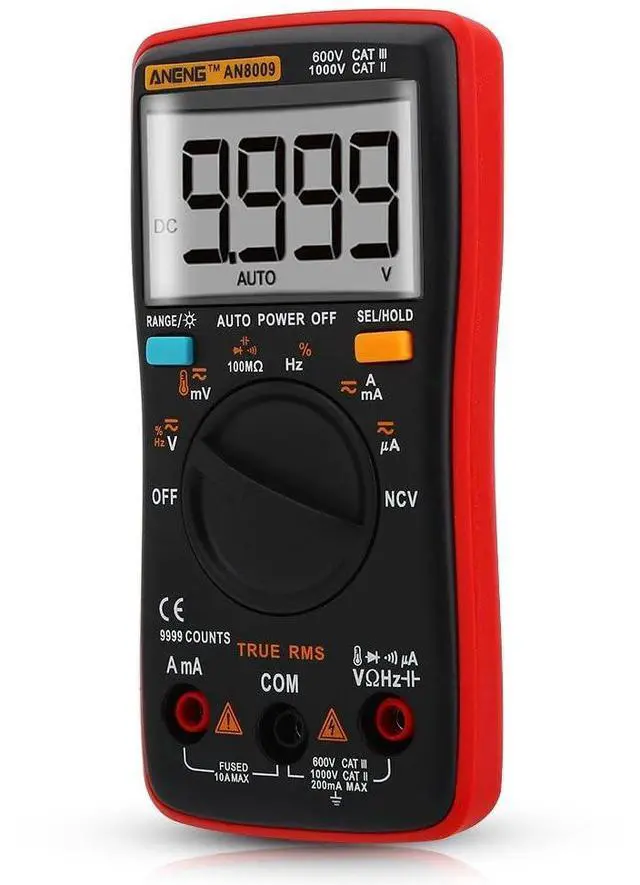

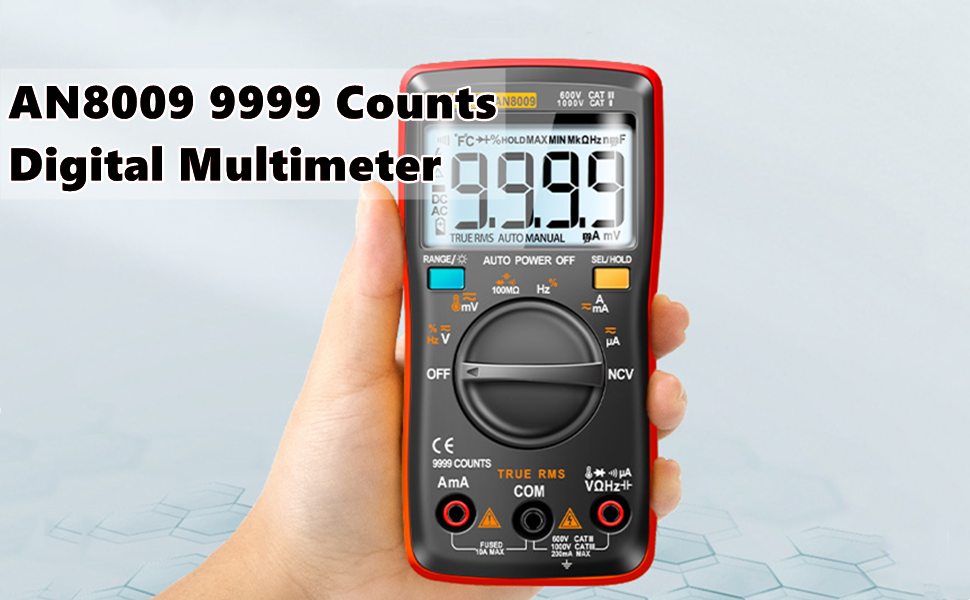

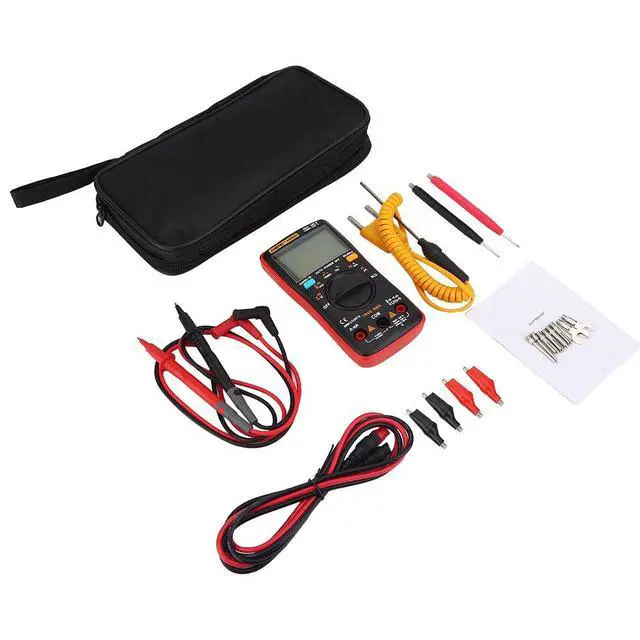

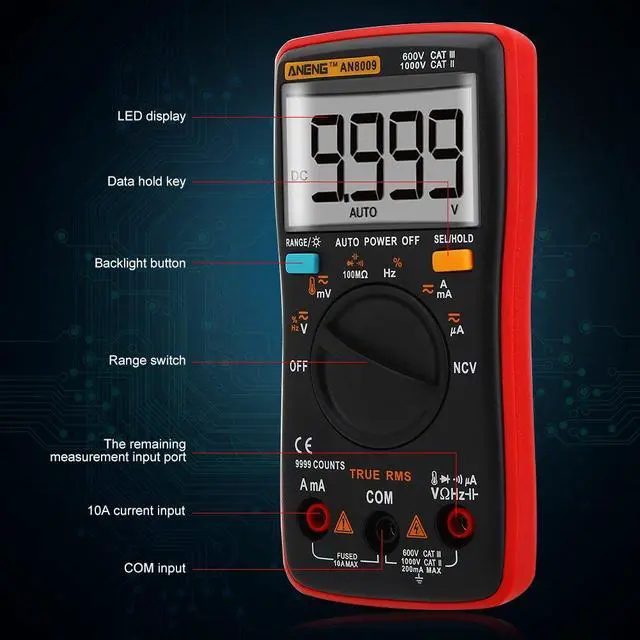

Jeanoko Handheld Digital Multimeter AN8009 9999 Counts Digital Multimeter True RMS AC/DC Voltage Electronic Meter

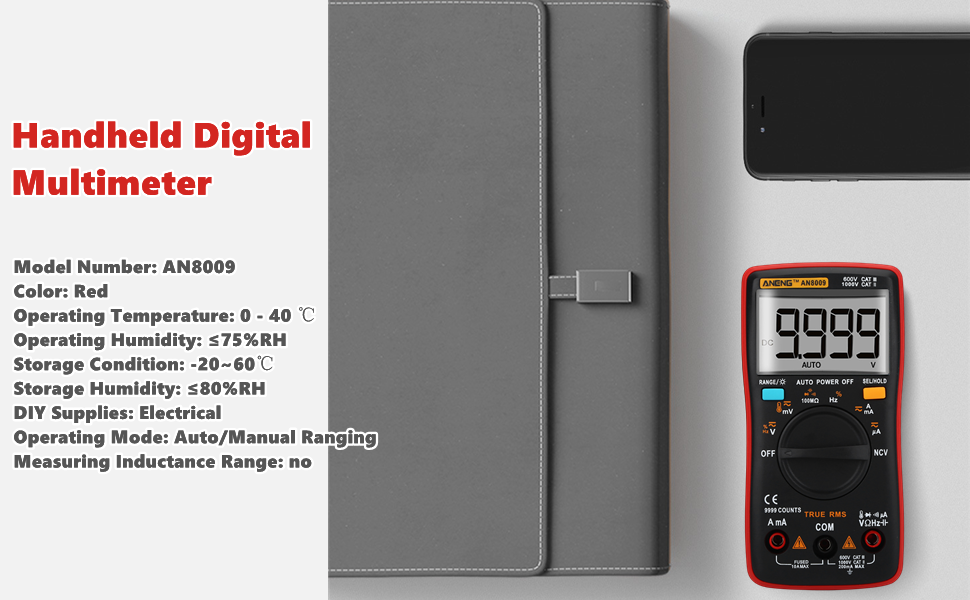

Specifications:

Brand Name:

Model Number: AN8009

Color: Red

Operating Temperature: 0 - 40 ?

Operating Humidity: ?75%RH

Storage Condition: -20~60?

Storage Humidity: ?80%RH

DIY Supplies: Electrical

Operating Mode: Auto/Manual Ranging

Measuring Inductance Range: no

Measuring Temperature Range: -20~1000 C/-4F-1832F

Measuring Capacitance Range: 9.99nF/99.99nF/999.9nF/9.99uF/99.99uF/999.9uF/9.999MF

Measuring Voltage Range: 999.9mV/9.999V/99.99V/999.9V

Measuring Current Range: 60mA/600mA/10A

Measuring Resistance Range: 99.99/999.9/9.999k/99.99k/999.9K/999.9M

Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz

Square Wave Output: 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/ 900Hz/1000Hz

DC/AC Voltage(mV): 9.999mV/99.99mV

DC/AC Voltage(V): 999.9mV/9.999V/99.99V/750ACV(999.9DCV)

DC/AC Current (mA&A): 999.9mA/9.999A

DC/AC Current (uA): 99.99?A/999.9?A

Display Type: Digital Display

Diode Test: Yes

Continuity: Yes

Duty Cycle: 1%-99%

Sample Rate: 3 times per second

Power Supply: 2 x 1.5V AAA batteries(Not Included)

Size: Approx. 130 x 65 x 30mm / 5.12 x 2.56 x 1.18inch

Weight: 345g
