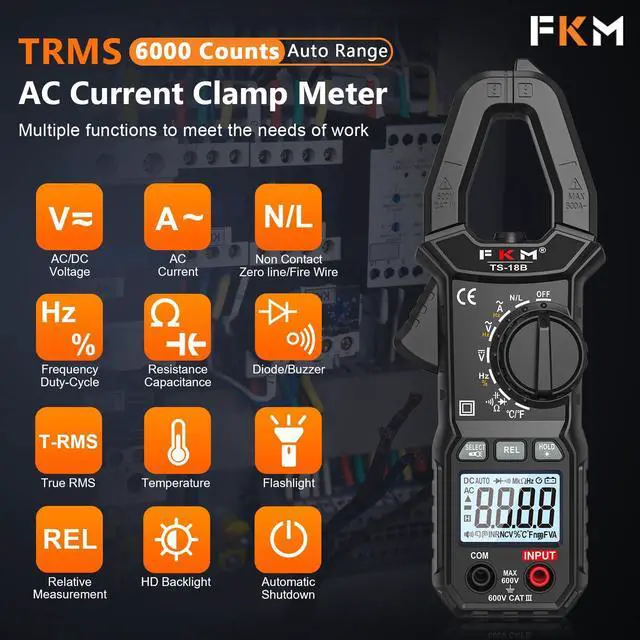

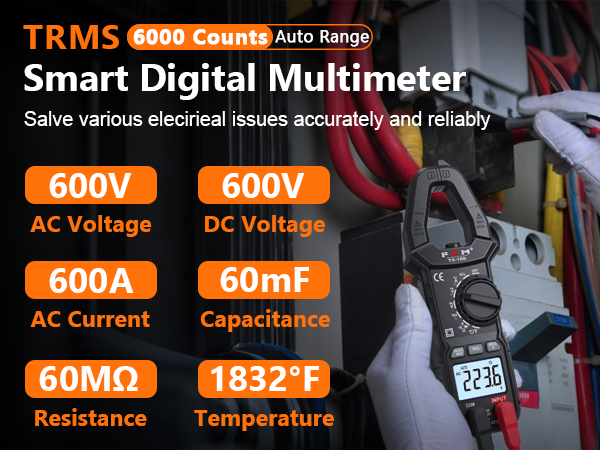

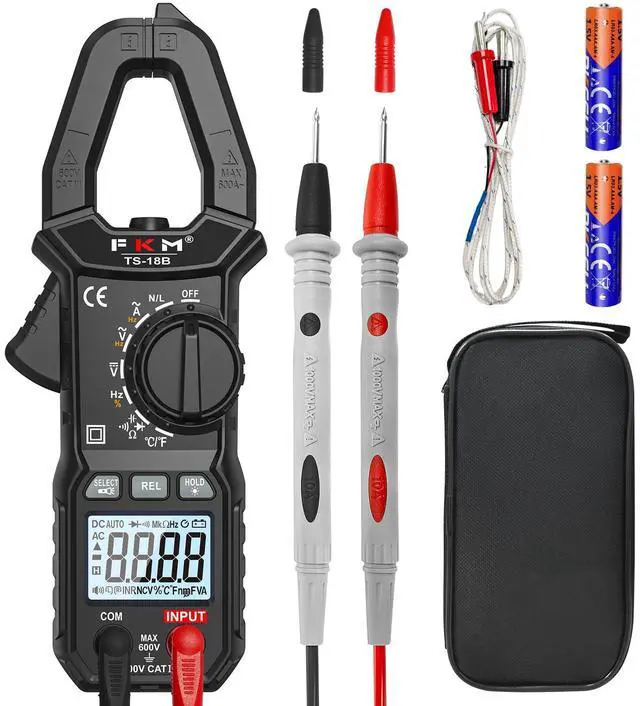

FKM-TS-18B Auto Ranging Digital Clamp Meter TRMS 6000 Counts

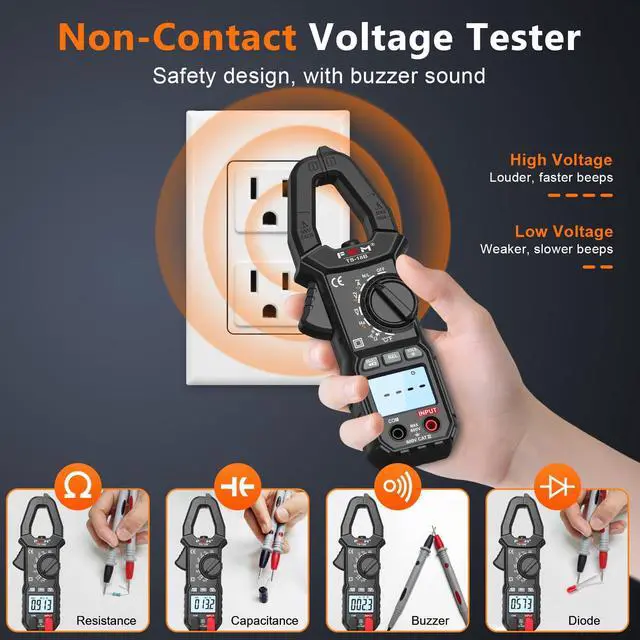

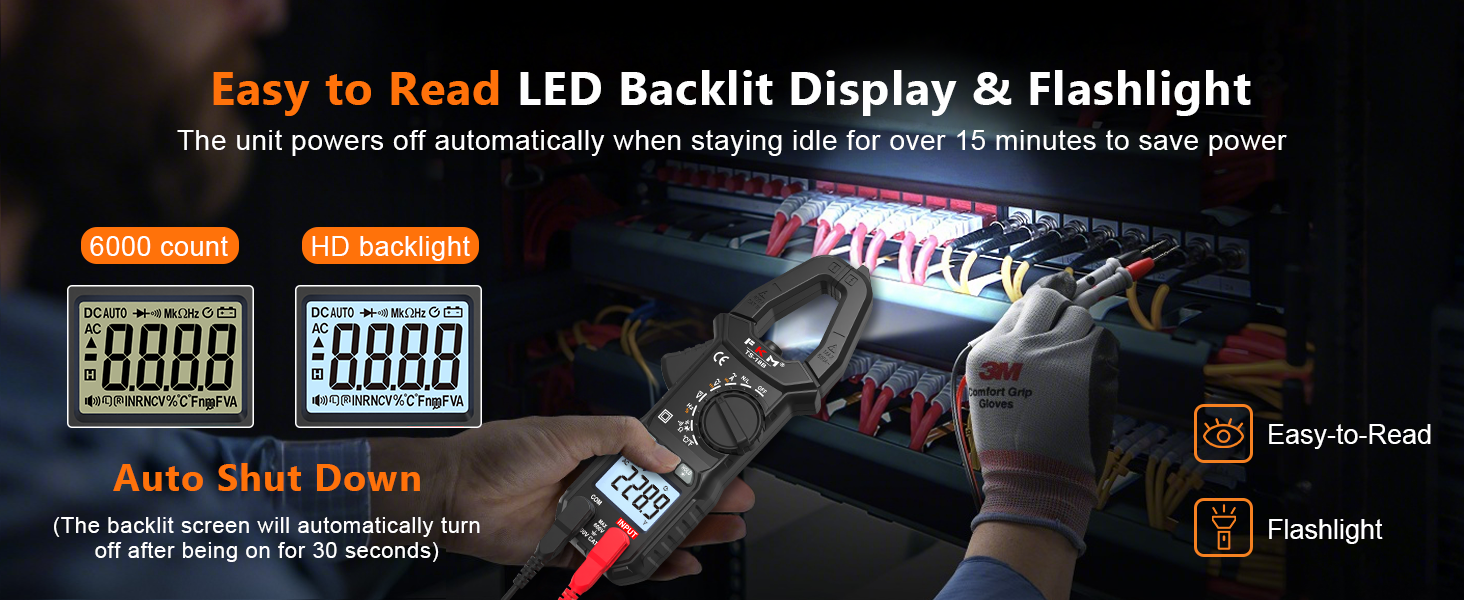

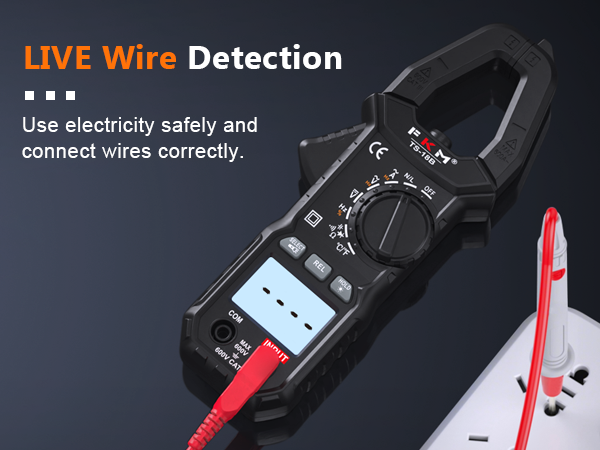

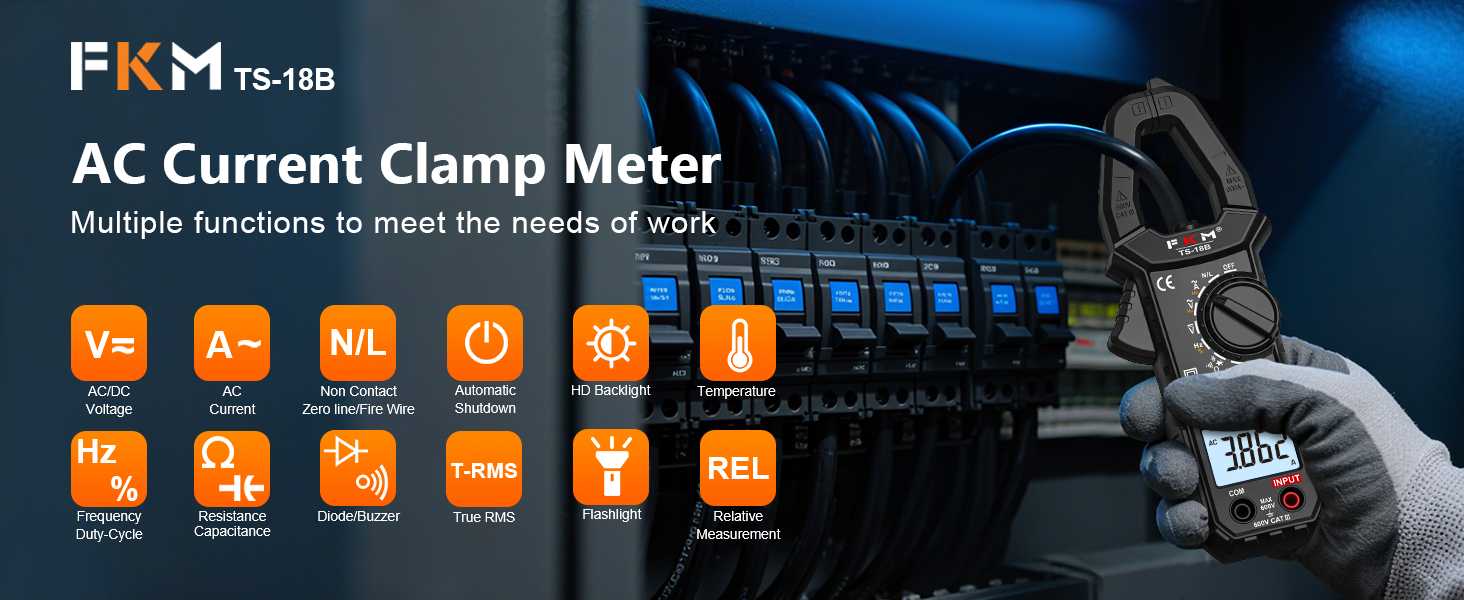

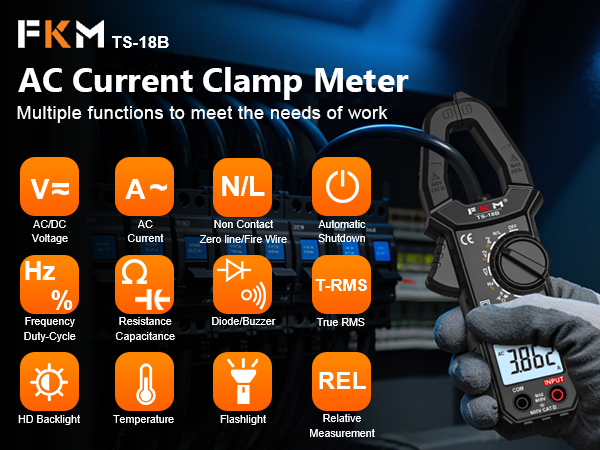

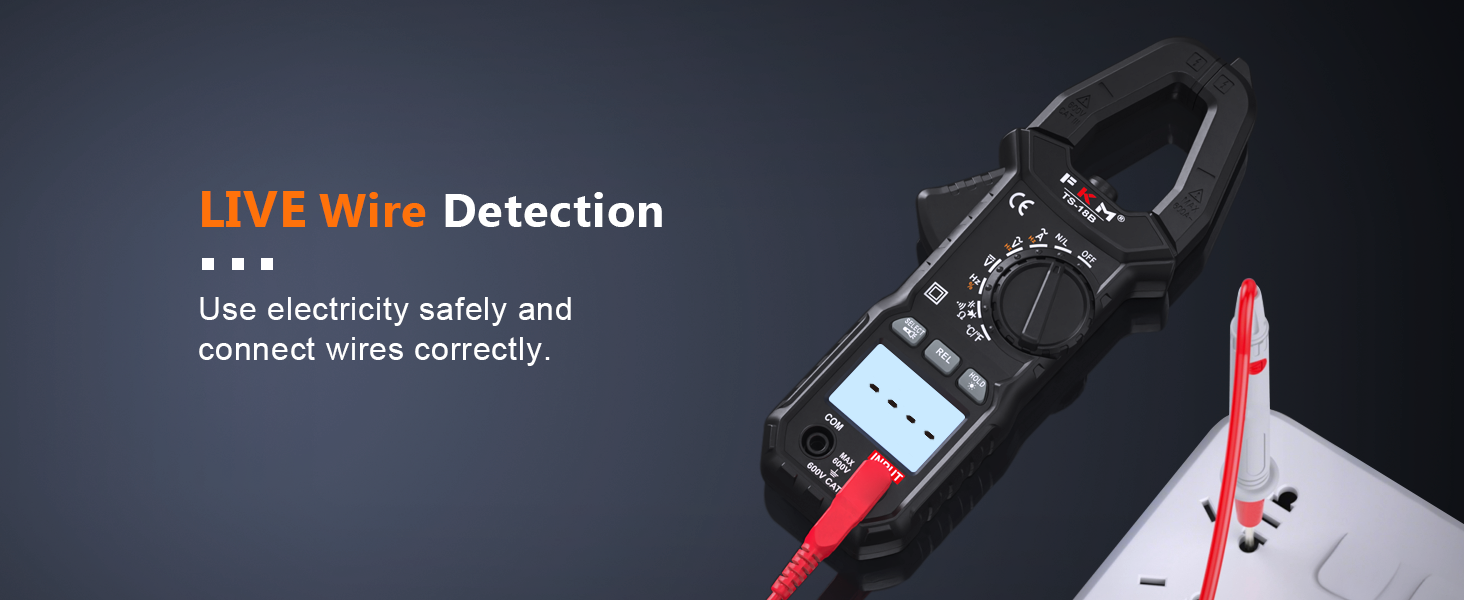

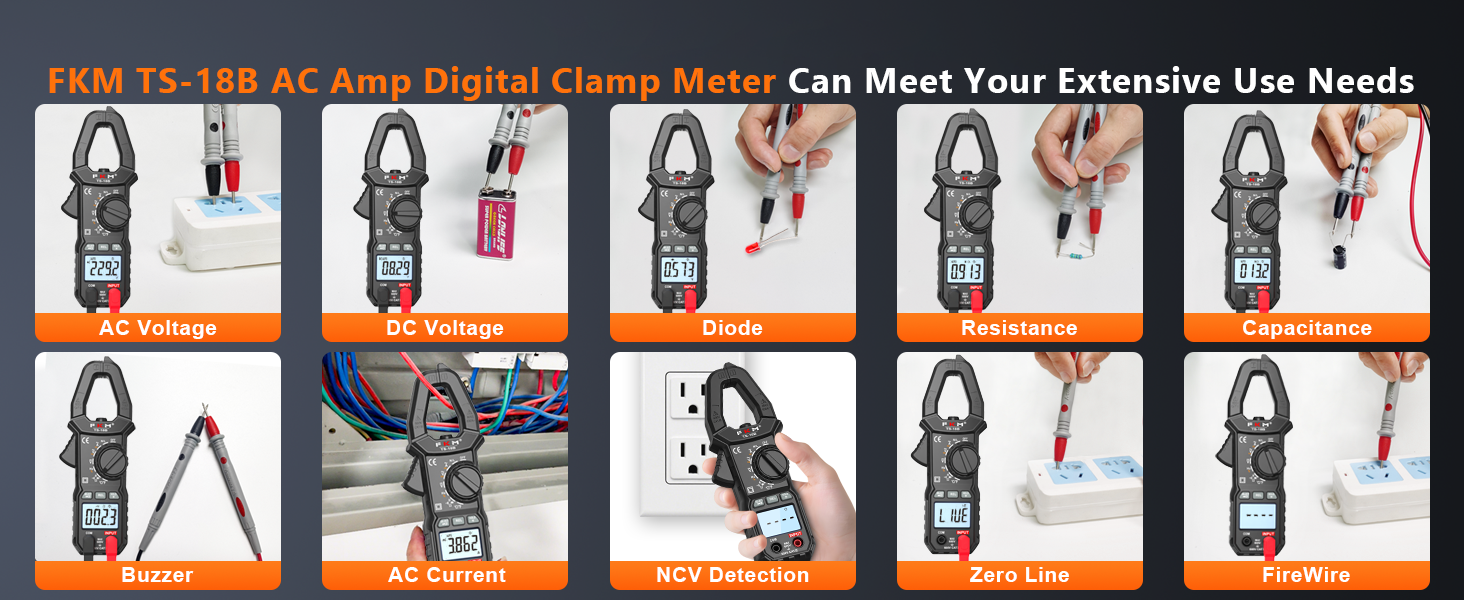

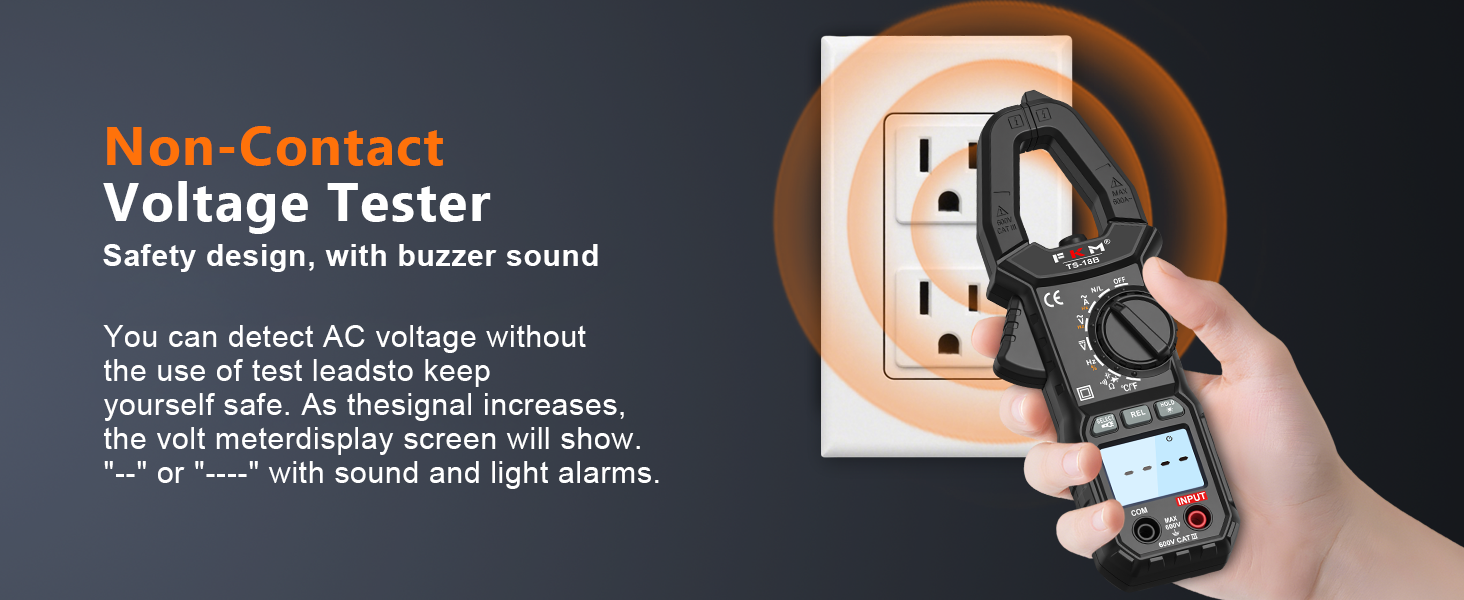

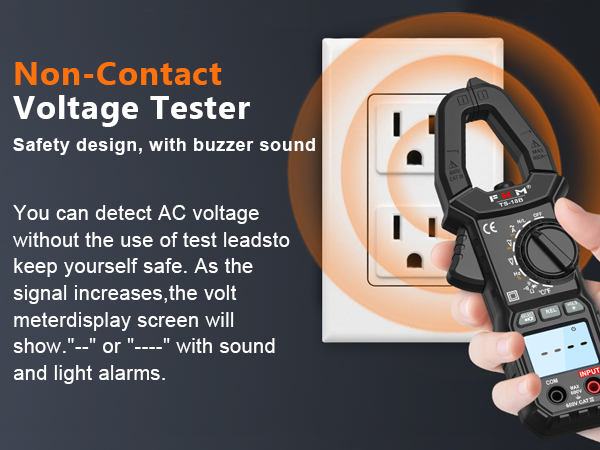

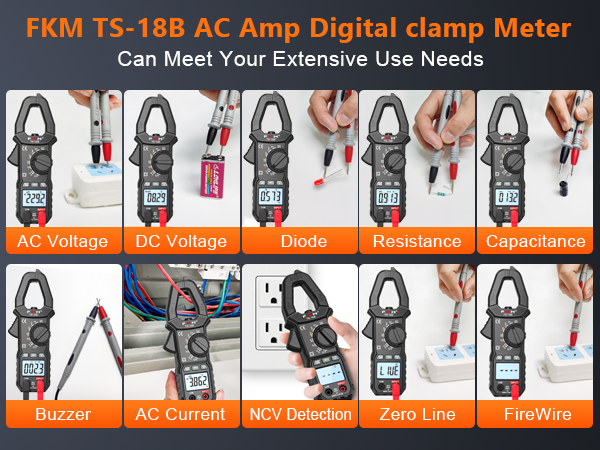

Multifunction FKM amp clamp multimeter with wide measurements mode, it goes beyond the basics, accurately measuring AC current, AC/DC voltage,NCV detection,resistance,capacitance,continuity,Hz/Duty cycle,diode and temp test,LED Backlit Display | Built-in Flashlight | Essential Electrician Tools

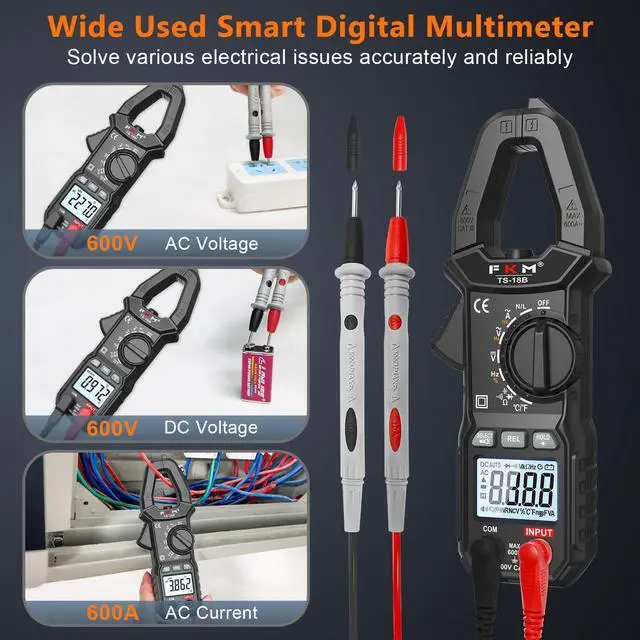

For daily tasks like HVAC maintenance, automotive diagnostics, household outlet checks, and industrial current testing—the FKM Clamp Meter is exactly what you need!
FKM-TS-18B AC Currente Digital Clamp Meter Technical Parameter
FKM Multimeter MoreChoice
 FKM-TS-18B AC Currente |  FKM-TS-18D AC/DC Currente |  FKM188B-Multimeter Tester |  FKM188D-Multimeter Tester |  FKM188F-Multimeter Tester | |
|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — |
Price | — | — | — | — | — |
Maximum Display | True RMS/6000 Counts | True RMS/6000 Counts | True RMS/6000 Counts | True RMS/6000 Counts | True RMS/6000 Counts |
Operation Mode | Turn the button | Turn the button | Key Switching Mode | Key Switching Mode | Touch Screen Mode |
Screen Display | 1.54"Backlit Screen | 1.54"Backlit Screen | 5"Backlit Screen | 5"Backlit Color Screen | 5"Backlit Color Touch Screen |

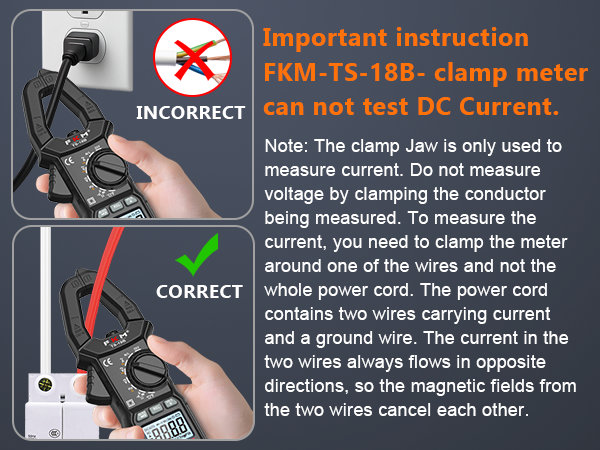

DC Current | NO | 60A/600A(100mA~600A)±(2.5%+10) | 6000mA/10A | 6000mA/10A | 6000mA/10A |
AC Currente | 60A/600A(10mA~600A)/Hz | 60A/600A(100mA~600A) | 6000mA/10A | 6000mA/10A | 6000mA/10A |
AC Voltage | 6V/60V/600V(20mV~600V)/Hz | 6V/60V/600V(20mV~600V)/Hz | 6V/60V/600V/750V | 6V/60V/600V/750V | 6V/60V/600V/750V |
DC Voltage | 600mV/6V/60V/600V(0.5mV~600V) | 600mV/6V/60V/600V(0.2mV~600V) | 6V/60V/600V/1000V | 6V/60V/600V/1000V | 6V/60V/600V/1000V |
Battery | 1.5V AAA x 2 | 1.5V AAA x 2 | 1200 mAh Rechargeable Battery | 2800 mAh Rechargeable Battery | 2800 mAh Rechargeable Battery |

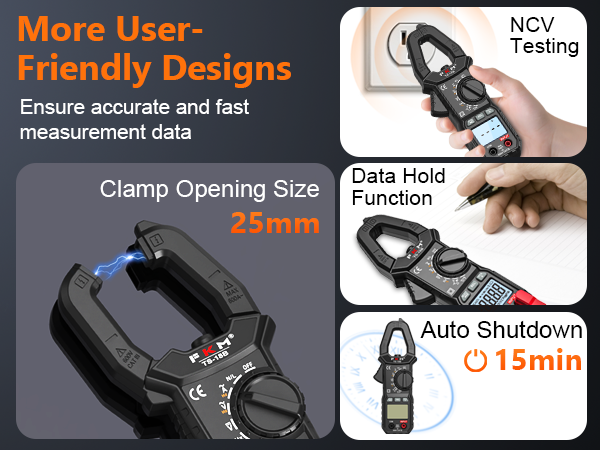

NCV Function | ? | ? | ? | ? | ? |
Temperature Measurement | -40°F~1832°F | -40°F~1832°F | -40°F~1832°F | -40°F~1832°F | -40°F~1832°F |
Function | Multifunction Meter | Multifunction Meter | Multifunction Meter | Multifunction Meter | Multifunction Meter |

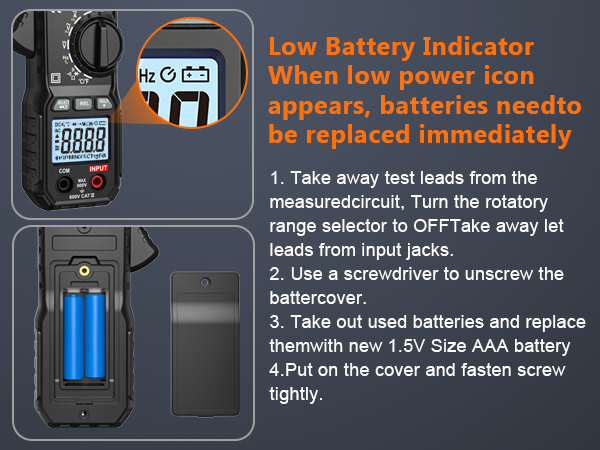

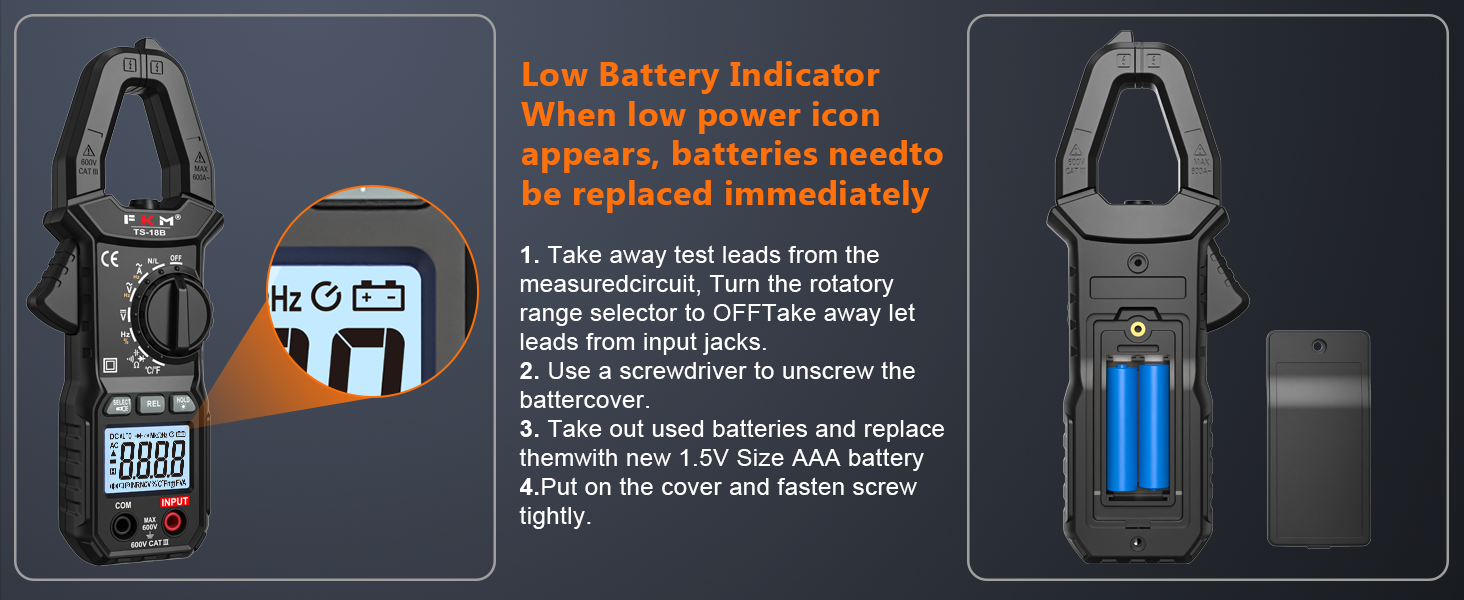

Low battery prompt | ? | ? | ? | ? | ? |
FKM-TS-18B Auto Ranging Digital Clamp Meter TRMS 6000 Counts
Multifunction FKM amp clamp multimeter with wide measurements mode, it goes beyond the basics, accurately measuring AC current, AC/DC voltage,NCV detection,resistance,capacitance,continuity,Hz/Duty cycle,diode and temp test,LED Backlit Display | Built-in Flashlight | Essential Electrician Tools

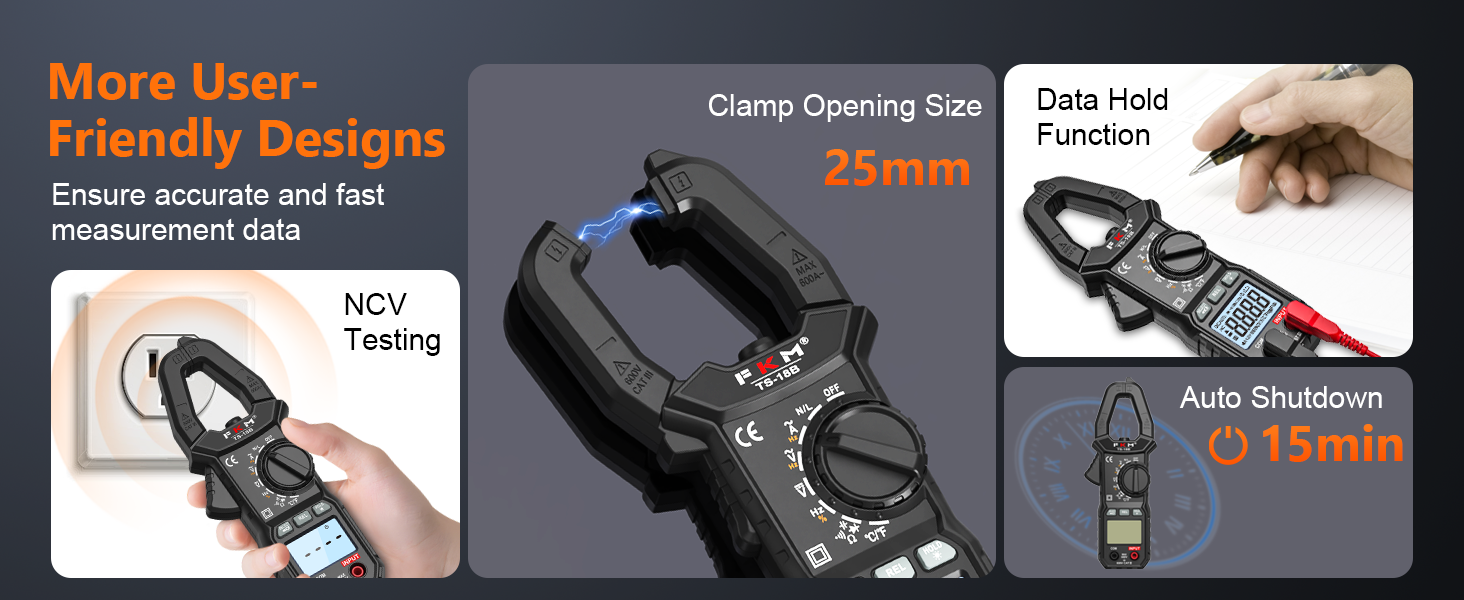

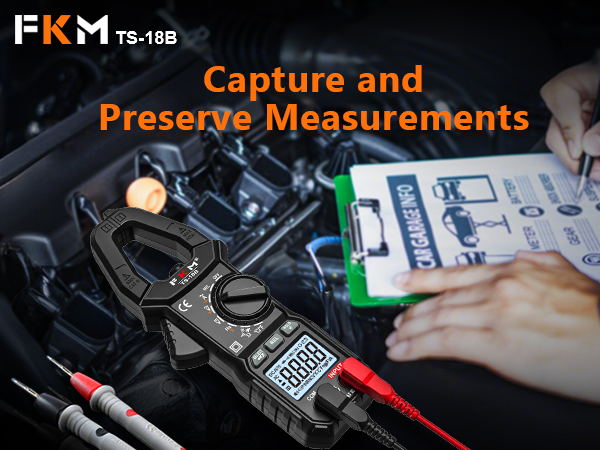

Capture and Preserve Measurements
Simply press the "HOLD" button,value on the screen will be locked,convenient to record data
For daily tasks like HVAC maintenance, automotive diagnostics, household outlet checks, and industrial current testing—the FKM Clamp Meter is exactly what you need!
FKM-TS-18B AC Currente Digital Clamp Meter Technical Parameter

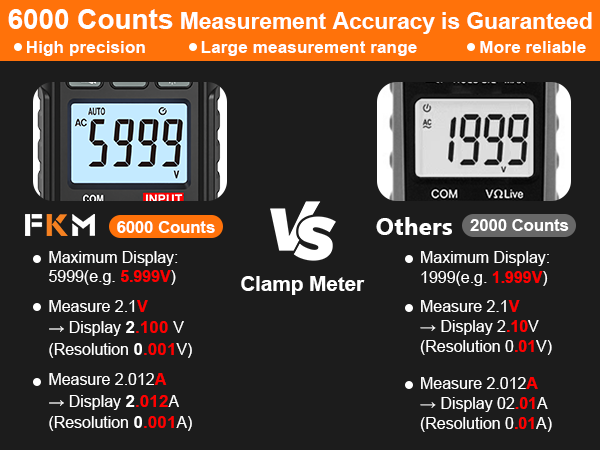

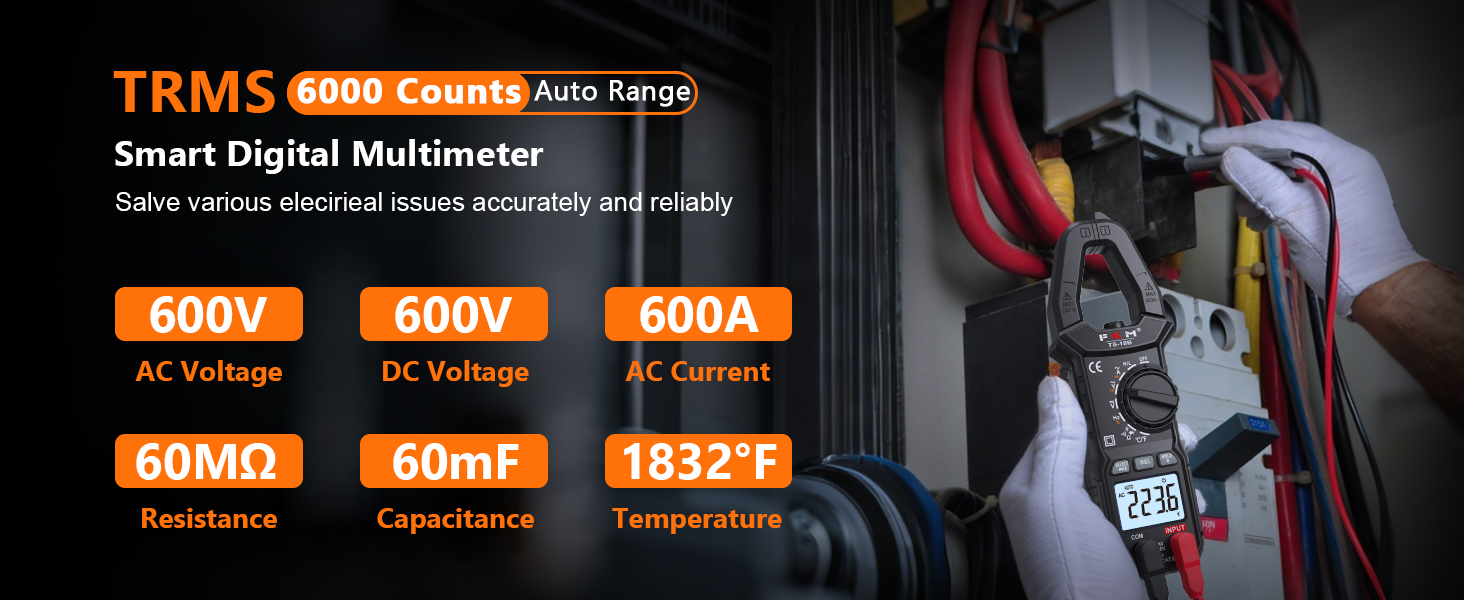

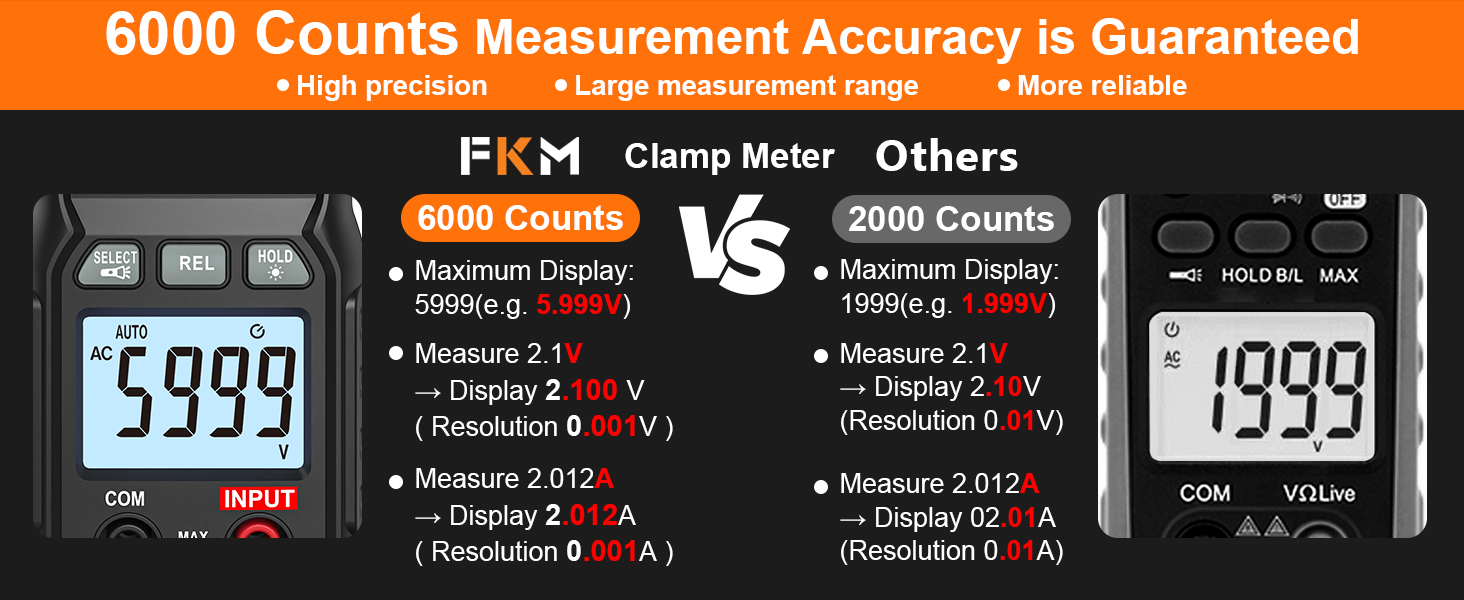

| Maximum Display | 6000 counts |
|---|---|

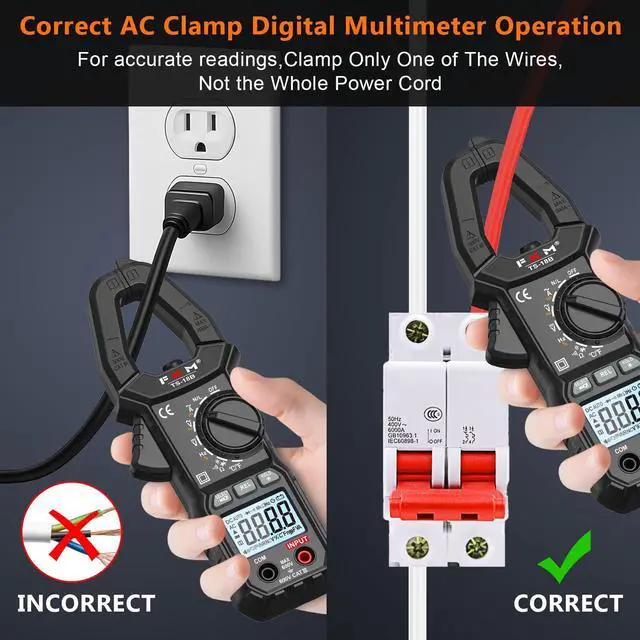

| AC Currente | 60A/600A [10mA~600A / 50Hz~60Hz-Range] :±(2.5%+5),10Hz~20kHz:±(0.1%+5) |
| AC Voltage | 6V/60V/600V [20mV~600V / 40Hz~2kHz-Range] :±(1.0%+5),10Hz~20kHz:±(0.1%+5) |
| DC Voltage | 600mV/6V/60V/600V [0.5mV~600V] :±(0.8%+5) |

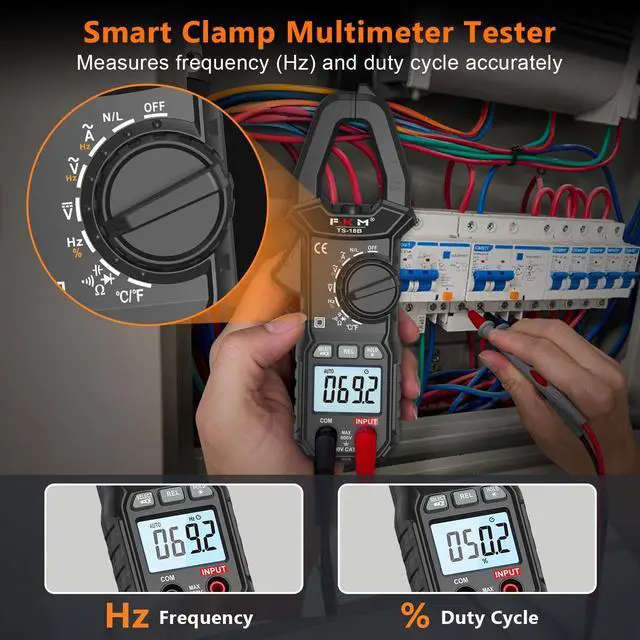

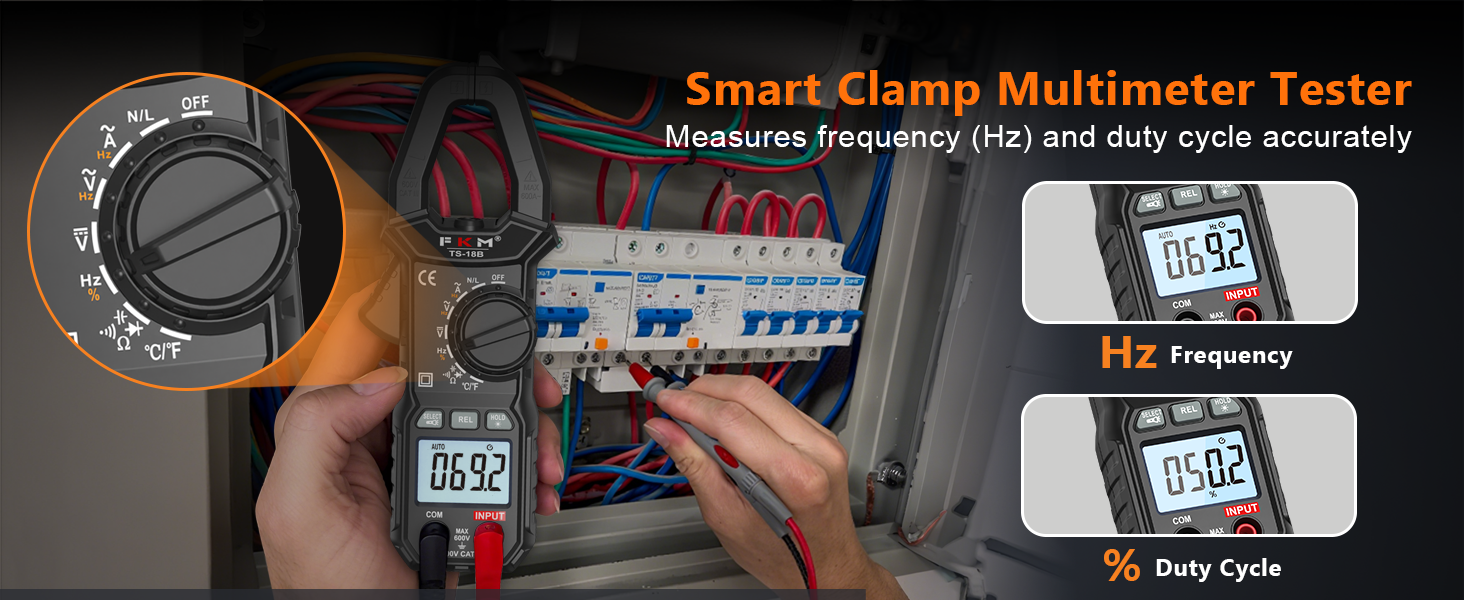

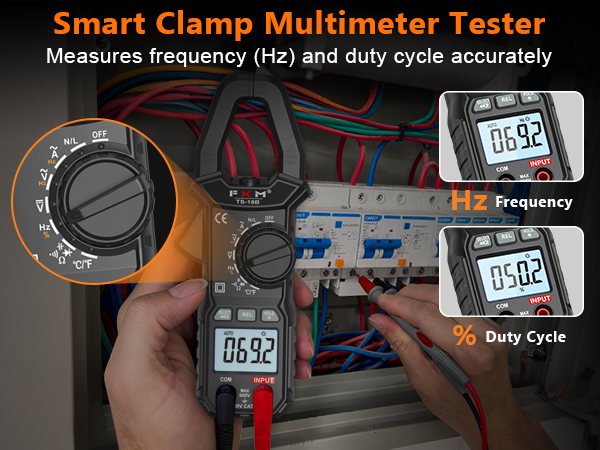

| Frequency(Hz) | 10Hz~10MHz ±(0.1%+5) |
| Duty cycle(%) | 0.1%~99.9% ±(0.1%+5) |
| Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF/60mF [1nF~60mF] :±(3.5%+20) |
| Resistance | 600O/6KO/60KO/600KO/6MO/60MO [0.1O~60MO] :±(0.8%+5) |
| Diode | Forward voltage drop Open-circuit voltage: 3.9V |
| Continuity | <50O triggers buzzer Open-circuit voltage: 3.9V |

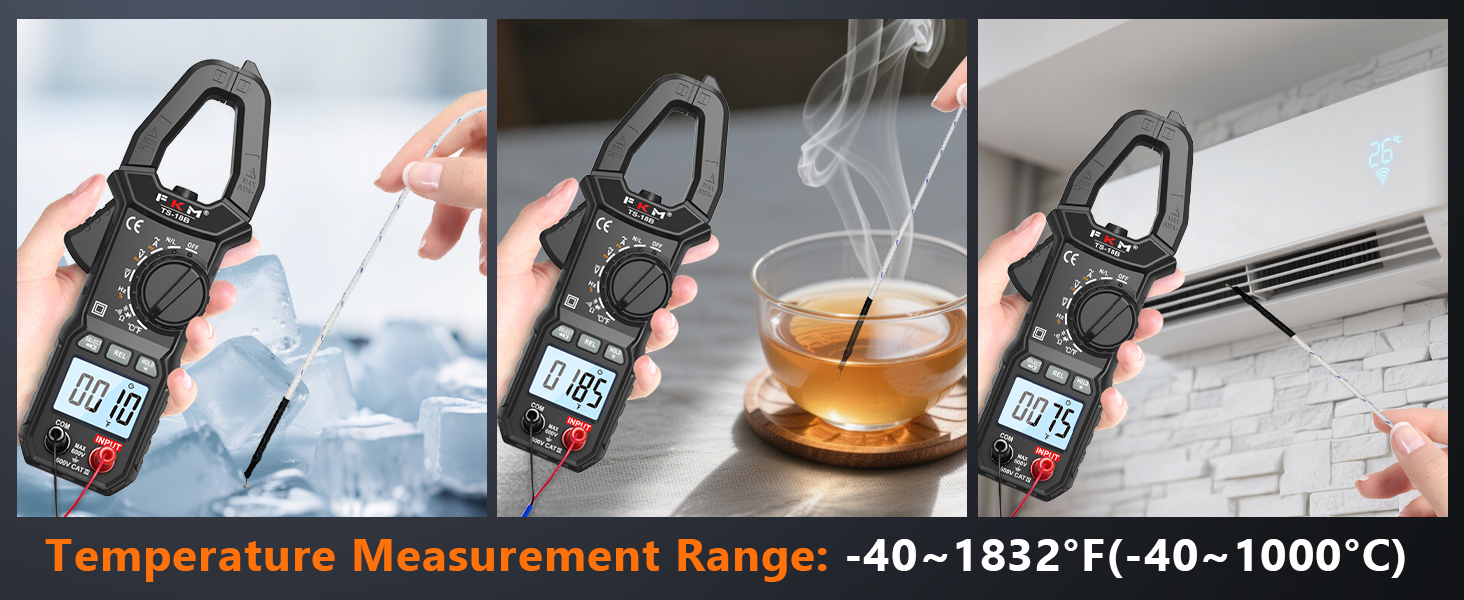

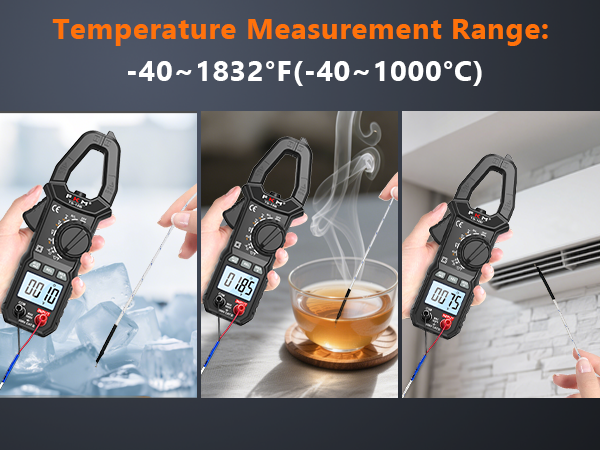

| Temperature Measurement | -40°F~1832°F ±(1.5%+5), -40°C~1000°C ±(1.5%+5) |
| Operating temperature | 41°F~95°F, 5°C~35°C |
| Storage temperature | 14°F~122°F, -10°C~50°C |
| Safety/compliances | CAT.lll 600V;Pollution degree 2 safety standards |
| Automatic range | Yes |

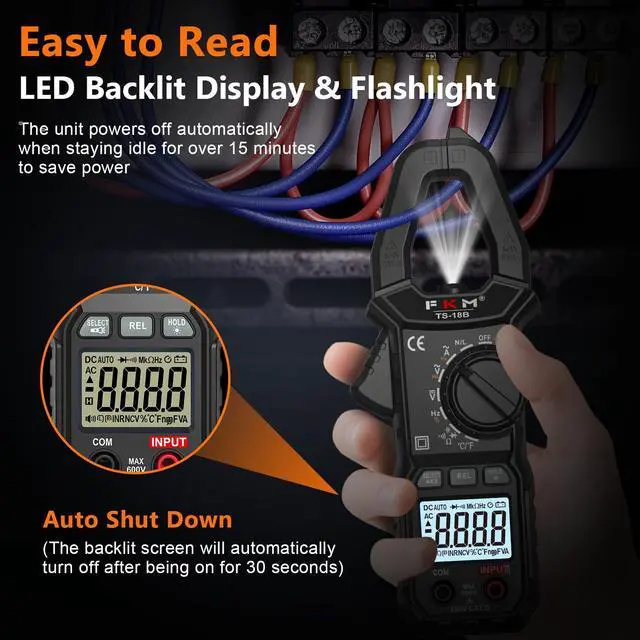

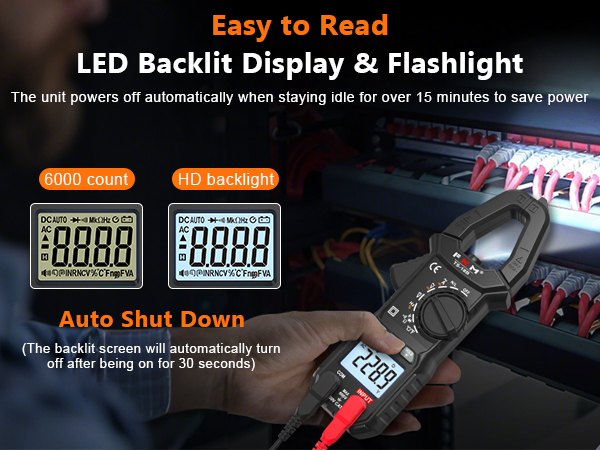

| Multifunction buttons | Select buttons/Torch switch,HOLD buttons/LCD backlight switch |
FKM Multimeter MoreChoice
FKM-TS-18B AC Currente | FKM-TS-18D AC/DC Currente | FKM188B-Multimeter Tester | FKM188D-Multimeter Tester | FKM188F-Multimeter Tester |
|---|---|---|---|---|
| Customer Reviews | ||||
| — | — | — | — | — |
| Price | ||||
| — | — | — | — | — |
| Maximum Display | ||||
| True RMS/6000 Counts | True RMS/6000 Counts | True RMS/6000 Counts | True RMS/6000 Counts | True RMS/6000 Counts |
| Operation Mode | ||||
| Turn the button | Turn the button | Key Switching Mode | Key Switching Mode | Touch Screen Mode |
| Screen Display | ||||
| 1.54"Backlit Screen | 1.54"Backlit Screen | 5"Backlit Screen | 5"Backlit Color Screen | 5"Backlit Color Touch Screen |
| DC Current | ||||
| NO | 60A/600A(100mA~600A)±(2.5%+10) | 6000mA/10A | 6000mA/10A | 6000mA/10A |
| AC Currente | ||||
| 60A/600A(10mA~600A)/Hz | 60A/600A(100mA~600A) | 6000mA/10A | 6000mA/10A | 6000mA/10A |
| AC Voltage | ||||
| 6V/60V/600V(20mV~600V)/Hz | 6V/60V/600V(20mV~600V)/Hz | 6V/60V/600V/750V | 6V/60V/600V/750V | 6V/60V/600V/750V |
| DC Voltage | ||||
| 600mV/6V/60V/600V(0.5mV~600V) | 600mV/6V/60V/600V(0.2mV~600V) | 6V/60V/600V/1000V | 6V/60V/600V/1000V | 6V/60V/600V/1000V |
| Battery | ||||
| 1.5V AAA x 2 | 1.5V AAA x 2 | 1200 mAh Rechargeable Battery | 2800 mAh Rechargeable Battery | 2800 mAh Rechargeable Battery |
| NCV Function | ||||
| ? | ? | ? | ? | ? |
| Temperature Measurement | ||||
| -40°F~1832°F | -40°F~1832°F | -40°F~1832°F | -40°F~1832°F | -40°F~1832°F |
| Function | ||||
| Multifunction Meter | Multifunction Meter | Multifunction Meter | Multifunction Meter | Multifunction Meter |
| Low battery prompt | ||||
| ? | ? | ? | ? | ? |
