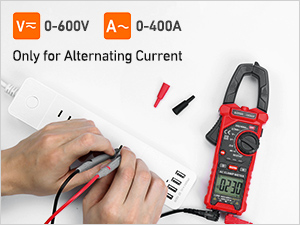

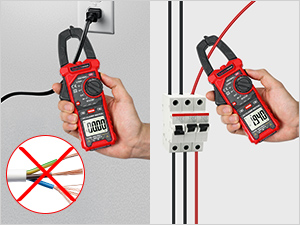

Note: To measure the current you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from two wires cancel each other, therefore the meter reads 0 A.

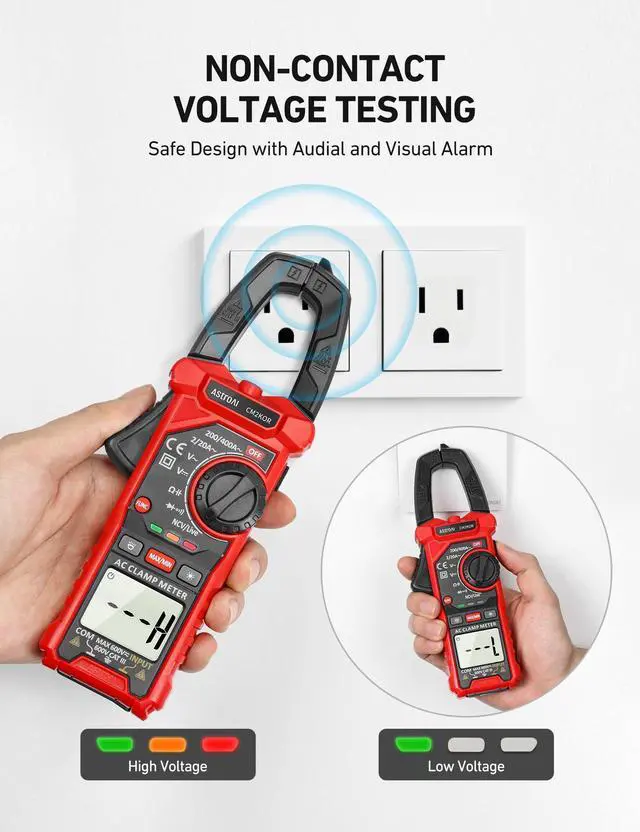

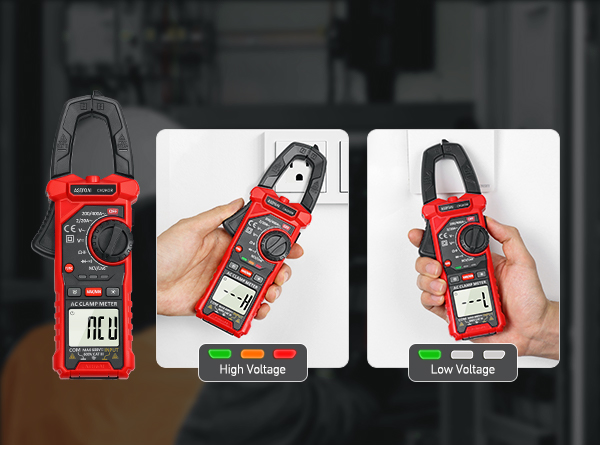

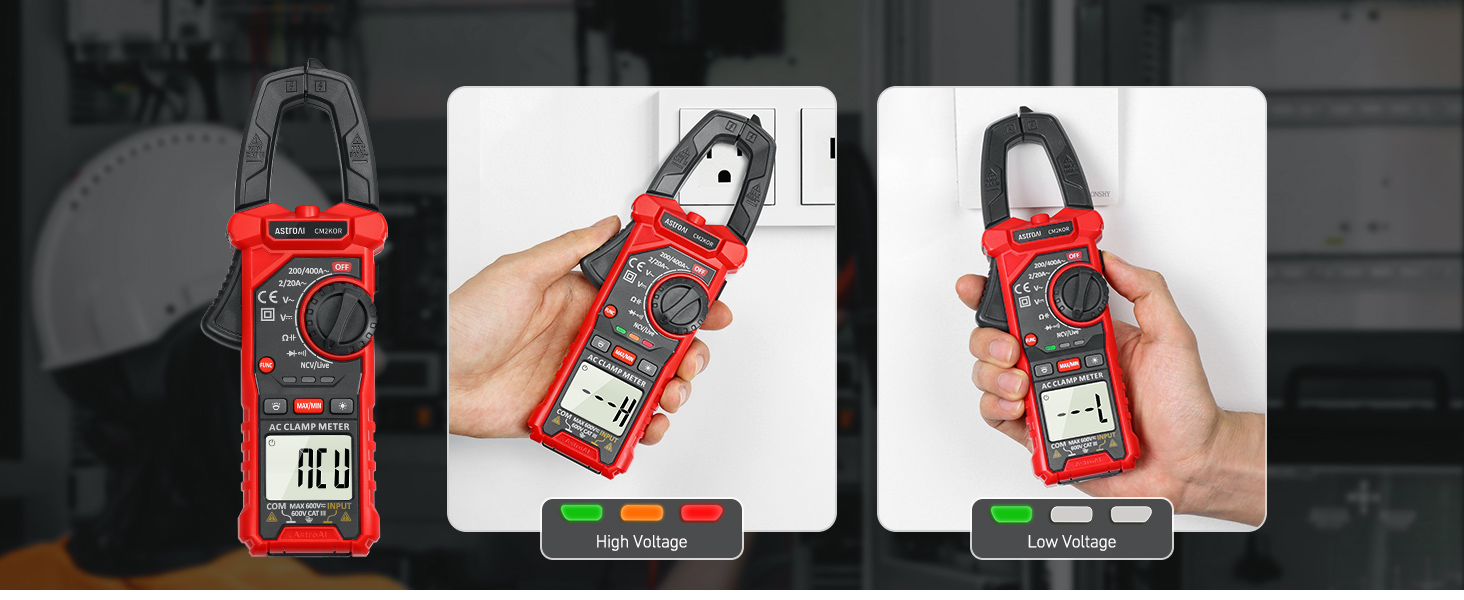

The NCV function can test the voltage without contact. When the Meter senses a weak AC signal, the green indicator light will be on and the buzzer will emit a slow, audible beep. When the Meter senses a strong AC signal, the red indicator light will be on and the buzzer will emit a quick beep.

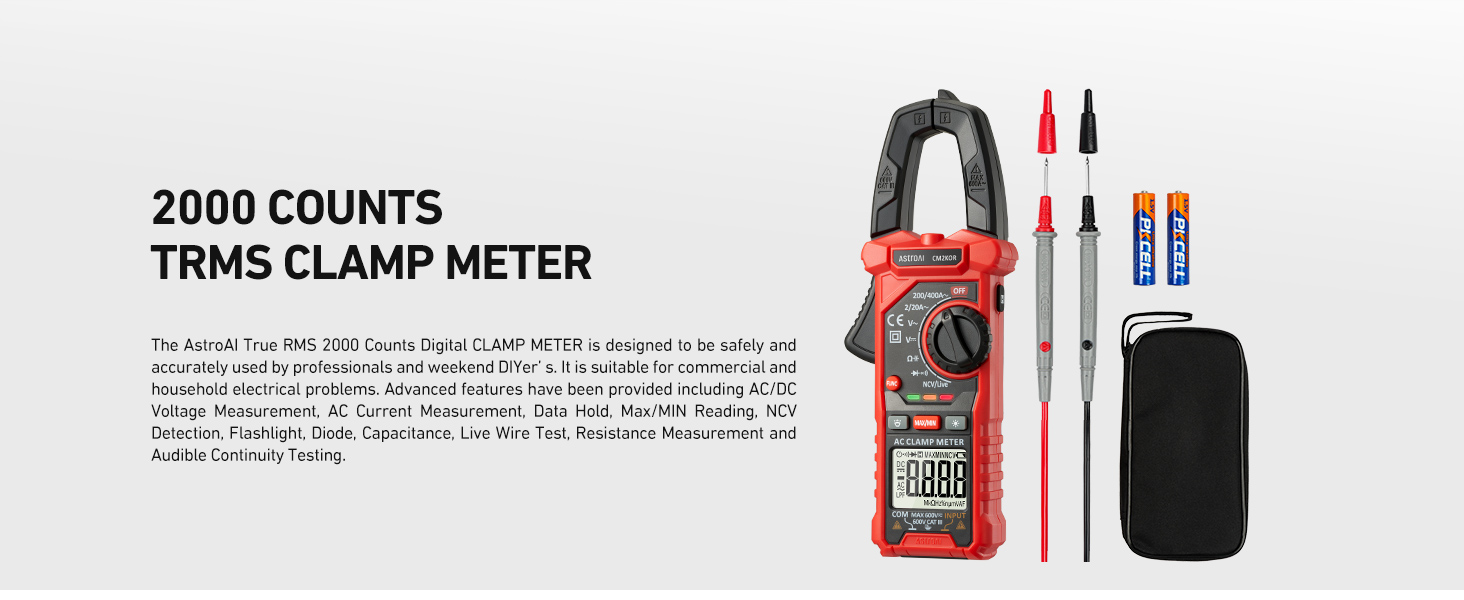

Versatile Clamp Meter

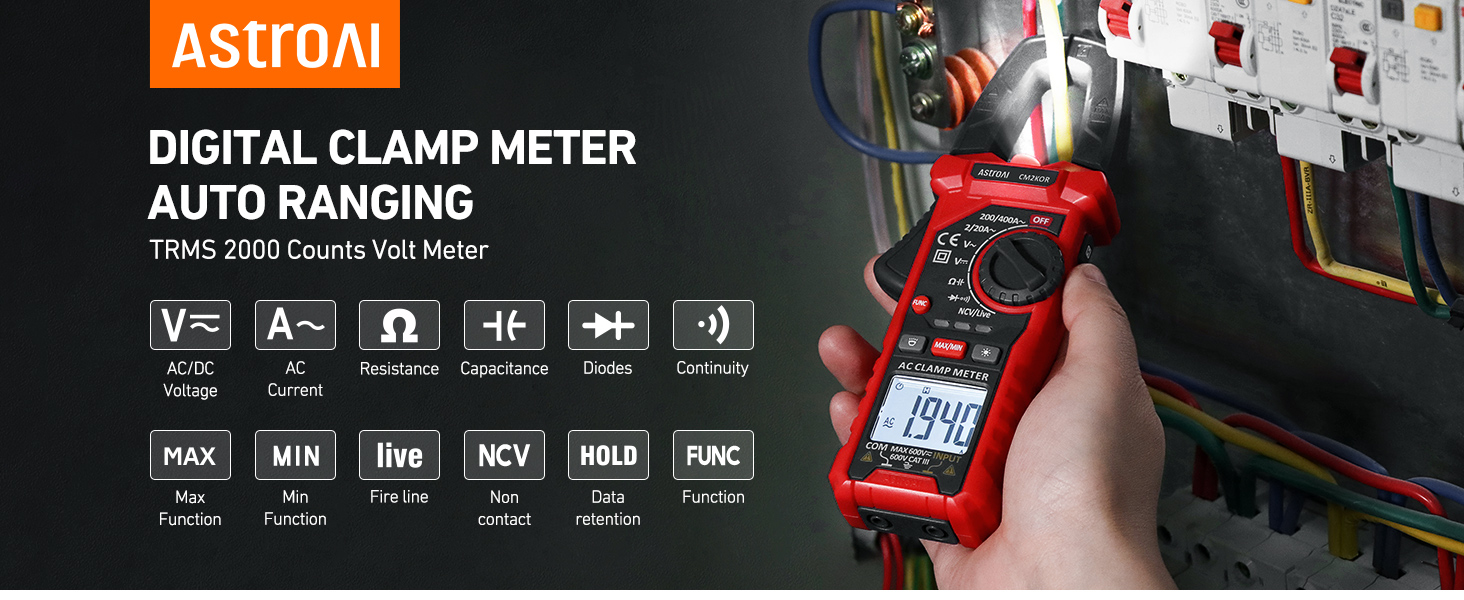

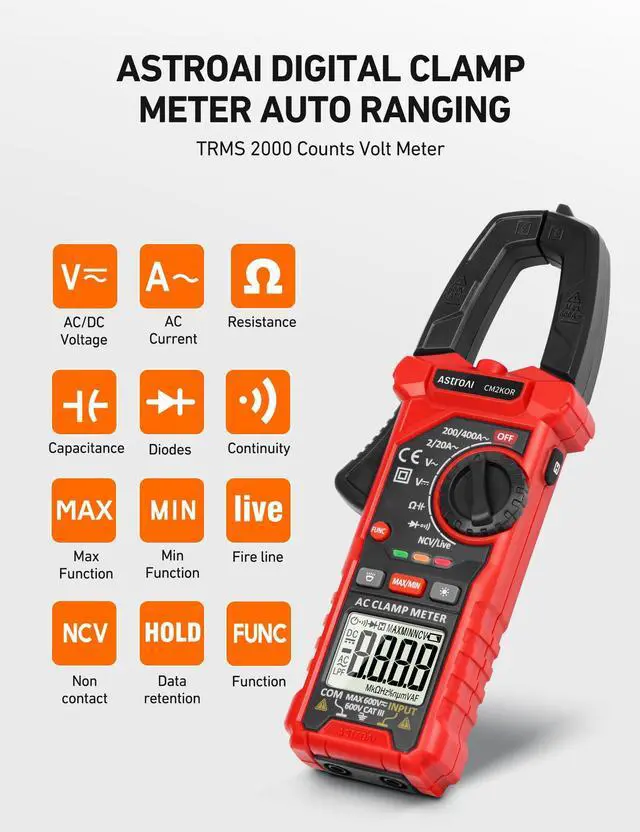

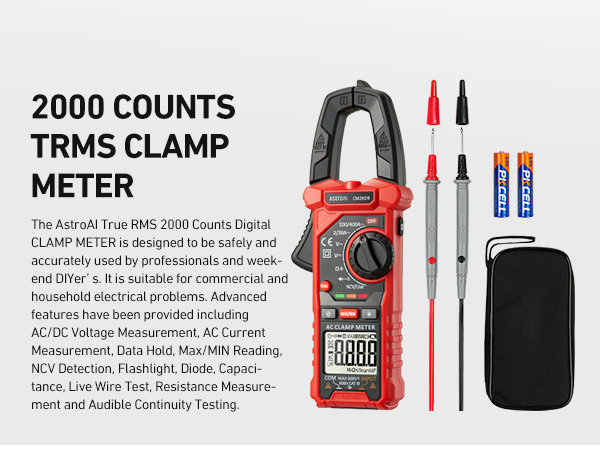

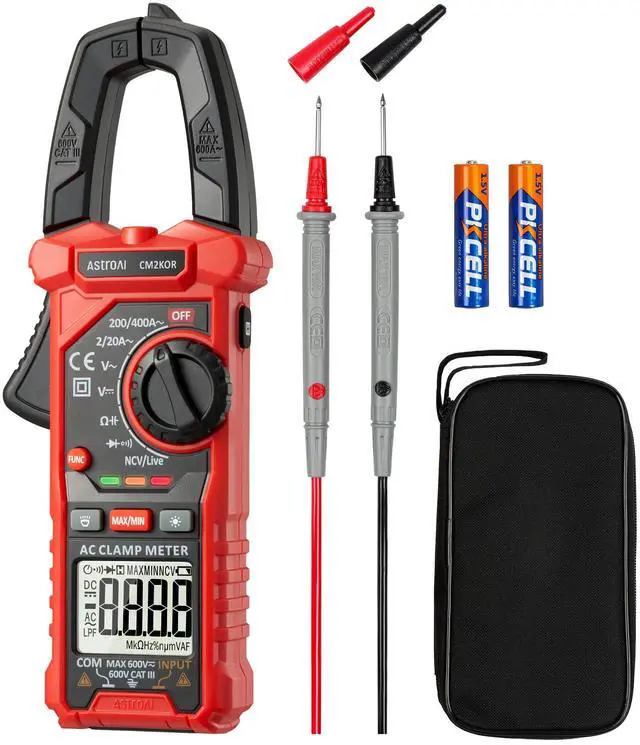

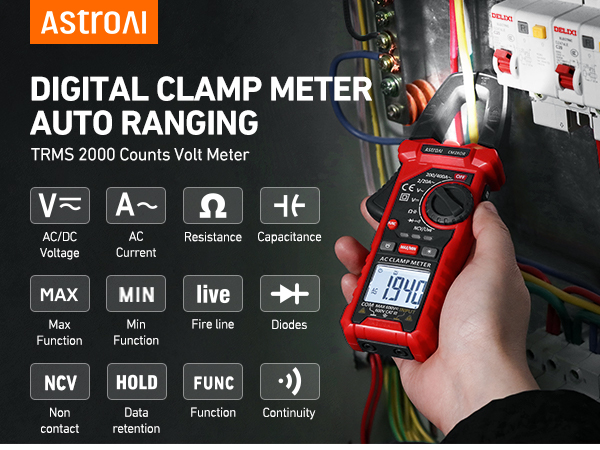

CM2KOR Clamp Meter can accurately measure AC/DC Voltage, AC Current, Resistance, Capacitance etc.
Detects Live Wires

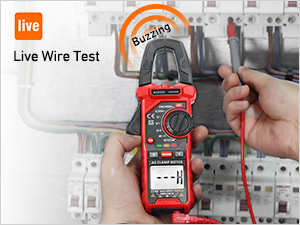

Live wire testing with the red test lead. When it detects a live wire, the clamp meter will reflect with the audio alarm

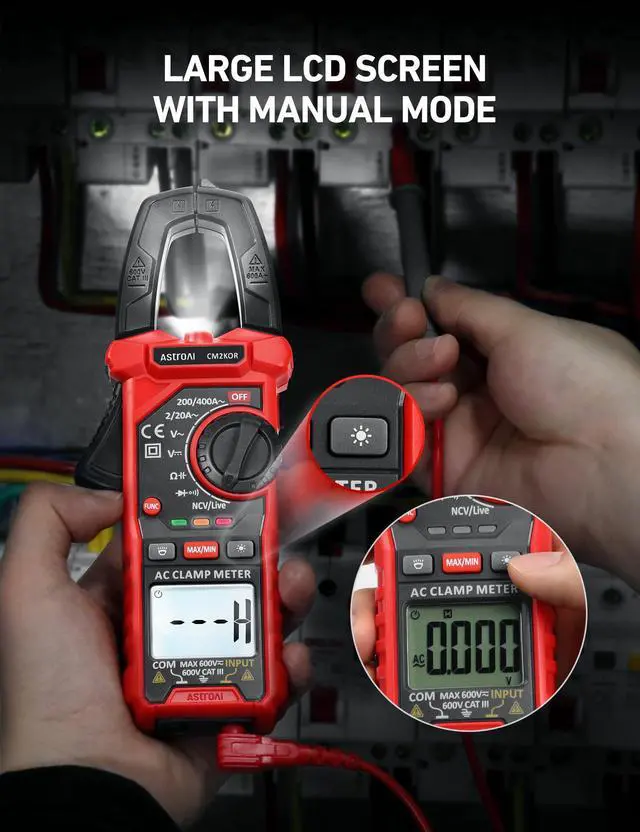

Backlit LCD and Flashlight
The Backlit LCD and Flashlight ensure clear measuring in a dimly area.
Correct Measurement
Please measure in the correct way, otherwise the readings will not be accurate.

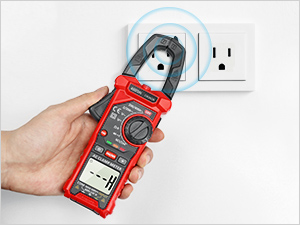

NCV Detection
It features NCV testing with a sound and light alarm. When the indicator light is on, it means there is voltage, please pay attention to your safety.

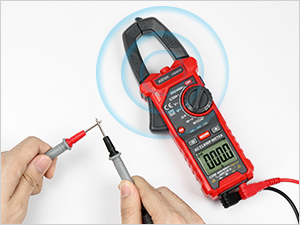

Continuity Test
Connect test leads to the circuit, the buzzer inside the Meter will beep if the resistance<50O

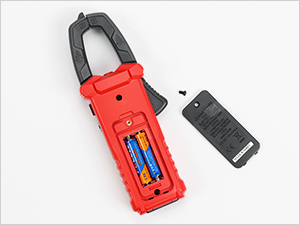

Convenient battery replacement
Built-in 2×AAA (1.5V) batteries, it can last longer and provide convenient battery replacement.

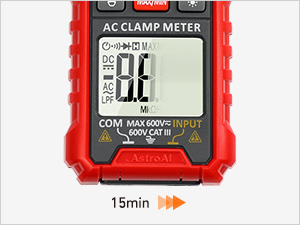

Automatic Shutdown
If the meter is not in operation for 15 minutes, it will turn off automatically.
Note: To measure the current you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from two wires cancel each other, therefore the meter reads 0 A.
The NCV function can test the voltage without contact. When the Meter senses a weak AC signal, the green indicator light will be on and the buzzer will emit a slow, audible beep. When the Meter senses a strong AC signal, the red indicator light will be on and the buzzer will emit a quick beep.
Versatile Clamp Meter
CM2KOR Clamp Meter can accurately measure AC/DC Voltage, AC Current, Resistance, Capacitance etc.
Detects Live Wires
Live wire testing with the red test lead. When it detects a live wire, the clamp meter will reflect with the audio alarm
Backlit LCD and Flashlight
The Backlit LCD and Flashlight ensure clear measuring in a dimly area.
Correct Measurement
Please measure in the correct way, otherwise the readings will not be accurate.
NCV Detection
It features NCV testing with a sound and light alarm. When the indicator light is on, it means there is voltage, please pay attention to your safety.
Continuity Test
Connect test leads to the circuit, the buzzer inside the Meter will beep if the resistance<50O
Convenient battery replacement
Built-in 2×AAA (1.5V) batteries, it can last longer and provide convenient battery replacement.
Automatic Shutdown
If the meter is not in operation for 15 minutes, it will turn off automatically.
| Digital Display | 3,½, 2000 |
|---|---|
| Sampling Speed | 3 times per second |
| LCD Size | 35 x 25mm |
| Range Selection | Auto or Manual |
| Overload Indication | “OL” Displayed |
| Working Environment | 32°F~104°F (0°C~40°C); <80% RH |
| Storage Temperature | 14°F~122°F (-10°C~6°C); <70% RH |
| Power | 1.5V AAA Batteries x 2 Included |

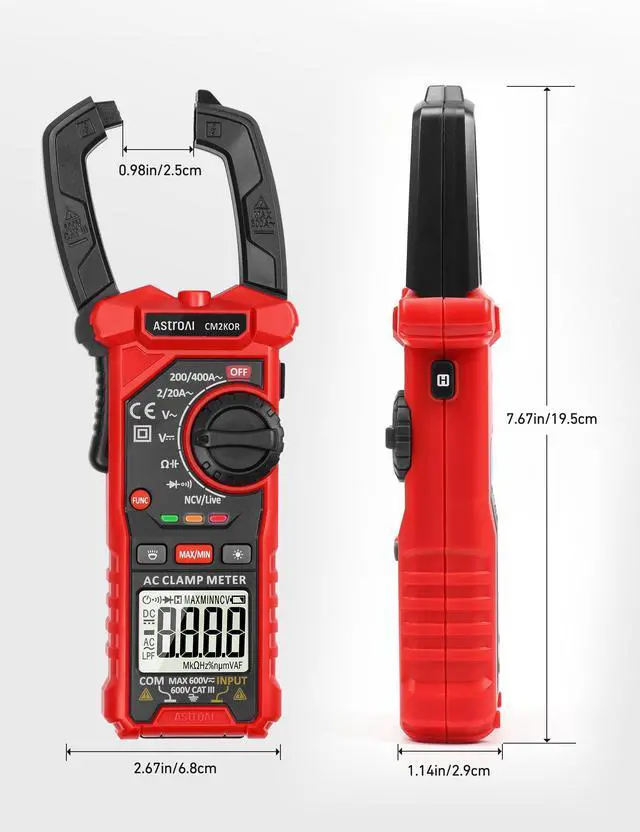

| Dimensions | 195x68x29mm |
| Weight | Approx. 203g |
| Safety/Compliances | CAT.III 600V; Pollution Level: 2; Altitude <2000m |
| DC Voltage | 2V/20V/200V/600V ±(0.5%+5) |
| AC Voltage | 2V/20V/200V/600V ±(1.0%+5) |
| AC Current | 2A/20A/200A/400A, 50~60Hz : ±(2.5 +5), Other : ±(3.0% +10) |
| Resistance | 200O/2KO/20KO/200KO/2MO/20MO ±(1.0%+5) |
| Capacitance | 2nF/20nF/200nF/2µF/20µF/200µF/2mF ±(4.0%+5) |
