 USB C Tester Power Meter |  (Red-Blue) |  USB Tester |  diymore 60Amp Circuit Breaker for Boat Trolling Motor Marine ATV Trailer Vehi... |  Digital RC Servo Motors |  DM90S Servo Micro 180° | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — no data | — | — no data |
| Quantity | 1PCS | 5PCS | 1PCS | 2PCS | 6PCS | 4PCS |
| Display mode | Type-C Version 3.0 | 0.28 inch 3-digit LED | / | / | / | / |
| Working voltage | 4-30V | DC 4.5-30V | 3.0V-7.5V | 12V-24V | / | / |
| Measuring current range: | 0-6.5A | DC0.05A~10A(display mode 0.05A) | 0-2.5A | 60A | / | / |
Specifications
Attention:
- 10A below ammeter (include 10A), built-in shunt, does not require external shunt.
- The maximum input voltage can not exceed 30V. Otherwise the meter will be burned.
Package Included: 5pcs* 0.28'' Volt Amp Meter(Red-Blue)
3 Bits Dual LED Display Panel
- 0.28" digital voltmeter ammeter
- Red+Blue
Integrated Shunt, could use it directly
- DC 100V 10A Amp Voltage current volt amp meter tester integrated shunt.
- You don't need to purchase extra shunt
5 Wires Definition:
- Black line (thick): Cathode of vacant circuit or descending circuit (module)
- Red line (thick): Power supply +
- Black line (thin): COM, common measurement
- Red line (thin): PW +, measurement terminal voltage input is positive
- Yellow line (thin): IN +, current input +
Hot sales
new product
Punto Chave
diymore
For diy lovers, more possibilities.
We have our own meta-accessory factory.
Our goal is to make high quality products for our customers, and we respect and admire diy enthusiasts who change lives and love remodeling.
DIY makes the world MORE funny
Temperature Sensors
Power Converters
Heatsinks
USB C Tester Power Meter | (Red-Blue) | USB Tester | diymore 60Amp Circuit Breaker for Boat Trolling Motor Marine ATV Trailer Vehi... | Digital RC Servo Motors | DM90S Servo Micro 180° | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — no data | — | — no data |
| Quantity | 1PCS | 5PCS | 1PCS | 2PCS | 6PCS | 4PCS |
| Display mode | Type-C Version 3.0 | 0.28 inch 3-digit LED | / | / | / | / |
| Working voltage | 4-30V | DC 4.5-30V | 3.0V-7.5V | 12V-24V | / | / |
| Measuring current range: | 0-6.5A | DC0.05A~10A(display mode 0.05A) | 0-2.5A | 60A | / | / |

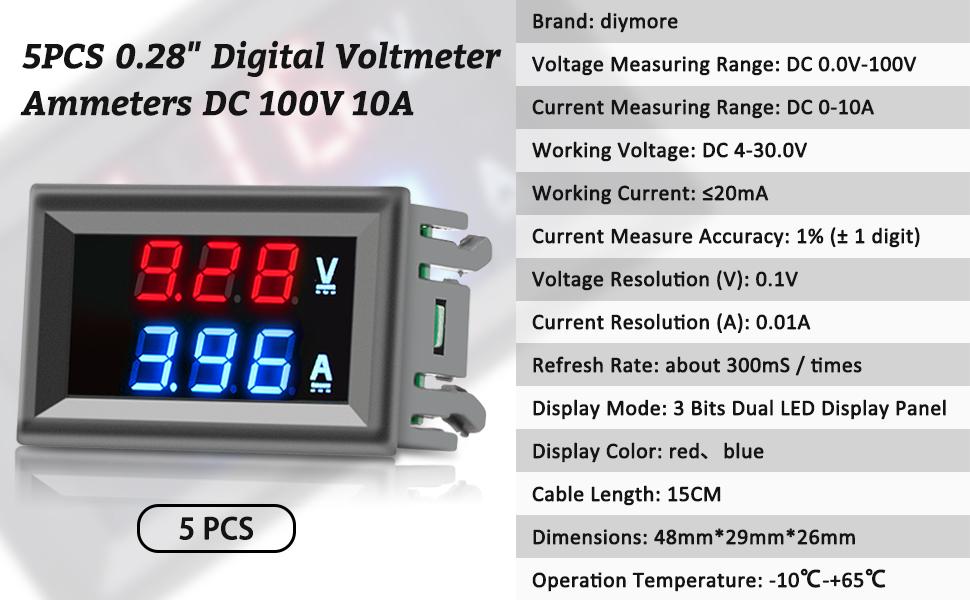

Specifications
| Working Voltage: | DC 4.5-30V |
| Working Current: | =20mA |
| Voltage Measuring Range: | DC 0-100V |
| Current Measuring Range: | DC 0-10A |
| Voltage Resolution (V): | 0.1V |
| Current Resolution (A): | 0.01A |
| Measure Accuracy: | 1% (± 1 digit) |
| Refresh Rate: | about 300mS / times |

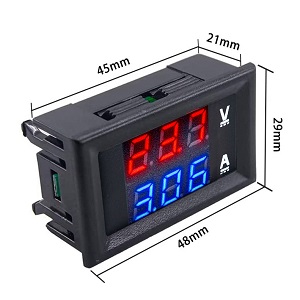

| Dimensions: | 48mm*29mm*26mm |
| Operation Temperature: | -10?-+65? |
Attention:
- 10A below ammeter (include 10A), built-in shunt, does not require external shunt.
- The maximum input voltage can not exceed 30V. Otherwise the meter will be burned.

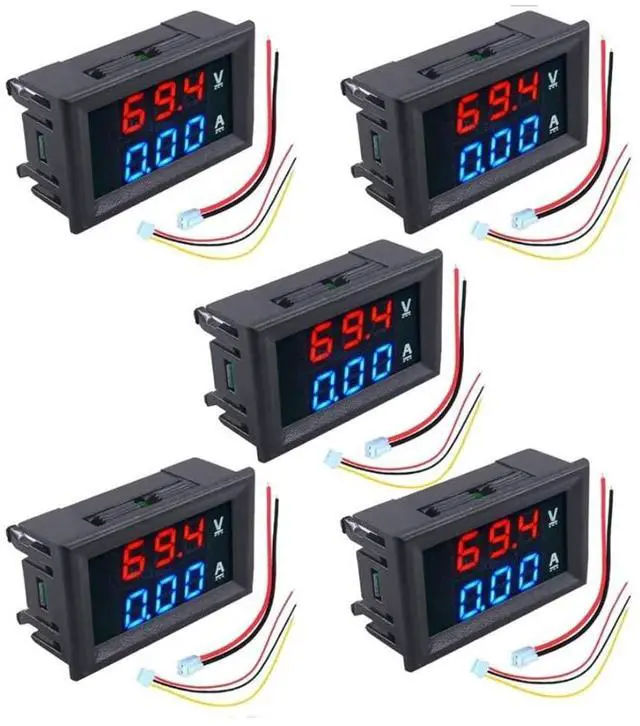

Package Included: 5pcs* 0.28'' Volt Amp Meter(Red-Blue)

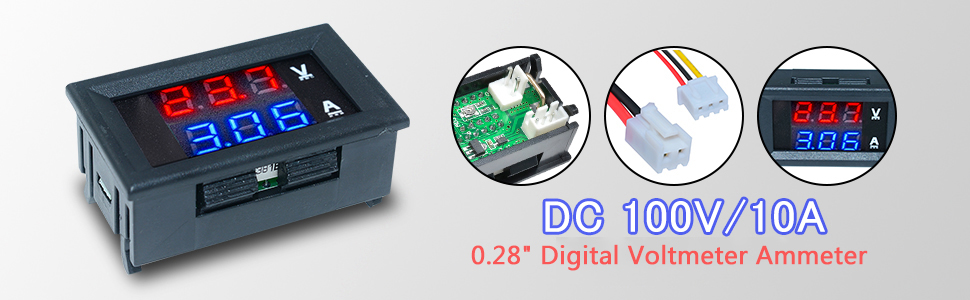

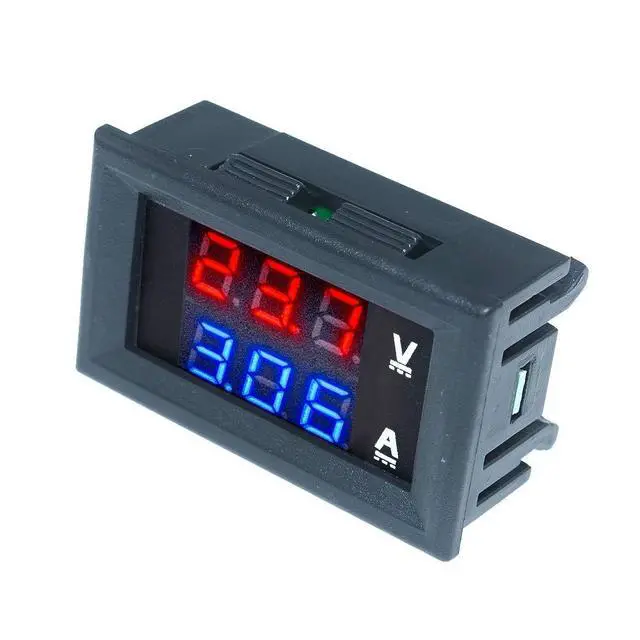

3 Bits Dual LED Display Panel
- 0.28" digital voltmeter ammeter
- Red+Blue

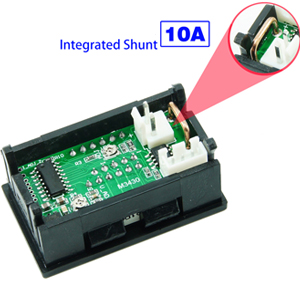

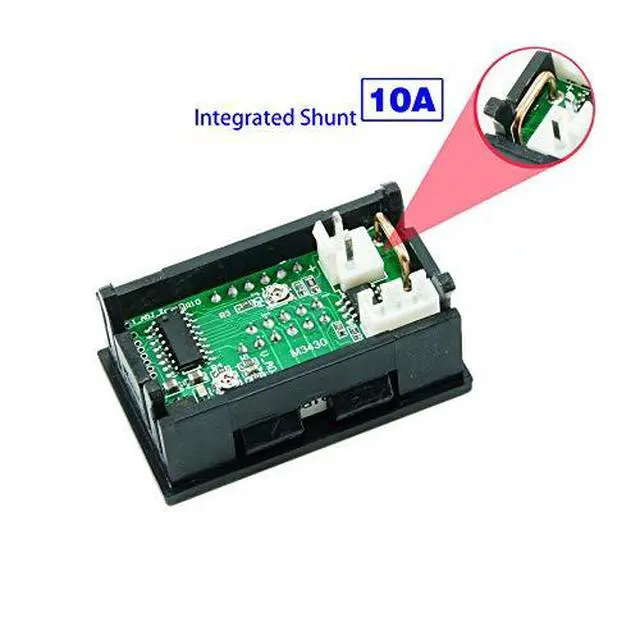

Integrated Shunt, could use it directly
- DC 100V 10A Amp Voltage current volt amp meter tester integrated shunt.
- You don't need to purchase extra shunt

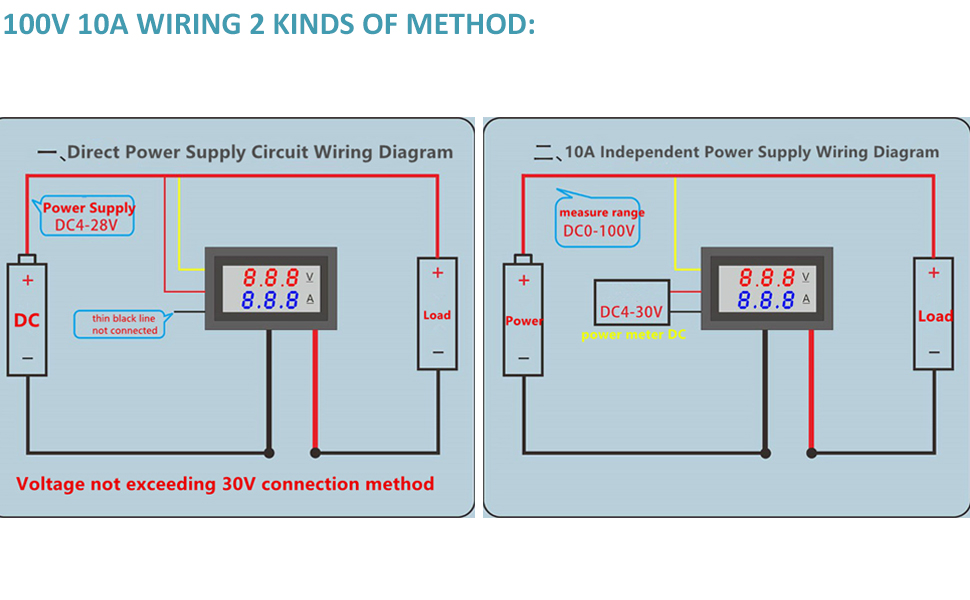

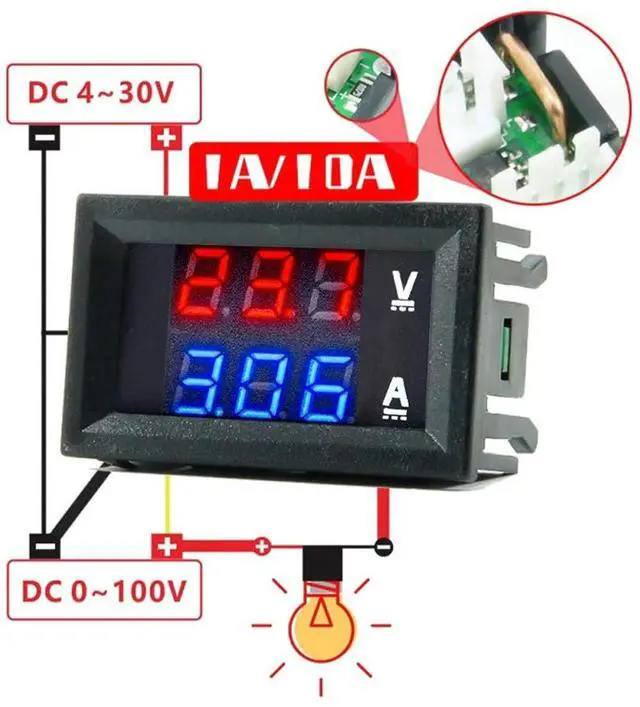

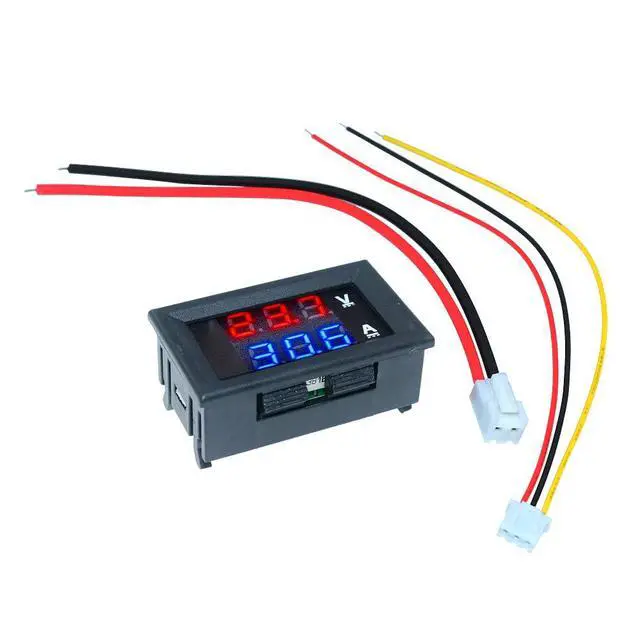

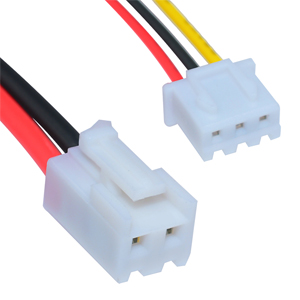

5 Wires Definition:
- Black line (thick): Cathode of vacant circuit or descending circuit (module)
- Red line (thick): Power supply +
- Black line (thin): COM, common measurement
- Red line (thin): PW +, measurement terminal voltage input is positive
- Yellow line (thin): IN +, current input +
