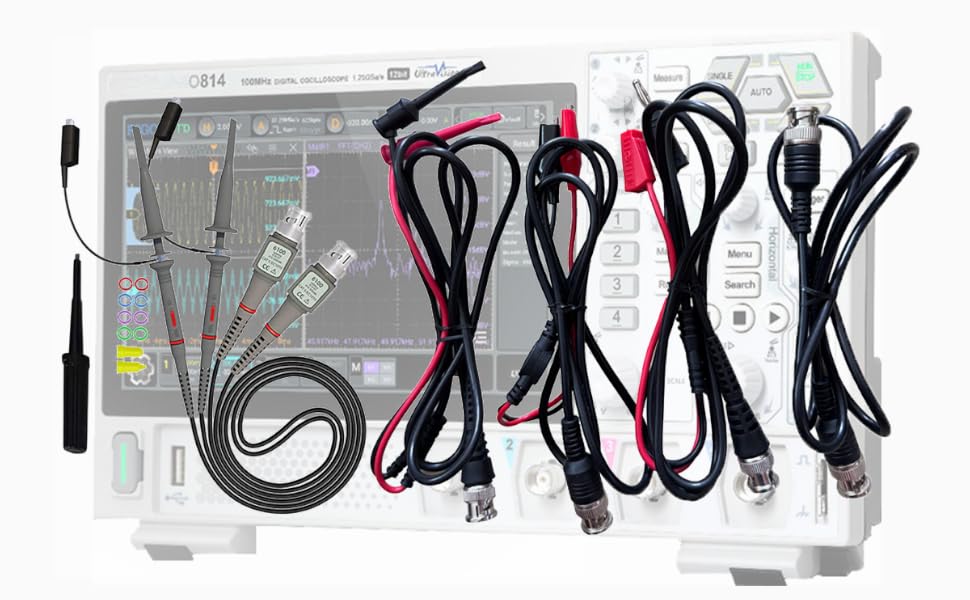

100MHz Oscilloscope Scope Clip Probes with Free Accessory Kit
Designed for oscilloscopes bandwidth applications up to 100 MHz.
With a bandwidth of 100 MHz, the probe is suitable for use with oscilloscopes that have a bandwidth up to 100 MHz, ensuring accurate signal capture and analysis.
The probe includes interchangeable tips, enhancing its usability across various testing scenarios and ensuring precise contact with test points.

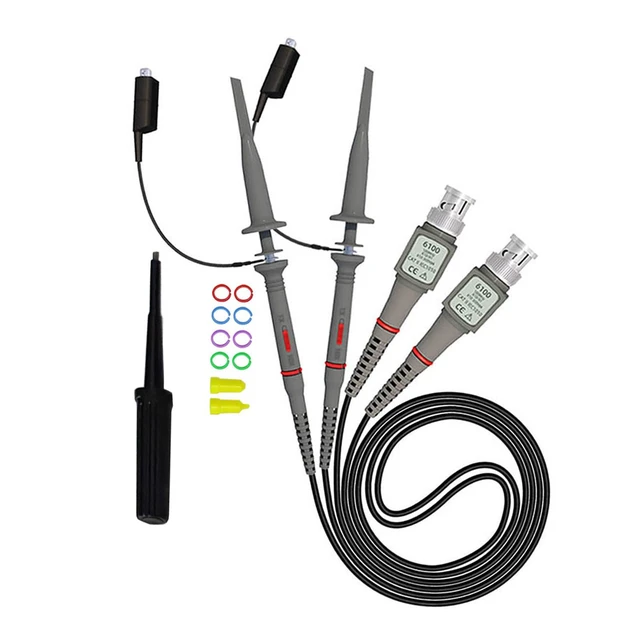

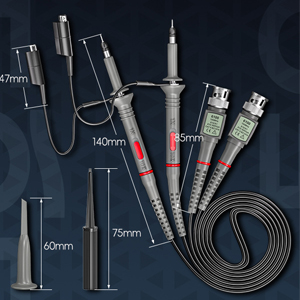

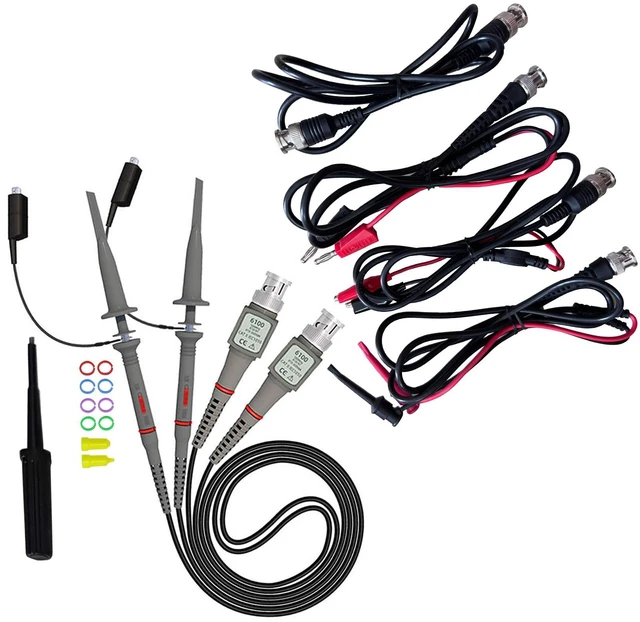

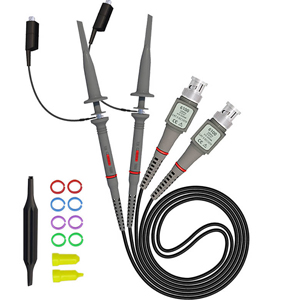

Package Includes:
2 X Probe
2 X Protective Cap

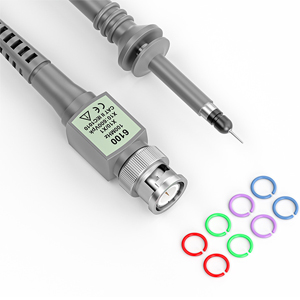

8 x Color ring
1 x Regulating Rod

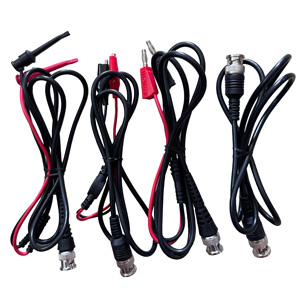

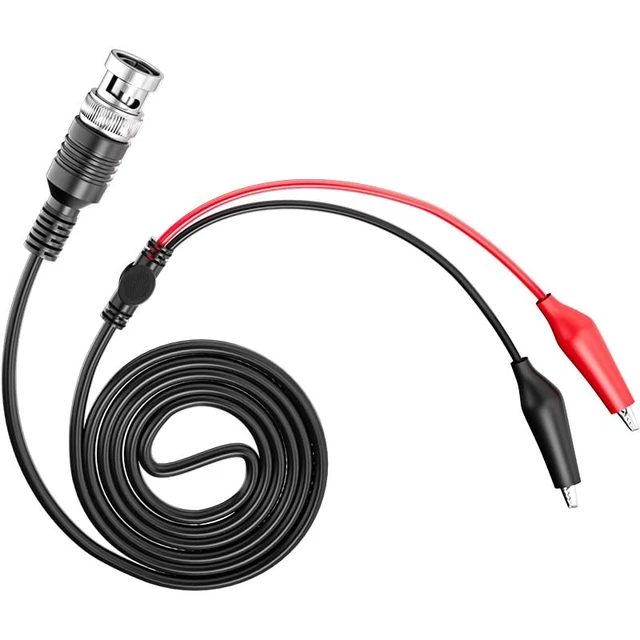

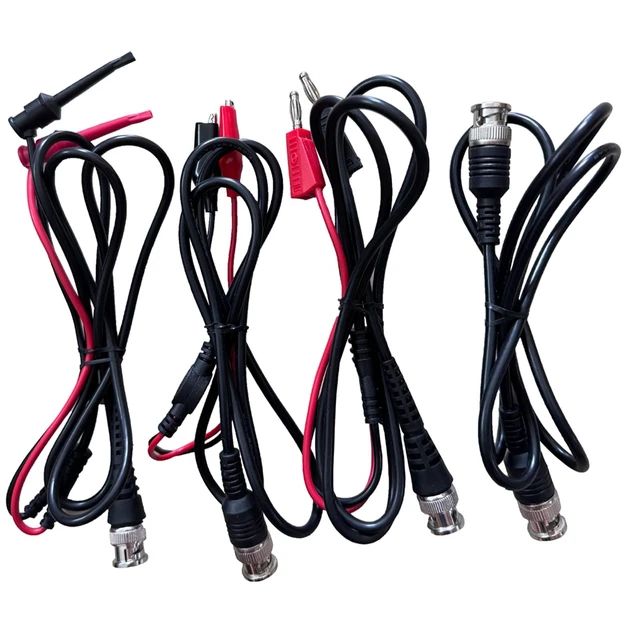

1 x BNC to double-headed alligator clip test line;
1 x BNC to double-head test hook test line;

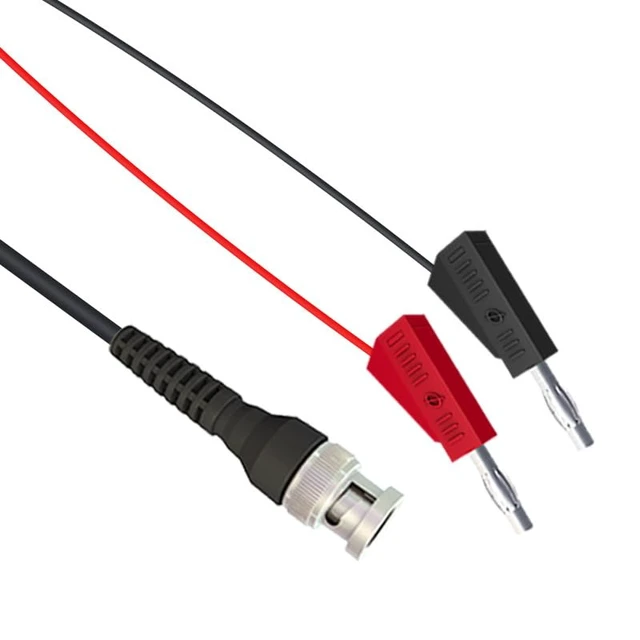

1 x BNC to double-stack test line;

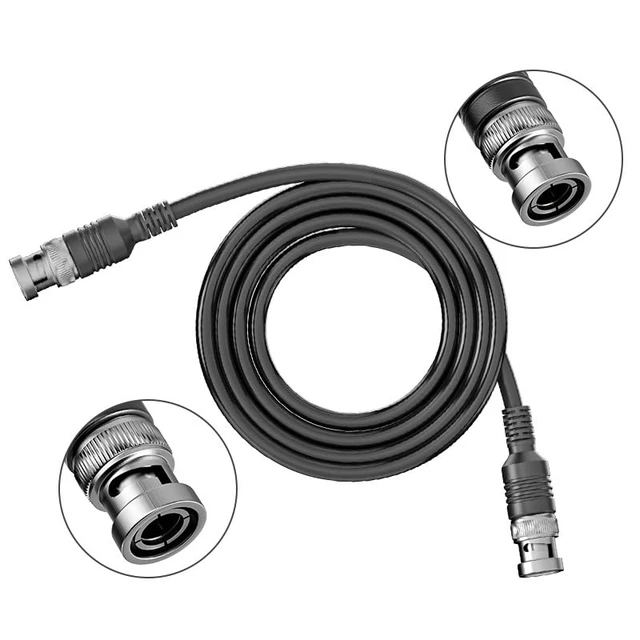

1 x Double-headed BNC coaxial line.
BNC connector: fully shielded and solder for minimal signal interference
Connected to Circuit Detectors with Standard BNC interfaces, like Oscilloscopes, Signal Generators, Video Surveillance, etc. Ideal for testing work in labs, service shops, schools, home and industry.
Attenuation adjustable at 1 xor 10x
- Bandwidth: 100 MHz (10:1)
- Rise Time: 3.5ns (10:1)
- Attenuation Ratio: X1,X10
- Input Resistance: X1: 1MO±2%; X10: 10MO±2%
- Bandwidth: X1: DC- 6MHz ; X10: DC- 100MHz
- Max input Voltage: X1: <200V DC + Peak AC; X10: <600V DC + Peak AC
- Input capacitance: 10X:13-17pF ; 1X: 70-120pF
- Compensation Range : 10 - 35pF

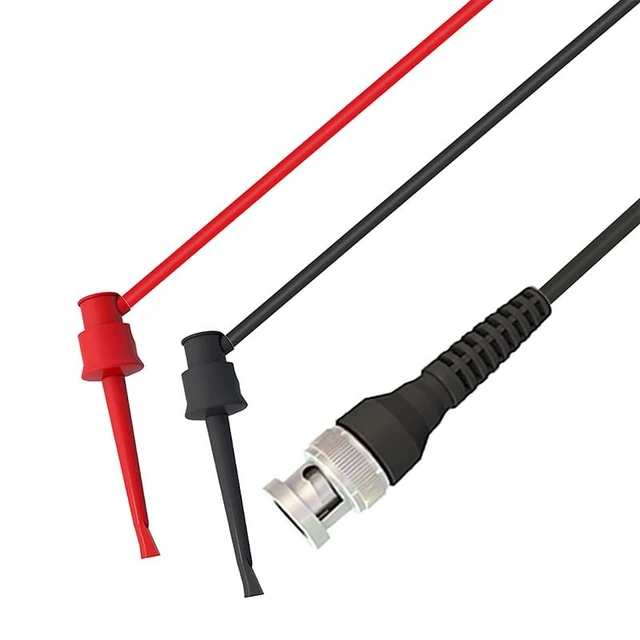

BNC to Mini-grabber Test Lead: excellent performance and reliable function
