JOAUIAX Tools is a company dedicated to providing customers with high-end and precise tools, bringing the convenience of tools to consumers‘ lives

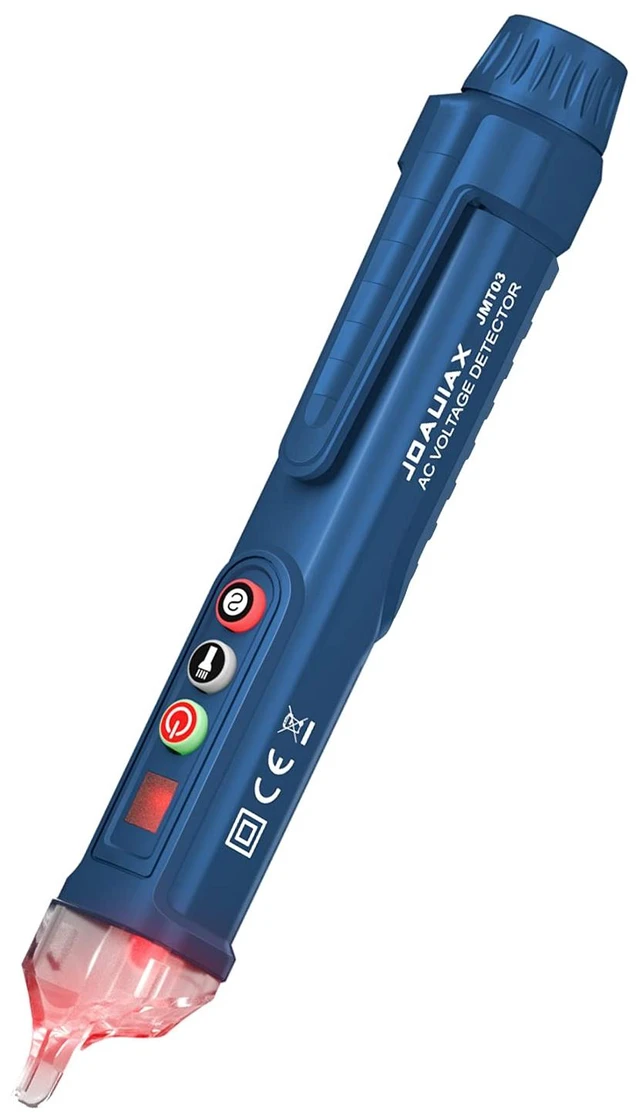

JOAUIAX Electric Voltage Tester Non-Contact, Electrical Voltage Detector Pen with Dual Range AC 12V-1000V/48V-1000V Inductive Digital Voltage Measuring Tool with LED Flashlight, Alarm Mode, Live / Null Wire Judgment, Adjustable Sensitivity, Safe AC Circuit Tool-JMT03
SPECIAL FEATURES
? DUAL SENSITIVITY RANGE-12V-1000V/48V-1000V
? SAFE AND RELIABLE&ACCURATE MEASUREMENT
?NULL/LIVE WIRE JUDGMENT & LED FLASHING LIGHT
?AUTOMATIC SHUT-DOWN & LOW BATTERY INDICATOR
?PORTABLE DESIGN
Note:
- It is recommended to use low sensitivity mode to detect first. If the electric pen has no obvious response (due to too thick insulation layer or other interference), please switch high sensitivity to find the live wire (the screen will display red)
- High-sensitivity mode will be disturbed by any other electrical appliances within 1 meter and alarms. Please continue to find the place with the strongest current according to the alarm sound and the color of the light
»»»»»»»»»»»»»»»AC VOLTAGE TEST««««««««««««««

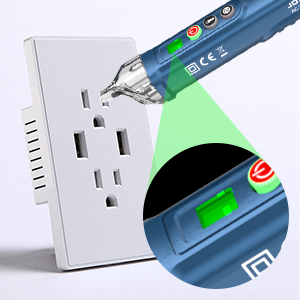

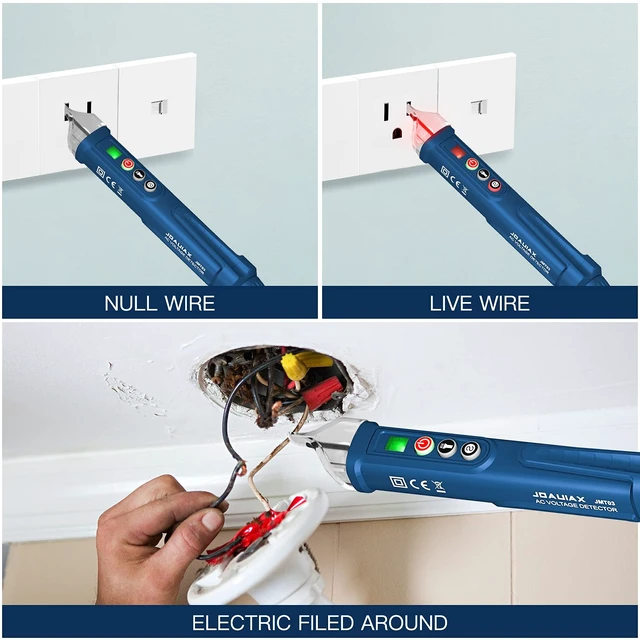

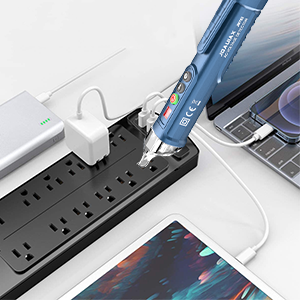

NULL WIRE RECOGNITION
When the NCV probe is inserted into the neutral interface of the socket, the indicator light will be green and no alarm will sound

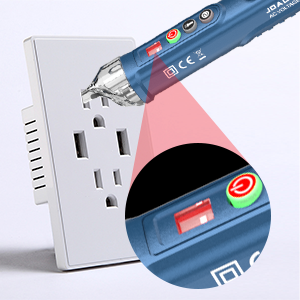

LIVE WIRE RECOGNITION
When the NCV probe is inserted into the live interface of the socket, the indicator light will be red and a rapid beep will sound
ELECTRIC FILED AROUND
When the electric pen is brought close to a live wire, it will sound an alarm, indicating that there is voltage around

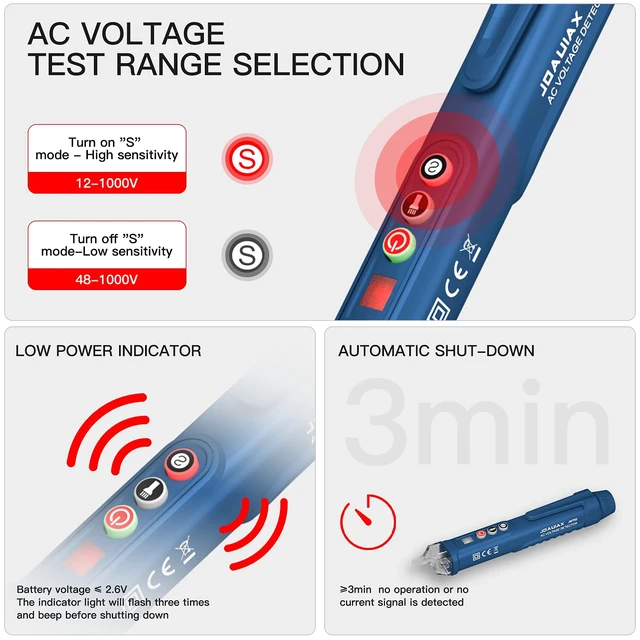

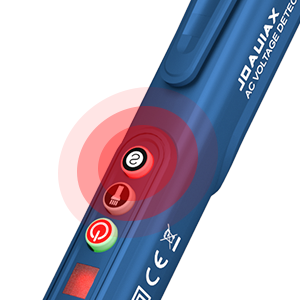

ADJUSTABLE SENSITIVITY WITH DUAL RANGE
- S" mode has a high sensitivity, it will give an alarm response within the magnetic field range of a current (the Voltage tester is not broken, just because its sensitivity is high enough). You choose S mode, being close to a charged object, it will give an alarm. Don't be afraid, continue to test. In high sensitivity mode, green light - null wire; Red light - live wire, that's for sure. The higher the sound frequency, the stronger the current.
- Suggestion:

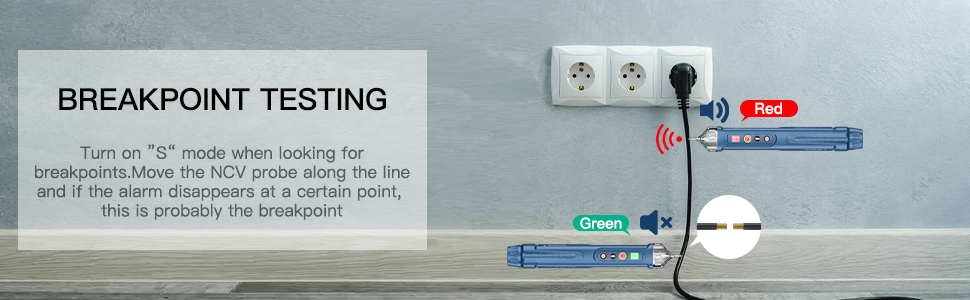

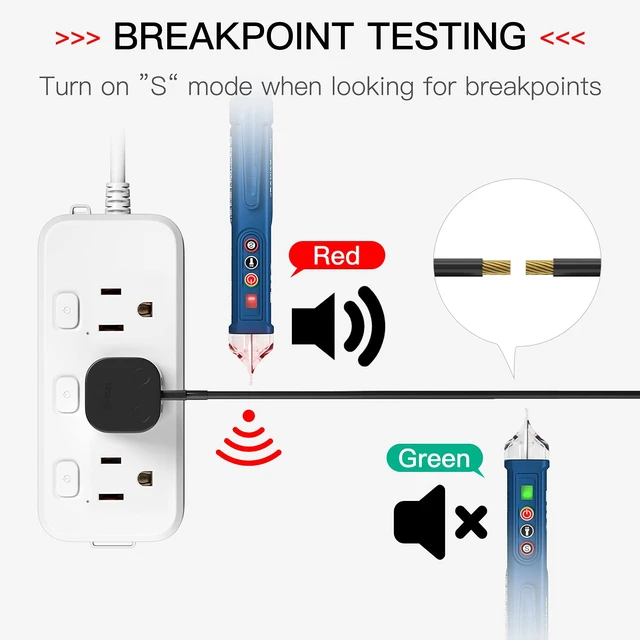

When you test the lights on the Christmas tree, looking for the broken light along the line, the good light bulbs have current so that the pen will alarm. The broken light bulb should have low sound frequency or no sound
- Application scope of High sensitivity Mode:
For places with thick insulation layer, when there is no reaction in 48-1000V test, select 12-1000V mode,such as the wires in the wall.
»»»»»»»»»»»»»»»FRIENDLY DESIGN««««««««««««««
HOME ESSENTIALS

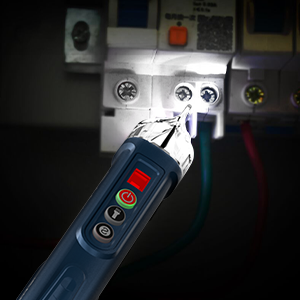

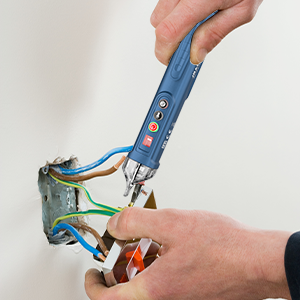

It is suitable for a wide range of applications and is a good tool for checking household sockets, interior decoration and troubleshooting wiring

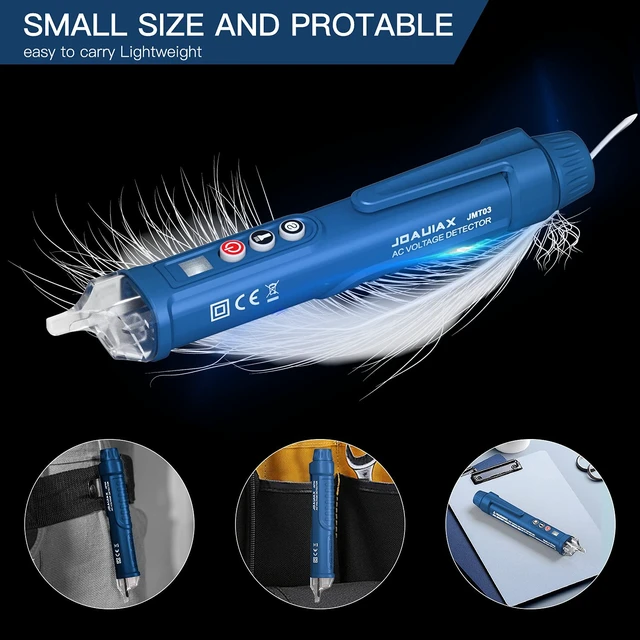

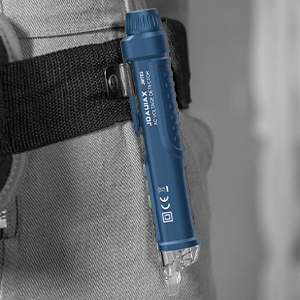

PORTABLE DESIGN
Its overall weight is only 47g/1.65oz, the length is 16cm/6.29inch, and the pen holder design makes it easy to put it in your pocket
LED FLASHLIGHT
White LED torch with high brightness and low power consumption helps to illuminate the work space in the dark
Please follow the positive and negative markings on the pen to install the batteries correctly

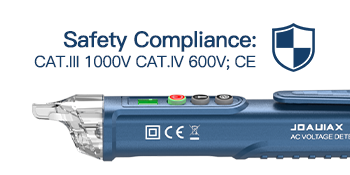

SAFETY FIRST
- Safety standard: CE, CAT.III 1000V CAT.IV 600V
- Double circuit insulation protection
- Using high-quality materials, anti-drop&insulation
- Package Contents
- JOAUIAX voltage tetser*1
- AAA 1.5V batteries*2
- Instruction manual*1
»»»»»»»»»»»»SPECIFICATIONS««««««««««««
Frequency: 50-60Hz
Alarm Mode: Sound and light
NCV Sensitivity: Three levels (low, medium, high)
NCV Sensitivity: Automatic
Auto Power Off: 3 min
Working Temperature: 0 ~ 40 ?/32~ 104?
Storage Temperature: -10 ~ 50 ?/14~122?
Power Supply: 2 * 1.5V AAA Batteries (Included)
Item Size: 16 * 2.3 * 2.6cm / 6.29 * 0.9 * 1.02inch
Item Weight: 47g/1.65oz

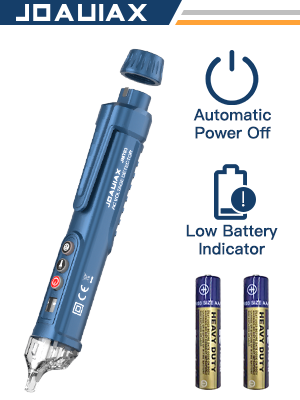

- Automatic Power Off-Saving power
- When there is no operation on the electric pen for more than 3 minutes, the electric pen will automatically shut down. When you forget to turn it off after use, this function can help you save power
- LOW BATTERY REMINDER
- When the voltage of the power supply battery is lower than 2.6V, it means that the battery is about to be out of power and undervoltage.
