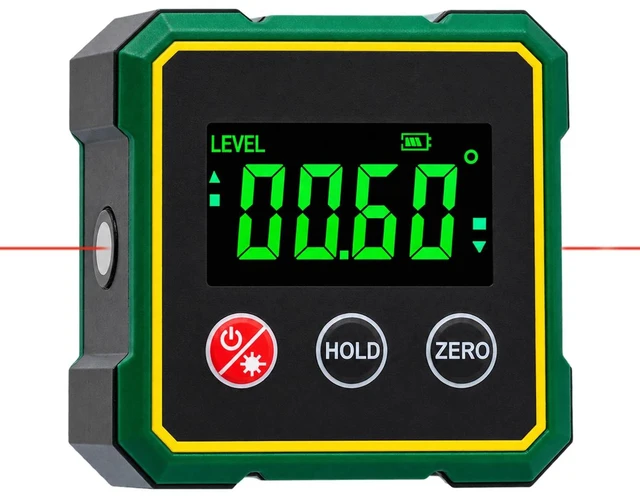

4*90° Digital Level Laser Inclinometer with 4-Side Magnetic | Backlit LCD Display Absolute & Relative Measurement, Magnetic Angle Tool for Table Saw, Carpentry and Home DIY Projects
- High-precision Laser Level Finder: Professional high-precision angle measurement with full 0~360° (4×90° quadrants) measuring range. Resolution up to 0.05°, accuracy ±0.1° at 0°/90°, ±0.2° for other angles. Supports Absolute ABS measurement & Relative REF zero reset mode, one-button switch between degree (°) and tilt percentage (%).

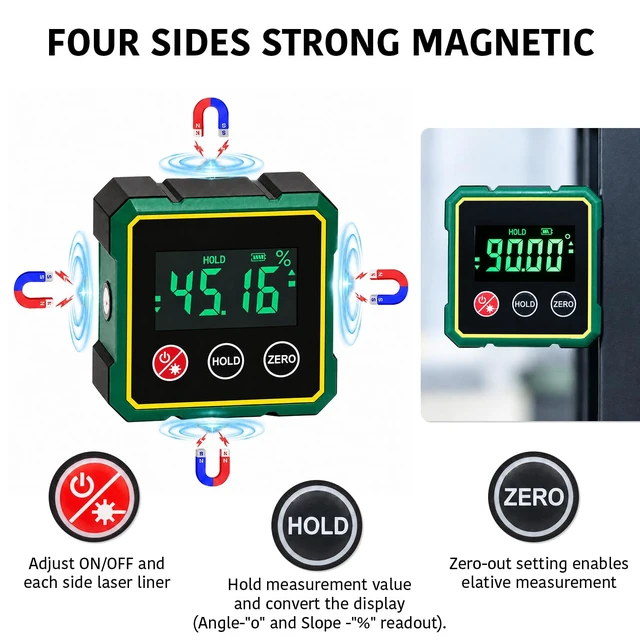

- Strong Magnetic Attraction: Equipped with 4-sided full strong embedded magnets on all metal edges, firmly attaches to table saws, steel pipes, metal frames, auto parts, machine equipment and any ferromagnetic surfaces. Stable adsorption for vertical, upside-down and side hanging measurement, freeing your hands to finish leveling and angle adjustment alone, greatly improving work efficiency.

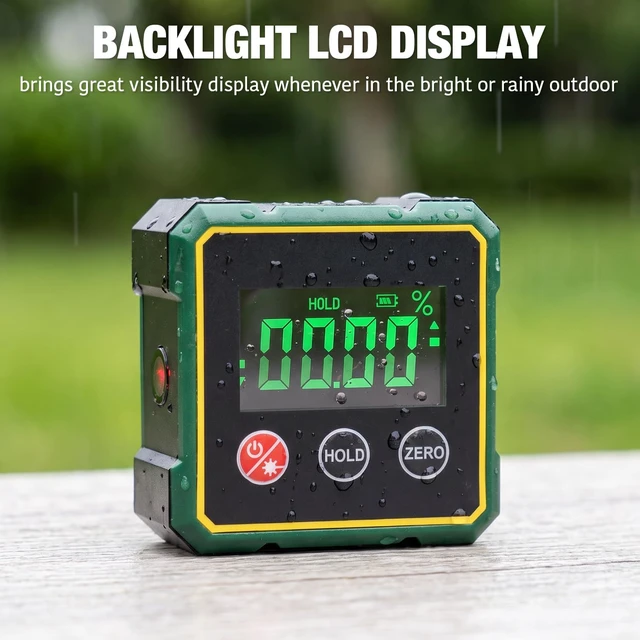

- High-definition LCD backlit screen: Large green backlit LCD screen with automatic screen flipping, clearly visible in dark basements, night jobs and dim workshops. Comes with HOLD data lock, ZERO relative zeroing, 5-minute auto power off and low battery reminder. Built-in rechargeable lithium battery with Type-C USB charging port, no frequent battery replacement needed.
- Universal Across all Scenarios: Widely applicable for woodworking table saw cutting, cabinet assembly, wall vertical inspection, pipeline drainage slope testing, machinery leveling, door/window installation, stair gradient measurement and home renovation DIY projects.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
This Digital Laser Angle Gauge is an upgraded multi-functional precision measuring tool that integrates digital inclinometer, electronic protractor, mini laser level box and slope indicator. Adopted high-sensitivity gravity sensor, 4-sided full magnetic base and rechargeable lithium battery design, it provides stable and accurate angle readings for professional contractors, carpenters, mechanics and hobby DIY enthusiasts.
Detailed Technical Specifications
Product Name: Digital Laser Magnetic Angle Gauge Inclinometer
Measuring Range: 0 ~ 360° (4 × 90°)
Measurement Accuracy: ±0.1° (0° & 90°), ±0.2° (other angles)
Display: Green backlit auto-reverse LCD digital screen
Measuring Units: Degree (°) / Tilt Percentage (%)
Adsorption: 4-sided full strong permanent magnetic base
Power Supply: Built-in rechargeable lithium battery, USB Type-C charging
Auto Shutdown: 5 minutes no operation automatic power off
Shell Material: Anti-collision aluminum alloy frame + high-strength ABS plastic
Operating Temperature: 32 ~ 104 (0 ~ 40)
Step-by-Step Operation Instructions

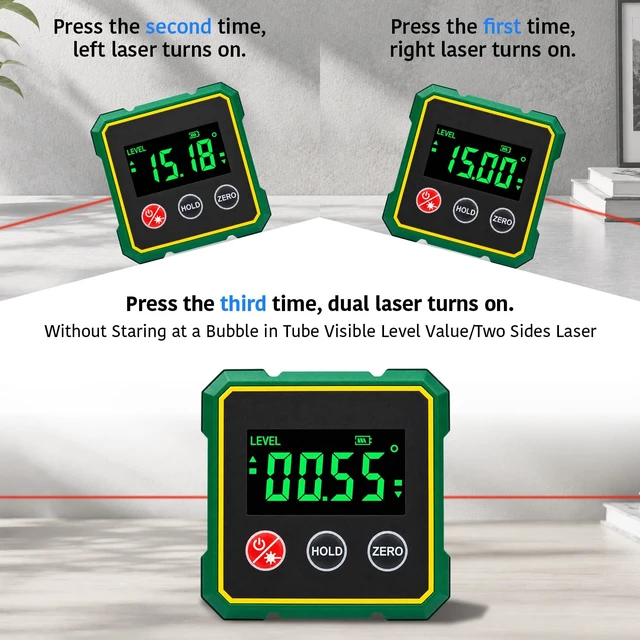

1. Short press the laser icon power button to turn on the device; long press the same button to activate/deactivate the red laser beam.

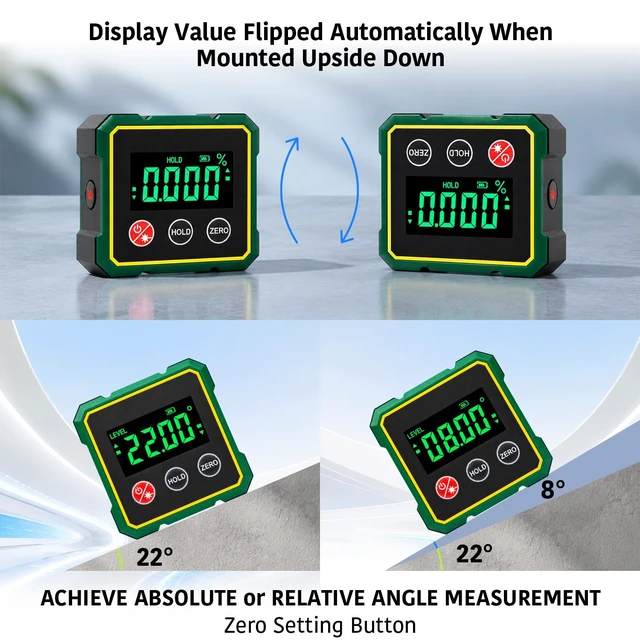

2. Place the inclinometer on the flat surface to be measured, the screen will automatically flip and display real-time angle value.
3. Press the ZERO button to reset the zero point for relative reference angle measurement; the default mode is absolute angle measurement.
4. Press the HOLD button to freeze the displayed value for recording and viewing conveniently.
5. Attach the tool to metal surfaces via magnetic base for hands-free continuous detection.
Wide Application Scenarios
Woodworking & Carpentry: Table saw bevel cutting, miter saw angle setting, furniture & cabinet assembly, joint trimming.
Building & Renovation: Wall verticality inspection, floor leveling, ceiling laser marking, door and window installation.
Pipeline Works: Drainage pipe slope calibration, water pipe gradient measurement.
Mechanical Installation: Equipment base horizontal adjustment, lathe & fixture leveling.
Daily DIY: Stair slope measurement, shelf mounting, hanging piece arrangement.
Measurement Note: Always test on clean, flat and solid planes to guarantee accurate data reading.
