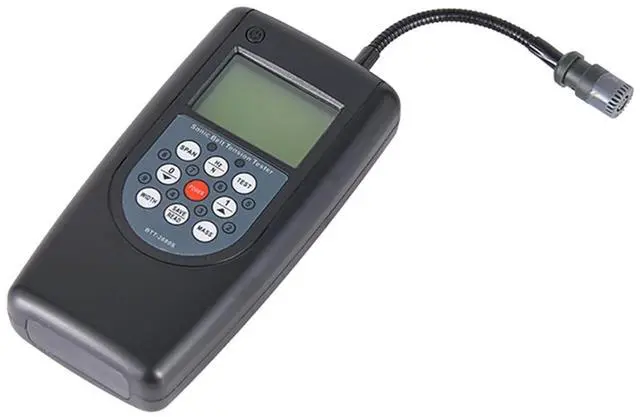

HKNDT BTT-2880S Sonic Belt Tension Meter Tester Belt Tension Gauge for Belt Tension Testing 10Hz-680Hz Measuring Range
- Adjustable probe.
- Can store 20 set belt parameters.
- Maximum frequency: 680 Hz.
- Automatic shutdown, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

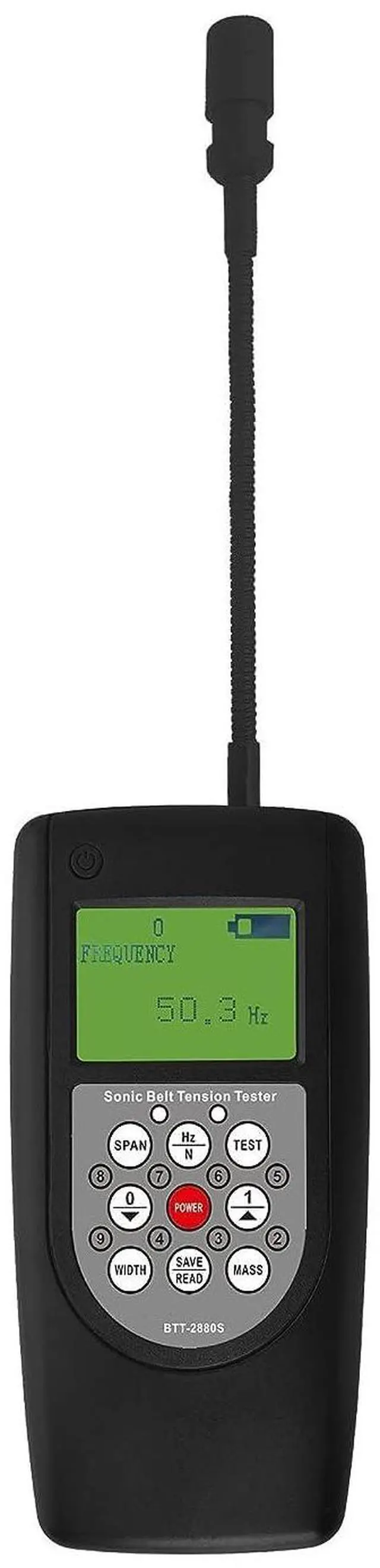

- BTT-2880S Belt Tension Meter can be used to measure the vibration frequency (unit: Hertz) of the transmission belt when it is hit or moving fast.The tester uses an acoustic probe to capture the sound waves generated by the belt vibrations. After measuring in Hertz, the tester can use this data to calculate the belt tension in newtons.
- Note: Ensure that the correct belt parameters are entered during operation.
Measurement Principle

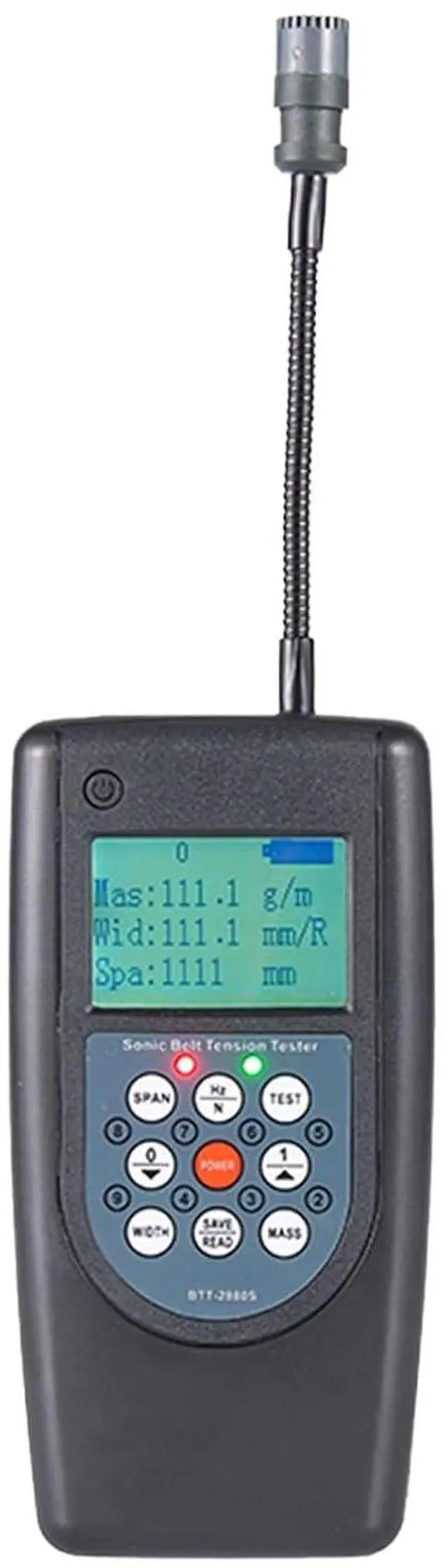

The calculation and measurement is based on the principle the transverse vibration of the thread" theory. The tester will capture the vibration of the belt, and recordit as a frequency. By entering the mass, width and span length, the relationship between frequency and tension can be found by the following formula:
T=4xMxWxS2 xF2 x10-9
- T: Tension (N)
- M: Unit Mass (g/mm Width * m length)
- W: Belt width or number of ribs (wires) (mm/R)
- S: Measured span length (mm)
- F: Horizontal characteristic frequency (Hz)
Wide Range of Applications
- The handheld Sonic Belt Tension Meter BTT-2880S can test most belt types, including V-belts, cloth-wrapped belts, toothed edge belts, multi-V belts, linkage belts, synchronous belts, and transmission belts. It helps you measure belt tension quickly, reliably, and accurately.
- The handheld Sonic Belt Tension Meter BTT-2880S has a wide range of applications such as heavy duty equipment, fans + pumps, conveyor systems, industrial machines ,compressors, centrifuges, bottling machines, HVAC, truck & bus, steel mill (Cold/Hot), dough mixer, motorcycle, car, bicycle, industrial robot, crusher, printer, vacuum cleaners, washing machines, injection molding machines.
Technical Specifications
| Measuring range | 10Hz-680Hz |
| Belt free strand length | Max 9999 mm |
| Belt width | Max 999.9 mm/R |
| Belt mass | Max 999.9 g/m |
| Precision | ±1HZ<100HZ AND ±1%>100HZ |
| Digital sampling accuracy | < 1% |
| Display accuracy | ±1Hz |
| Overall accuracy | < 5% |
| Operating temperature | +10C~ +50C |
| Transport temperature | -5 C~70C |
| Display | LCD |
| Measurement unit | Hz/N |
| Power supply | 4×1.5V AAA |
| Housing | Plastic(ABS) |
| Dimensions | 140mmx7mm2x34mm |
| Package size | 248mmx206mmx52mm |

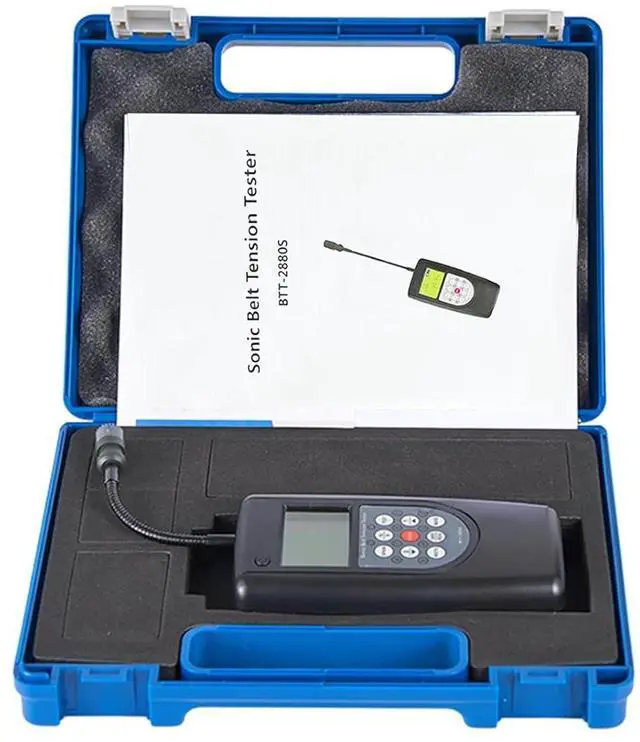

| Standard Accessories | Main Unit (one) |
| Operating Instructions (one copy) | |
| Portable suitcase(one) |
