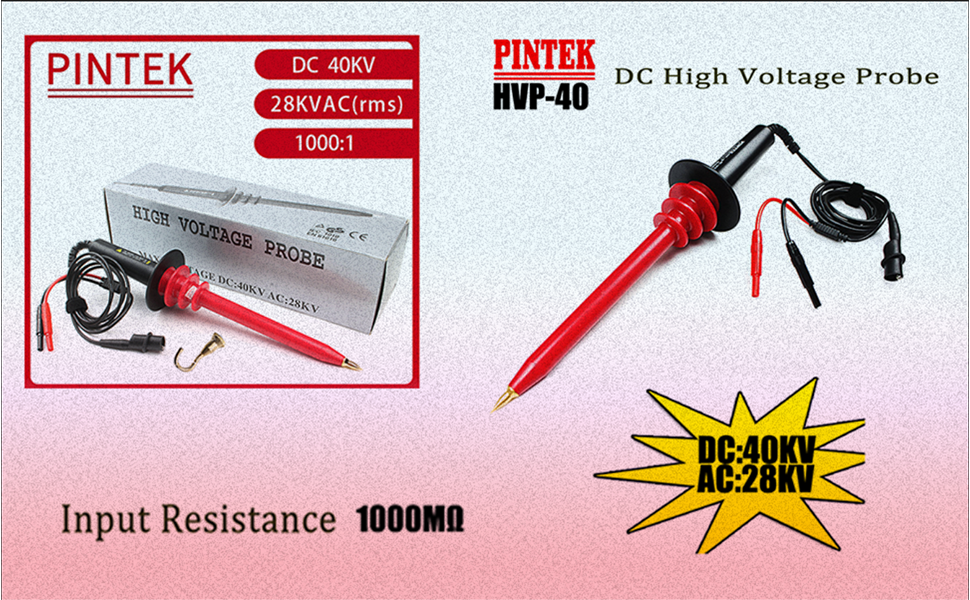

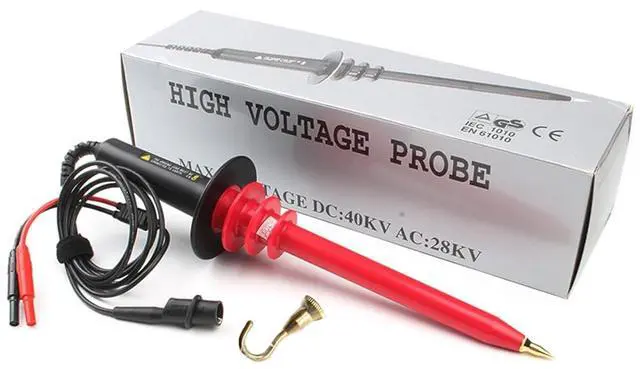

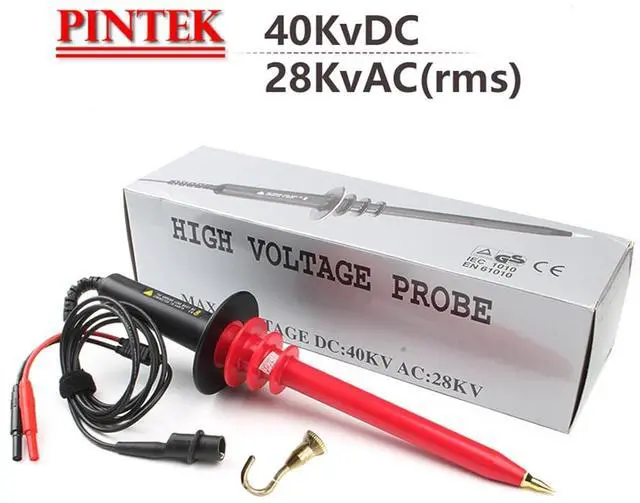

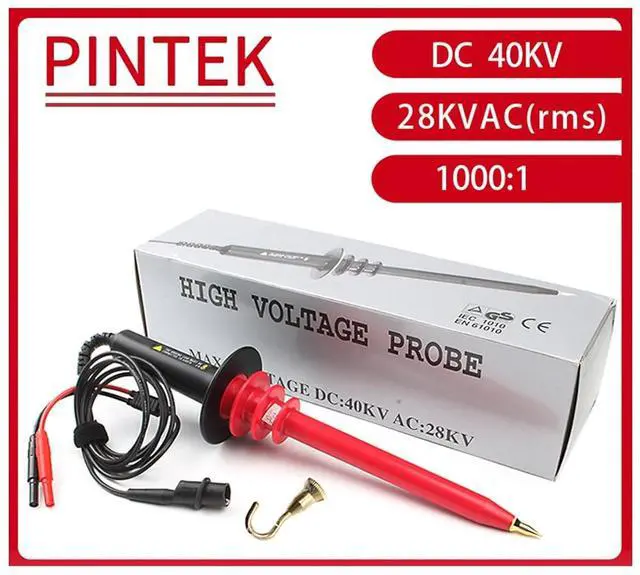

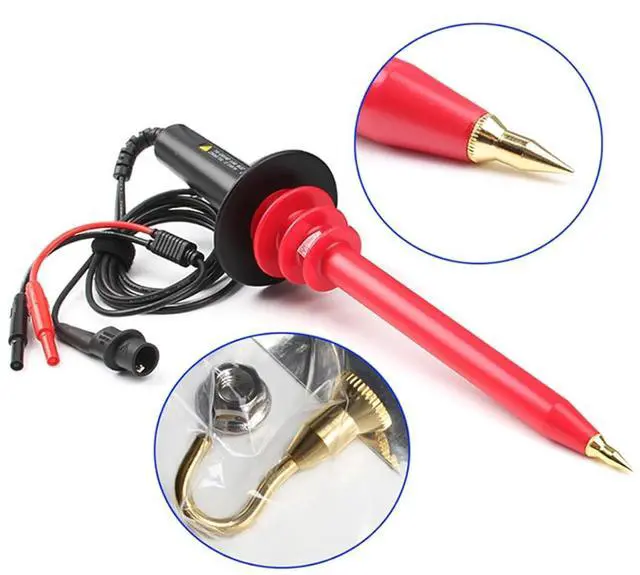

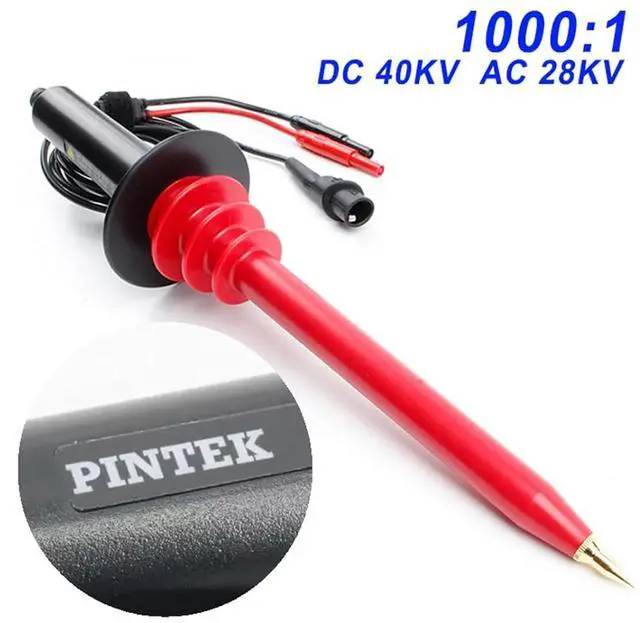

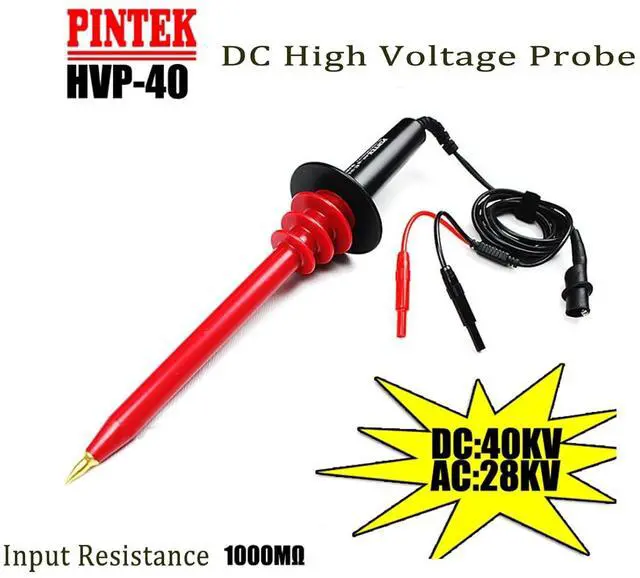

HKNDT HVP-40 High Voltage Probe Multimeter Probe 1000:1 High Voltage Decay Test Probe Max. DC 0-40KV AC 0-28KV (50/60Hz) Attenuation Ratio: 1000:1
- HVP-40 High Voltage Probe Multimeter Probe 1000:1 High Voltage Decay Test Probe Max. DC 0-40KV AC 0-28KV (50/60Hz) Attenuation Ratio: 1000:1
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Notice
- Please connect the alligator clip of the probe to earth ground and make sure that the connection is electrically good before taking any measurements.
- Please disconnect it after 5 minutes' measurement to avoid it too hot.
Technical Specifications
| Input impedance | Approx. 1000M |
| Max. Operation Voltage | DC 0-40KV; AC 1-28KV (50/60Hz) |
| Polarity | Positive / Negative |
| Accuracy | DC: ±1% to 20KV, ±2% to 40KV; AC: -5% to -10% (1-28KV; 50/60Hz) |
| Temperature Cofficient | 200PPM/ |
| Maximum loading Current | 40A (at 40KV DC) |
| Maximum loading power | 1.6 watt |
| Operating temperature | 0 ~ + 50 |
| Storage temperature | - 20 ~ + 70 |
| Ground Lead length | 90cm (3ft ) |
| Output cable length | 100cm (3.3ft ) |
| For | DMM |
| Output Division | 1V / 1KV |
| Dimensions | 340mm x 80 |
| Weight | about 300g |
| Remark | For 10M input impedance DMM ( Accuracy < 0.5 % ) only |
