HKNDT SRT-6223+ Surface Profile Gauge Surface Roughness Gauge SRT6223+ Digital Roughness Tester Meter for Measuring Blast Cleaned Surfaces with Separate Cabled Probe Range 0-800 µm / 29.5 mils
- Precise Measurement: Measures peak-to-valley height of blast cleaned surfaces; tungsten carbide tip lasts up to 20,000 readings; cost-effective compared to other methods; widely used in field of blast cleaned surface measurement
- Compact Design: Small and lightweight; easy to handle and operate in various settings
- Convenient Power Options: Manual or automatic power off to extend battery life
- Versatile Conversion: Metric and Imperial unit conversion available for flexible use
- Efficient Data Handling: Includes average calculation function; connects to PC via USB/RS-232 for straightforward data output (optional accessory)
- Clear Display: LCD display shows range of 0 µm to 800 µm/29.5 mils; accuracy of ±5% or ±5 µm (whichever is the greater); resolution of 0.1 µm/1 µm and 0.1 mils
- Advanced Measurement Principle: Utilizes inductance type for reliable performance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
- Conforms to ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, and US Navy PPI-63101-000 standards. Suitable for both laboratory and harsh field conditions. Provides accurate, immediate, and repeatable results.
- The tungsten carbide tip is durable, lasting up to 20,000 readings, and can be easily replaced by the user in the field. The cost per test is significantly lower compared to other methods.
- Compact, lightweight, and user-friendly.
- Features manual or automatic power-off options.
- Supports Metric/Imperial conversion.
- Includes an average calculation function.
- Equipped with USB/RS-232 data output for PC connectivity. (Optional Accessory)

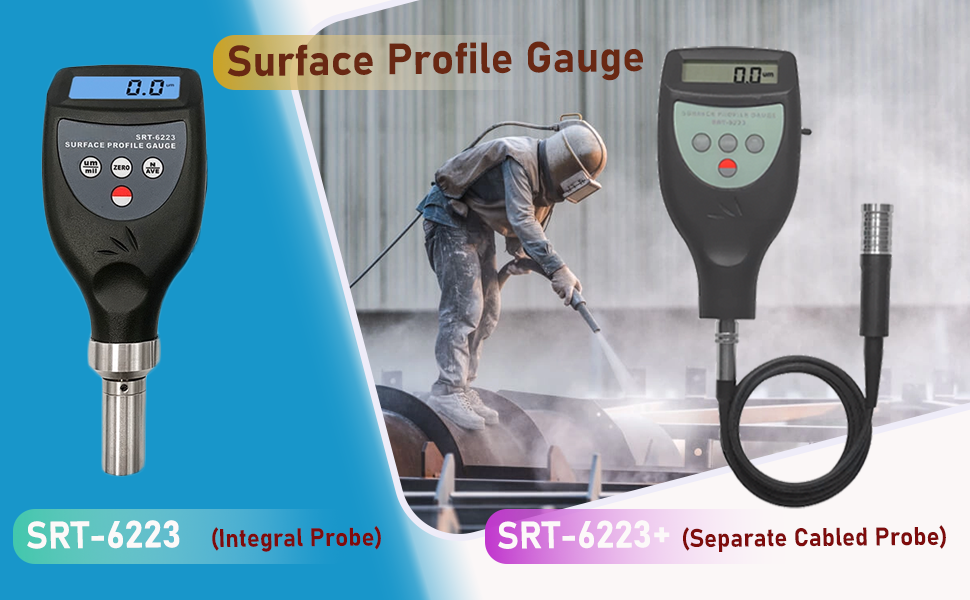

SRT-6223 (integral probe) and SRT-6223+(separate cabled probe) are designed to measure the surface profile (peak-to-valley height) of blasted steel, convex surfaces, textured coatings and concrete profile.
| Probe Type | SRT-6223: Integral Probe | SRT-6223+: Separate Cabled Probe |
| Display | LCD |
| Range | 0µm~800 µm/29.5 mils |
| Accuracy | ±5% or ±5 µm (whichever is the greater) |
| Resolution | 0.1 µm/1 µm | 0.1mils |
| Principle | Inductance Type |
| Operating Temperature | 0ºC~50ºC |
| Humidity Humidity | <80%RH |
| Power Supply | 4x1.5V AAA Alkaline Battery |
| Dimensions | 162mmx65mmx28 mm |
| Weight | 280g |
| Standard Accessories | Main Unit, Standard Sample Plate, Carrying Case, Operation Manual |
