Main image of KEHIPI HT206D Digital Clamp Meter T-RMS 6000 Counts, Multimeter Voltage Tester Auto-ranging, Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity Duty-Cycle (AC/DC Current)

Alt view image 2 of 7 - KEHIPI HT206D Digital Clamp Meter T-RMS 6000 Counts, Multimeter Voltage Tester Auto-ranging, Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity Duty-Cycle (AC/DC Current)

Alt view image 3 of 7 - KEHIPI HT206D Digital Clamp Meter T-RMS 6000 Counts, Multimeter Voltage Tester Auto-ranging, Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity Duty-Cycle (AC/DC Current)

Alt view image 4 of 7 - KEHIPI HT206D Digital Clamp Meter T-RMS 6000 Counts, Multimeter Voltage Tester Auto-ranging, Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity Duty-Cycle (AC/DC Current)

Alt view image 5 of 7 - KEHIPI HT206D Digital Clamp Meter T-RMS 6000 Counts, Multimeter Voltage Tester Auto-ranging, Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity Duty-Cycle (AC/DC Current)

Alt view image 6 of 7 - KEHIPI HT206D Digital Clamp Meter T-RMS 6000 Counts, Multimeter Voltage Tester Auto-ranging, Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity Duty-Cycle (AC/DC Current)

Alt view image 7 of 7 - KEHIPI HT206D Digital Clamp Meter T-RMS 6000 Counts, Multimeter Voltage Tester Auto-ranging, Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity Duty-Cycle (AC/DC Current)

Shop All KEHIPI Products | Visit Wispa Technologies Store

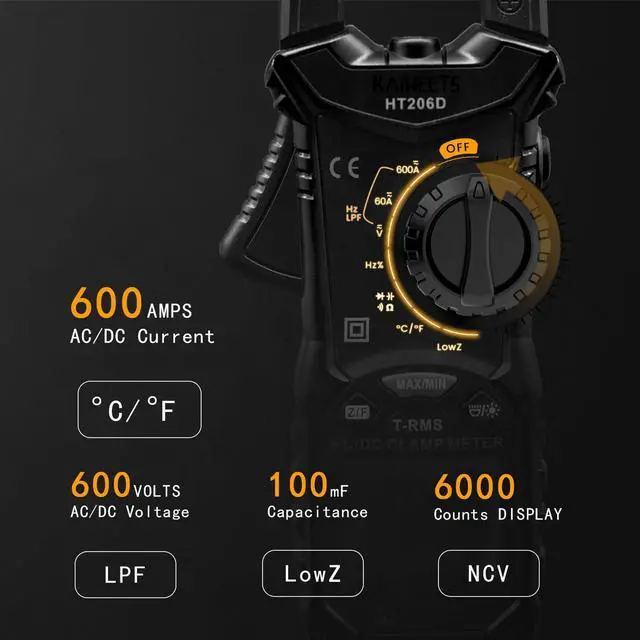

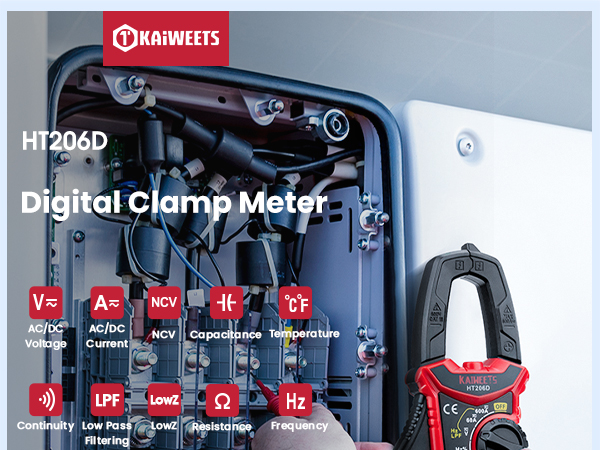

KEHIPI HT206D Digital Clamp Meter T-RMS 6000 Counts, Multimeter Voltage Tester Auto-ranging, Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity Duty-Cycle (AC/DC Current)

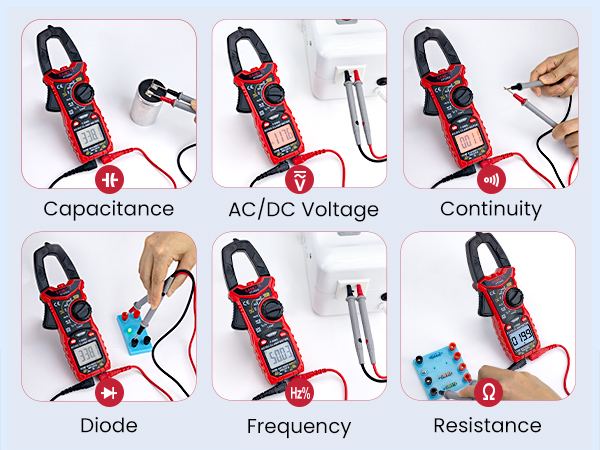

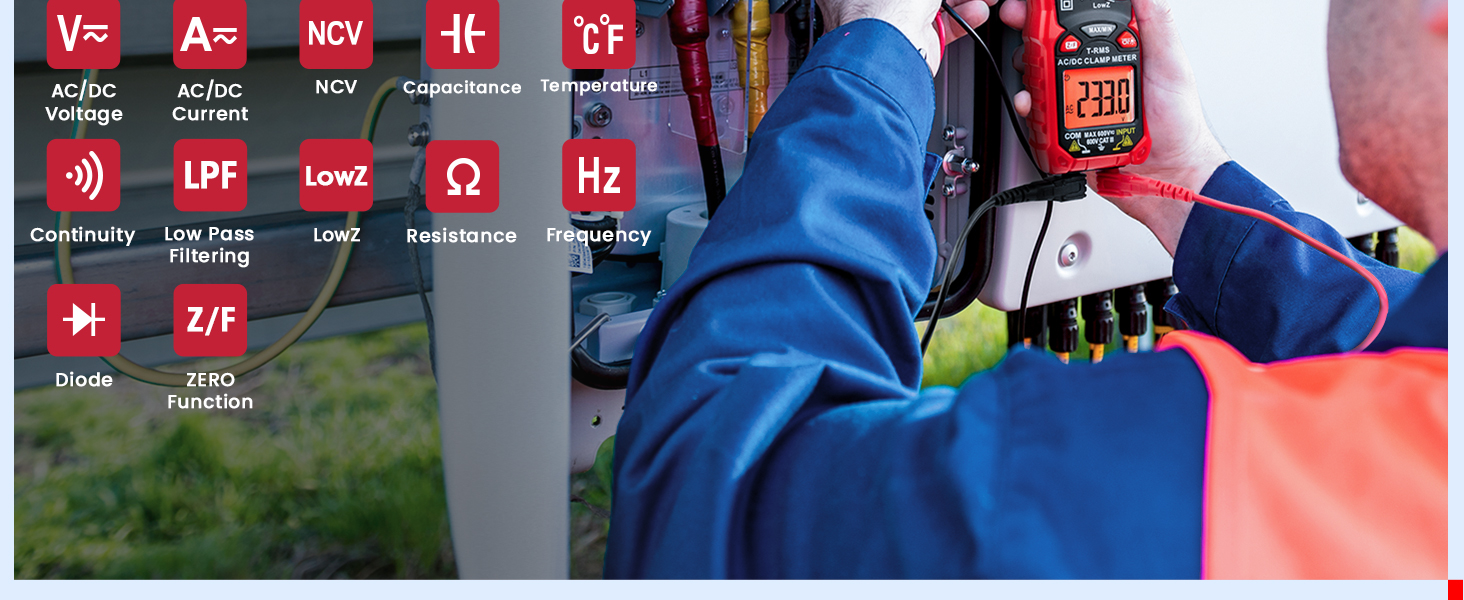

True-RMS clamp meter: This multimeter can accurately measure AC/DC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, Capacitance and also provides Diode, Continuity and Temperature tests. True RMS for accurate measurements on non-linear loads. Easy to use for labs factories and household

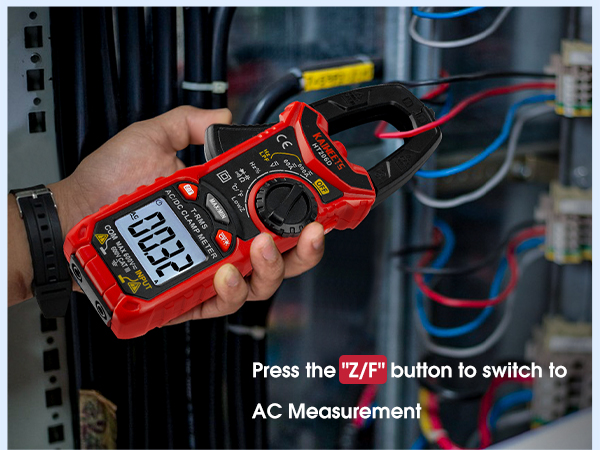

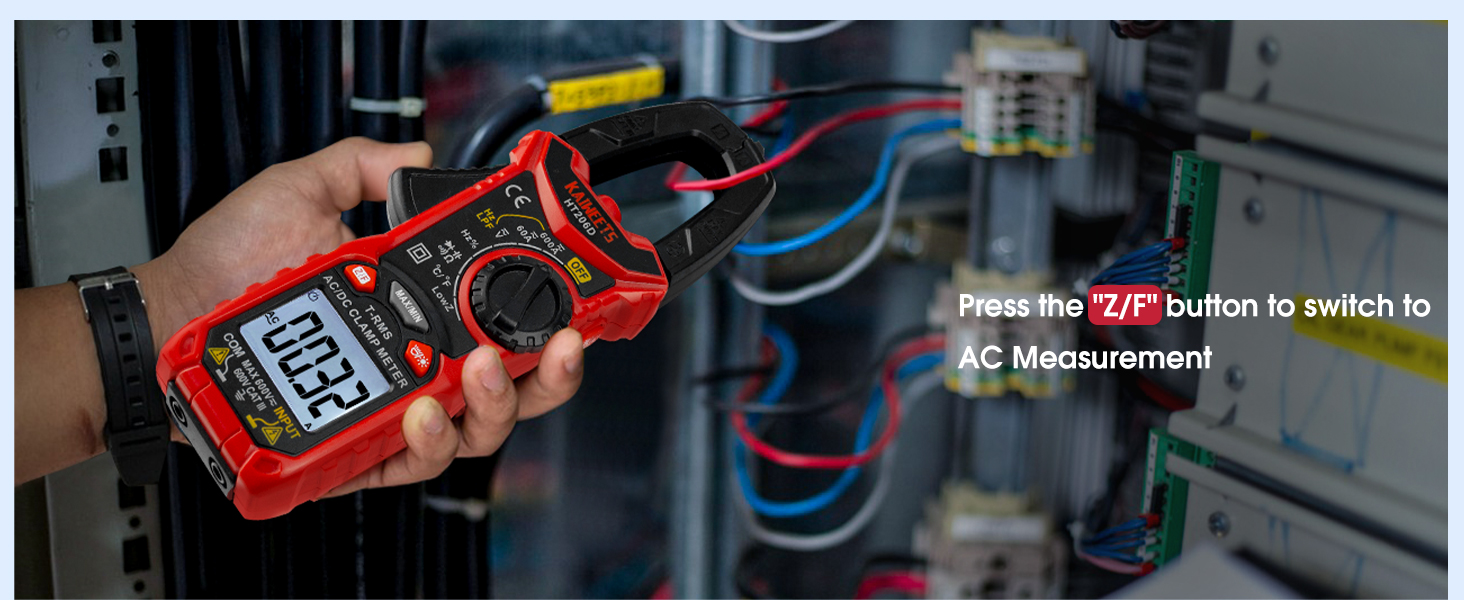

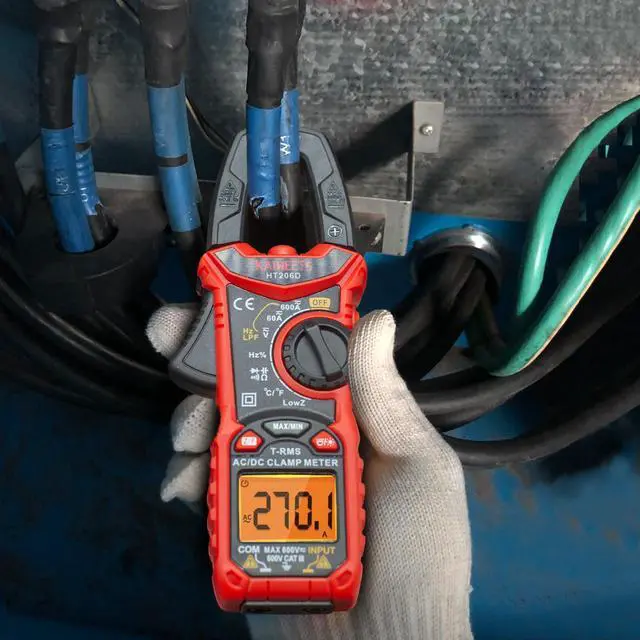

LowZ & LPF: Low input impedance helps prevent false readings due to ghost voltage. Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformer. To measure the current you need to clamp the meter around one of the wires and not the whole power cord

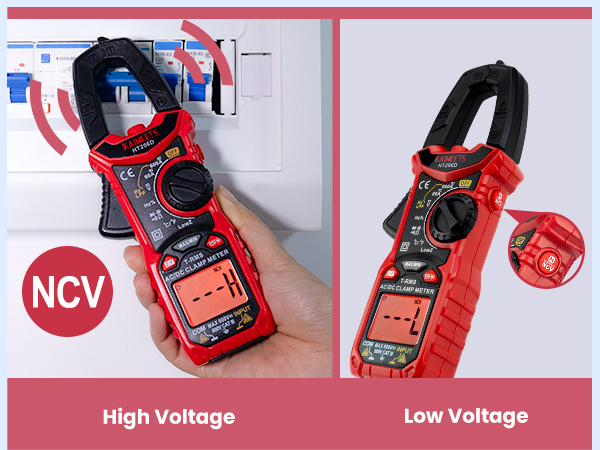

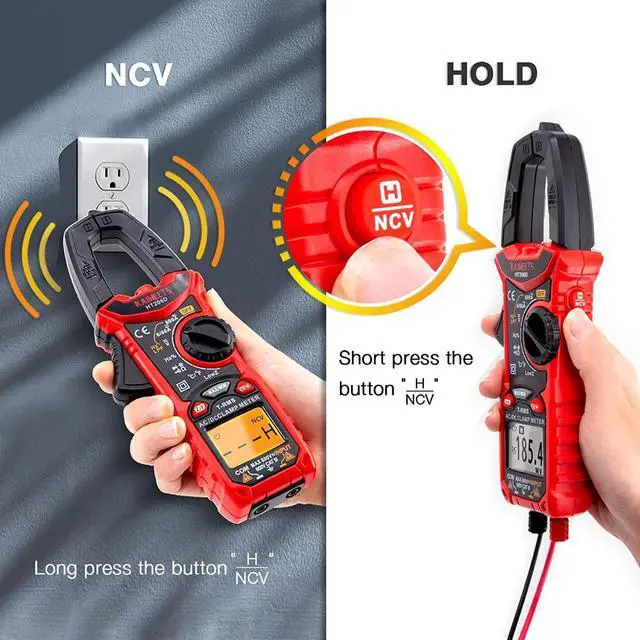

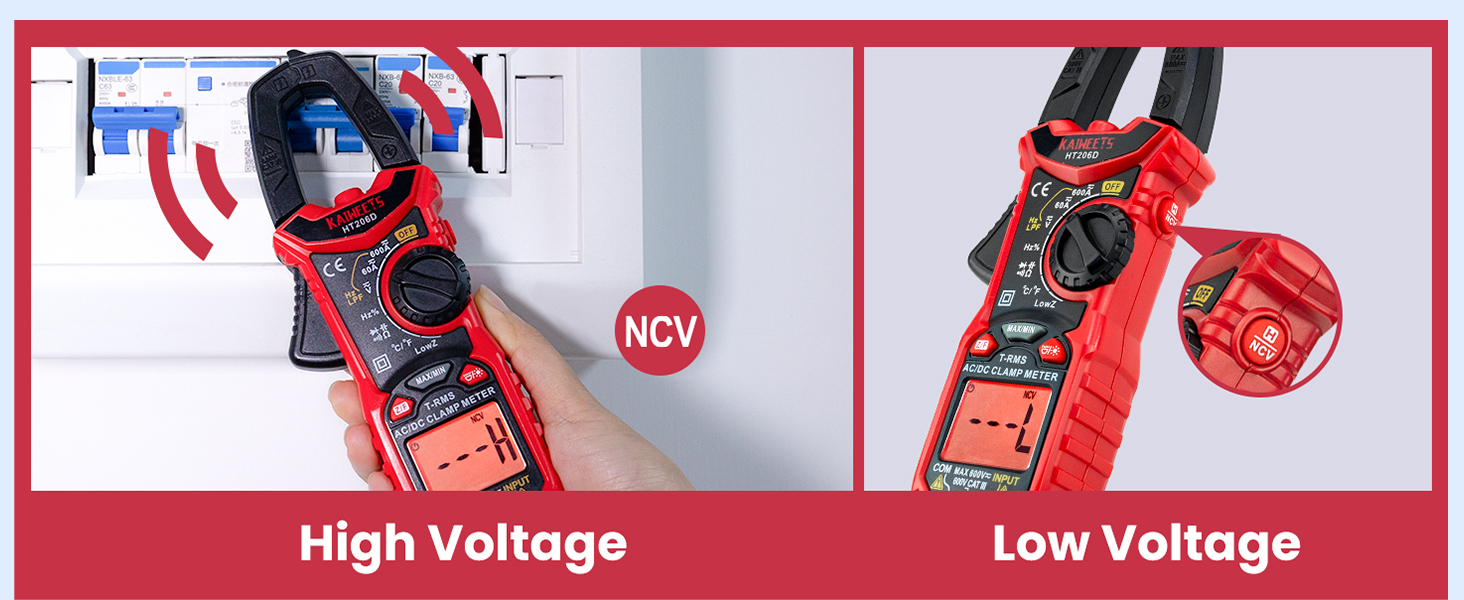

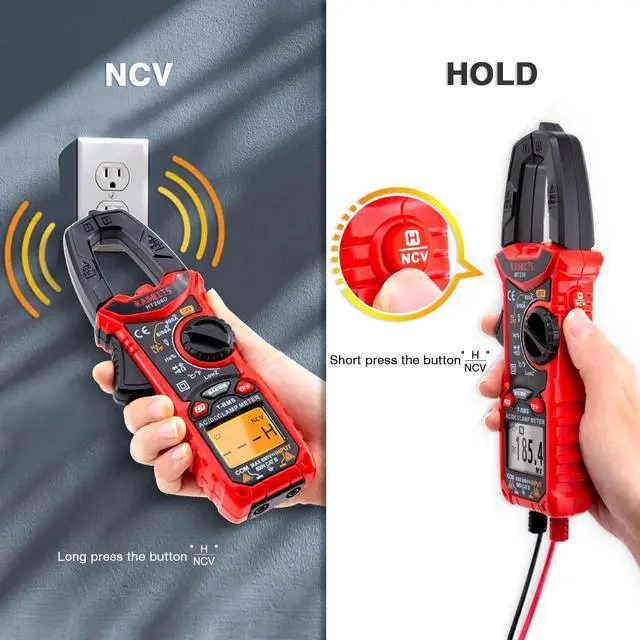

NCV Detection Function: Non-contact voltage detection effectively check electrical status through measuring EM field intensity without touching any wires; The NCV button lies on the right side. Simply place your thumb on it and push

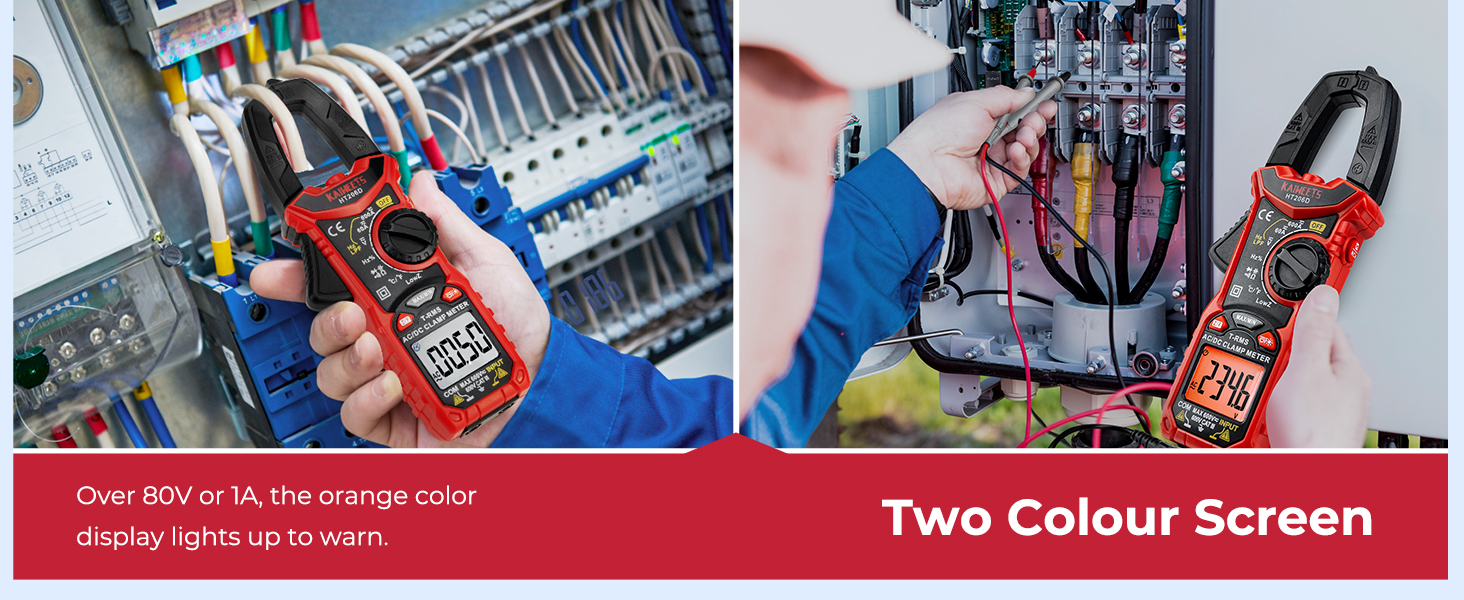

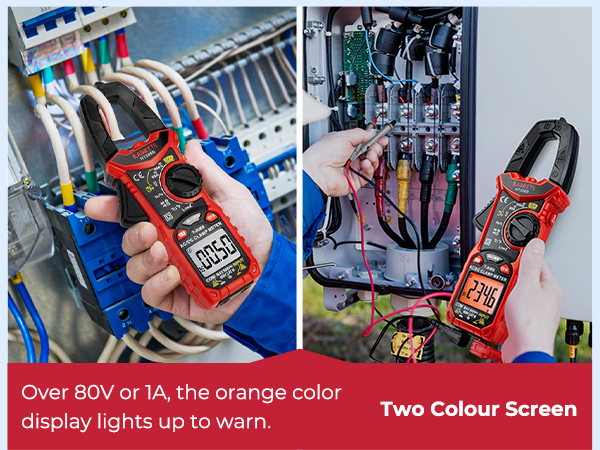

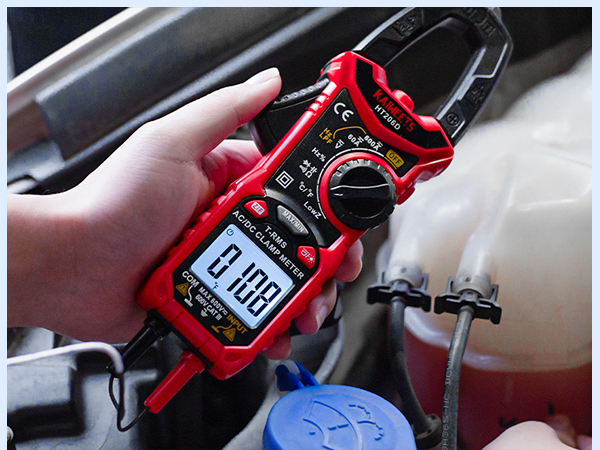

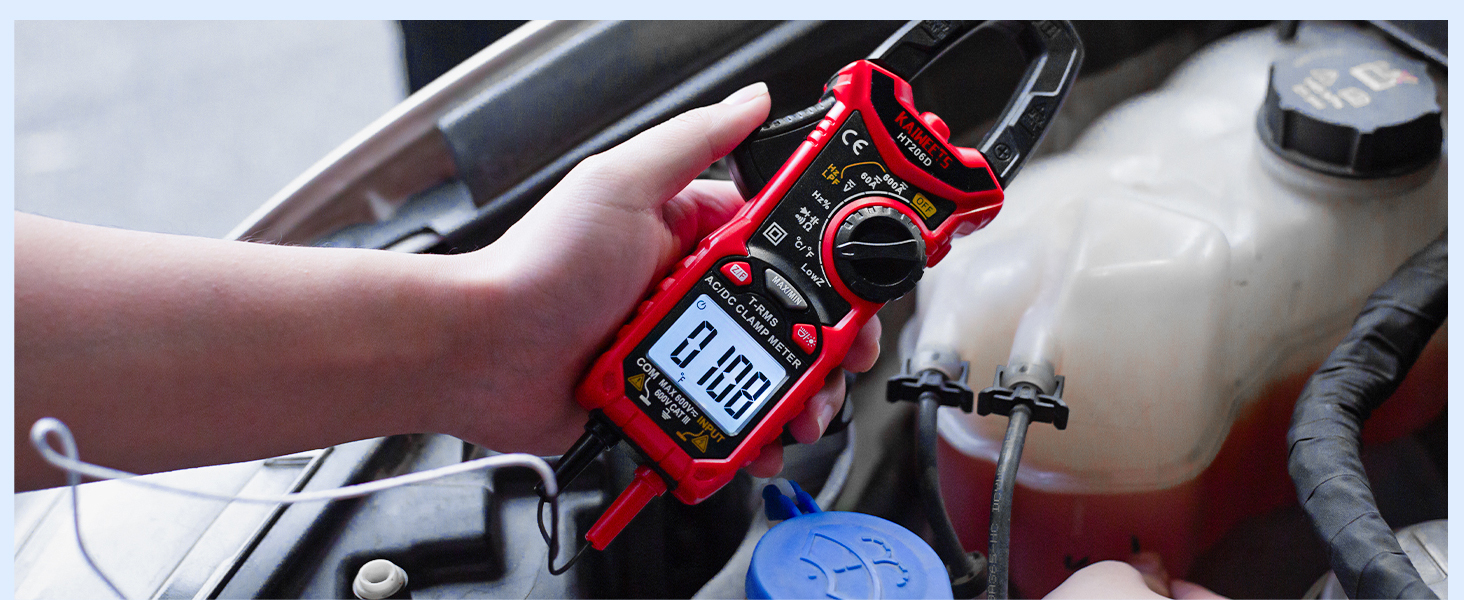

Multi-function: Two-color backlit LCD Display - When the voltage > 80V, the current > 3A, the LCD backlit screen turns red to warn you of high voltage/ LED Flashlight / Temperature Measurement for liquids and air conditioning ports included K-Type Thermocouple / Low Battery Indication / Auto power off after 15 minutes inactivity
Safety Service: Safety standard IEC 61010-1, CAT III 600V. Double insulation. 36 Months product service provided. 7/24 Customer Service

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

KAIWEETS MULTIMETERS
KAIWEETS CLAMP METERS
Find more
ABOUT US
KAIWEETS crafts top-tier electrical tools renowned for their reliability and performance. Fueled by relentless innovation and R&D, we pioneer cutting-edge solutions for industrial and scientific challenges. Many of our products lead their categories.
Choose KAIWEETS for more than dependable tools—join our relentless pursuit of excellence.

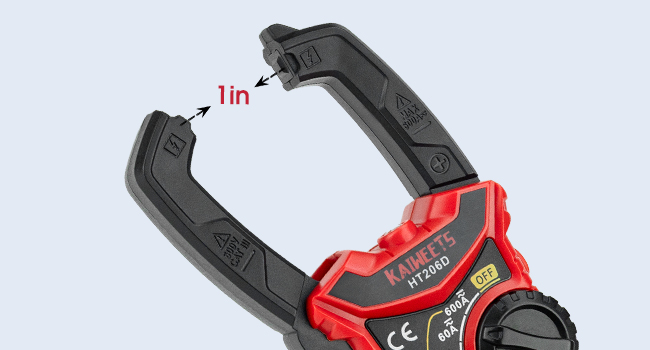

Jaw Design

The Jaw is marked with maximum voltage and current measured value. Suitable for one-hand operation.

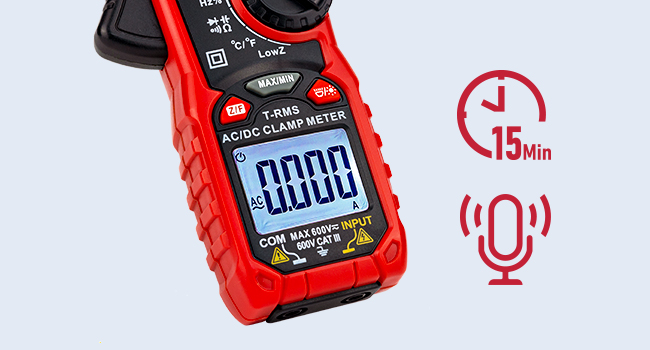

Automatic Shutdown

No operation in 15 minutes, the clamp meter beeps 3 times. Without further operation, it beeps again and switches off automatically.

Technical Comparison

	HT206D	KC602	KC602s	KC604	HT208D	HT208F
Maximum Display	6000 Counts	6000 Counts	6000 Counts	4000 Counts	6000 Counts	6000 Counts
AC Voltage	6V/60V/600V	600mV/6V/60V/600V	600mV/6V/60V/600V	4V/40V/400V/600V	600mV/6V60V/600V/750V	600mV/6V/60V/600V/750V
DC Voltage	600mV/6V/60V/600V	600mV/6V/60V/600V	600mV/6V/60V/600V	400mV/4V/40V/400V/600V	600mV/6V/60V/600V/1000V	600mV/6V/60V/600V/1000V
AC Current	60A/600A	60A/600A	60A/600A	40A/400A	60A/600A/1000A	60A/600A/1000A
DC Current	60A/600A	60A/600A	60A/600A	40A/400A	60A/600A/1000A	60A/600A/1000A
Resistance	600O/6kO/60kO/600kO/6MO/60MO	600O/6kO/60kO/600kO/6MO/60MO	600O/6kO/60kO/600kO/6MO/60MO	400O/4kO/40kO/400kO/4MO/40MO	600O/6kO/60kO/600kO/ 6MO/60MO	600O/6kO/60kO/600kO/ 6MO/60MO
Capacitance	?	?	?	?	?	?
Temperature/Frequency	?	?	?	?	?	?
NCV	?	?	?	?	?	?
Flashlight/Backlight	?	?	?	?	?	?
Inrush	?	?	?	?	?	?
VFD / LoZ	?	?	?	?	?	?

Jaw Design

The Jaw is marked with maximum voltage and current measured value. Suitable for one-hand operation.

Automatic Shutdown

No operation in 15 minutes, the clamp meter beeps 3 times. Without further operation, it beeps again and switches off automatically.

Technical Comparison

HT206D	KC602	KC602s	KC604	HT208D	HT208F
Maximum Display	Maximum Display	Maximum Display	Maximum Display	Maximum Display	Maximum Display
6000 Counts	6000 Counts	6000 Counts	4000 Counts	6000 Counts	6000 Counts
AC Voltage	AC Voltage	AC Voltage	AC Voltage	AC Voltage	AC Voltage
6V/60V/600V	600mV/6V/60V/600V	600mV/6V/60V/600V	4V/40V/400V/600V	600mV/6V60V/600V/750V	600mV/6V/60V/600V/750V
DC Voltage	DC Voltage	DC Voltage	DC Voltage	DC Voltage	DC Voltage
600mV/6V/60V/600V	600mV/6V/60V/600V	600mV/6V/60V/600V	400mV/4V/40V/400V/600V	600mV/6V/60V/600V/1000V	600mV/6V/60V/600V/1000V
AC Current	AC Current	AC Current	AC Current	AC Current	AC Current
60A/600A	60A/600A	60A/600A	40A/400A	60A/600A/1000A	60A/600A/1000A
DC Current	DC Current	DC Current	DC Current	DC Current	DC Current
60A/600A	60A/600A	60A/600A	40A/400A	60A/600A/1000A	60A/600A/1000A
Resistance	Resistance	Resistance	Resistance	Resistance	Resistance
600O/6kO/60kO/600kO/6MO/60MO	600O/6kO/60kO/600kO/6MO/60MO	600O/6kO/60kO/600kO/6MO/60MO	400O/4kO/40kO/400kO/4MO/40MO	600O/6kO/60kO/600kO/ 6MO/60MO	600O/6kO/60kO/600kO/ 6MO/60MO
Capacitance	Capacitance	Capacitance	Capacitance	Capacitance	Capacitance
?	?	?	?	?	?
Temperature/Frequency	Temperature/Frequency	Temperature/Frequency	Temperature/Frequency	Temperature/Frequency	Temperature/Frequency
?	?	?	?	?	?
NCV	NCV	NCV	NCV	NCV	NCV
?	?	?	?	?	?
Flashlight/Backlight	Flashlight/Backlight	Flashlight/Backlight	Flashlight/Backlight	Flashlight/Backlight	Flashlight/Backlight
?	?	?	?	?	?
Inrush	Inrush	Inrush	Inrush	Inrush	Inrush
?	?	?	?	?	?
VFD / LoZ	VFD / LoZ	VFD / LoZ	VFD / LoZ	VFD / LoZ	VFD / LoZ
?	?	?	?	?	?

KAIWEETS MULTIMETERS
KAIWEETS CLAMP METERS
Find more
ABOUT US
KAIWEETS crafts top-tier electrical tools renowned for their reliability and performance. Fueled by relentless innovation and R&D, we pioneer cutting-edge solutions for industrial and scientific challenges. Many of our products lead their categories.
Choose KAIWEETS for more than dependable tools—join our relentless pursuit of excellence.

Key Features:

1. T-RMS

True RMS AC voltage and current for accurate measurements on non-linear signals.

2. 6000 Counts

The maximum measurable value is 5999, which is enough for industrial use.

It's a professional clamp meter with high accuracy.

3. Auto Power Off

No operation in 15 minutes, the Meter will beep 3 times, indicating for Aoto Power Off.

4. LCD Display

The easy-to-read LCD display gives you clear measurements.

5.Safty Rating

CAT III 600 V safety rating.

Specifications:

Color: Black & Red

AC Current (A): 60A/600A ±(2.5%+5)

AC Voltage (V): 6V/60V/600V ±(1.0%+3)

DC Voltage (V): 600mV/6V/60V/600V ±(0.5%+3)

Resistance (): 600/6k/60k/600k/6M/60M ±(1.0+3

Capacitance (F): 10nF/100nF/1F/10F/100F/1mF/10mF/100mF ±(4.0+3

Frequency (Hz): 10Hz~10MHZ ±(0.5%+5)

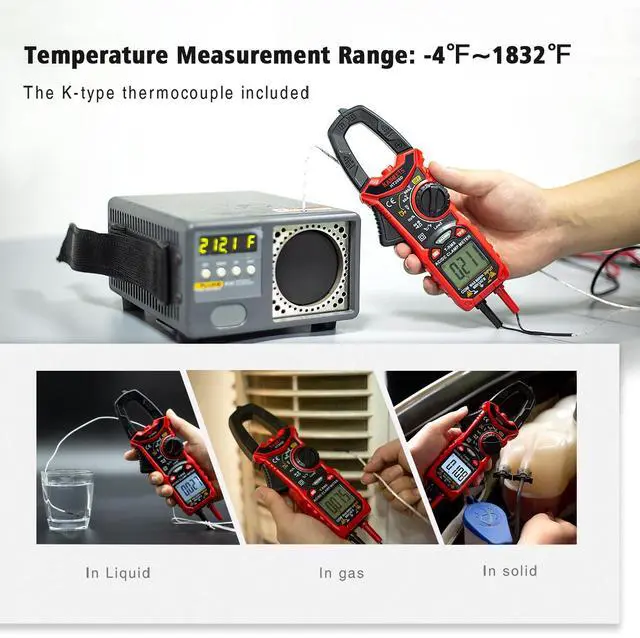

Temperature: -20-1000/-4-1832

NCV: Yes

LPF: Yes

Low-z: Yes

Max/Min: Yes

Data Hold: Yes

Diode Test: Yes

Flashlight: Yes

LCD Backlight: Yes

Continuity Buzzer: Yes

Over Range Indication: Yes

Low Battery Indication: Yes

Power: 2 x AAA 1.5V Battery (Not Included)

Weight :187g/6.55oz

Size:193x73x34mm/7.6x2.87x1.34in

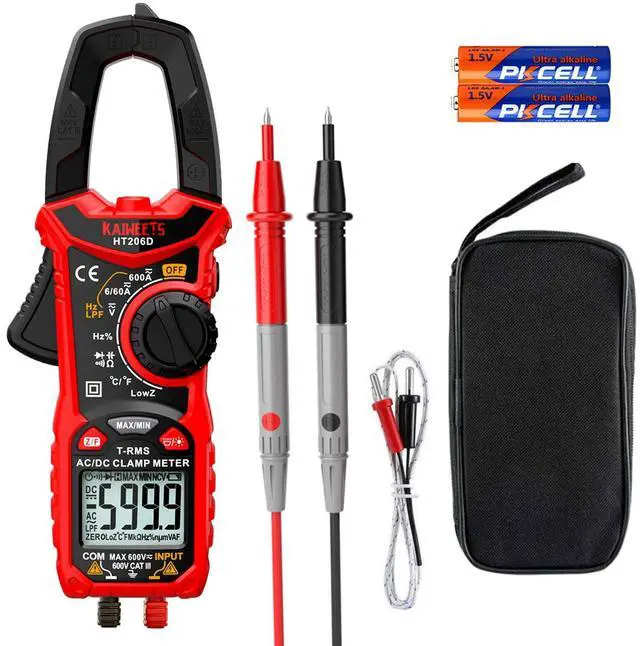

Package:

1 x Digital Clamp Meter

1 x Temperature Probe

2 x Test Leads (A Pair)

2 x AAA 1.5V Batteries

1 x Soft Carrying Case

1 x User Manual
