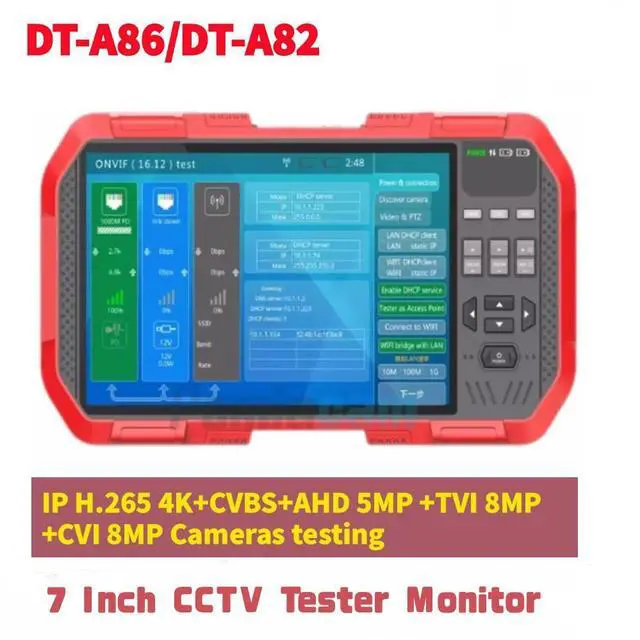

A82 A86 7" 5 In 1 H.265 HD IP CCTV Tester Monitor AHD CVI TVI CVBS Camera Test DT-A82

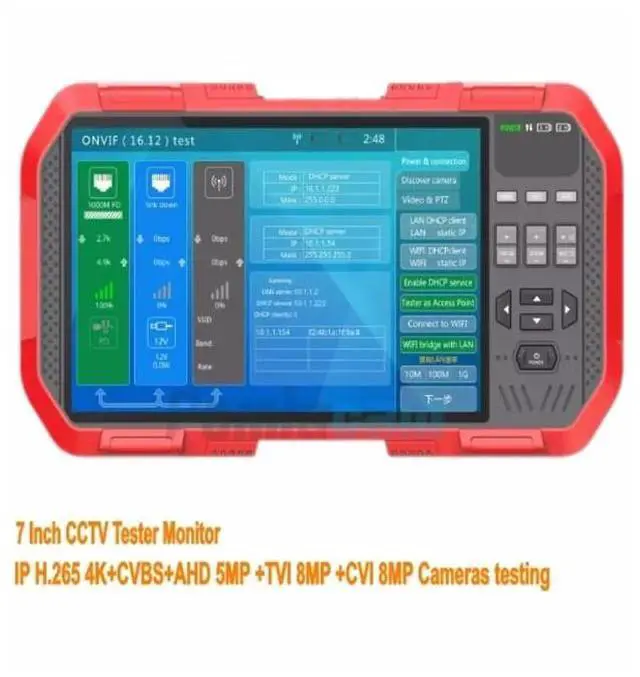

A82:7 Inch CCTV Tester Monitor IP H.265 4K+CVBS+AHD 5MP +TVI 8MP +CVI 8MP Cameras testing

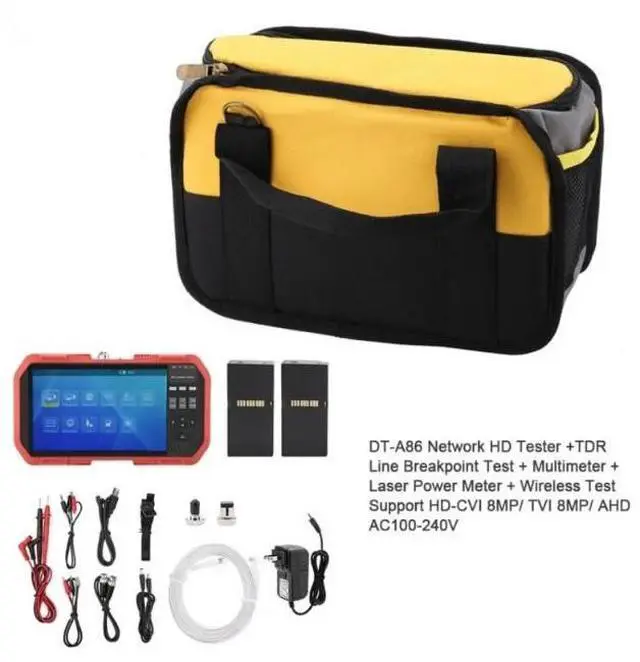

A86:7 Inch CCTV Tester Monitor IP H.265 4K+CVBS+AHD 5MP +TVI 8MP +CVI 8MP Cameras testing Multimeter+Optical fiber power meter

Main Features For A82 & A86:

7.0 inch all viewing angel& touch-screen, Two Rechargeable Lithium Batteries, DC12V/2A Output

POE Ports:POE power supply, POE power receiving

Support H.264& H.265& 4K cameras;TVI 8MP & CVI 8MP & AHD 5MP;ONVIF test(IPC Test):IP Configuration,Modify IP Address,IP Password Notebook,LAN DHCP client;LAN static IP.

Ethernet test: Dual 1000M Ethernet link test; Packet loss test; Ethernet loop detection; etc.

WIFI connection status:SSID, 2.4G& 5.0G band, connection rate, WIFI DHCP client, WIFI static IP, Tester as Access Point, WIFI bridge with LAN.

WIFI tools: External foldable dual antenna, dual band Dipole omnidirectional antenna Spectrum test: Air& WIFI spectrum, Strong& Weak signal level; WIFI test:SSDI, 2.4G& 5.0G Band, MAC, Authorize type, IP address, DNS etc.; Signal monitor: Air& WIFI signal, SSDI, Frequency, 2.4G&5.0G Band, Freeze chart.

HD IP, TVI, CVI, AHD & Analog Camera Testing. PTZ control, Viewing camera video, configure camera parameters. Video snapshot, video recording and Playback.

Signal generator: SD, CVI, TVI, AHD, HDMI Input and Output.

TDR Function: Cable length Testing; 0~200m net cable detection, resolution 0.1m. Cable Quality Test.connection state and attenuation for the connected RJ45 cable

RS485 Data monitor; Playback.

Network tools: Ping IP/ IP scan, Sniff, List subnet

System Setting: Setting the automatic shutdown time, Setting the screen language System upgrade , USB storage

8MP TVI test, 3840 x 2160P 15 fps, 4xzoom , video record &playback , coaxial PTZ control & call OSD menu

5MP AHD test, 2560x1944P12.5F/ 20fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu

Linux operated system: More stable operation

The Following Are New Features For A86 :

Optical power meter:Wavelength:850nm,1300nm etc;Calibrate readings,Record data,Save report, Empty the temporary,Data staging

Digital Multimeter: Voltage, Current, Resistance, Capacitance,Diode VF,Conductivity;Record data;Save the report,Empty the temporary,Data staging
