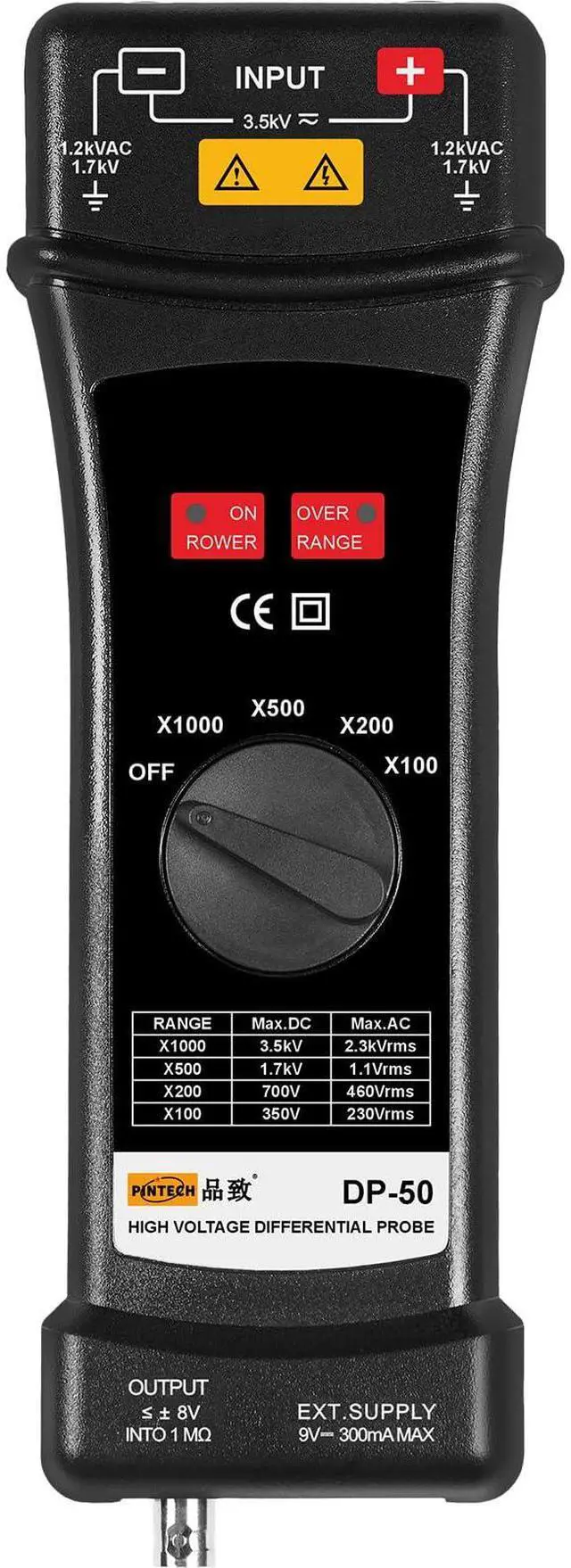

PINTECH High Voltage Differential Active Probe 7000V, 50MHz, 200X/500X/1000X Attenuation Rate Oscilloscope Probe DP-50

  • The DP-50 differential probe is designed for high voltage measurements. The 50Mhz BD and 7000V range will help you with most high voltage situations.
  • The High Voltage probe with BandwidthDC-25MHz/50MHz, Attenuation Ratio: 100X/200X/500X/1000X, Accuracy (Typical)±2%, Input resistance: 16M//1.2pF(between the two ends); 8M//2.4pF(Single-ended to ground).
  • Widely Used: Our oscilloscope probe features with BNC interface, compatible with a wide range of oscilloscopes, requiring only that the device be equipped with standard BNC connectors.

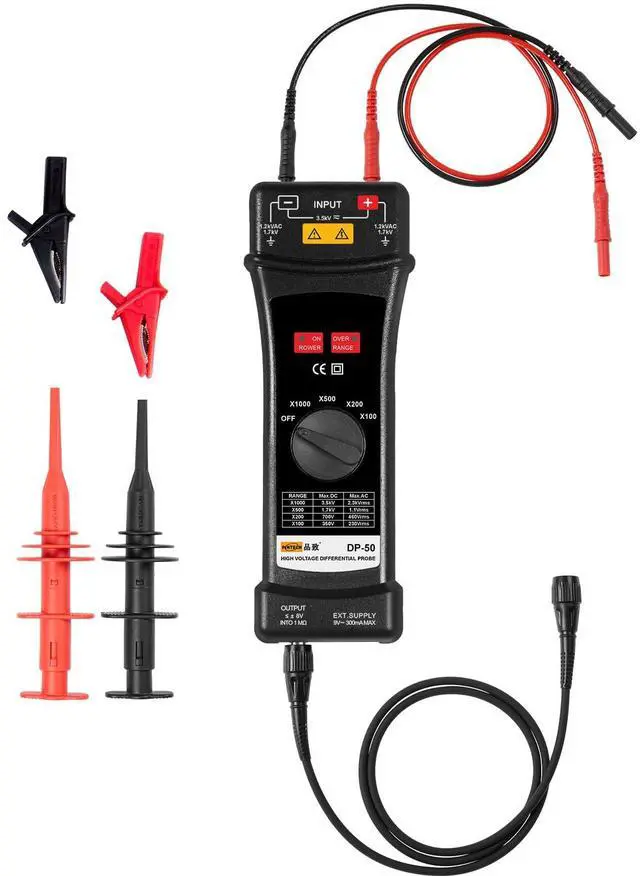

  • Package Included: DP-50 differential probe host x 1, Adapter x 1, Alligator Clip x 2, Probe Hook x 2, BNC cable x 1, Dedicated input cable x 1, User Manual x 1.
  • This oscilloscope differential probe offers high stability, long service life, reliability and precision. We provide one year after-sales service, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

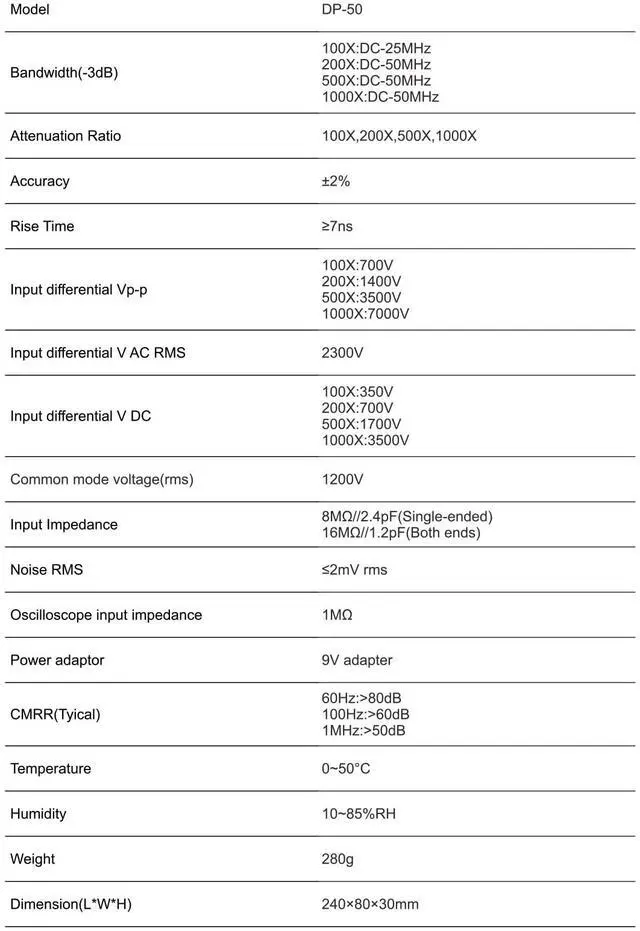

MODEL: DP-50


Bandwidth(-3dB): DC-50MHz200X/500X1000X, DC-25MHz100X


Attenuation Rate: X100,X200,X500,X1000


Rise time: 7nsX200X500X1000, 14nsX100


Accuracy: ±2%(After the engine warms up for 20 minutes)


Input differential Vp-p: 100X: 700V; 200X: 1400V; 500X: 3500V;1000X: 7000V


Input DC Voltage: 100X: 350V; 200X: 700V; 500X: 1700V;1000X: 3500V


RMS Value: 2300V


Common-mode Voltage: 1200V


Noise: 2.0mV rms)


Impedance: 16M//1.2pF(between the two ends); 8M//2.4pF(Single-ended to ground)


CMRR: 60Hz:80dB; 100Hz:60dB; 1MHz:50dB


Dimension(LxWxH): 240x80x30 mm


Weight: 280g


Product information
Product Dimensions 7.67 x 3.34 x 1.37 inches
Item Weight 4.4 pounds
Manufacturer PINTECH
Item model number DP-50
Date First Available May 10, 2021
