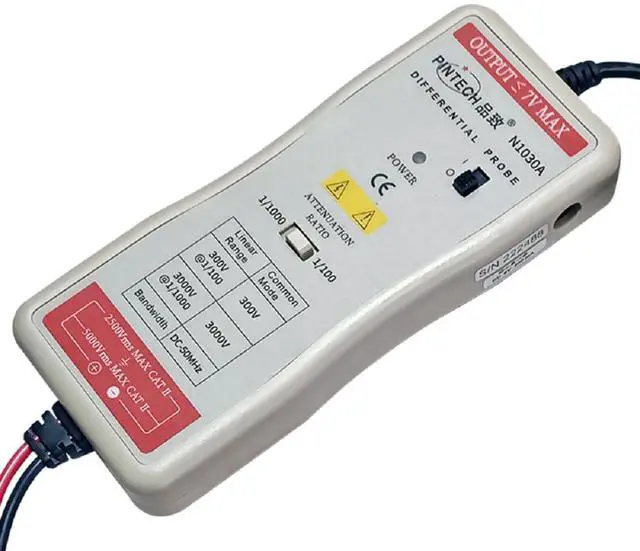

The PINTECH N1030A is a 50MHz high-voltage differential oscilloscope probe designed for engineers, technicians, and lab users who need to safely measure floating or differential signals up to 3000Vp-p in motor drives, power electronics, and general circuit testing.
Recommended For
- Engineers and technicians debugging offline power supplies, inverters, UPS units, or motor drives who need to measure floating high-voltage nodes with a standard BNC oscilloscope rather than a scope with isolated inputs.
- Lab users in university power-electronics, drives, or electrical-machines research who need a general-purpose differential probe for experiments on converters, induction heating, and mains-referenced circuits without moving to premium high-bandwidth probes.
- Bench technicians doing service or validation work on industrial electronics where 50 MHz bandwidth is enough for switching waveforms, startup transients, and control-stage checks, and broad oscilloscope compatibility matters.
- Cost-conscious power-electronics hobbyists or small labs that specifically need high-voltage differential isolation for mains, VFD, or converter work and are willing to trade premium-brand ecosystem features for a simpler standalone probe.
Real-World Use Scenarios
- Checking inverter or VFD output waveforms on a motor drive, where the user needs to see phase-to-phase or floating high-side signals without tying the oscilloscope ground into the power stage; the typical experience is that a high-voltage differential probe makes these measurements practical on a standard BNC scope and is commonly used for drive debug and waveform validation.
- Probing switching nodes and bus voltages in power converters or SMPS development, where the user is trying to verify switching behavior, overshoot, or waveform shape on circuits that are not ground-referenced; the likely outcome is cleaner, safer differential voltage measurement than attempting the same job with a standard passive probe.
- Measuring mains-referenced or generator power waveforms for troubleshooting, where the user wants to inspect AC voltage shape or transient behavior but cannot safely clip a grounded probe to a live floating point; the expected experience is that an appropriately rated differential probe is the accepted tool for this kind of work, though it still requires experience and careful setup.
- Using a general-purpose oscilloscope to compare two non-ground-referenced points in a live circuit, where the user is trying to turn a floating differential signal into something a standard ground-referenced BNC input can read; the usual outcome is easier access to measurements that would otherwise need a floating scope or more complex setup.
- Lab troubleshooting on industrial or power-electronics boards when the user needs one probe that works across many scopes with a standard BNC input; the likely experience is straightforward compatibility and routine use for high-voltage differential checks, especially in motor-control and converter labs rather than low-voltage everyday bench work.

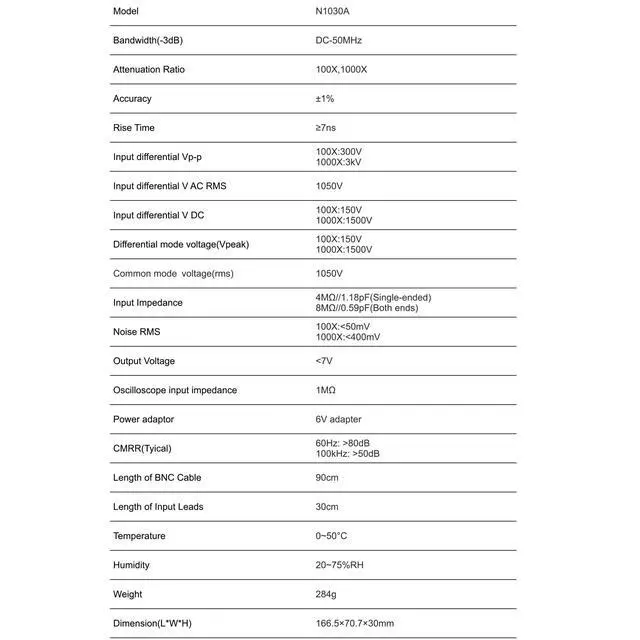

Spec Summary
| Attribute | Value |
|---|
| Best For | High-voltage differential measurements on oscilloscopes, meters, and data-acquisition equipment — suitable for motor circuits and other high-voltage applications up to 3000 Vp-p; converts two-point signals to ground-referenced inputs |
|---|
| Electrical Ratings And Attenuation | Maximum differential test voltage 3000 Vp-p with selectable 1000X or 100X attenuation for scaling high-voltage signals |
|---|
| Bandwidth And Rise Time | DC to 50 MHz (-3 dB) bandwidth with 7 ns rise time |
|---|
| Accuracy And Protections | Typical accuracy ±1% with built-in auto-zero function and overload protection for voltage |
|---|
| Interface And Compatibility | Standard BNC interface; converts differential two-point signals to ground-referenced inputs compatible with oscilloscopes, meters, and data-acquisition equipment |
|---|

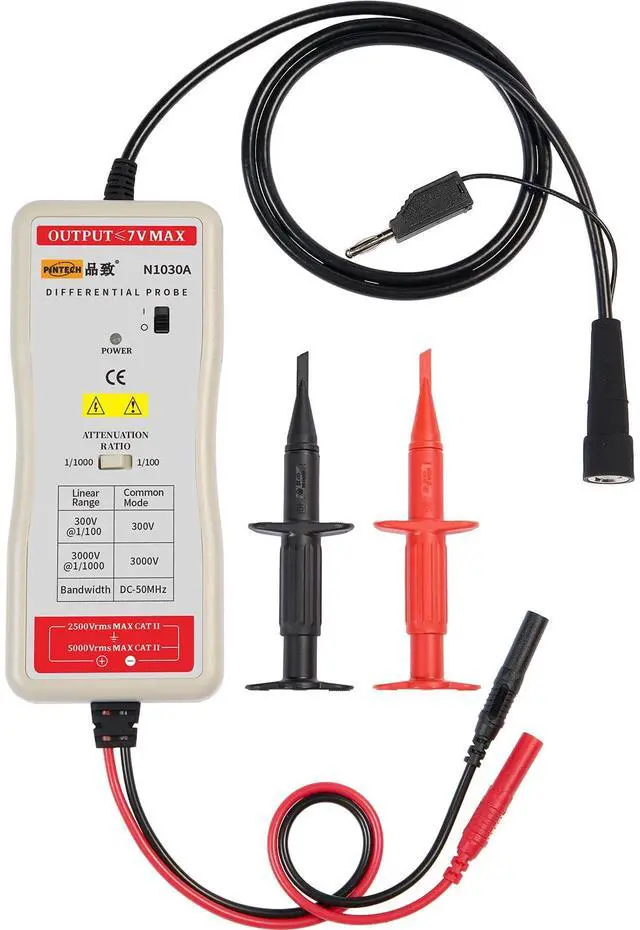

| Included Accessories | N1030A probe host unit ×1, adapter ×1, probe hooks ×2, manual ×1 |
|---|
| Model Identifiers | Model N1030A (PINTECH high-voltage differential probe) |
|---|
| Warranty And Support | 1 Year warranty from PINTECH |
|---|
Reference Q&A
Q: Should I choose the PINTECH N1030A or a premium 50MHz high-voltage differential probe like the Tektronix TDP0500?
A: Choose the PINTECH N1030A when you need a standard BNC high-voltage differential probe for general oscilloscope use and your work fits within a 50MHz, 3000V class tool. Choose a premium model like the Tektronix TDP0500 when probe ecosystem integration, documented compatibility with specific Tek scopes, and higher-end brand support matter more than basic BNC flexibility. The main trade-off is convenience and platform integration versus a simpler, broadly compatible probe format.
Q: Is the PINTECH N1030A a better fit than a lower-voltage differential probe for motor drives or offline power electronics?
A: Yes, the N1030A is the better fit when your measurements can involve several hundred volts to low-kilovolt differential signals, such as motor drives, mains-referenced switching stages, or other high-energy circuits. Its 3000Vp-p rating and 1000X/100X attenuation make it more appropriate than lower-voltage differential probes that are aimed at control electronics or lower-voltage switch nodes. A lower-voltage probe is the better choice only when you want more sensitivity for smaller signals and do not need this voltage headroom.
Q: How does the PINTECH N1030A compare with a 100MHz or 200MHz high-voltage differential probe?
A: Choose the N1030A when you mainly measure lower-frequency power electronics waveforms and need high-voltage capability more than extended bandwidth. Move to a 100MHz or 200MHz class probe when you need cleaner visibility into faster edges, ringing, and switching details that a 50MHz probe may smooth out. The trade-off is straightforward: the N1030A suits mainstream high-voltage troubleshooting, while higher-bandwidth probes are better for deeper waveform analysis on faster designs.
Q: Should I buy the PINTECH N1030A or a newer compact high-voltage differential probe design like the Micsig DP3000A class?
A: Choose the N1030A if your priority is a conventional BNC-connected 50MHz, 3000V differential probe for broad oscilloscope compatibility. Choose a newer compact design like the DP3000A class when you want a more modern high-voltage probe format with similar headline voltage class but stronger emphasis from the manufacturer on updated packaging, compactness, and current product-family support. The practical decision is between simple baseline functionality and a newer platform with more recent product positioning.
Q: Is this probe suitable for measuring floating high-voltage signals such as motor drives, inverter outputs, or switch-mode power stages?
A: Yes, this type of probe is intended for that job. A high-voltage differential probe lets an oscilloscope measure the voltage difference between two non-ground points, which is the common need when checking motor circuits, inverter nodes, half-bridges, and offline power electronics. Based on the provided product data, the N1030A supports up to 3000 Vp-p differential input and is specifically positioned for motor-circuit and general high-voltage differential measurements. The main trade-off is that users still need to stay within the probe's voltage and bandwidth limits and follow oscilloscope safety practices.
Q: Will it work with my oscilloscope if my scope just has a standard BNC input?
A: Usually yes, if the oscilloscope has a standard BNC input and can accept the probe's output scaling. The product data says the N1030A uses a standard BNC interface and is intended to be compatible with oscilloscopes broadly, which makes it easier to use across brands than vendor-specific smart probes. The trade-off is that a generic BNC differential probe typically will not provide model-specific auto-detection or advanced probe-interface features that some premium brand probes support.
Q: Is 50 MHz bandwidth enough, or should I choose a higher-bandwidth differential probe?
A: 50 MHz is enough for many power-electronics, motor-drive, inverter, and general high-voltage troubleshooting tasks, but it is not the best choice for very fast edges, higher-speed digital work, or detailed switching transient analysis where more bandwidth reveals more waveform detail. For buyers comparing options, 50 MHz is a practical middle ground: broader capability than low-end differential probes, but less visibility into fast events than 100 MHz or higher models.
Q: What is the practical benefit of the 1000X and 100X attenuation settings?
A: The switchable 1000X and 100X settings make the probe more flexible across different voltage ranges. In practice, 1000X is useful when measuring higher voltages because it reduces the signal more before it reaches the oscilloscope input, while 100X gives a larger displayed signal for lower-voltage measurements. The trade-off is that higher attenuation makes small signals harder to inspect, so buyers should choose it mainly for high-voltage work rather than precision low-level debugging.
Q: Who is this probe a better fit for: general electronics hobby use or serious high-voltage bench work?
A: It is a better fit for users who specifically need safe differential measurement of higher-voltage circuits than for casual low-voltage hobby bench work. The product's key value is its 3000 Vp-p rating, differential measurement capability, 50 MHz bandwidth, and switchable attenuation, which are features aimed at power electronics, industrial drives, and offline supply testing. If a buyer mainly works on low-voltage logic or basic Arduino-style projects, a standard passive probe is usually simpler and cheaper.
Q: Who is this probe suitable for?
A: This probe is best suited to oscilloscope users measuring floating or high-side signals where a standard ground-referenced probe would be unsafe or impractical. Based on the product specs, it fits power electronics, motor drives, offline power supplies, and other higher-voltage differential measurements. It is less suited to users who only need simple low-voltage bench measurements.
Q: Is this a good choice for motor drives, SMPS, or mains-side troubleshooting?
A: Yes, if your work needs differential measurement at higher voltages and moderate bandwidth. The 3000 Vp-p rating, 100X/1000X attenuation options, and 50 MHz bandwidth make it more appropriate for inverter, motor, and switch-mode power measurements than a regular passive probe. The trade-off is that it is specialized test gear, so it is not the most convenient option for routine low-voltage debugging.
Q: Can this probe still be used for lower-voltage signals?
A: Yes, but it is not optimized for that role. Community discussion around high-voltage differential probes shows they can measure lower-voltage signals, but high attenuation reduces displayed signal size and can make low-level work less convenient. For users mainly measuring small signals, a lower-attenuation or lower-voltage differential probe is usually the better fit.
Q: What are the main trade-offs before buying this probe?
A: The main trade-off is specialization. This probe offers differential high-voltage measurement, 50 MHz bandwidth, and broad oscilloscope compatibility through BNC, but that comes with higher attenuation and a workflow that is less simple than using a standard passive probe. It makes the most sense when measurement safety and floating-signal access matter more than convenience for everyday low-voltage work.
