Question 1

Should I choose the PINTECH DP-235 or a 100 MHz high-voltage differential probe?

Accepted Answer

Choose the PINTECH DP-235 when your main need is high-voltage measurement on motor drives, power electronics, inverters, or general floating-node troubleshooting where 35 MHz bandwidth is enough and 2600 Vp-p range matters more than edge fidelity. Choose a 100 MHz-class differential probe when you need cleaner visibility on faster switching edges, more harmonics, or gate-drive detail. In practice, the trade-off is straightforward: the DP-235 is positioned for mainstream high-voltage work, while higher-bandwidth probes are the better fit for faster transient analysis.

Question 2

Is the PINTECH DP-235 better than using two standard passive probes and math on the oscilloscope?

Accepted Answer

Yes, the DP-235 is the better choice when you need a true high-voltage differential measurement. A dedicated differential probe is designed to convert a floating two-point signal into a scope-safe ground-referenced signal through one BNC connection. Compared with using two passive probes plus channel math, it is usually the more practical option for higher-voltage measurements because it avoids tying measurements to two separately matched probes and preserves a setup intended for differential work. Two passive probes with math can still be acceptable for low-risk bench checks, but the DP-235 is the clearer choice for repeated high-voltage troubleshooting.

Question 3

Should I choose the DP-235 or a lower-voltage, higher-bandwidth differential probe?

Accepted Answer

Choose the DP-235 when measurement voltage is the limiting factor and you need substantially more high-voltage headroom. Choose a lower-voltage, higher-bandwidth differential probe when your circuits are well below that voltage range and your main goal is better visibility into fast digital or switching behavior. This is a classic trade-off in differential probes: the DP-235 favors voltage capacity for power work, while lower-voltage high-bandwidth models favor signal-detail work.

Question 4

Should I buy the DP-235 or move up to a higher-voltage model like a 7 kV differential probe?

Accepted Answer

Buy the DP-235 if your expected differential voltage stays within its 2600 Vp-p range and you want a simpler fit for typical inverter, motor-control, and power-stage measurements. Move up to a 7 kV-class probe when your application has higher bus voltage, more headroom requirements, or you work across a wider mix of industrial power systems. The main trade-off is not general quality but operating range: the DP-235 fits moderate high-voltage work, while higher-voltage probes provide extra margin for more demanding systems.

Question 5

For motor drives and VFD work, is the DP-235 enough or should I get a faster probe?

Accepted Answer

The DP-235 is often enough when your priority is safely observing high-voltage waveforms in motor drives, VFD outputs, and similar power circuits, because these use cases typically prioritize voltage range and differential measurement capability first. A faster probe becomes the better choice when you need to inspect switching transitions in more detail, compare device behavior at the edge level, or capture more high-frequency content. In short: choose the DP-235 for routine power-stage diagnostics, and choose a faster model for deeper switching analysis.

Question 6

Is a differential probe like this better than using two standard probes and math subtraction?

Accepted Answer

Yes, for real high-voltage floating measurements, a dedicated differential probe is the safer and more appropriate choice. Two standard probes plus channel subtraction can work for some lower-risk cases, but it depends heavily on grounding, common-mode voltage, and oscilloscope setup. A purpose-built differential probe is the better buying decision when you need safer measurement across two non-ground-referenced points.

Question 7

What are the main trade-offs versus a premium differential probe from Tektronix, Keysight, or Siglent?

Accepted Answer

The main advantage of this PINTECH model is practical high-voltage capability with broad BNC compatibility in a simpler package. The trade-offs are lower bandwidth than many premium models, fewer signs of integrated scope features, and less evidence of premium ecosystem support such as auto-probe interfaces or advanced accessories. It is the better value choice for routine high-voltage bench work, while premium probes are better for faster signals, tighter integration, and more demanding measurement workflows.

Question 8

Who is this probe suitable for?

Accepted Answer

This probe is suitable for engineers, technicians, and advanced hobbyists who need to measure high-voltage differential signals on grounded oscilloscopes. It is a better fit for power electronics, motor drives, inverters, and switching circuits than for basic low-voltage bench work. Its 2600 V rating and differential design are useful when neither test point is at ground, but its 35 MHz bandwidth makes it a general-purpose high-voltage probe, not a high-speed signal integrity probe.

Question 9

Is 35 MHz enough, or should I buy a higher-bandwidth differential probe?

Accepted Answer

35 MHz is enough for many power-electronics and motor-control tasks, including general switching waveform checks and floating high-voltage measurements. It is not the best choice if you need fast edge fidelity, detailed switching transients, or higher-frequency digital and RF work. In short: buy this for high-voltage general diagnostics, not for high-speed precision analysis.

Question 10

Will it work with my oscilloscope?

Accepted Answer

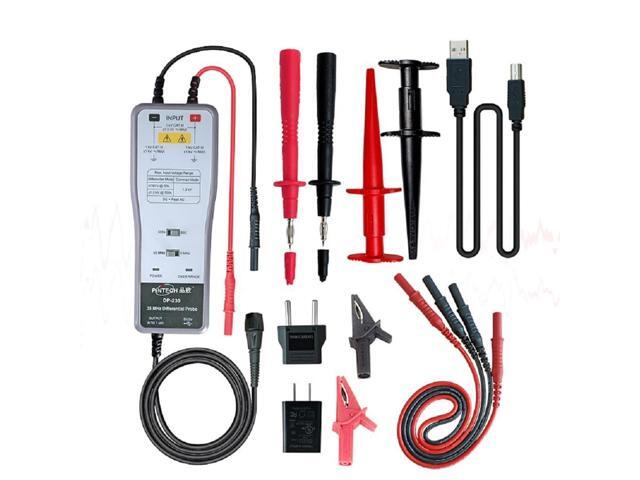

It should work with most oscilloscopes that have a standard BNC input, which makes it broadly compatible across brands. That said, compatibility is physical rather than smart-integrated: unlike some premium probes, this model does not appear to offer auto-scaling or auto-power interfaces, so you may need to set attenuation manually on the scope and use the included adapter/power arrangement.
