Questions & Answers: PINTECH High Voltage Probe for Oscilloscope, 34kV Max DC, 18kV Max AC, 50MHz, 1000:1 Attenuation Rate, Oscope Probe with BNC Connector, P6039A

double click image to zoom in

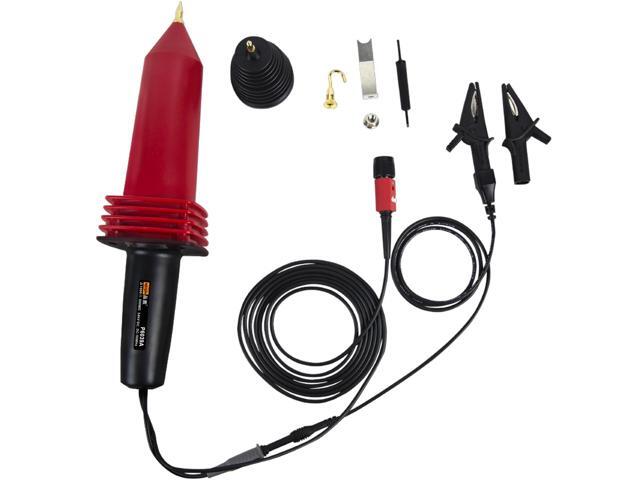

PINTECH High Voltage Probe for Oscilloscope, 34kV Max DC, 18kV Max AC, 50MHz, 1000:1 Attenuation Rate, Oscope Probe with BNC Connector, P6039A

Test Range: PINTECH P6039A high voltage probe measure current up to 34kV DC/18kV AC, for testing high voltage signals.
Accuracy DC:±3%; AC: 3% at 60Hz(0-10kV rms), 5% at 60Hz(10-20kV rms).
Attenuation Rate: 1000:1, the oscilloscope probe make your test safe.
Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes.
900M input impedance. The high voltage probe is small and exquisite, easy to carry and use.
