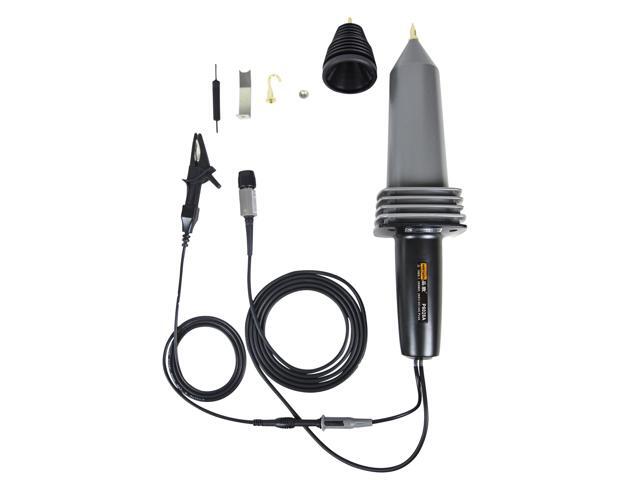

PINTECH High Voltage Probe for Oscilloscope, 28kV Max DC, 20kV Max AC, 75MHz, 1000:1 Attenuation Rate, Oscope Probe with BNC Connector, P6028A

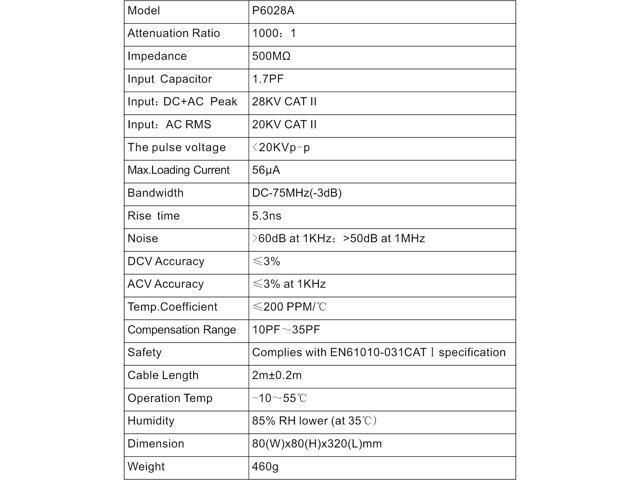

Test Range: PINTECH P6028A high voltage probe measure current up to 28kV DC/20kV AC, for testing high voltage signals.
Accuracy DC:±3%; AC: 3% at 60Hz(0-10kV rms), 5% at 60Hz(10-20kV rms).
Attenuation Rate: 1000:1, the oscilloscope probe make your test safe.
Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes.
500M input impedance. The high voltage probe is small and exquisite, easy to carry and use.
