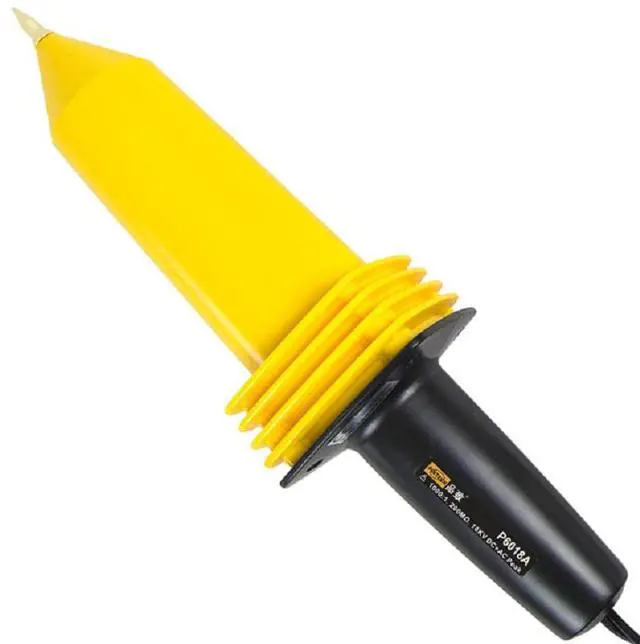

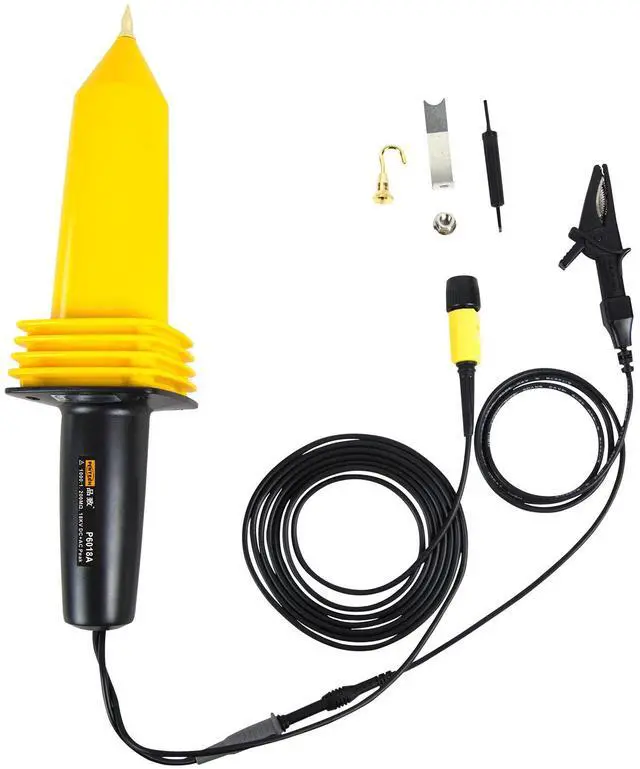

PINTECH High Voltage Probe for Oscilloscope, 18kV Max DC, 12kV Max AC, 100MHz, 1000:1 Attenuation Rate, Oscope Probe with BNC Connector, P6018A
- Test Range: PINTECH P6018A high voltage probe measure current up to 18kV DC/12kV AC, for testing high voltage signals.
- Accuracy DC:±3%; AC: 3% at 60Hz(0-10kV rms), 5% at 60Hz(10-20kV rms).
- Attenuation Rate: 1000:1, the oscilloscope probe make your test safe.
- Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes.
- 200M input impedance. The high voltage probe is small and exquisite, easy to carry and use.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

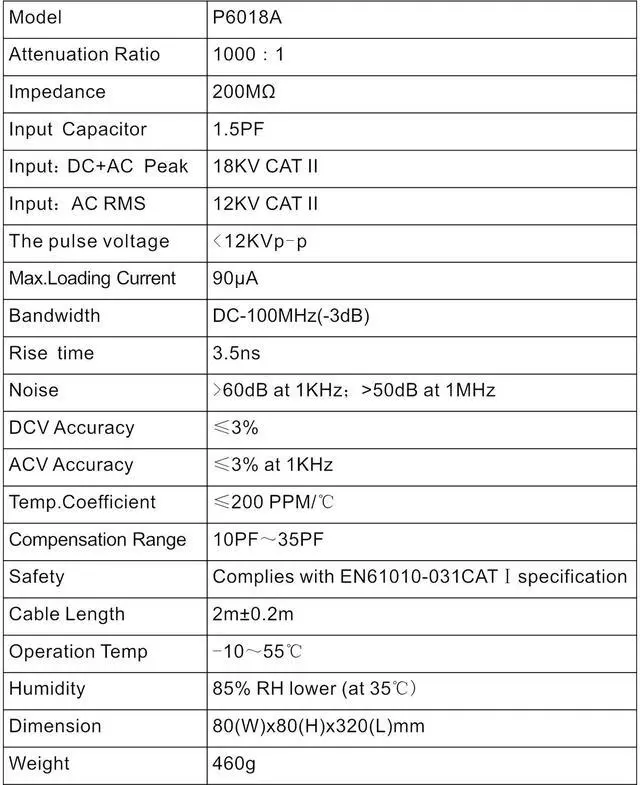

MODEL: P6018A
Input Impedance: 200M
Input Capacitance: 1.7pF
Attenuation Rate: 1000:1
Bandwidth: DC-100MHz(-3dB)
Max.DC+AC peak: 18kV/30 sec
Max.AC RMS: 12kV/30 sec
Rise Time: 3.5ns
DCV Accuracy: 3%
ACV Accuracy: 3% at 60Hz(0-10kV rms), 5% at 60Hz(10-20kV rms)
Max. Loading Current: 56A
Noise: >60dB at 1kHz; >50dB at 1MHz
Size: 80 x 80 x 320 mm
Weight: 460g/1lb
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH P6018A is a high-voltage oscilloscope probe with 1000:1 attenuation, designed for engineers, technicians, and electronics labs that need to measure high-voltage waveforms up to 18kV DC or 12kV AC on standard BNC-equipped oscilloscopes.
Recommended For
- Electronics technicians and lab users who need to view high-voltage waveforms on a standard BNC oscilloscope, especially for CRT, power supply, ignition, or other elevated-voltage troubleshooting where a 1000:1 probe is the expected workflow.
- Engineers who already understand grounded oscilloscope measurements and want a passive high-voltage probe for referenced measurements, including bench setups where proper grounding, compensation, and short ground leads are part of normal practice.
- Users measuring fast high-voltage signals rather than just mains-frequency levels, such as pulse or switching activity, where the category expectation is more bandwidth than a DMM-style high-voltage probe can provide.
- Repair and test users who move a probe between different oscilloscopes or channels and are comfortable re-compensating it, since this class of probe is used as an adjustable instrument rather than a plug-and-forget accessory.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Measuring high-voltage signals on oscilloscopes (up to 18 kV DC / 12 kV AC) where a 1000:1 attenuated input and standard BNC connection are required |
| Electrical Characteristics | Maximum ratings 18 kV DC and 12 kV AC with 1000:1 attenuation, input impedance 200 MΩ, accuracy ±3% (DC); AC accuracy 3% at 60Hz for 0–10 kV rms and 5% at 60Hz for 10–20 kV rms — attenuation reduces the voltage presented to the oscilloscope input for safer measurement |
| Frequency/Response | Bandwidth 100 MHz, suitable for measuring signals up to 100 MHz |
| Connector And Compatibility | Standard BNC connector for direct connection to oscilloscopes; described as compatible with oscilloscopes |
| Physical | Dimensions 80 x 80 x 320 mm; sold individually (Each) |
| Standards And Compliance | CE certified |
| Model Identifiers | PINTECH P6018A (type: Electrical Testing & Measuring) |
