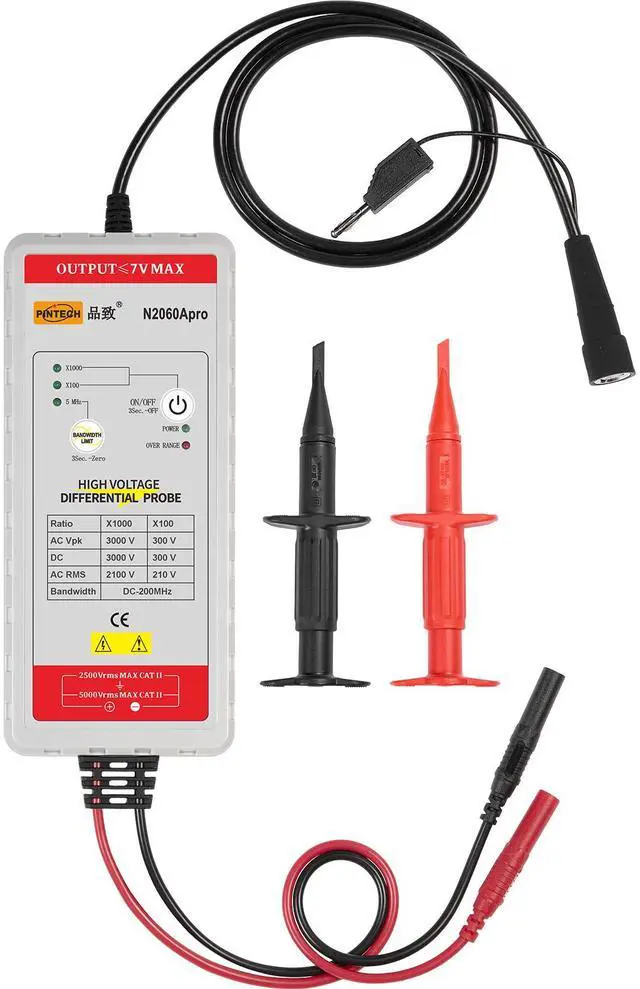

PINTECH Oscilloscope High Voltage Differential Probe Kit 200MHz, 6kV, 1000X/100X Attenuation Rate, Oscilloscope Probe Kit N2060Apro
Limited time offer, ends 03/18 By GUANGZHOU PINTECH CO LTD
- Rise Time: 1.75ns. This differential probe measures signals with very fast rise times.
- DC-200MHz, Accuracy:±1%, Attenuation Ratio: 1000X/100X. The built-in auto zero makes the design user-friendly.
- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes. The built-in 5MHz Bandwidth Limited makes it easy to operate.
- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.
- Package Included: N2060Apro differential probe x 1, Adapter x 1, Probe Hook x 2, BNC cable x 1, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

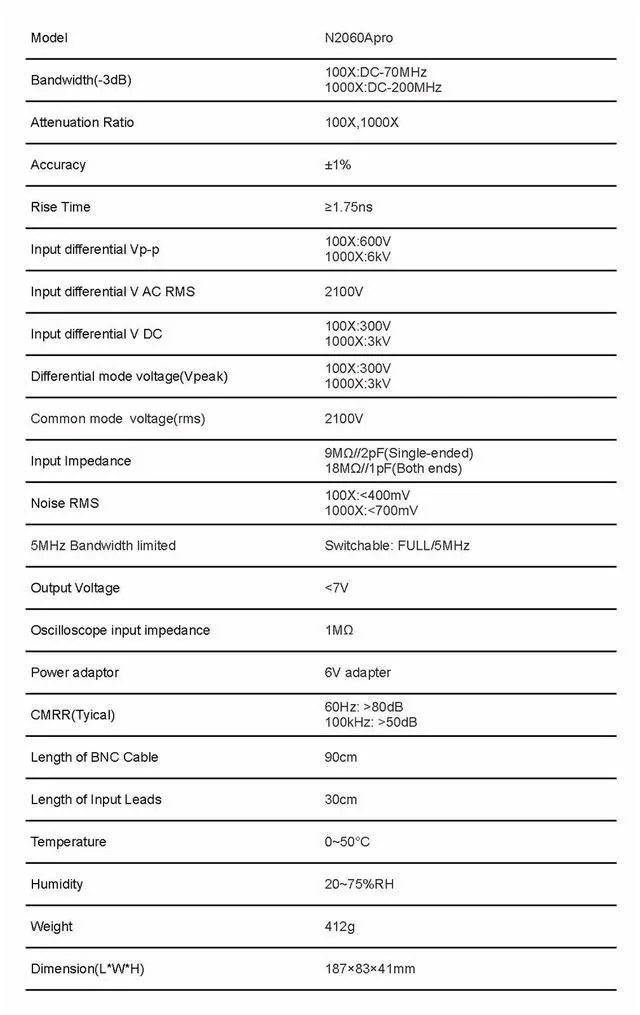

MODEL: N2060Apro
Bandwidth (-3dB): 100X: DC-70MHz; 1000X: DC-200MHz
Input Impedance: Between the two ends: 18M//1pF, Single-ended to ground: 9M//2pF
Attenuation Rate: 1000X/100X
Rising Time: 1.75ns
Output <7V
Accuracy: ±1%(After warming up for 3-5 minutes)
-Offset(typical): <±5mV
Oscilloscope Input Impedance: 1M
5MHz Bandwidth Limited:Yes
CMRR(typical): 60Hz:>80dB; 100kHz:>50dB
Testing Voltage(Vp-p):100X: 600V; 1000X: 6kV
Input DC Voltage: 100X: 300V; 1000X: 3kV
Differential-mode voltage(Vp-p):100X: 300V; 1000X: 3kV
RMS Value: 2100V
Common-mode voltage RMS: 2100V
Noise RMS: 100X: <400mV; 1000X: <700mV
Power Supply: 6V Power Adapter
BNC Length: 90 cm/35.43 in
Length of Input Length: 30 cm/11.81 in
Weight: 425g/0.94lb
Dimension(LxWxH): 187x83x41 mm
