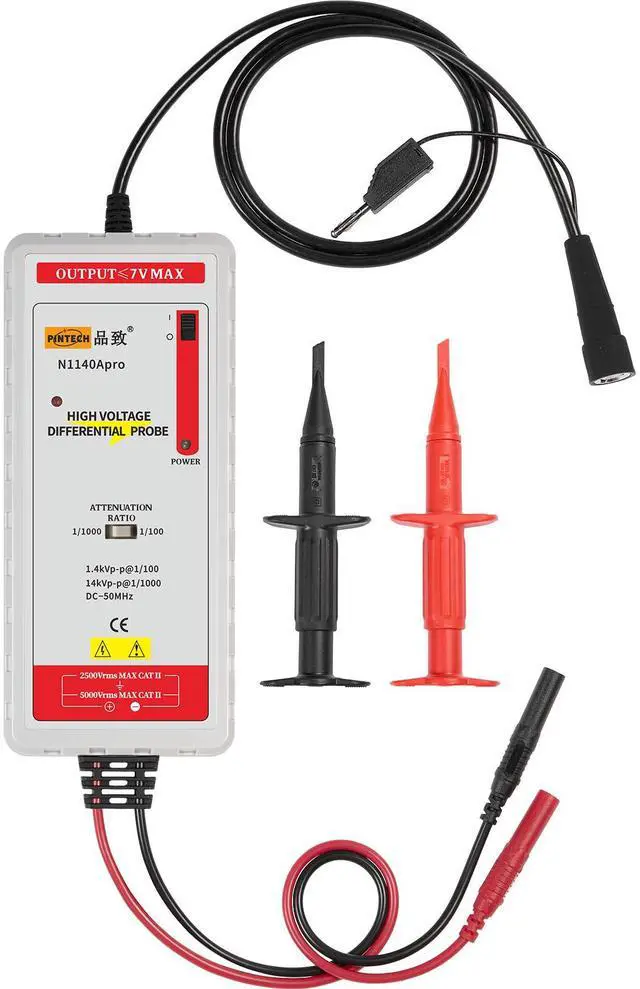

PINTECH Oscilloscope High Voltage Differential Probe Kit 50MHz, 14kV, 1000X/100X Attenuation Rate, 0.5% Accuracy, Oscilloscope Probe Kit N1140Apro
- Rise Time: 7ns. This differential probe's maximum measurement voltage can be up to 14kVp-p.DC-50MHz, Accuracy:±0.5%, Attenuation Ratio: 100X/1000X. The built-in auto zero makes the design user-friendly.
- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes.
- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.
- Package Included: N1140Apro differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

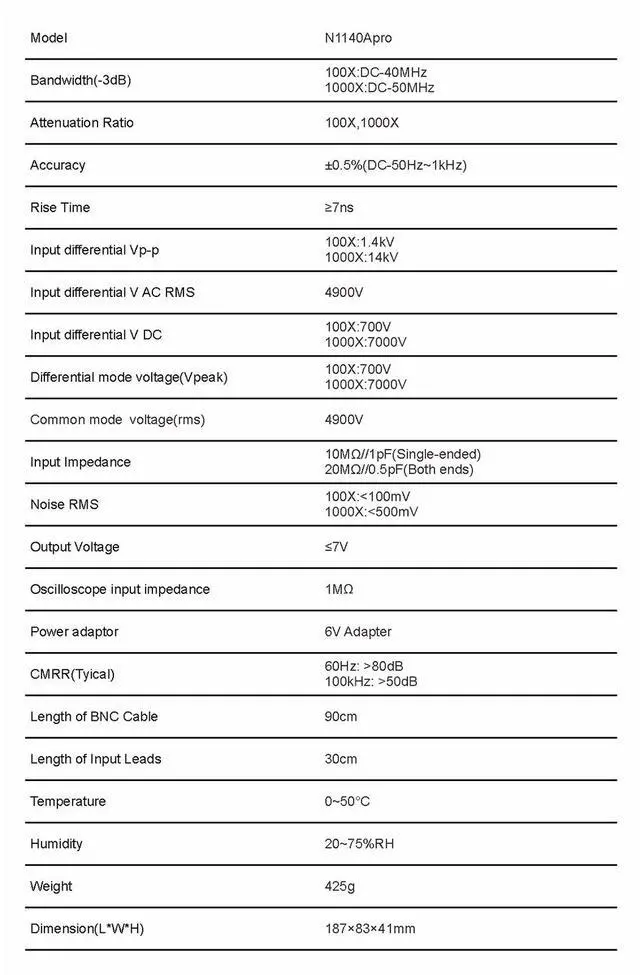

MODEL: N1140Apro
Bandwidth (-3dB): DC-50MHz
Input Impedance: Between the two ends: 36M//1pF, Single-ended to ground: 18M//2pF
Attenuation Rate: 1000X/100X
Rising Time: 7ns
Output(into 50k load) 7V
Accuracy: ±0.5%(DC-50Hz~1KHz)(After 1-2 minutes of warm-up)
-Offset(typical): <±5mV
Oscilloscope Input Impedance: 1M
CMRR(typical): 60Hz:>80dB;100kHz:>50dBB
Power Supply: 6V DC/300mA mains adaptor
BNC Length: 90 cm/35.43 in
Length of Input Length: 30 cm/11.81 in
Weight: 425g/0.94lb
Dimension(LxWxH): 187x83x41 mm
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH N1140Apro is a 50MHz high-voltage differential oscilloscope probe kit designed for engineers, technicians, and advanced electronics users who need to measure floating or high-side signals up to 14kVp-p with 100X/1000X attenuation and broad oscilloscope compatibility through BNC.
Recommended For
- Engineers and technicians debugging high-voltage floating nodes in motor drives, inverters, and other power electronics, where a standard ground-referenced probe would be unsafe or misleading.
- Lab users who need a brand-agnostic BNC differential probe for general oscilloscope work across mixed benches, especially when measuring high common-mode voltage without changing scope platforms.
- R&D and maintenance teams working on mains, DC bus, or other high-power circuits that need up to tens-of-MHz visibility to inspect switching edges and waveform shape rather than just low-frequency RMS behavior.
- Users comparing differential signals on sensitive circuits who want lower probe loading than a typical passive probe, especially when preserving waveform shape matters more than simple go/no-go checks.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Measuring differential and two-point signals with oscilloscopes and data-acquisition equipment; suited to testing general-purpose circuits and motor circuits |
| Model Identifiers | PINTECH N1140Apro, sold as a single unit |
| Product Type | Electrical testing and measuring equipment |
| Measurement Accuracy | ±0.5% accuracy specified for DC–50Hz to 1kHz |
| Physical | Compact enclosure measuring 187×83×41 mm |
| Compliance | CE certified |
