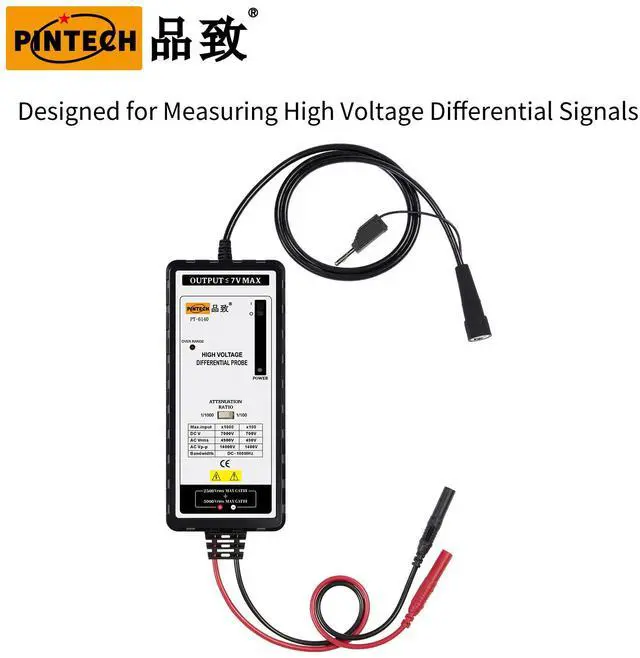

PINTECH Oscilloscope Probe 14kV, 100MHz High Voltage Differential Probe kit 3.5ns Rise Time 100X/1000X Attenuation Rate, PT-6140
- Rise Time: 3.5ns. This differential probe measures signals with very fast rise times.
- DC-100MHz. Accuracy (Typical):±2%, Attenuation Ratio: 100X/1000X.
- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes.
- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.

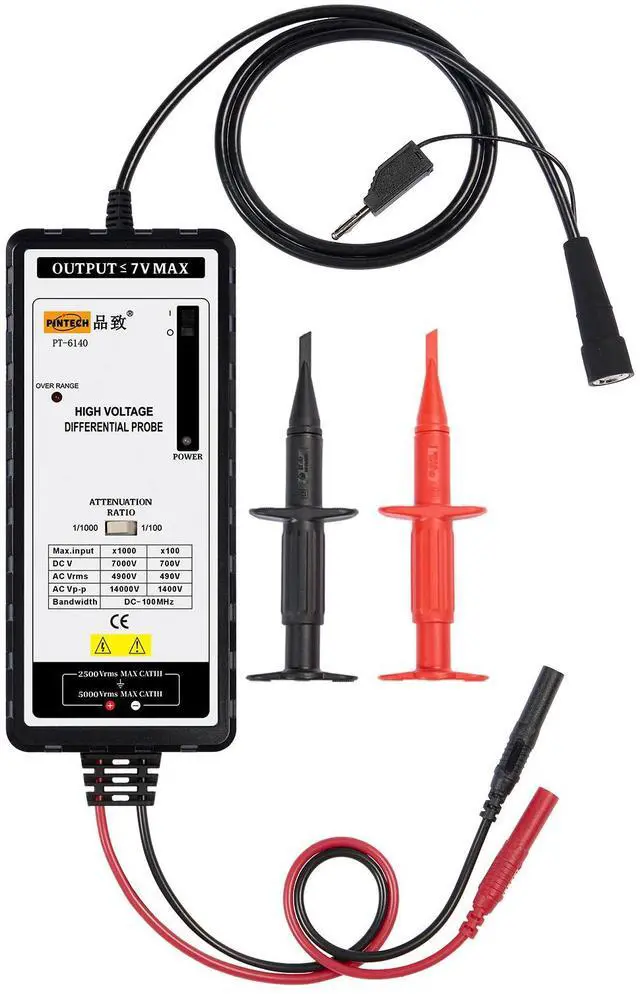

- Package Included: PT-6140 differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

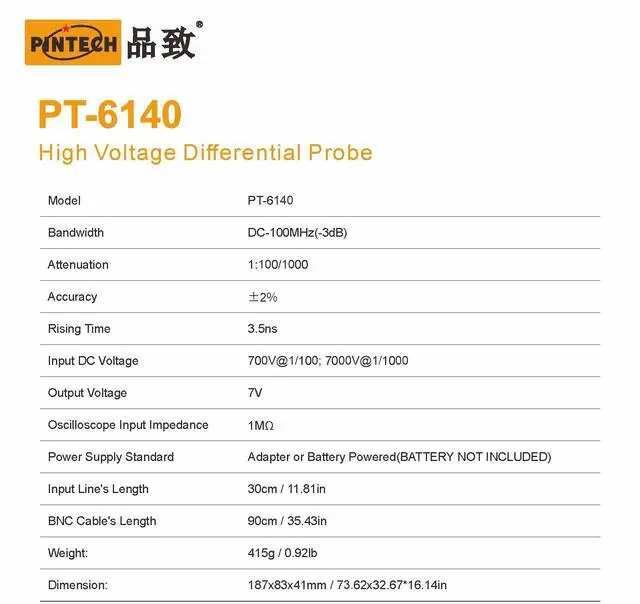

MODEL: PT-6140
Bandwidth (-3dB): 100X: DC-40MHz; 1000X: DC-100MHz
Attenuation Rate: 100X/1000X
Rising Time: 3.5ns
Testing Voltage(Vp-p): 100X: 1.4kV; 1000X: 14kV
Input DC Voltage: 100X: 700V; 1000X: 7kV
Accuracy: ±2%
CMRR: 50Hz:>80dB; 20kHz:>60dB
Common-mode voltage RMS: 4900V
Output impedance: 10M//1pF(Single-ended to ground); 20M//0.5pF(between the two ends)
Ouput Voltage: <7V
Noise RMS: 100X: <100mV; 1000X: <500mV
Oscilloscope Input Impedance: 1M
Power supply: Adapter-powered or battery-powered
Input Line Length: 30cm/11.81 inch
BNC Cable Length: 90cm/35.43 inch
Weight: 415g/0.92lb
Dimension(LxWxH): 187x83x41 mm
